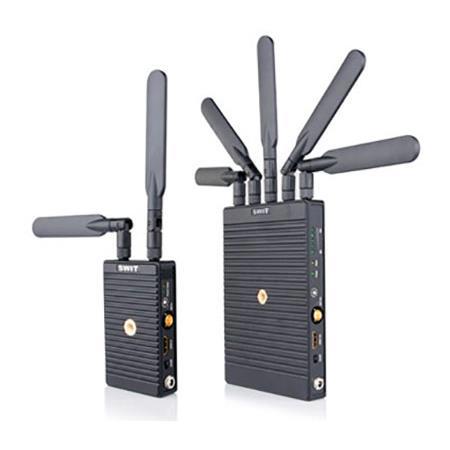

SWIT Electronics S-4914TF/S-4914RA Wireless System
See all Swit Electronics items

SWIT Electronics 700m (2300') LOS Uncompressed 3GSDI/HDMI Wireless System with Sony L Series Battery Plate on Transmitter & Gold Mount Plate on Receiver

SKU: SWTS4914FA

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

SWIT Electronics S-4914T/R Wireless System Specifications

  • Transmitter: Input

    1x 3G/HD/SD-SDI, 1x HDMI

  • Receiver: Output

    1x 3G/HD/SD-SDI, 1x HDMI

  • Receiver: SDI Format

    SMPTE-425M: 1080P (60 / 59.94 / 50)
    SMPTE-274M: 1080i (60 / 59.94 / 50),1080p (30 / 29.97 / 25 / 24 / 23.98)
    SMPTE-RP211: 1080psf (30 / 29.97 / 25 / 24 / 23.98)
    SMPTE-296M: 720p (60 / 59.94 / 50)
    SMPTE-125M: 480i (59.94)
    ITU-R BT.656: 576i (50)

  • Receiver: HDMI format

    1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
    1080i (60 / 59.94 / 50)
    720p (60 / 59.94 / 50)
    480i / 576i

  • Receiver: Wireless frequency

    5.1 - 5.9GHz

  • Receiver: Radio modules

    OFDM 16QAM

  • Receiver: Max. Transmission Distance

    Approx. 700m (Line of sight)

  • Receiver: Latency

    <=1 millisecond

  • Receiver: Power consumption

    <=6.5W

  • Transmitter: Radio power

    Max 21dBm (63mW)

  • Receiver: Input voltage

    DC/Battery: 6.5-17V

  • Receiver: Working Temperature

    0 to 40 deg. C (32 to 104 deg. F)

  • Transmitter: SDI Format

    SMPTE-425M: 1080P (60 / 59.94 / 50)
    SMPTE-274M: 1080i (60 / 59.94 / 50),1080p (30 / 29.97 / 25 / 24 / 23.98)
    SMPTE-RP211: 1080psf (30 / 29.97 / 25 / 24 / 23.98)
    SMPTE-296M: 720p (60 / 59.94 / 50)
    SMPTE-125M: 480i (59.94)
    ITU-R BT.656: 576i (50)

  • Transmitter: HDMI format

    1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
    1080i (60 / 59.94 / 50)
    720p (60 / 59.94 / 50)
    480i / 576i

  • Transmitter: Wireless frequency

    5.1 - 5.9GHz

  • Transmitter: Radio modules

    OFDM 16QAM

  • Transmitter: Max. Transmission Distance

    Approx. 700m (Line of sight)

  • Transmitter: Latency

    <=1 millisecond

  • Transmitter: Power consumption

    <=6.5W

  • Transmitter: Input voltage

    DC/Battery: 6.5-17V

  • Transmitter: Working Temperature

    0 to 40 deg. C (32 to 104 deg. F)

  • Dimensions

    Transmitter: 71 x 120 x 37mm (2.80 x 4.72 x 1.46")
    Receiver: 130 x 188 x 47mm (5.12 x 7.40 x 1.85")

  • Weight

    Transmitter (with antenna): 300g (10.58oz)
    Receiver (with antenna): 797g (28.11oz)

About SWIT Electronics S-4914T/R Wireless System

S-4914 is the broadcast industry wireless system, includes an S-4914T transmitter and an S-4914R receiver (Gold-Mount), with WHDI (OFDM) technology, supports uncompressed 3G/HD/SD-SDI and HDMI wirelessly transmitted in 700 meters scale and with less than 1ms latency. The system is pure hardware connection, plug and play build-up, which is widely used in on-site shooting and director monitoring.

• Professional WHDI (MIMO/OFDM) technology
• Uncompressed 3G/HD-SDI and HDMI wireless
• 2-ch SDI/HDMI embedded audio transmission
• 700 meters (LOS) transmission distance
• Less than 1ms latency
• 5.1-5.9GHz license-free operation frequency
• User configurable frequency bands
• Multicast - 1 transmitter to multi receivers
• Less than 63mW radio power
• AES 256bit encryption
• Mini transmitter designed for HDV camcorder
• Gold-Mount plate S-4914R receiver
• Various DV plates option for S-4914T transmitter
• All-metal housing, durable
• Pure hardware connection; Plug and Play

Power Supply
The transmitter S-4914T is compact size designed and equipped with DV plates to be powered by standard DV camera batteries. The receiver S-4914R is equipped with Gold mount plates to be powered by batteries. Both the transmitter and receiver can also be powered via the 5.5/2.1mm pole DC in socket of 6.5-17V input.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • SWIT Electronics S-4914T Transmitter with Sony L Series Battery Plate
  • S-4914R Receiver with Gold-Mount
  • 10x Antennas
  • Articulating Arm Trestle
  • Crab Clamp
  • D-Tap to 5.5/2.1mm Pole Cable
  • 5.5/2.1mm Pole Power Adaptor
  • Power Cable
  • 2x Flat Screwdriver (for Band Configuration)
  • SWIT Electronics 2 Year Warranty
