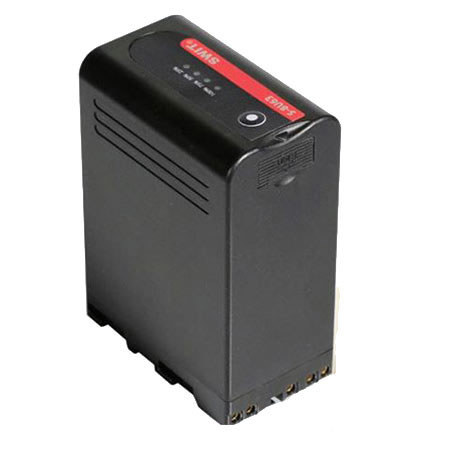

SWIT Electronics S-8U63 Battery for Sony PMW-EX1/EX3/F3/100/200/300, PXW-X160/180/200, and the Latest PXW-FS7/FS5

The SWIT S-8U63 is a 14.4V, 63Wh Li-ion DV battery that completely compatible with Sony PMW-EX1/EX3/F3/100/200/300, PXW-X160/180/200, and the latest PXW-FS7/FS5, without DC cable and can display remaining power info on cameras. The battery offers a D-tap DC socket for extension power output and a 5V/1A USB socket for mobile devices (cell phone, etc.) charging.

The 4-level LED indicator can give you a quick view of remaining power before using and the strong housing, intelligent circuit will protect the battery from shocking, abnormal current, voltage and temperature.

Please Note: Regarding D-tap DC out on S-8U93, when using this battery for FS7, the S-7105 90° D-tap connector is needed since D-tap DC output is blocked by FS7 body.

63Wh / 4.4Ah High Capacity
With 14.4V nominal voltage, the S-8U63 has 63Wh / 4.4Ah capacity, higher than the original battery, and can run approx 4.5 hours on SONY PMW-200 camcorder when LCD monitor is on.

Build-in D-tap DC Output Socket
A D-tap DC output socket is equipped on the side of S-8U63 battery, for DC14.4V (Nominate) connection. You can connect on-camera LED light, monitor or wireless transmitter on the D-tap socket, and get power simultaneously with camera. The Max power from D-tap is 50W, 3.5A. The D-tap socket can also be used as charging input, by SWIT portable charger S-3010B. (For FS7, S-7105 90° connector is required).

Build-in 5V/1A USB Socket
Use S-8U63 as Power Station to your cell phone! It's rather a fantastic function to have a USB socket on the DV battery! Connect your smart phone or pad to the USB socket, press the "Check" button, and then the S-8U63 starts to output 5V/1A power to charge your devices!

4-level LED Power Indicator
The S-8U63 battery has the 4-level LED power indicators to check the battery remaining capacity. You can get a quick view of capacity before using. The "Check" button can also be used to trigger USB charging.

Easy Charging
The S-8U63 can be charged on SWIT Dual channel charger S-3602U or Sony original charger BC-U1 single channel charger. It takes about 2 hours and 50minutes to charge from empty to 100%. And you can also use SWIT S-3010B Portable D-tap Charger for S-8U63. It will take 3 hours to fully charge.
