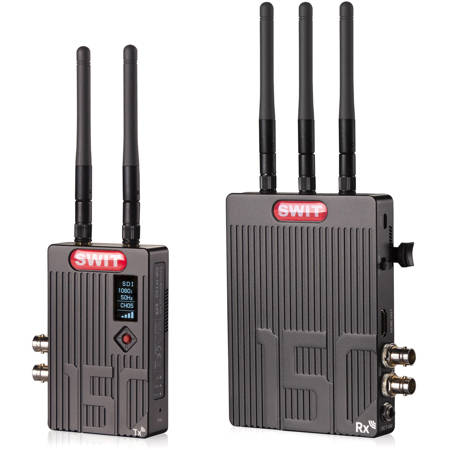

SWIT Electronics SW-M150 SDI & HDMI 150m Wireless System, Includes Transmitter, Receiver and Articulating Arm Trestle

SDI & HDMI 150 meters (LOS)
SW-M150 wireless system is based on WHDI wireless technology, 5.1-5.9GHz license free bands, DFS comply, , supports uncompressed 3G/HD-SDI and HDMI (Max 1080p60) to transmit 150 meters (Line-of-Sight) distance and less than 1 millisecond latency. The system is pure hardware connection, plug and play, which is widely used in director monitoring, drone, ropeway camera, steadicam etc.

150m Transmission

Non-compressed, <=1ms latency
In Line-of-Sight, SW-M150 supports non-compressed 3G/HD-SDI and HDMI 150 meters (500 feet) transmission, with less than 1 millisecond latency. SW-M150 supports SDI & HDMI embedded audio (CH1&2) transmission and supports SDI Timecode & Trigger transmission.

OLED Display & Channel Switch

DFS comply
Both Tx and Rx are equipped with OLED to display signal format, wireless channel number and signal strength. On the Tx, push the joystick up/down to switch wireless channels from CH0 to CH10 and indicates the signal bars. When changing to a new channel, the paired Rx will follow the new channel automatically. On the Rx, push the joystick right to enter wireless condition analysis and after 10 seconds, the OLED will display the signal strength of all 11 wireless channels and helps to select a best channel to work. Support 3-4 pairs wireless channels to work together in one location.

Chip Level Encryption
The Transmitter and Receiver need to pair and work encrypted. Supports Max 1 to 4 multicast. Any unpaired receivers can't been connected with the Transmitter, in order to protect the camera footages.

Instant Playback Mode
Some of the cine cameras like Alexa Mini, Red Raven, when operate playback on the camera, the output SDI clock was interrupted and will break the wireless video transmission. SW-M series provide the "Instant Playback" mode, to support the constant wireless video receiving. On the Tx, push the joystick right to enter menu and set "InsPB" to "ON", to switch on the "Instant Playback" Mode.

Accurate Color Reproduction
Due to the wireless chip limitation, the normal wireless systems cannot truly reproduce colors. SW-M series made particular algorithm modifications, to ensure a broadcast level accurate color reproduction.
