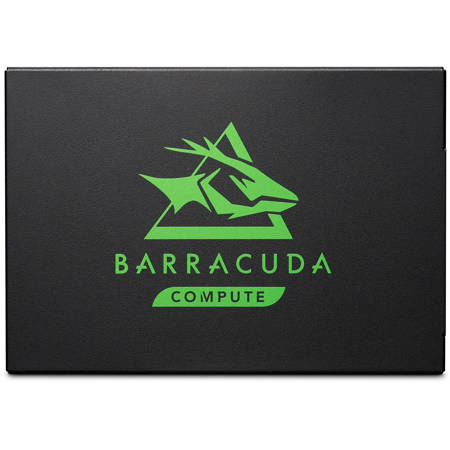

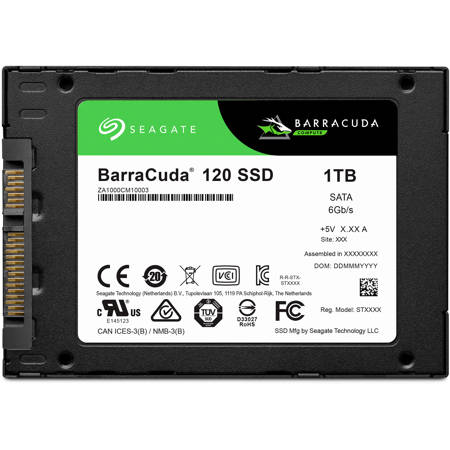

Seagate BarraCuda 120 1TB SATA III 2.5" Internal SSD

SKU: SX1CM1A003

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Seagate BarraCuda 120 Specifications

General

General

Jump to...
  • Capacity

    1TB

  • Interface

    SATA 6 Gb/s

  • NAND Flash Memory

    3D TLC

  • Form Factor

    2.5" x 7mm

Performance

Jump to...
  • Sequential

    Read (Max, MB/s), 128KB: 560
    Write (Max, MB/s), 128KB: 540

  • Random

    Read (Max, IOPS), 4KB QD32: 90,000
    Write (Max, IOPS), 4KB QD32: 90,000

Endurance/Reliability

Jump to...
  • Total Bytes Written (TB)

    600

  • Mean Time Between Failures

    1,800,000 (MTBF, hours)

Power Management

Jump to...
  • Active Power, Average (W)

    2.7

  • Idle Power, Average (mW)

    120

  • DevSleep (mW)

    5

Environmental

Jump to...
  • Temperature Operating Internal

    32 Degree to 158 Degree F (0 Degree to 70 Degree C)

  • Temperature Non-operating

    -40 Degree to 185 Degree F (-40 Degree to 85 Degree C)

  • Shock, Non-operating: 0.5 ms (Gs)

    1500

Special Features

Jump to...
  • TRIM

    Yes

  • S.M.A.R.T.

    Yes

  • Halogen-free

    Yes

  • RoHS compliance

    Yes

System Requirement

Jump to...
  • System Requirements

    SATA 6 Gb/s or SATA 3 Gb/s port
    Windows 10
    Windows 8.1
    Windows 7
    Linux

Best-Fit Applications

Jump to...
  • Best-Fit Applications

    Desktops and all-in-one PCs
    Laptops
    Home servers
    Gaming PCs

Battery

Jump to...
  • Battery Info

    No battery used

  • Battery Material

    -

  • Battery Quantity

    0

  • Battery Type

    -

Physical

Jump to...
  • Dimensions (H x W x D)

    0.27 x 2.7 x 3.9" (7.10 x 70.1 x 100.3mm)

  • Weight

    1.7 oz (50g)

About Seagate BarraCuda 120

Speed Up Your Computer
Take your data to the next level of performance, reliability, and efficiency with one of our Seagate BarraCuda solid-state drives.

BarraCuda SSD solutions come in both 2.5 SATA and M.2 2280 form factors, perfect for ultra thin and ultra small laptops, mini PCs, and desktop PCs that need next-level SSD speed for accelerated applications and multitasking.

BarraCuda 120 SSD
Advanced Speed
Unlock maximum SATA 6 Gb/s SSD speeds with 3D TLC NAND that delivers the speed you need.

Coveted Versatility
Easily upgrade from hard drives with a plug-and-play 2.5 inch 7 mm form factor and SATA interface.

Proven Reliability
Take advantage of a 5-year limited warranty, 1.8M hours MTBF, and 600 TB TBW.

Benefit From SeaTools
SeaTools SSD is our free software that tests and analyses drives. It is completely data safe and easily installs on your system.

Use it for:
• Health Monitoring
• Drive Maintenance
• Overall Monitoring

Insure Your Drive
A Rescue Data Recovery Services plan is available for purchase when you register your BarraCuda drive.You'll have access to a global team of world-class data recovery experts in case of unexpected data loss.

Seagate BarraCuda 120 Features

  • Unlock maximum SATA 6 Gb/s SSD speeds with 3D TLC NAND that delivers up to 560/540 MB/s sequential read/write and up to 90K IOPS random read/write
  • Easily upgrade from hard drives with a plug-and-play 2.5-inch, 7 mm form factor and SATA interface
  • Achieve endurance and reliability with 600 TB Total Bytes Written and, 800,000 hours Mean Time Between Failures
  • Seagate has been the industry leader in compute storage for over 40 years, because we're committed to data storage excellence
  • 1TB capacity
  • Download our free SeaTools SSD software to take advantage of drive performance reporting, S.M.A.R.T. attributes, health monitoring, firmware updates, diagnostics, and managing logs

Key Features

  • Easily upgrade from hard drives with a plug-and-play 2.5-inch, 7 mm form factor and SATA interface
  • 1TB capacity

What's in the box:

  • Seagate BarraCuda 120 1TB SATA III 2.5" Internal SSD
  • Seagate 5 Year Limited Warranty
