Seagate BarraCuda 510 Specifications

General

General

Jump to...
  • Capacity

    1TB

  • Interface

    PCIe Gen3 x4, NVMe1.3

  • NAND Flash Memory

    3D TLC

  • Form Factor

    M.2 2280-S

Performance

Jump to...
  • Sequential

    Read (Max, MB/s), 128KB: 3,400
    Write (Max, MB/s), 128KB: 3,000

  • Random

    Read (Max, IOPS), 4KB QD32 T8: 600,000
    Write (Max, IOPS), 4KB QD32 T8: 600,000

Endurance/Reliability

Jump to...
  • Total Bytes Written (TB)

    640

  • Mean Time Between Failures

    1,800,000 (MTBF, hours)

Power Management

Jump to...
  • Active Power, Average (W)

    5.3

  • Idle Power PS3, Average (mW)

    30

  • Low Power L1.2 mode (mW)

    2

Environmental

Jump to...
  • Temperature Operating Internal

    32 Degree to 158 Degree F (0 Degree to 70 Degree C)

  • Temperature Non-operating

    -40 Degree to 185 Degree F (-40 Degree to 85 Degree C)

  • Shock, Non-operating: 0.5 ms (Gs)

    1500

Special Features

Jump to...
  • TRIM

    Yes

  • S.M.A.R.T.

    Yes

  • Halogen-free

    Yes

  • RoHS compliance

    Yes

System Requirement

Jump to...
  • System Requirements

    M.2 (M key) slot
    PCIe G3 x 4 interface
    Windows 10
    Windows 8.1
    Windows 7
    Linux

Best-Fit Applications

Jump to...
  • Best-Fit Applications

    Ultra-thin laptops
    Business PCs and laptops
    Workstations and all-in-one PCs

Battery

Jump to...
  • Battery Info

    No battery used

  • Battery Material

    -

  • Battery Quantity

    0

  • Battery Type

    -

Physical

Jump to...
  • Dimensions (L x W x H)

    3.15 x 0.87 x 0.08" (80.15 x 22.15 x 2.23mm)

  • Weight

    0.30 oz (8.7g)

About Seagate BarraCuda 510

Speed Up Your Computer
Take your data to the next level of performance, reliability, and efficiency with one of our Seagate BarraCuda solid-state drives.

BarraCuda SSD solutions come in both 2.5 SATA and M.2 2280 form factors, perfect for ultra thin and ultra small laptops, mini PCs, and desktop PCs that need next-level SSD speed for accelerated applications and multitasking.

BarraCuda 510 SSD
Ultrafast Speed
Unleash the performance of PCIe NVMe speeds that are 6 x faster than SATA SSD.

Dynamic Versatility
Upgrade ultra-thin laptops as well as mini and desktop PCs with an M.2 SSD.

Solid Reliability
Leverage a 5-year warranty, 1.8M hours MTBF, and 640 TB total bytes written.

Benefit From SeaTools
SeaTools SSD is our free software that tests and analyses drives. It is completely data safe and easily installs on your system.

Use it for:
• Health Monitoring
• Drive Maintenance
• Overall Monitoring

Insure Your Drive
A Rescue Data Recovery Services plan is available for purchase when you register your BarraCuda drive.You'll have access to a global team of world-class data recovery experts in case of unexpected data loss.

Seagate BarraCuda 510 Features

  • Amazing speed with next-level 3D TLC NAND and a PCIe Gen3 x 4, NVMe 1.3 unlock sequential read/write speeds of 3400/3000 MB/s
  • MTBF of 1.8M hours
  • Amazing versatility with capacity of 1 TB lets you pick the right drive for the job and budget
  • Slim form factor with single-sided M.2 2280 for ultra-thin/ultra-small laptops, miniPCs, and desktop PCs
  • Low power consumption with up to 5.3W active power and multiple low power modes make for longer battery life and cooler running speeds

Key Features

  • Amazing Speed
  • MTBF of 1.8M hours
  • Amazing Versatility
  • Slim Form Factor
  • Low Power

What's in the box:

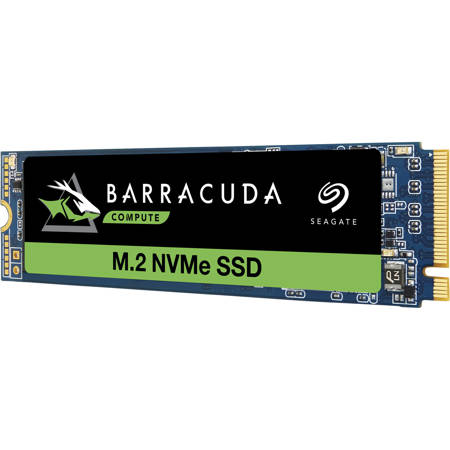

  • Seagate BarraCuda 510 1TB M.2 PCIe NVMe Internal SSD
  • Seagate 5 Year Limited Warranty
