Seagate BarraCuda 510 500GB NVMe PCIe 3.0 x4 M.2 Internal SSD

SKU: SX500CM3A001

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Seagate BarraCuda 510 Specifications

General

General

Jump to...
  • Capacity

    500GB

  • Interface

    PCIe Gen3 x4, NVMe1.3

  • NAND Flash Memory

    3D TLC

  • Form Factor

    M.2 2280-S

Performance

Jump to...
  • Sequential

    Read (Max, MB/s), 128KB: 3,400
    Write (Max, MB/s), 128KB: 2,400

  • Random

    Read (Max, IOPS), 4KB QD32 T8: 410,000
    Write (Max, IOPS), 4KB QD32 T8: 540,000

Endurance/Reliability

Jump to...
  • Total Bytes Written (TB)

    320

  • Mean Time Between Failures

    1,800,000 (MTBF, hours)

Power Management

Jump to...
  • Active Power, Average (W)

    4.6

  • Idle Power PS3, Average (mW)

    16

  • Low Power L1.2 mode (mW)

    2

Environmental

Jump to...
  • Temperature Operating Internal

    32 Degree to 158 Degree F (0 Degree to 70 Degree C)

  • Temperature Non-operating

    -40 Degree to 185 Degree F (-40 Degree to 85 Degree C)

  • Shock, Non-operating: 0.5 ms (Gs)

    1500

Special Features

Jump to...
  • TRIM

    Yes

  • S.M.A.R.T.

    Yes

  • Halogen-free

    Yes

  • RoHS compliance

    Yes

System Requirement

Jump to...
  • System Requirements

    M.2 (M key) slot
    PCIe G3 x 4 interface
    Windows 10
    Windows 8.1
    Windows 7
    Linux

Best-Fit Applications

Jump to...
  • Best-Fit Applications

    Ultra-thin laptops
    Business PCs and laptops
    Workstations and all-in-one PCs

Physical

Jump to...
  • Dimensions (L x W x H)

    3.15 x 0.87 x 0.08" (80.15 x 22.15 x 2.23mm)

  • Weight

    0.30oz (8.7g)

About Seagate BarraCuda 510

Speed Up Your Computer
Take your data to the next level of performance, reliability, and efficiency with one of our Seagate BarraCuda solid-state drives.

BarraCuda SSD solutions come in both 2.5 SATA and M.2 2280 form factors, perfect for ultra thin and ultra small laptops, mini PCs, and desktop PCs that need next-level SSD speed for accelerated applications and multitasking.

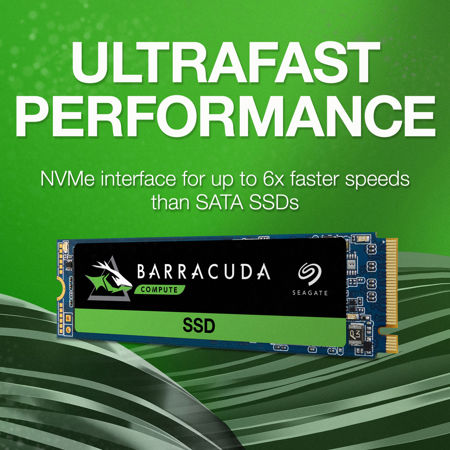

BarraCuda 510 SSD
Ultrafast Speed
Unleash the performance of PCIe NVMe speeds that are 6 x faster than SATA SSD.

Dynamic Versatility
Upgrade ultra-thin laptops as well as mini and desktop PCs with an M.2 SSD.

Solid Reliability
Leverage a 5-year warranty, 1.8M hours MTBF, and 320 TB total bytes written.

Benefit From SeaTools
SeaTools SSD is our free software that tests and analyses drives. It is completely data safe and easily installs on your system.

Use it for:
• Health Monitoring
• Drive Maintenance
• Overall Monitoring

Insure Your Drive
A Rescue Data Recovery Services plan is available for purchase when you register your BarraCuda drive.You'll have access to a global team of world-class data recovery experts in case of unexpected data loss.

Seagate BarraCuda 510 Features

  • Amazing speed with next-level 3D TLC NAND and a PCIe Gen3 x 4, NVMe 1.3 unlock sequential read/write speeds of 3400MB/s, 2400MB/s
  • MTBF of 1.8M hours
  • Amazing versatility with capacity of 500GB lets you pick the right drive for the job and budget
  • Slim form factor with single-sided M.2 2280 for ultra-thin/ultra-small laptops, miniPCs, and desktop PCs
  • Low power consumption with up to 5.3W active power and multiple low power modes make for longer battery life and cooler running speeds

Key Features

  • Amazing Speed
  • MTBF of 1.8M hours
  • Amazing Versatility
  • Slim Form Factor
  • Low Power

What's in the box:

  • Seagate BarraCuda 510 500GB M.2 PCIe NVMe Internal SSD
  • Seagate 5 Year Limited Warranty
