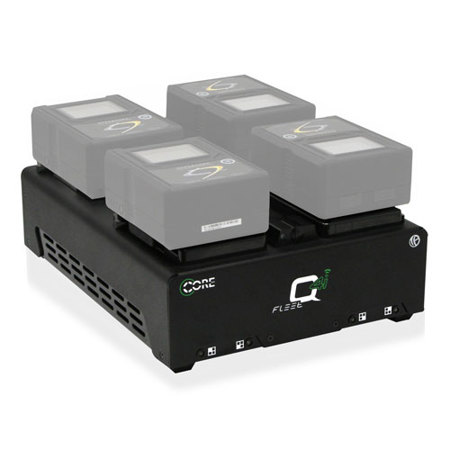

Core SWX Fleet-Q4Ai Four Position Fast Simultaneous Li-Ion Charger with Voltbridge Wireless, Gold Mount

SKU: SXFLEETQ4AI MFR: FLEET-Q4AI
Earn VIP Reward Points

Key Features

  • Simultaneously charge up to four Gold Mount Li-Ion batteries with this fast Core SWX charger.
  • Utilize the Voltbridge Wireless feature for remote monitoring of your battery charge status.
  • The Fleet-Q4Ai's 3A charge current ensures your professional video batteries are ready quickly.
  • Enjoy durable aluminum construction, designed for location or studio video production use.
  • Power your equipment via the 4-Pin XLR output with a DC voltage range of 12 to 16V.
  • Manage and monitor charging via Micro-USB with this intelligent video battery charger.
See More Product Details
Special Order?Estimated to Ship: 08/19/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$89.99

3 Year

$109.99

4 Year

$139.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Core SWX Fleet-Q4Ai Specifications

  • Number of Bays

    4x Gold Mount

  • Input / Output Connectors

    Management: 1x Micro-USB
    Power Output: 1x 4-Pin XLR

  • Charging Type

    Simultaneous

  • Charge Current

    3 A

  • Discharge Current

    Up to 2 A per Channel

  • Wireless Protocols

    Bluetooth

  • Input Voltage

    90 to 240 VAC, 50/60 Hz

  • Output Voltage

    4-Pin XLR: 12 to 16 VDC

  • Material

    Aluminum

  • Dimensions

    9.1 x 3.4 x 12.2" (23.1 x 8.6 x 30.9cm)

  • Weight

    5 lb (2.3kg)

  • UPC Code

    192223147249

About Core SWX Fleet-Q4Ai

For professionals seeking a powerful and reliable battery charging solution, the Fleet-Q4Ai Four Position Fast Simultaneous Li-Ion Charger with Voltbridge Wireless, Gold Mount is an advanced and high-tech choice. This durable charger is part of the esteemed Fleet Micro Q and Fleet Q "i" series, renowned for their cutting-edge technology and superior battery management capabilities.

This charger is not just a device, but a comprehensive battery management system for your entire "Fleet" of batteries. It stands out as one of the fastest chargers in the industry, capable of charging four 98wh packs in under 2.5 hours. The charger also features a unique TEST mode, which allows you to assess battery health and recharge performance.

The Fleet-Q4Ai Charger is equipped with a micro USB port on the rear of the unit, enabling you to view and manage battery data via a PC application. This micro USB port also serves as an input for future firmware upgrades, which are freely downloadable from the web.

The Fleet Intelligent Charger Series includes a SafeFly mode, a one-touch operation that prepares all connected battery packs for air travel or shipment by either charging them to up to 30% or discharging them to under 30%, depending on their current state of charge. This feature can also be applied to a single connected pack.

The Fleet-Q4Ai Charger is highly cross-compatible, capable of addressing not only CoreSWX battery packs but also those offered by RED, Anton/Bauer, and many more. Once a battery pack is connected, the charger first determines the pack's chemistry, make, and model to optimally charge it. It can simultaneously and automatically do this for up to four packs, thanks to its microprocessor-driven circuit design.

The charger includes a 90w DC 4-pin XLR power supply to power most cameras and doubles as a battery bank in "Hypercine" power supply mode, providing unregulated 12v-16.8v DC. The charger's LCD reports back available capacity as well as remaining runtime. With the optional "Hypercine module," the charger provides both unregulated 12v-16.8v 4-pin XLR, as well as 28v regulated 3-pin XLR DC outputs.

In summary, the Fleet-Q4Ai Four Position Fast Simultaneous Li-Ion Charger with Voltbridge Wireless, Gold Mount is a robust, efficient, and versatile charging solution for professionals in the field of photography and videography.

Core SWX Fleet-Q4Ai Features

  • Fast simultaneous charging with four 98wh packs in under 2.5 hours
  • Advanced battery management with TEST mode for health and performance evaluation
  • Voltbridge Wireless technology for remote battery data management via PC
  • SafeFly mode for easy preparation of batteries for air travel or shipping
  • Compatible with CoreSWX, RED, Anton/Bauer battery packs and more
  • Dual-function as a charger and battery bank with optional Hypercine module for extended outputs

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Simultaneously charge up to four Gold Mount Li-Ion batteries with this fast Core SWX charger.
  • Utilize the Voltbridge Wireless feature for remote monitoring of your battery charge status.
  • The Fleet-Q4Ai's 3A charge current ensures your professional video batteries are ready quickly.
  • Enjoy durable aluminum construction, designed for location or studio video production use.
  • Power your equipment via the 4-Pin XLR output with a DC voltage range of 12 to 16V.
  • Manage and monitor charging via Micro-USB with this intelligent video battery charger.

What's in the box:

  • Fleet-Q4Ai Four Position Fast Simultaneous Li-Ion Charger with Voltbridge Wireless (Gold Mount)
  • Core SWX 3 Year Limited Warranty
