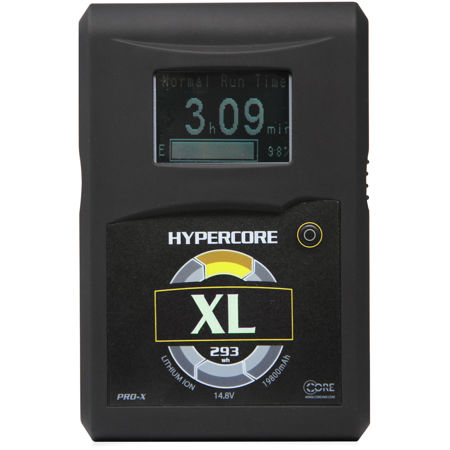

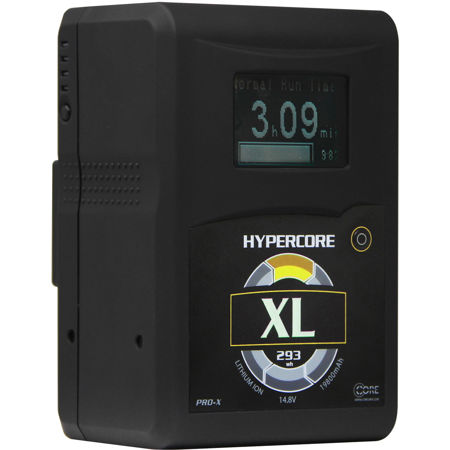

Core SWX Hypercore XL 14.8V 293Wh 3-Stud Gold Mount Hi-Draw Li-Ion Battery, 19.8Ah

SKU: SXHCXLAG MFR: HCXL-AG
Earn VIP Reward Points

Key Features

  • Power your pro video shoots with this high-draw 293Wh Gold Mount Li-Ion battery.
  • Get extended runtimes with the impressive 19.8Ah capacity of this Core SWX battery.
  • This 14.8V lithium-ion battery supports a 15A continuous draw, 20A peak for 2 seconds.
  • Charge devices via the integrated USB port; this battery adds power versatility on set.
  • Monitor power levels easily; this reliable battery ensures you're always ready to film.
  • Enjoy broad compatibility; this Gold Mount battery integrates seamlessly with pro gear.
See More Product Details
Special Order?Estimated to Ship: 08/19/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$64.99

3 Year

$99.99

4 Year

$129.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?JOSIAH D : Huge capacity for Steadicam Gimbal work where it can also act as a counterweight

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Core SWX Hypercore XL Specifications

  • Mount / Series Type

    Gold Mount

  • Chemistry

    Lithium-Ion

  • Capacity (Wh)

    293 Wh

  • Amp-Hours

    19,800 mAh

  • Output Voltage

    14.8 VDC

  • Maximum Load

    15A, 20A peak for up to 2s

  • Accessory Port

    1x D-Tap

  • USB Output

    5 V, 1 A

  • Dimensions (WxHxD)

    3.8 x 5.9 x 3.0" (9.65 x 14.99 x 7.62cm)

  • Weight

    3.4 lbs (1.54kg)

  • UPC Code

    184323004560

About Core SWX Hypercore XL

Discover the pinnacle of portable power technology with the Hypercore XL 14.8V 293Wh 3-Stud Gold Mount Hi-Draw Li-Ion Battery. Engineered for professionals who demand robust, high-capacity, and reliable energy solutions, this battery pack is a testament to the latest advancements in Lithium Ion technology. The Hypercore XL is specifically designed to handle and sustain high power draws, capable of enduring up to a 15A continuous draw and peaking at 20A without compromising its service life.

The Hypercore series stands out for its exceptional value and return on investment, particularly for users who need their battery packs to perform consistently over time while delivering unparalleled performance. Encased in an over-molded, rubberized housing - a hallmark of Core SWX's design for nearly a decade - the battery offers superior protection against accidental impacts. The rubber texture enhances grip, minimizing the risk of drops and slips.

Equipped with a versatile Runtime LCD on the front panel, the Hypercore XL provides critical information at a glance. This large, back-lit display shows remaining battery life in hours and minutes during use, and when idle, it estimates standby time based on a 30W dummy load. Additionally, it functions as a charge indicator, calculating the remaining charge time when connected to a charger.

Core SWX's proprietary on-board fuel computer utilizes the Hypercore's "smart" battery platform to deliver the most accurate runtime calculations. By analyzing past usage, charge, and discharge performance, the fuel computer provides precise time estimates down to the minute. An integrated accelerometer detects motion, activating a clocking algorithm that monitors the battery's inactivity. To combat self-discharge, the Hypercore XL enters a hibernation mode after 48 hours of non-use, preserving its charge. The battery promptly awakens with any movement, ready to operate at full capacity.

For added versatility, the Hypercore series includes an unregulated P-tap connection and a USB power output, catering to a wide range of devices from cameras to mobile phones. The P-tap port allows for powering devices that accept 12-16.8VDC, while the USB port offers convenient charging for mobile devices on set.

Compatibility is key, and the Hypercore XL is one of the most charger-compatible batteries in the industry. It can be charged with any Core SWX charger and is fully compatible with Anton/Bauer chargers firmware V3.6 and up, ensuring seamless integration with existing equipment.

The Hypercore XL 14.8V 293Wh 3-Stud Gold Mount Hi-Draw Li-Ion Battery is not just a power source; it's a sophisticated energy management system designed to keep you shooting longer, smarter, and with the confidence that you have one of the industry's best powering your equipment.

Core SWX Hypercore XL Features

  • Runtime
  • USB Power
  • LED Gauge
  • Compatible Charging
  • Camera Communication
  • Rubberized Housing
  • Hibernation
  • Storage Mode
  • Smart Tap

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Power your pro video shoots with this high-draw 293Wh Gold Mount Li-Ion battery.
  • Get extended runtimes with the impressive 19.8Ah capacity of this Core SWX battery.
  • This 14.8V lithium-ion battery supports a 15A continuous draw, 20A peak for 2 seconds.
  • Charge devices via the integrated USB port; this battery adds power versatility on set.
  • Monitor power levels easily; this reliable battery ensures you're always ready to film.
  • Enjoy broad compatibility; this Gold Mount battery integrates seamlessly with pro gear.

What's in the box:

  • Core SWX Hypercore XL 14.8V 293Wh 3-Stud Gold Mount Hi-Draw Li-Ion Battery
  • Core SWX 2 Year Limited Warranty
