Core SWX JetPack X Gold Mount Base with 200W Built-In Battery Backup for RED Scarlet/Epic Camera, USB Port, 2x P-Tap Outputs, 2-Pin AMP Connector

SKU: SXJPXAEPIC

This item is no longer available.

Overview
Compare
Q&A

Questions & Answers

Reviews about this item

Review Summary

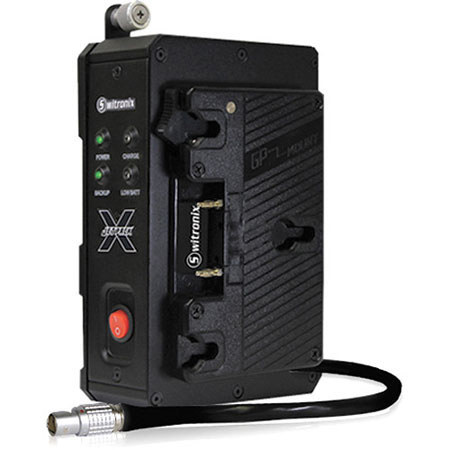

About Core SWX JetPack X Gold Mount Base with Battery Backup for RED Scarlet/Epic

The Core SWX JetPack x Gold Mount Base with Battery Backup is designed for RED Scarlet/Epic Camera which enables you to power multiple accessories along with your camera, featuring three LEMO outputs (2-pin, 4-pin, 4-pin), two P-Tap outputs and a USB port. It allows you to connect to the RED Epic/Scarlet via an integrated cable (approx. 1' long) with a LEMO connector on the end. An 11-17VDC 6-pin LEMO input is also available for connecting AC power instead of a battery via an adapter/converter. The JetPack x has all the features of the original JetPack but adds a built-in battery backup capable of supporting up to 200W for 5 minutes when you swap batteries. It also adds a 2-pin AMP connector for plugging directly into ENG cameras, foregoing use of the integrated camera cable. Three 1/4"-20 threads are available on the bottom, two of them spaced 18mm apart for optional rod clamps and a cheese plate with 1/4"-20 threads is included for attaching on a rig. You can also use an optional x-Mod plate, which can attach the JetPack x to any Gold-Mount or V-mount hole pattern.

Key Features

  • LEMO output to camera on an approx. 1' cable
  • 11-17VDC 6-pin LEMO (2B) power input
  • 1/4-20 mounting threads on the bottom

What's in the box:

  • Core SWX JetPack X Gold Mount Base with Battery Backup
  • Cheese Plate with 1/4"-20 Threads
  • Core SWX 1 Year Limited Warranty
