What does the LED gauge on the NEO Slim 98Wh 14.8V 6.6Ah Gold-Mount Lithium-Ion Battery Brick indicate?

The LED gauge on the side of the battery pack allows users to quickly check the remaining battery capacity.

What is the purpose of the 'Smart' p-tap connector in the NEO Slim Battery Brick?

The 'Smart' p-tap connector allows users to power any 12vdc device while also receiving all battery data from the port. It also enables the battery pack to communicate with cameras and chargers using both one-wire and two-wire protocols.

What is the benefit of the hibernation feature in the NEO Slim Battery Brick?

The hibernation feature puts the battery pack to sleep when there is no battery usage or movement after a 48-hour period, helping to preserve battery life. The battery pack awakens once it is picked up.

How can I use the USB port on the NEO Slim 98Wh 14.8V 6.6Ah Gold-Mount Lithium-Ion Battery Brick?

The 5v USB port on the NEO Slim Battery Brick can be used to power any on-set accessory that uses USB or even to charge mobile devices.

How can I monitor the vitals of my NEO Slim Battery Brick?

The NEO Slim Battery Brick comes with integrated RFID technology, allowing you to view your battery vitals from a mobile app or RFID reader.

Reviews about this item

Review Summary

2021-02-16T23:26:49

Rated 5 out of 5

Good Batteries for Steadicam

Great Quality

TAYLOR J.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Core SWX NEO Slim Specifications

  • Capacity

    98Wh(14.8v, 6.6Ah)

  • Normal Runtime

    (25w) 3.6hrs.

  • Load

    16A/12A

  • Size

    3.8 x 5.87 x 1.49" (9.6 x 14.9 x 3.78cm)

  • Weight

    1.4 lb (0.63kg)

About Core SWX NEO Slim

Overcome power limitations in your cinema and broadcast equipment with the NEO Slim 98Wh 14.8V 6.6Ah Gold-Mount Lithium-Ion Battery Brick. This next-generation power solution is designed with exclusive features and high current delivery, offering a peak of 16 Amps with a 12 Amp draw.

The NEO battery packs are firmware upgradeable through a USB interface, ensuring your battery technology stays up-to-date. For those who travel, these battery packs are UN38.3 certified, providing a travel-safe solution to keep your equipment powered wherever you go.

With the integrated RFID technology, you can conveniently view your battery vitals from a mobile app or RFID reader. The modular build of the Hypercore Packs ensures maximum build integrity by reducing wiring.

The multipurpose, backlit LCD provides essential information, including nominal runtime based on a 25w load, remaining runtime when connected to a device, and remaining charge time when on a charger.

To protect against self-discharge and comply with travel regulations, these battery packs feature a storage mode. The rubberized housing provides an over-molded, non-slip grip and additional cell protection against accidental impacts.

The NEO Slim Battery Brick is rated for 2K cycles, ensuring long-lasting performance. The side-mounted LED gauge allows for a quick glance at the remaining battery capacity.

The integrated "Smart" p-tap connector enables users to power any 12vdc device while also receiving all battery data from the port. The battery pack can communicate with cameras and chargers using both one-wire and two-wire protocols.

With the highest charger compatibility in the industry, these packs allow users with existing charger hardware to continue using their charger. The 5v USB port can power any on-set accessory that uses USB or even charge mobile devices.

The hibernation feature puts the packs to sleep when there is no battery usage or movement after a 48-hour period, preserving battery life. Once the battery is picked up, the battery pack awakens, ready to power your equipment.

Core SWX NEO Slim Features

  • 2K Cycles
  • Camera Communication
  • Compatible Charging
  • Firmware Upgradeable
  • Hibernation
  • LED Guage
  • RFID System
  • Rubberized Housing
  • Runtime LCD
  • Smart Tap
  • Storage Mode
  • Travel Safe
  • USB Power

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Power your pro camcorder with this reliable Core SWX 98Wh Gold-Mount battery brick.
  • Enjoy extended shooting with a 3.6-hour runtime, perfect for on-location video projects.
  • This high-capacity lithium-ion battery ensures your camera stays powered during long shoots.
  • Compact & lightweight at only 1.4lbs, this 98Wh battery won't weigh down your camera rig.
  • Get dependable power with a 16A/12A load, ideal for demanding professional video gear.
  • Features a Gold-Mount for secure attachment & broad compatibility with pro video cameras.

What's in the box:

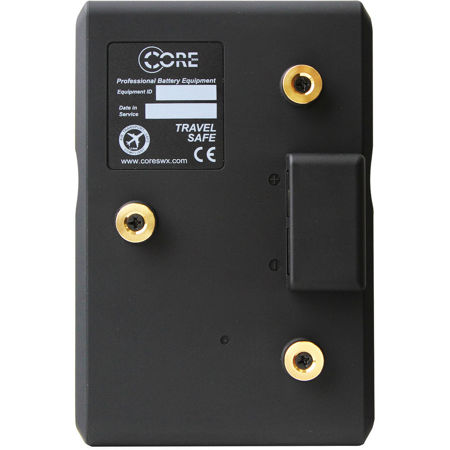

  • Core SWX NEO Slim 98Wh 14.8V 6.6Ah Gold-Mount Lithium-Ion Battery Brick
  • Core SWX 1 Year Limited Warranty
