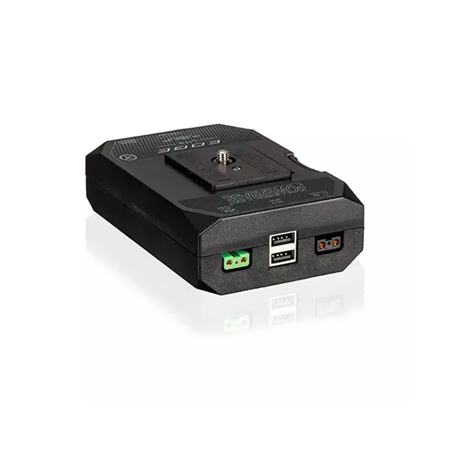

Core SWX Powerbase Edge Lite 47Wh 14.8V Battery Pack Kit for Pocket 4K/6K/6K Pro
See all Core SWX items

Core SWX Powerbase Edge Lite 47Wh 14.8V Battery Pack Kit for Pocket 4K/6K/6K Pro Camera

SKU: SXPBLTBMPC
(2)

This item is no longer available.

Recommended Alternatives

undefined undefined: Picture 1 regular
Core SWX HyperCore G3 14.4V SMART Battery Pack
$399.00
undefined undefined: Picture 1 regular
Core SWX Helix Max 150 148Wh Dual Voltage Gold Mount Li-Ion Battery
$749.00
$449.00
undefined undefined: Picture 1 regular
Core SWX Helix Max 150 148Wh Dual Voltage B-Mount Li-Ion Battery
$749.00
$449.00
undefined undefined: Picture 1 regular
Core SWX Helix Max 150 148Wh Dual Voltage V-Mount Li-Ion Battery
$749.00
$449.00
undefined undefined: Picture 1 regular
Core SWX Helix Max Ultra 160 158Wh Dual-Voltage Lithium-ion Battery, B-Mount
$749.00
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Core SWX Powerbase Edge Lite Specifications

Powerbase Edge Lite

Powerbase Edge Lite

Jump to...

  • Capacity

    47Wh (14.8vdc, 3.3Ah)

  • Max Continuous Load

    8A

  • Normal Runtime

    Approx. 8.25 hours (Sony A7 w/o accessories)

  • Battery Info

    Required, included

  • Battery Material

    Lithium-ion

  • Battery Type

    Non-universal

  • Battery Quantity

    1

  • Dimensions

    5.6 x 3.6 x 1.55" (14.22 x 9.14 x 3.93cm)

  • Weight

    20.79 oz (589.6g)

Coiled D-Tap to 2-Pin Cable

Jump to...

  • Compatibility

    Blackmagic Design Pocket 4K & 6K Camera

  • Connector 1

    1x D-Tap

  • Connector 2

    2-pin connector compatible with Blackmagic Design Pocket 4K & 6K camera

  • Input

    DC 11-28V

  • Output

    Unregulated

  • Contracted Length

    18" (45.72cm)

  • Expanded Length

    48" (121.92cm)

Charger

Jump to...

  • Quick Charge Current

    1.5A

  • Input Voltage

    90-240VAC 50/60Hz

  • Dimensions

    3.5 x 1.25 x 1" (8.89 x 3.18 x 2.54cm)

  • Weight

    8.11 oz (230g)

About Core SWX Powerbase Edge Lite

The PBLT-BMPC is a Powerbase Edge Lite kit with a PTC-BMPC4 cable to power the Blackmagic Design Pocket 4K, 6K, and 6K Pro cameras. It also comes with a PB70C15US p-tap charger to charge the battery back up. The Powerbase Edge Lite is the ideal pack for those already invested in the Powerbase system or those that don't utilize the v-mount connection and want a "base" pack only.

Similar to the original Edge, the Edge Lite has nearly all the features of the Edge minus a runtime LCD and the aforementioned V-mount connection. The single channel powertap charger, PB70C15US, charges any of our battery packs through the powertap port on the battery while providing a quicker charge current at 1.5A, which is 50% faster than the original PB70C. The charger has LED indication on the front which changes from red to green when fully charged.

The PB70C15US is only for US plug, and it is not interchangeable like the PB70C15 model. The PTC-BMPC4 is a coiled ptap cable to 2pin connector for BMD Pocket 4K, 6K, and 6K Pro; 18" extends to 48".

Core SWX Powerbase Edge Lite Features

  • 47wh Base pack with 1/4-20 threads
  • Quick Release plate on top to quickly disconnect/reconnect (compatible with legacy PowerBase Edge model quick release plate)
  • 4-Stage LED Gauge
  • 2x Unregulated ptap for accessories
  • 2x 5v USB, 3A output for quick charging mobile devices
  • 1x 8v output to use legacy PowerBase Edge battery paddle cables to power DSLRs/Camcorders
  • Charge with the included D-Tap charger

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • 47wh Base pack with 1/4-20 threads
  • 4-Stage LED Gauge
  • 2x unregulated ptap for accessories
  • 2x 5v USB, 3A output for quick charging mobile devices
  • 1x 8v output to use legacy PowerBase Edge battery paddle cables to power DSLRs/Camcorders
  • Charge with the included D-Tap charger

What's in the box:

  • Core SWX Powerbase Edge Lite 47Wh 14.8V Battery
  • Coiled D-Tap to 2-Pin Cable
  • 1.5A Single-Position D-Tap Charger
  • Core SWX 1 Year Limited Warranty
