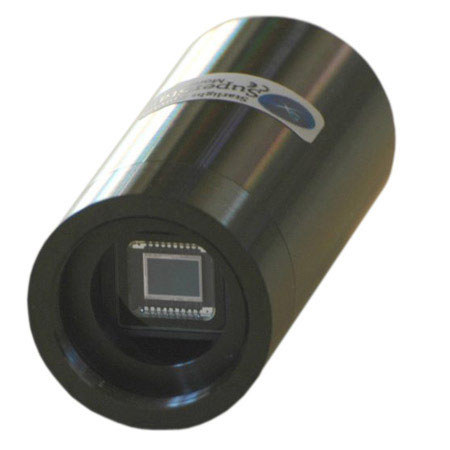

Starlight Xpress Superstar High Resolution Mono CCD Autoguider

Starlight Xpress Superstar High Resolution Mono CCD Autoguider, ICX205AL Sony SuperHAD Interline CCD, Built-in USB 2.0, Uncooled

SKU: SXSUPERSTAR
(1)

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

2016-12-22T08:09:47

Rated 5 out of 5

Great little guide camera.

Working great for my guiding setup. Very happy. Compatible with Mac OS if you are using PHD2.

Kelvin M.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Starlight Xpress SUPERSTAR Specifications

  • CCD type

    ICX205AL Sony SuperHAD interline CCD with low dark current and vertical anti-blooming

  • CCD Full resolution Pixel data

    Pixel size: 4.65uM x 4.65uM, Image format: 1392 x 1040 pixels

  • CCD Image area

    6.4mm (Horizontal) x 4.75mm (Vertical)

  • CCD quality

    Grade 1

  • Spectral Response

    QE max at 520nM (-50%), 30% at 420nM and 670nM

  • Readout Noise

    Less than 10 electrons RMS - typically only 7 electrons

  • Full-well capacity

    Greater than 20,000 e- (unbinned)

  • Anti-blooming

    Overload margin greater than 1000x

  • Dark current

    Dark frame saturation time greater than 1 hour. Less than 0.1 electrons/second at + 10C ambient

  • Data format

    16 bits

  • System gain

    0.3 electrons per ADU

  • Computer Interface

    Built-in USB 2.0 compatible interface

  • Image download time

    Typically 0.6 seconds at full resolution using USB 2.0

  • Power requirements

    USB powered

  • Dimensions

    32 x 72mm / (1.25 x 2.83") black anodized Aluminum barrel with 25 x 0.75mm (0.98 x 0.02") 'C mount' thread at the CCD window end & input/output plugs at rear

  • Weight

    50 g / 1.76 oz

About Starlight Xpress SUPERSTAR

The Starlight Xpress Superstar High Resolution Mono CCD Autoguider is essentially a higher resolution version of the hugely successful Starlight Xpress Lodestar making it an excellent choice for guiding through short focal length refractors. Primarily intended as a high performance guider but will also serve as an electronic finder and planetary imaging camera! It is suitable for most mounts with a standard autoguider input and as small as a 1.25" eyepiece!.
