Starlight Xpress Trius SX-25C USB Hub Color CCD Camera System

Starlight Xpress Trius SX-25C USB Hub Color CCD Camera System, Image Format 3024x2016 Pixels, Back Focal Length 17mm +/-1mm

SKU: SXTSX25C
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Starlight Xpress Trius SX-25C Specifications

  • CCD type

    Sony ICX453AQ SuperHAD CCD with ultra low dark current, Bayer RGB matrix and vertical anti-blooming

  • CCD Full resolution Pixel data

    Pixel size: 7.8uM x7.8uM, Image format: 3024x 2016 pixels

  • CCD Image area

    23.4mm (Horizontal) x 15.6mm (Vertical)

  • CCD quality

    Grade 1 or better - No bad columns, no dead pixels, no more than 50 'hot' pixels (saturated in <10 seconds)

  • Spectral Response

    QE max at 540nM (-60%), 50% roll-off at 400nM and 650nM.

  • Readout Noise

    Less than 12 electrons RMS - typically ONLY 7 electrons!

  • Full-well capacity

    Greater than 25,000 e- (unbinned)

  • Anti-blooming

    Overload margin greater than 800x

  • Dark current

    Dark frame saturation time greater than 100 hours. Less than 0.02 electrons/second at + 10C ambient

  • Data format

    16 bits

  • System gain

    0.4 electrons per ADU

  • Computer Interface

    Built-in USB 2.0 compatible interface. Also works with USB 1.1

  • Image download time

    Typically 3.5 seconds full resolution using USB 2.0, approximately 8 seconds with USB 1.1

  • Power requirements

    115VAC / 240VAC at 12VA, or 12VDC at 1.5 A max

  • Cooling system

    Regulated constant current cooling supply with two stage thermoelectric cooler to give a CCD temperature of approximately -35C below ambient

  • Size

    75 x 70mm / 2.95 x 2.75" black anodized Aluminum barrel with 42mm 'T2' thread at the CCD window end & input/output plugs at rear. CCD alignment screws are provided for setting the chip parallel to the focal plane

  • Weight

    Approx. 400g / 14.10oz

  • UPC Code

    5060348841494

About Starlight Xpress Trius SX-25C

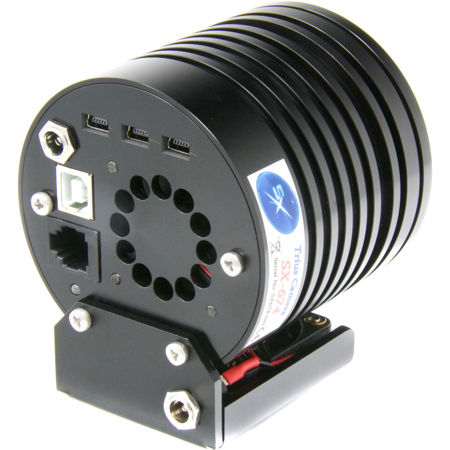

The Starlight Xpress Trius SX-25 USB Hub Color CCD Camera System utilizes a Sony ICX453 Sensor with 6.1 million pixels. Super low-noise performance with fast download times of approximately 2 million pixels per second. A complete powered USB hub has been incorporated into the Starlight Xpress Trius SX-25 USB Hub Color CCD Camera which offers three USB 2.0 ports at the rear of the camera. It fitted with a new peltier cooler configuration to go along with an Argon-Filled CCD chamber, allowing a greater differential cooling delta to be achieved. The Starlight Xpress Trius SX-25 USB Hub Color CCD Camera boasts outstanding construction in a compact, light-weight package.

Starlight Xpress Trius SX-25C Features

  • Very large, high resolution 'SuperHAD' CCD chip, with 6,000,000 x 7.8uM square pixels in a 23.4 x 15.6mm array. Size equivalent to APS film
  • Single-shot color, using a Bayer matrix of R, G and B on-chip filters. No filter wheel required
  • Triple USB hub for accessories, built-in
  • High performance two stage cooler for better than -35 C chip temperature reduction
  • Dry Argon chamber fill for improved cooling performance
  • Exceptionally low dark signal - No dark frames necessary for most deep sky objects
  • Exceptionally effective anti-blooming with minimal effect on linearity and no lost active area
  • High sensitivity, equivalent to 60% QE at peak of green filters
  • Back focal length 17mm +/-1mm
  • Built-in super high speed USB 2.0 interface (USB 1.1 compatible) for approx. 3.5 second downloads
  • Built-in autoguider output
  • Single USB cable control for all features - get rid of that dangerous cable tangle!
  • Only one computer needed to control all of the devices and functions
  • Very low power consumption. Less than 1.5 amps at 12v DC
  • Compact and lightweight - only 75mm in diameter x 100mm long - less than 500 grams load on the 'scope

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Exceptionally low dark signal
  • Back focal length 17mm +/-1mm
  • Built-in autoguider output

What's in the box:

  • Starlight Xpress Trius SX-25C USB Hub Color CCD Camera System
  • USB 2.0 Cable
  • Starlight Xpress Warranty
