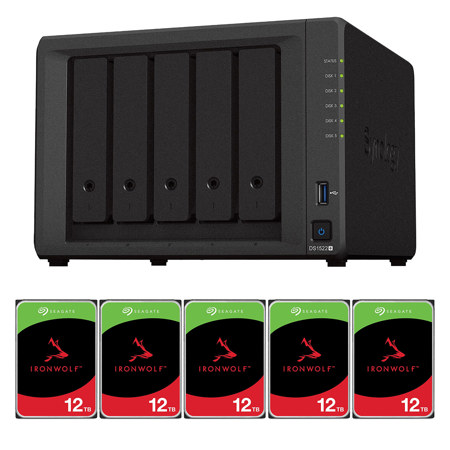

Synology DiskStation DS1522+ 5-Bay NAS Enclosure, Bundle with 5x IronWolf 12TB SATA III 3.5" 7200 RPM Internal NAS Hard Drive

SKU: SYDS1522C MFR: DS1522+ C
Earn VIP Reward Points

PACKAGE INCLUDES:

  • Synology DiskStation DS1525+ 5-Bay NAS Enclosure, Diskless
    Synology DiskStation DS1525+ 5-Bay NAS Enclosure, Diskless
  • +
  • Seagate IronWolf SATA III 3.5" Internal NAS Hard Drive 12TB Single
    Seagate IronWolf SATA III 3.5" Internal NAS Hard Drive 12TB Single

    Qty: 5

  • +
  • Show more

Key Features

  • This Synology NAS bundle offers 60TB (5x12TB) of reliable IronWolf storage for all your critical data.
  • Achieve peak performance with fast read/write speeds, perfect for media streaming and large file transfers.
  • Safeguard your files with advanced data security features, including RAID configurations for data redundancy.
  • Scale your storage as needed; this NAS enclosure supports up to 15 drives with expansion units.
  • Enjoy peace of mind with the included 3-year limited warranty, ensuring long-term reliability.
  • Streamline your workflow; this NAS server is ideal for backup, file sharing, and collaborative projects.
See More Product Details
FREE 2-Day Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$289.99

3 Year

$449.99

4 Year

$549.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Synology DS1522+ Kit Specifications

Hardware: CPU

Hardware: CPU

Jump to...
  • CPU Model

    AMD Ryzen R1600

  • CPU Quantity

    1

  • CPU Architecture

    64-bit

  • CPU Frequency

    2-core 2.6 (base) / 3.1 (turbo) GHz

  • Hardware Encryption Engine (AES-NI)

    Yes

Hardware: Memory

Jump to...
  • System Memory

    8GB DDR4 ECC SODIMM

  • Memory Module Pre-installed

    8GB (8GB x 1)

  • Total Memory Slots

    2

  • Maximum Memory Capacity

    32GB (16GB x 2)

Hardware: Storage

Jump to...
  • Drive Bays

    5

  • Maximum Drive Bays with Expansion Unit

    15 (DX517 x 2)

  • M.2 Drive Slots

    2 (NVMe)

  • Compatible Drive Type

    3.5" SATA HDD
    2.5" SATA SSD
    M.2 2280 NVMe SSD

  • Hot Swappable Drive

    Yes

Hardware: External Ports

Jump to...
  • RJ-45 1GbE LAN Port

    4 (with Link Aggregation / Failover support)

  • USB 3.2 Gen 1 Port

    2

  • eSATA Port

    2

Hardware: PCIe

Jump to...
  • PCIe Expansion

    1x Gen3 x2 network upgrade slot

Hardware: File System

Jump to...
  • Internal Drives

    Btrfs
    EXT4

  • External Drives

    Btrfs
    EXT4
    EXT3
    FAT
    NTFS
    HFS+
    exFAT

Hardware: Others

Jump to...
  • System Fan

    3.62 x 3.62" (92 x 92mm) (Two Fans)

  • Fan Speed Mode

    Full-Speed Mode
    Cool Mode
    Quiet Mode

  • Brightness

    Yes (Adjustable Front LED Indicators)

  • Power Recovery

    Yes

  • Noise Level

    22.90 dB(A)

  • Scheduled Power On/Off

    Yes

  • Wake on LAN / WAN

    Yes

  • Power Supply

    120W (Unit / Adapter)

  • AC Input Power Voltage

    100V to 240V AC

  • Power Frequency

    50/60 Hz, Single Phase

  • Power Consumption

    52.06W (Access)
    16.71 W (HDD Hibernation)

  • British Thermal Unit

    177.64 BTU/hr (Access)
    57.02 BTU/hr (HDD Hibernation)

Hardware: Temperature

Jump to...
  • Operating Temperature

    32 Degree to 104 Degree F (0 Degree to 40 Degree C)

  • Storage Temperature

    -5 Degree to 140 Degree F (-20 Degree to 60 Degree C)

  • Relative Humidity

    5% to 95% RH

Hardware: Certification

Jump to...
  • Certification

    FCC
    CE
    BSMI
    VCCI
    RCM
    UKCA
    EAC
    CCC
    KC

Hardware: Environment

Jump to...
  • Environment

    RoHS Compliant

Hardware: Physical

Jump to...
  • Dimensions (H x W x D)

    6.53 x 9.05 x 8.78" (166 x 230 x 223mm)

  • Weight

    5.95 lbs (2.7kg)

Software: Storage Management

Jump to...
  • Maximum Single Volume Size

    108TB

  • Maximum Internal Volume Number

    64

  • SSD Read / Write Cache

    Yes (White Paper)

  • SSD TRIM

    Yes

  • Supported RAID Type

    Synology Hybrid RAID
    Basic
    JBOD
    RAID 0
    RAID 1
    RAID 5
    RAID 6
    RAID 10

  • RAID Migration

    Basic to RAID 1
    Basic to RAID 5
    RAID 1 to RAID 5
    RAID 5 to RAID 6

  • Volume Expansion with Larger HDDs

    Synology Hybrid RAID
    RAID 1
    RAID 5
    RAID 6
    RAID 10

  • Volume Expansion by Adding a HDD

    Synology Hybrid RAID
    JBOD
    RAID 5
    RAID 6

  • Global Hot Spare Supported RAID Type

    Synology Hybrid RAID
    RAID 1
    RAID 5
    RAID 6
    RAID 10

Software: File Services

Jump to...
  • File Protocol

    SMB/AFP/NFS/FTP/WebDAV

  • Maximum Concurrent

    2,000 (SMB/AFP/FTP Connections)
    2,000 (SMB/AFP/FTP Connections (with RAM expansion))

  • NFS Kerberos Authentication

    Yes

  • Windows Access Control List

    Yes (ACL Integration)

Software: Account & Shared Folder

Jump to...
  • Maximum Local User Accounts

    2048

  • Maximum Local Groups

    256

  • Maximum Shared Folder

    512

  • Maximum Shared Folder Sync Tasks

    32

Software: Hybrid Share

Jump to...
  • Hybrid Share Folder Number

    10

Software: High Availability

Jump to...
  • Synology High Availability

    Yes

Software: Log Center

Jump to...
  • Syslog Events per Second

    800

Software: Virtualization

Jump to...
  • VMware vSphere with VAAI

    Yes

  • Windows Server 2016

    Yes

  • Windows Server 2019

    Yes

  • Citrix Ready

    Yes

  • OpenStack

    Yes

Software: General

Jump to...
  • Networking Protocols

    SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV

  • Supported Browsers

    Google Chrome
    Firefox
    Microsoft Edge
    Safari

  • Supported Language

    English, Deutsch, Francais, Italiano, Espanol, Dansk, Norsk, Svenska, Nederlands, Russian, Polski, Magyar, Portugues do Brasil, Portugues Europeu, Turkce, Cesky, Thai, Japanese, Korean, Traditional Chinese, Simplified Chinese

  • Antivirus by McAfee (Trial)

    Yes

  • Central Management System

    Yes

Software: Synology Chat

Jump to...
  • Maximum Number of Concurrent Users

    100

Software: Document Viewer

Jump to...
  • Document Viewer

    Yes

Software: Download Station

Jump to...
  • Maximum Concurrent Download Tasks

    80

Software: SAN Manager

Jump to...
  • Maximum iSCSI Target Number

    128

  • Maximum LUN

    256

  • LUN Clone/Snapshot, Windows ODX

    Yes

Software: Synology MailPlus Server

Jump to...
  • Free Email Accounts

    5 (Licenses required for additional accounts)

  • Maximum Number of Concurrent Users

    100

  • Maximum Server Performance

    1,224,000 emails per day, approx. 37GB

Software: Media Server

Jump to...
  • DLNA Compliance

    Yes

Software: Synology Photos

Jump to...
  • Facial Recognition

    Yes

Software: Snapshot Replication

Jump to...
  • Maximum Snapshots per Shared Folder

    1024

  • Maximum of System Snapshots

    65536

Software: Surveillance Station

Jump to...
  • Maximum IP cam (Licenses required)

    40 (including 2 Free License) (see all supported IP cameras)

  • Total FPS (H.264)

    1200 FPS @ 720p (1280x720)
    1050 FPS @ 1080p (1920x1080)
    600 FPS @ 3M (2048x1536)
    360 FPS @ 5M (2591x1944)
    200 FPS @ 4K (3840x2160)

  • Total FPS (H.265)

    1200 FPS @ 720p (1280x720)
    1200 FPS @ 1080p (1920x1080)
    1000 FPS @ 3M (2048x1536)
    600 FPS @ 5M (2591x1944)
    300 FPS @ 4K (3840x2160)

Software: Synology Drive

Jump to...
  • Number of Concurrent Sync Clients

    350 (the number of connections that can be maintained when the recommended number of hosted files was reached)(Recommended)

  • Number of Hosted Files

    5,000,000 (applies to files indexed or hosted by Synology Drive. For file access through other standard protocols, refer to the File Services section above)(Recommended)

Software: Synology Office

Jump to...
  • Maximum Users

    1200

Software: Video Station

Jump to...
  • Video Station

    Yes

Software: Virtual Machine Manager

Jump to...
  • Virtual Machine Instances

    4 (Learn more)(Recommended)

  • Virtual DSM Number (Licenses required)

    4 (including 1 Free License)(Recommended)

Software: VPN Server

Jump to...
  • Maximum Connections

    40

  • UPC Codes

    192223257702, 763649136348, 846504006014

About Synology DS1522+ Kit

Explore the Synology DiskStation DS1522+ 5-Bay NAS Enclosure Bundle, a comprehensive solution for both home and small business data management. This bundle includes five Seagate IronWolf 12TB SATA III 3.5" Internal NAS Hard Drives, each spinning at 7200 RPM, ensuring robust and reliable storage performance.

The Synology DiskStation DS1522+ is designed for flexibility and scalability, accommodating up to 15 drives with the addition of two DX517 expansion units. It supports 10GbE networking and NVMe SSD caching, making it adaptable to evolving data needs. Powered by the intuitive Synology DiskStation Manager (DSM), this NAS offers an all-in-one platform for data sharing, synchronization, backup, and surveillance.

Achieve impressive throughput with over 736/796 MB/s sequential read/write speeds, supported by 8 GB DDR4 ECC memory, expandable up to 32 GB. The DS1522+ features four built-in 1GbE ports, with an easy upgrade path to 10GbE via the E10G22-T1-Mini Network Upgrade Module, ensuring seamless integration into any network environment.

This NAS is your go-to device for everyday data protection, file management, media sharing, and camera surveillance. With built-in failover and network balancing, it provides fast and dependable performance right out of the box. The DS1522+ also offers a private cloud solution, allowing you to store, sync, and access data from any device, anywhere, with smart versioning for data protection.

Utilize shared folders for dependable and secure network storage, accessible over common protocols like SMB, NFS, WebDAV, and FTP. Protect your files with built-in snapshot technology and other backup options to guard against accidental changes, removal, or malware attacks.

Manage and share your files effortlessly using Synology's file, photo, and multimedia management apps. Sort data by metadata, filters, and labels, and share files securely with granular access permissions. Sync files and folders between different locations using Synology Drive ShareSync or Synology Hybrid Share for hybrid cloud storage.

The DS1522+ supports multi-layered backup solutions, allowing you to back up files, folders, physical devices, VMs, and SaaS applications. Protect your NAS by storing emergency copies to multiple destinations, utilizing space-saving deduplication technology and customizable backup schedules.

Transform your Synology device into a full-featured video management system with support for up to 40 IP cameras from over 8,300 validated models. Synology Surveillance Station offers wide compatibility, AES-256 encryption for secure footage, and intelligent monitoring features like motion detection and anomaly detection.

Leverage the high performance and reliability of enterprise-grade drives designed for Synology systems, including SATA 3.5" HDDs, 2.5" SSDs, and NVMe M.2 SSDs. With Synology DSM, access a suite of productivity, management, and security solutions, including centralized management, security shielding, and seamless server transition with Synology High Availability.

Synology NAS enhances your creative projects with speed, simplicity, and security, offering complete endpoint protection and ransomware prevention. Embrace the 3-2-1 backup strategy to keep your data safe and secure with Synology's advanced solutions.

Synology DS1522+ Kit Features

  • Up to 736/796 MB/s sequential read/write throughput makes file operations quick and efficient
  • Leverage built-in file and photo management, data protection, virtualization, and surveillance solutions
  • Four 1GbE ports for simple integration into existing environments with optional 10GbE connectivity to tackle more specialized, bandwidth-heavy applications
  • Add up to 10 extra drive bays with 2 DX517 expansion units for a maximum of 15 storage drives

Warranty Information

This product has a limited warranty of 36 months.

Product Documents

User Manual

Key Features

  • This Synology NAS bundle offers 60TB (5x12TB) of reliable IronWolf storage for all your critical data.
  • Achieve peak performance with fast read/write speeds, perfect for media streaming and large file transfers.
  • Safeguard your files with advanced data security features, including RAID configurations for data redundancy.
  • Scale your storage as needed; this NAS enclosure supports up to 15 drives with expansion units.
  • Enjoy peace of mind with the included 3-year limited warranty, ensuring long-term reliability.
  • Streamline your workflow; this NAS server is ideal for backup, file sharing, and collaborative projects.

What's in the box:

  • Synology DiskStation DS1522+ 5-Bay NAS Enclosure
  • AC Power Adapter
  • AC Power Cord
  • 2x RJ45 LAN Cables
  • Accessory
  • Quick Start Guide
  • Synology 3 Year Limited Warranty
  • Bundle Includes:
  • 5x Seagate IronWolf 12TB SATA III 3.5" Internal NAS Hard Drive (7200 RPM)
