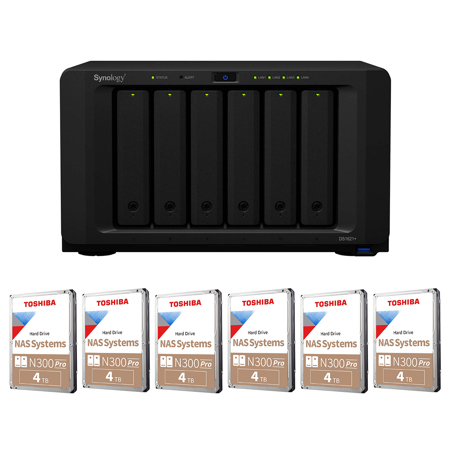

Synology DiskStation DS1621+ 6-Bay NAS Enclosure, Bundle with 6x Toshiba 4TB N300 Pro 7200 RPM SATA III 3.5" Internal NAS HDD

SKU: SYDS1621P12B MFR: SYDS1621P12B
Earn VIP Reward Points

PACKAGE INCLUDES:

  • Synology DiskStation DS1621+ 6-Bay NAS Enclosure, 4-Core 2.2GHz, 4GB RAM, No HDD
    Synology DiskStation DS1621+ 6-Bay NAS Enclosure, 4-Core 2.2GHz, 4GB RAM, No HDD
  • +
  • Toshiba N300 Pro SATA III 3.5" Internal NAS Hard Drive 4TB
    Toshiba N300 Pro SATA III 3.5" Internal NAS Hard Drive 4TB

    Qty: 6

  • +
  • Show more

Key Features

  • This Synology DiskStation NAS bundle offers a massive 72TB storage capacity for all your data needs.
  • Ensure top-notch data security with advanced RAID configurations on this Synology 6-Bay NAS.
  • Experience fast performance with the powerful AMD Ryzen processor for seamless file access.
  • Enjoy easy setup and management with Synology's intuitive DiskStation Manager (DSM) interface.
  • Access your files remotely from anywhere with secure remote access features on this NAS.
  • Get incredible value with this Synology NAS bundle, combining performance and ample storage.
See More Product Details

Product Options

Temporarily On Backorder?Expected Availability: 09/2025Request assistance or get notified
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

2 Year

$209.99

3 Year

$299.99

4 Year

$359.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Synology DS1621+ & WD Red Pro Specifications

CPU
  • CPU Model

    AMD Ryzen V1500B

  • CPU Architecture

    64-bit

  • CPU Frequency

    4-core 2.2 GHz

  • Hardware Encryption Engine (AES-NI)

    Yes

  • System Memory

    4 GB DDR4 ECC SODIMM

  • Memory Module Pre-installed

    4 GB (4 GB x 1)

  • Total Memory Slots

    2

  • Maximum Memory Capacity

    32 GB (16 GB x 2)

Storage

Jump to...
  • Drive Bays

    6

  • Maximum Drive Bays with Expansion Unit

    16 (DX517 x 2)

  • M.2 Drive Slots

    2 (NVMe)

  • Compatible Drive Type

    3.5" SATA HDD
    2.5" SATA HDD
    2.5" SATA SSD
    M.2 2280 NVMe SSD

  • Maximum Single Volume Size

    108 TB

  • Hot Swappable Drive

    Yes

External Ports

Jump to...
  • RJ-45 1GbE LAN Port

    4 (with Link Aggregation / Failover support)

  • USB 3.0 Port

    3

  • eSATA Port

    2

  • PCIe Expansion

    1x Gen3 x8 slot (x4 link)

File System

Jump to...
  • Internal Drives

    Btrfs
    EXT4

  • External Drives

    Btrfs
    EXT4
    EXT3
    FAT
    NTFS
    HFS+

  • System Fan

    3.6 x 3.6" (92 x 92mm) x2 pcs

  • Fan Speed Mode

    Full-Speed Mode
    Cool Mode
    Quiet Mode

  • Easy Replacement System Fan

    Yes

  • Front LED Indicators

    Brightness Adjustable: Yes

  • Power Recovery

    Yes

  • Noise Level

    25.2 dB(A)

  • Scheduled Power On/Off

    Yes

  • Wake on LAN/WAN

    Yes

  • Power Supply Unit/Adapter

    250 W

  • AC Input Power Voltage

    100 V to 240 V AC

  • Power Frequency

    50/60 Hz, Single Phase

  • Power Consumption

    51.22 W (Access)
    25.27 W (HDD Hibernation)

  • British Thermal Unit

    174.77 BTU/hr (Access)
    86.22 BTU/hr (HDD Hibernation)

Temperature

Jump to...
  • Operating Temperature

    32 Degree F to 104 Degree F (0 Degree C to 40 Degree C)

  • Storage Temperature

    -5 Degree F to 140 Degree F (-20 Degree C to 60 Degree C)

  • Relative Humidity

    5% to 95% RH

Certification

Jump to...
  • Certification

    FCC
    CE
    BSMI
    EAC
    CCC
    KC
    VCCI
    RCM

Environment

Jump to...
  • Environment

    RoHS Compliant

Storage Management

Jump to...
  • Maximum Internal Volume Number

    64

  • SSD Read/Write Cache (White Paper)

    Yes

  • SSD TRIM

    Yes

  • Supported RAID Type

    Synology Hybrid RAID
    Basic
    JBOD
    RAID 0
    RAID 1
    RAID 5
    RAID 6
    RAID 10

  • RAID Migration

    Basic to RAID 1
    Basic to RAID 5
    RAID 1 to RAID 5
    RAID 5 to RAID 6

  • Volume Expansion with Larger HDDs

    Synology Hybrid RAID
    RAID 1
    RAID 5
    RAID 6
    RAID 10

  • Volume Expansion by Adding a HDD

    Synology Hybrid RAID
    JBOD
    RAID 5
    RAID 6

  • Global Hot Spare Supported RAID Type

    Synology Hybrid RAID
    RAID 1
    RAID 5
    RAID 6
    RAID 10

File Services

Jump to...
  • File Protocol

    CIFS/AFP/NFS/FTP/WebDAV

  • Max Concurrent CIFS/AFP/FTP Connections

    1000
    2,000 (with RAM expansion)

  • Windows Access Control List (ACL)

    Yes (Integration)

  • NFS Kerberos Authentication

    Yes

Account & Shared Folder

Jump to...
  • Maximum Local User Accounts

    2048

  • Maximum Local Groups

    256

  • Maximum Shared Folder

    512

  • Maximum Shared Folder Sync Tasks

    16

High Availability

Jump to...
  • Synology High Availability

    Yes

Log Center

Jump to...
  • Syslog Events per Second

    800

Virtualization

Jump to...
  • VMware vSphere 6 with VAAI

    Yes

  • Windows Server 2016

    Yes

  • Windows Server 2019

    Yes

  • Citrix Ready

    Yes

  • OpenStack

    Yes

General DSM Specifications

Jump to...
  • Networking Protocols

    SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV

  • Supported Browsers

    Google Chrome
    Firefox
    Microsoft Edge
    Internet Explorer 10 onwards
    Safari 10 onwards
    Safari (iOS 10 onwards)
    Google Chrome (Android 6.0 onwards)

  • Supported Language

    English, Deutsch, Francais, Italiano, Espanol, Dansk, Norsk, Svenska, Nederlands, Polski, Magyar, Portugues do Brazil, Portugues Europeu, Turkce, Cesky

Add-on Packages

Jump to...
  • Antivirus by McAfee (Trial)

    Yes

  • Central Management System

    Yes

  • Document Viewer

    Yes

  • exFAT Access (Optional)

    Yes

  • Video Station

    Yes

Synology Chat

Jump to...
  • Maximum Users

    1500

Download Station

Jump to...
  • Maximum Concurrent Download Tasks

    80

iSCSI Manager

Jump to...
  • Maximum iSCSI Target Number

    128

  • Maximum iSCSI LUN

    256

  • iSCSI LUN Clone/Snapshot, Windows ODX

    Yes

Synology MailPlus / MailPlus Server

Jump to...
  • Free Email Accounts

    5 (Licenses required for additional accounts)

  • Maximum Number of Concurrent Users

    150

  • Maximum Server Performance

    1,484,000 emails per day, approx. 45GB

Media Server

Jump to...
  • DLNA Compliance

    Yes

Moments

Jump to...
  • Facial Recognition

    Yes

  • Subject Recognition

    Yes

  • Auto Color & Rotate

    Yes

  • Moments Select

    Yes

Snapshot Replication

Jump to...
  • Maximum Snapshots per Shared Folder

    1024

  • Maximum of System Snapshots

    65536

Surveillance Station

Jump to...
  • Maximum IP cam (Licenses required)

    40 (including 2 Free License)

  • Total FPS (H.264)

    1200 FPS @ 720p (1280x720)
    1050 FPS @ 1080p (1920x1080)
    600 FPS @ 3M (2048x1536)
    440 FPS @ 5M (2591x1944)
    320 FPS @ 4K (3840x2160)

  • Total FPS (H.265)

    1200 FPS @ 720p (1280x720)
    1200 FPS @ 1080p (1920x1080)
    1120 FPS @ 3M (2048x1536)
    600 FPS @ 5M (2591x1944)
    480 FPS @ 4K (3840x2160)

Synology Drive

Jump to...
  • Number of Hosted Files

    Recommended: 1,000,000 (applies to files indexed or hosted by Synology Drive. For file access through other standard protocols, refer to the File Services section above)

  • Number of Concurrent Sync Clients

    Recommended: 550 (the number of connections that can be maintained when the recommended number of hosted files was reached)

Synology Office

Jump to...
  • Maximum Users

    1800

Virtual Machine Manager

Jump to...
  • Recommended Virtual Machine Instances

    8

  • Recommended Virtual DSM Number

    Licenses required: 8 (including 1 Free License)

VPN Server

Jump to...
  • Maximum Connections

    30

General

Jump to...
  • Dimensions (H x W x D)

    6.53 x 11.1 x 9.6" (166 x 282 x 243mm)

  • Weight

    11.2 lbs (5.1kg)

  • UPC Codes

    192223245129, 846504003778, 723844001988

About Synology DS1621+ & WD Red Pro

If you're seeking a robust, scalable, and versatile solution for data management and protection, look no further than the DiskStation DS1621+ 6-Bay NAS Enclosure. This compact, yet powerful, network-attached storage solution is bundled with 6x WD Red Pro 12TB 3.5" SATA III Internal Desktop NAS Hard Drives, offering an impressive storage capacity for safeguarding your critical data assets.

Designed to adapt to the growing demands of unstructured data, the DS1621+ employs smarter, high-performance methods for storing, accessing, and collaborating on data. With its AMD Ryzen Quad-core 2.2 GHz CPU and Dual M.2 2280 slots for NVMe Cache, it delivers a performance of 110K, marking a 174% increase in 4K random read IOPS compared to its predecessor.

The DS1621+ offers scalability like no other, allowing you to start small and expand as your data grows. With the support of two DX517 expansion units, you can expand your storage up to 16 drives. Turbocharge your workflows with faster SFP+ or RJ-45 networking, and enable ultra-fast NVMe cache to accelerate HDD arrays by 20X or more.

The DS1621+ is not just about storage; it's also about efficient file management and sharing. The web-based File Station tool provides a fast, secure platform for easy drag-and-drop operations, advanced search, and filtering tools, without the need for complex setup on Mac or PC. For seamless compatibility, it supports a range of protocols including AFP, FTP, iSCSI, NFS, SMB, and WebDAV.

As a fully certified storage virtualization solution, the DS1621+ enhances work efficiency with its easy management interface. It supports VMware vSphere 6 and VAAI integration, Windows Offloaded Data Transfer (ODX), and OpenStack Cinder, transforming your Synology NAS into a block-based storage component.

The DS1621+ also integrates various backup applications, offering durable storage technologies to safeguard your valuable data on any device. From Active Backup for Business, Hyper Backup, to Synology Drive, it provides comprehensive backup solutions for VMware, Windows, file servers, and even Microsoft 365 / G Suite.

Powered by Synology DSM Central Management System, the DS1621+ allows for the simultaneous management of multiple Synology NAS servers on a centralized interface. It also offers a secure, reliable, and private mail server solution with Synology MailPlus, and a complete surveillance solution with Surveillance Station.

For optimal performance, the DS1621+ works best with Synology solid-state drives, engineered to handle intensive 24/7 workloads and provide consistent high-performance. Whether you're looking to turbocharge your data requirements or streamline your data management, the DiskStation DS1621+ 6-Bay NAS Enclosure is your ultimate solution.

Synology DS1621+ & WD Red Pro Features

  • CPU: AMD Ryzen Quad-core 2.2 GHz
  • Cache Acceleration: Dual M.2 2280 slots for NVMe Cache
  • Performance: 110K, 174% higher 4K random read IOPS
  • Scalability: Expand up to 16 drives with two DX517 expansion units
  • 2x M.2 NVMe
  • 10GbE support
  • Storage Expansion
  • Fully certified storage virtualization solutions
  • Active Backup for Business
  • Hyper Backup
  • Active Backup for Microsoft 365/G Suite
  • Central Management System
  • Synology MailPlus
  • Synology High Availability
  • Security
  • Synology Drive
  • Surveillance Station
  • Works best with Synology solid-state drives

Product Documents

User Manual

Key Features

  • This Synology DiskStation NAS bundle offers a massive 72TB storage capacity for all your data needs.
  • Ensure top-notch data security with advanced RAID configurations on this Synology 6-Bay NAS.
  • Experience fast performance with the powerful AMD Ryzen processor for seamless file access.
  • Enjoy easy setup and management with Synology's intuitive DiskStation Manager (DSM) interface.
  • Access your files remotely from anywhere with secure remote access features on this NAS.
  • Get incredible value with this Synology NAS bundle, combining performance and ample storage.

What's in the box:

  • Synology DiskStation DS1621+ 6-Bay NAS Enclosure
  • AC Power Cord
  • 2x RJ45 LAN Cables
  • Accessory Pack
  • Quick Start Guide
  • Synology 3 Year Limited Warranty
  • Bundle Includes:
  • 6x Toshiba 4TB N300 Pro 7200 RPM SATA III 3.5" Internal NAS HDD
