Kit Savings

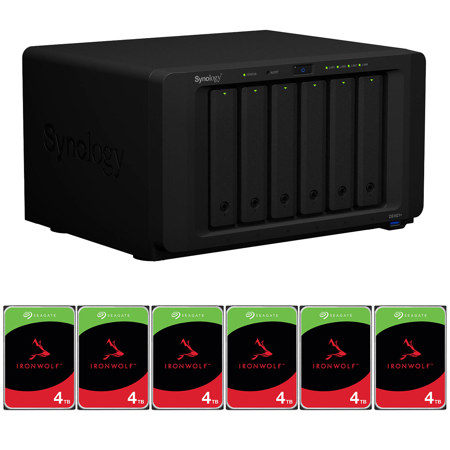

Synology DiskStation DS1621+ 6-Bay NAS Enclosure, Bundle with 6x IronWolf 4TB SATA III 3.5" 5400 RPM Internal NAS Hard Drive

SKU: SYDS1621PA MFR: DS1621+ A
Earn VIP Reward Points

PACKAGE INCLUDES:

  • Synology DiskStation DS1621+ 6-Bay NAS Enclosure, 4-Core 2.2GHz, 4GB RAM, No HDD
    Synology DiskStation DS1621+ 6-Bay NAS Enclosure, 4-Core 2.2GHz, 4GB RAM, No HDD
  • +
  • Seagate IronWolf SATA III 3.5" Internal NAS Hard Drive, 5400 RPM 4TB Single
    Seagate IronWolf SATA III 3.5" Internal NAS Hard Drive, 5400 RPM 4TB Single

    Qty: 6

  • +
  • Show more

Key Features

  • Empower your business with this Synology NAS, offering robust data security features.
  • Achieve peak performance with a powerful AMD Ryzen CPU, perfect for demanding workloads.
  • Expand your storage as needed; this NAS enclosure supports up to 16 drives for scalability.
  • Enjoy seamless file sharing across platforms with comprehensive file protocol support.
  • Protect your data with RAID configurations, ensuring data redundancy and availability.
  • Stream 4K video smoothly with the Video Station package on this high-performance NAS.
See More Product Details
FREE 2-Day Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$209.99

3 Year

$299.99

4 Year

$359.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Synology DS1621+ Kit Specifications

CPU
  • CPU Model

    AMD Ryzen V1500B

  • CPU Architecture

    64-bit

  • CPU Frequency

    4-core 2.2 GHz

  • Hardware Encryption Engine (AES-NI)

    Yes

  • System Memory

    4 GB DDR4 ECC SODIMM

  • Memory Module Pre-installed

    4 GB (4 GB x 1)

  • Total Memory Slots

    2

  • Maximum Memory Capacity

    32 GB (16 GB x 2)

Storage

Jump to...
  • Drive Bays

    6

  • Maximum Drive Bays with Expansion Unit

    16 (DX517 x 2)

  • M.2 Drive Slots

    2 (NVMe)

  • Compatible Drive Type

    3.5" SATA HDD
    2.5" SATA HDD
    2.5" SATA SSD
    M.2 2280 NVMe SSD

  • Maximum Single Volume Size

    108 TB

  • Hot Swappable Drive

    Yes

External Ports

Jump to...
  • RJ-45 1GbE LAN Port

    4 (with Link Aggregation / Failover support)

  • USB 3.0 Port

    3

  • eSATA Port

    2

  • PCIe Expansion

    1x Gen3 x8 slot (x4 link)

File System

Jump to...
  • Internal Drives

    Btrfs
    EXT4

  • External Drives

    Btrfs
    EXT4
    EXT3
    FAT
    NTFS
    HFS+

  • System Fan

    3.6 x 3.6" (92 x 92mm) x2 pcs

  • Fan Speed Mode

    Full-Speed Mode
    Cool Mode
    Quiet Mode

  • Easy Replacement System Fan

    Yes

  • Front LED Indicators

    Brightness Adjustable: Yes

  • Power Recovery

    Yes

  • Noise Level

    25.2 dB(A)

  • Scheduled Power On/Off

    Yes

  • Wake on LAN/WAN

    Yes

  • Power Supply Unit/Adapter

    250 W

  • AC Input Power Voltage

    100 V to 240 V AC

  • Power Frequency

    50/60 Hz, Single Phase

  • Power Consumption

    51.22 W (Access)
    25.27 W (HDD Hibernation)

  • British Thermal Unit

    174.77 BTU/hr (Access)
    86.22 BTU/hr (HDD Hibernation)

Temperature

Jump to...
  • Operating Temperature

    32 Degree F to 104 Degree F (0 Degree C to 40 Degree C)

  • Storage Temperature

    -5 Degree F to 140 Degree F (-20 Degree C to 60 Degree C)

  • Relative Humidity

    5% to 95% RH

Certification

Jump to...
  • Certification

    FCC
    CE
    BSMI
    EAC
    CCC
    KC
    VCCI
    RCM

Environment

Jump to...
  • Environment

    RoHS Compliant

Storage Management

Jump to...
  • Maximum Internal Volume Number

    64

  • SSD Read/Write Cache (White Paper)

    Yes

  • SSD TRIM

    Yes

  • Supported RAID Type

    Synology Hybrid RAID
    Basic
    JBOD
    RAID 0
    RAID 1
    RAID 5
    RAID 6
    RAID 10

  • RAID Migration

    Basic to RAID 1
    Basic to RAID 5
    RAID 1 to RAID 5
    RAID 5 to RAID 6

  • Volume Expansion with Larger HDDs

    Synology Hybrid RAID
    RAID 1
    RAID 5
    RAID 6
    RAID 10

  • Volume Expansion by Adding a HDD

    Synology Hybrid RAID
    JBOD
    RAID 5
    RAID 6

  • Global Hot Spare Supported RAID Type

    Synology Hybrid RAID
    RAID 1
    RAID 5
    RAID 6
    RAID 10

File Services

Jump to...
  • File Protocol

    CIFS/AFP/NFS/FTP/WebDAV

  • Max Concurrent CIFS/AFP/FTP Connections

    1000
    2,000 (with RAM expansion)

  • Windows Access Control List (ACL)

    Yes (Integration)

  • NFS Kerberos Authentication

    Yes

Account & Shared Folder

Jump to...
  • Maximum Local User Accounts

    2048

  • Maximum Local Groups

    256

  • Maximum Shared Folder

    512

  • Maximum Shared Folder Sync Tasks

    16

High Availability

Jump to...
  • Synology High Availability

    Yes

Log Center

Jump to...
  • Syslog Events per Second

    800

Virtualization

Jump to...
  • VMware vSphere 6 with VAAI

    Yes

  • Windows Server 2016

    Yes

  • Windows Server 2019

    Yes

  • Citrix Ready

    Yes

  • OpenStack

    Yes

General DSM Specifications

Jump to...
  • Networking Protocols

    SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV

  • Supported Browsers

    Google Chrome
    Firefox
    Microsoft Edge
    Internet Explorer 10 onwards
    Safari 10 onwards
    Safari (iOS 10 onwards)
    Google Chrome (Android 6.0 onwards)

  • Supported Language

    English, Deutsch, Francais, Italiano, Espanol, Dansk, Norsk, Svenska, Nederlands, Polski, Magyar, Portugues do Brasil, Portugues Europeu, Turkce, Cesky

Add-on Packages

Jump to...
  • Antivirus by McAfee (Trial)

    Yes

  • Central Management System

    Yes

  • Document Viewer

    Yes

  • exFAT Access (Optional)

    Yes

  • Video Station

    Yes

Synology Chat

Jump to...
  • Maximum Users

    1500

Download Station

Jump to...
  • Maximum Concurrent Download Tasks

    80

iSCSI Manager

Jump to...
  • Maximum iSCSI Target Number

    128

  • Maximum iSCSI LUN

    256

  • iSCSI LUN Clone/Snapshot, Windows ODX

    Yes

Synology MailPlus / MailPlus Server

Jump to...
  • Free Email Accounts

    5 (Licenses required for additional accounts)

  • Maximum Number of Concurrent Users

    150

  • Maximum Server Performance

    1,484,000 emails per day, approx. 45GB

Media Server

Jump to...
  • DLNA Compliance

    Yes

Moments

Jump to...
  • Facial Recognition

    Yes

  • Subject Recognition

    Yes

  • Auto Color & Rotate

    Yes

  • Moments Select

    Yes

Snapshot Replication

Jump to...
  • Maximum Snapshots per Shared Folder

    1024

  • Maximum of System Snapshots

    65536

Surveillance Station

Jump to...
  • Maximum IP cam (Licenses required)

    40 (including 2 Free License)

  • Total FPS (H.264)

    1200 FPS @ 720p (1280x720)
    1050 FPS @ 1080p (1920x1080)
    600 FPS @ 3M (2048x1536)
    440 FPS @ 5M (2591x1944)
    320 FPS @ 4K (3840x2160)

  • Total FPS (H.265)

    1200 FPS @ 720p (1280x720)
    1200 FPS @ 1080p (1920x1080)
    1120 FPS @ 3M (2048x1536)
    600 FPS @ 5M (2591x1944)
    480 FPS @ 4K (3840x2160)

Synology Drive

Jump to...
  • Number of Hosted Files

    Recommended: 1,000,000 (applies to files indexed or hosted by Synology Drive. For file access through other standard protocols, refer to the File Services section above)

  • Number of Concurrent Sync Clients

    Recommended: 550 (the number of connections that can be maintained when the recommended number of hosted files was reached)

Synology Office

Jump to...
  • Maximum Users

    1800

Virtual Machine Manager

Jump to...
  • Recommended Virtual Machine Instances

    8

  • Recommended Virtual DSM Number

    Licenses required: 8 (including 1 Free License)

VPN Server

Jump to...
  • Maximum Connections

    30

General

Jump to...
  • Dimensions (H x W x D)

    6.53 x 11.1 x 9.6" (166 x 282 x 243mm)

  • Weight

    11.2 lbs (5.1kg)

  • UPC Codes

    192223257634, 763649090985, 846504003778

About Synology DS1621+ Kit

Are you seeking a robust and scalable network-attached storage solution? Look no further than the Synology DiskStation DS1621+ 6-Bay NAS Enclosure Bundle, which includes six Seagate IronWolf 4TB SATA III 3.5" 5400 RPM Internal NAS Hard Drives. This powerful and compact NAS is engineered to store and protect your critical data assets, making it ideal for managing today's growing volumes of unstructured data with efficiency and ease.

The Synology DS1621+ is powered by an AMD Ryzen Quad-core 2.2 GHz CPU, ensuring high performance and reliability. It features dual M.2 2280 slots for NVMe cache acceleration, boosting performance with 110K IOPS, which is 174% higher in 4K random read operations compared to its predecessor. Designed for scalability, this NAS can expand up to 16 drives with the addition of two DX517 expansion units, allowing you to start small and grow as your data needs increase.

Enhance your workflow with the DS1621+'s ability to support ultra-fast NVMe cache, accelerating HDD arrays by 20X or more. The NAS also supports 10GbE networking, enabling faster SFP+ or RJ-45 connections to streamline your operations. With Synology Drive and Synology Moments, you can manage files and photos more efficiently than ever before.

The DS1621+ offers ultimate file management and sharing capabilities through File Station, a web-based tool that allows for easy drag-and-drop operations on both Mac and PC. It supports multiple protocols, including AFP, FTP, iSCSI, NFS, SMB, and WebDAV, ensuring complete compatibility across various platforms.

For virtualization, Synology iSCSI storage is fully certified and supports most solutions, enhancing work efficiency with an easy management interface. Integration with VMware vSphere 6 and VAAI optimizes computation efficiency, while Windows Offloaded Data Transfer (ODX) speeds up data transfer and migration. OpenStack Cinder support transforms your Synology NAS into a block-based storage component.

The DS1621+ is an ultimate backup solution, integrating various applications into an intuitive interface to safeguard your valuable data. With Active Backup for Business, you can centralize backup tasks for VMware, Windows, and file servers, ensuring fast and reliable restoration. Hyper Backup allows comprehensive data backup to multiple destinations, including local shared folders, external devices, other Synology NAS units, rsync servers, or public clouds. Synology Drive Client offers real-time data backups and point-in-time file recovery, while Active Backup for Microsoft 365 and G Suite provides an on-premise backup solution with a centralized dashboard.

Powered by the Synology DSM Central Management System, you can manage multiple Synology NAS servers from a single interface, increasing business efficiency. Synology MailPlus offers a secure and reliable mail server solution, while Synology High Availability ensures seamless transitions between clustered servers in case of failure, minimizing application impact. Built-in security tools are constantly updated to protect against evolving threats, and the Surveillance Station provides a complete solution for recording, monitoring, and management.

For optimal performance, the DS1621+ works best with Synology solid-state drives, designed to handle intensive 24/7 workloads. Choose from the SATA 2.5" SSD SAT5200 or the NVMe M.2 SSD SNV3400 to meet your storage needs. With the Synology DiskStation DS1621+, experience a versatile and high-performance NAS solution that grows with your data demands.

Synology DS1621+ Kit Features

  • High-performance 6-Bay NAS Enclosure powered by AMD Ryzen Quad-core 2.2 GHz processor
  • Scalable storage solution, expandable up to 16 drives with DX517 units
  • Dual M.2 2280 slots for ultra-fast NVMe Cache, accelerating HDD arrays by 20X
  • Integrated with Synology DSM Central Management System for efficient multi-server management
  • Works best with Synology solid-state drives, designed for intensive 24/7 workloads

Warranty Information

This product has a limited warranty of 36 months.

Product Documents

User Manual

Key Features

  • Empower your business with this Synology NAS, offering robust data security features.
  • Achieve peak performance with a powerful AMD Ryzen CPU, perfect for demanding workloads.
  • Expand your storage as needed; this NAS enclosure supports up to 16 drives for scalability.
  • Enjoy seamless file sharing across platforms with comprehensive file protocol support.
  • Protect your data with RAID configurations, ensuring data redundancy and availability.
  • Stream 4K video smoothly with the Video Station package on this high-performance NAS.

What's in the box:

  • Synology DiskStation DS1621+ 6-Bay NAS Enclosure (4GB RAM)
  • Accessory Pack
  • AC Power Cord
  • 2x RJ-45 LAN Cable
  • Quick Installation Guide
  • Synology 3 Year Limited Warranty
  • Bundle Includes:
  • 6x Seagate IronWolf 4TB SATA III 3.5" Internal NAS Hard Drive (5400 RPM)
