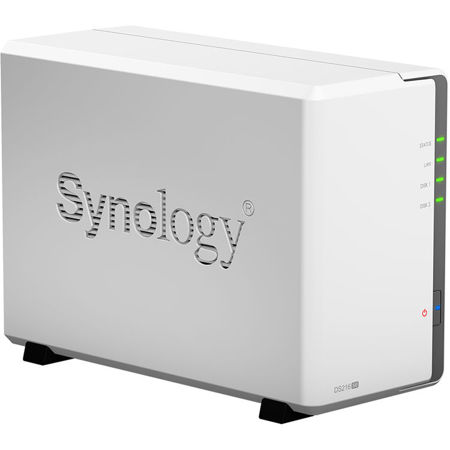

Synology DiskStation DS216se 2-Bay NAS Enclosure, No HDD

SKU: SYDS216SE

This item is no longer available.

Overview
Compare
Accessories
Specs
Protection

Reviews about this item

Review Summary

Synology DiskStation DS216se Specifications

CPU
  • CPU Model

    Marvell Armada 370 88F6707

  • CPU Architecture

    32-bit

  • CPU Frequency

    800 MHz

  • Hardware Encryption Engine

    Yes

  • System Memory

    256MB DDR3

Storage

Jump to...
  • Drive Bays

    2

  • Compatible Drive Type

    3.5" SATA HDD
    2.5" SATA HDD (with optional 2.5" Disk Holder)
    2.5" SATA SSD (with optional 2.5" Disk Holder)

  • Maximum Internal Raw Capacity

    24TB (12TB drive x 2) (Capacity may vary by RAID types)

  • Maximum Single Volume Size

    16TB

External Ports

Jump to...
  • RJ-45 1GbE LAN Port

    1

  • USB 2.0 Port

    2

File System

Jump to...
  • Internal Drives

    EXT4

  • External Drives

    EXT4
    EXT3
    FAT
    NTFS
    HFS+
    exFAT

  • System Fan

    92mm x 92mm

  • Fan Speed Mode

    Cool Mode
    Quiet Mode

  • Low-power Mode

    Yes

  • Power Recovery

    Yes

  • Noise Level

    18.4 dB(A)

  • Scheduled Power On/Off

    Yes

  • Power Supply Unit / Adapter

    60W

  • AC Input Power Voltage

    100V to 240V AC

  • Power Frequency

    50/60 Hz, Single Phase

  • Power Consumption

    13.73 W (Access)
    5.12 W (HDD Hibernation)

  • British Thermal Unit

    46.88 BTU/hr (Access)
    17.48 BTU/hr (HDD Hibernation)

Environment Temperature

Jump to...
  • Operating Temperature

    5 to 40 deg. C (41 to 104 deg. F)

  • Storage Temperature

    -20 to 60 deg. C (-4 to 140 deg. F)

  • Relative Humidity

    5% to 95% RH

Certification

Jump to...
  • Certification

    Hardware: EAC
    CCC
    RCM
    KC
    FCC
    CE
    BSMI

Environment

Jump to...
  • Environment

    RoHS Compliant

Storage Management

Jump to...
  • Maximum Internal Volume Number

    256

  • Supported RAID Type

    Synology Hybrid RAID
    Basic
    JBOD
    RAID 0
    RAID 1

  • RAID Migration

    Basic to RAID 1

  • Volume Expansion with Larger HDDs

    Synology Hybrid RAID
    RAID 1

  • Volume Expansion by Adding a HDD

    Synology Hybrid RAID

File Sharing Capacity

Jump to...
  • Maximum Local User Accounts

    512

  • Maximum Local Groups

    128

  • Maximum Shared Folder

    256

  • Maximum Shared Folder Sync Tasks

    2

  • Max Concurrent CIFS/AFP/FTP Connections

    64

  • Windows Access Control List Integration

    Yes

  • NFS Kerberos Authentication

    Yes

Log Center

Jump to...
  • Syslog Events per Second

    50

Cloud Station Server

Jump to...
  • Max No of Concurrently Connected Devices

    64

  • Maximum Number of Synced Files (ext4)

    10,000 / single file reaction time 1990 ms

Download Station

Jump to...
  • Maximum Concurrent Download Tasks

    20

  • Maximum Number of Synced Files

    10,000 / single file reaction time 2,099 ms

  • Max No of Connections (PC Clients)

    5

exFAT Access (optional)

Jump to...
  • exFAT Access (optional)

    Yes

Media Server

Jump to...
  • DLNA Certification

    No

Moments

Jump to...
  • Facial recognition

    No

  • Subject recognition

    No

  • Maximum Users

    3

Surveillance Station

Jump to...
  • Maximum IP cam (Licenses required)

    5 (including 2 Free License)

  • Total FPS (H.264)

    50 FPS at 720p (1280x720)
    20 FPS at 1080p (1920x1080)
    10 FPS at 3M (2048x1536)
    10 FPS at 5M (2591x1944)

  • Total FPS (MJPEG)

    20 FPS at 720p (1280x720)
    10 FPS at 1080p (1920x1080)
    10 FPS at 3M (2048x1536)
    6 FPS at 5M (2591x1944)

Video Station

Jump to...
  • Video Transcoding

    Group 2

VPN Server

Jump to...
  • Maximum Connections

    5

Networking Protocols

Jump to...
  • Networking Protocols

    CIFS
    AFP
    NFS
    FTP
    WebDAV
    CalDAV
    Telnet
    SSH
    SNMP
    VPN (PPTP, OpenVPN)

Windows AD Domain Integration

Jump to...
  • Windows AD Domain Integration

    Domain Users login via Samba/AFP/FTP/File Station

HDD Management

Jump to...
  • HDD Management

    HDD Hibernation
    S.M.A.R.T.
    Dynamic Bad Sector Mapping

Security

Jump to...
  • Security

    FTP over SSL/TLS
    IP Auto-Block
    Firewall
    Encrypted Network Backup over Rsync
    HTTPS Connection

Utilities

Jump to...
  • Utilities

    Synology Assistant

Supported Clients

Jump to...
  • Supported Clients

    Windows 7 and 10
    Mac OS X 10.11 onward

Supported Browsers

Jump to...
  • Supported Browsers

    Chrome
    Firefox
    Internet Explorer 10 onwards
    Safari 10 onwards
    Safari (iOS 10 onwards)
    Chrome (Android 6.0 onwards)

General

Jump to...
  • Dimensions (HxWxD)

    165 x 100 x 225.5mm (6.50 x 3.94 x 8.88")

  • Weight

    0.87kg (1.92 lbs)

0 Accessories for Synology DiskStation DS216se 2-Bay NAS Enclosure, No HDD

About Synology DiskStation DS216se

DiskStation DS216se
Simplified yet powerful private cloud solution for home users.

Personal, private cloud solution
Easily backup your devices to DS216se, a simplified, all-in-one solution to manage your media and data. Designed for cool and efficient operation with extremely low power consumption. The noise dampening design fits perfectly anywhere.

Easy file access with QuickConnect
Access files on your Synology NAS over the Internet without the hassle of setting up port forwarding rules, DDNS or other complicated network settings. QuickConnect allows you to connect via a secure, customizable address, so that you can instantly access media and work files on any Internet-connected device with no additional charge.

Stream content to your TV
Turn your Synology NAS into a home media hub and stream your digital contents to computers, mobile devices, Samsung TV, Apple TV, Google Chromecast and DLNA devices.

Seamless integration with your devices
Synology mobile applications are designed to allow quick and secure access to your data wherever you are.

Disk mirroring for redundancy
With the support for RAID 0/1, JBOD and two basic volumes, users can easily choose among RAID1, RAID0 or JBOD for additional security, improved performance, providing more flexible storage options to suit individual needs.

Powered by Synology DSM
Surveillance Station
Complete surveillance solution for recording, monitoring and management.

Desktop Backup
Simplified backup solution for your Mac, PC and mobile devices.

File Server/Management
Powerful built-in file management and sharing services.

Security
Comprehensive built-in security tools are constantly updated to tackle evolving threats and protect your devices.

Multimedia
Complete multimedia solution for management, streaming and playback.

DSM UI
Award-winning operating system with an intuitive user interface and powerful capabilities.

What's in the box:

  • Synology DiskStation DS216se 2-Bay NAS Enclosure
  • Accessory Pack
  • AC Power Adapter
  • AC Power Cord
  • RJ-45 LAN Cable
  • Synology 2 Year Warranty
