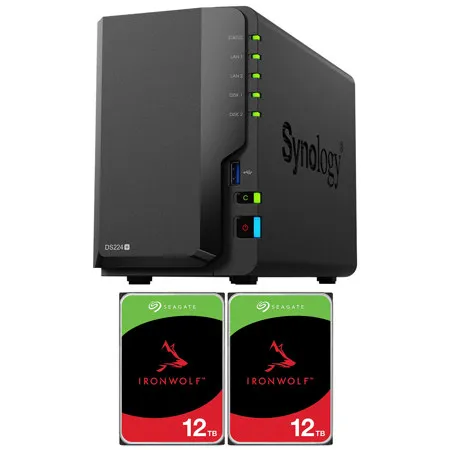

Synology DiskStation DS224+ 2-Bay NAS Enclosure, Bundle with 2x IronWolf 12TB SATA III 3.5" 7200 RPM Internal NAS Hard Drive

SKU: SYDS224C MFR: DS224+ C
Earn VIP Reward Points

PACKAGE INCLUDES:

  • Synology DiskStation DS224+ 2-Bay NAS Enclosure, Diskless
    Synology DiskStation DS224+ 2-Bay NAS Enclosure, Diskless
  • +
  • Seagate IronWolf SATA III 3.5" Internal NAS Hard Drive 12TB Single
    Seagate IronWolf SATA III 3.5" Internal NAS Hard Drive 12TB Single

    Qty: 2

  • +
  • Show more

Key Features

  • Harness the power of this Synology NAS for robust data security and peace of mind.
  • Enjoy fast performance with the Intel Celeron processor, perfect for home or small office.
  • This 2-bay NAS enclosure offers scalability, growing with your storage needs over time.
  • Set up your personal cloud with easy setup, enabling remote access to your files anywhere.
  • Benefit from 24TB of total storage capacity, ideal for media, backups, and important files.
  • IronWolf NAS hard drives ensure data integrity, optimized for always-on 24/7 operation.
See More Product Details
FREE 2-Day Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$174.99

3 Year

$224.99

4 Year

$299.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Synology DS224+ Kit Specifications

Hardware: CPU

Hardware: CPU

Jump to...
  • CPU Model

    Intel Celeron J4125

  • CPU Quantity

    1

  • CPU Architecture

    64-bit

  • CPU Frequency

    4-core 2.0 (base) / 2.7 (burst) GHz

  • Hardware Encryption Engine (AES-NI)

    Yes

Hardware: Memory

Jump to...
  • System Memory

    2 GB DDR4 non-ECC

  • Total Memory Slots

    1

  • Maximum Memory Capacity

    6 GB (2 GB + 4 GB)

Hardware: Storage

Jump to...
  • Drive Bays

    2

  • Compatible Drive Type

    3.5" SATA HDD
    2.5" SATA SSD

  • Hot Swappable Drive

    Yes

Hardware: External Ports

Jump to...
  • RJ-45 1GbE LAN Port

    2 (with Link Aggregation / Failover support)

  • USB 3.2 Gen 1 Port

    2

  • USB Copy

    Yes

Hardware: File System

Jump to...
  • Internal Drives

    Btrfs
    EXT4

  • External Drives

    Btrfs
    EXT4
    EXT3
    FAT
    NTFS
    HFS+
    exFAT

Hardware: Temperature

Jump to...
  • Operating Temperature

    0 to 40 Degree C (32 to 104 Degree F)

  • Storage Temperature

    -20 to 60 Degree C (-5 to 140 Degree F)

  • Relative Humidity

    5% to 95% RH

Hardware: Certification

Jump to...
  • Certification

    FCC
    CE
    BSMI
    VCCI
    RCM
    UKCA
    CCC
    KC

Hardware: Environment

Jump to...
  • Environment

    RoHS Compliant

Hardware: Others

Jump to...
  • System Fan

    3.62 x 3.62" (92 x 92mm) (1 pcs)

  • Fan Speed Mode

    Full-Speed Mode
    Cool Mode
    Quiet Mode

  • Brightness Adjustable

    Yes (Front LED Indicators)

  • Power Recovery

    Yes

  • Noise Level

    22 dB(A)

  • Scheduled Power On/Off

    Yes

  • Wake on LAN / WAN

    Yes

  • Power Supply Unit / Adapter

    60 W

  • AC Input Power Voltage

    100V to 240V AC

  • Power Frequency

    50/60 Hz, Single Phase

  • Power Consumption

    14.69 W (Access)
    4.41 W (HDD Hibernation)

  • British Thermal Unit

    50.09 BTU/hr (Access)
    15.04 BTU/hr (HDD Hibernation)

Hardware: Physical

Jump to...
  • Dimensions (H x W x D)

    6.49 x 4.25 x 9.14" (165 x 108 x 232.2mm)

  • Weight

    2.86 lbs (1.30kg)

Software: Storage Management

Jump to...
  • Maximum Single Volume Size

    108 TB

  • Maximum Internal Volume Number

    64

  • SSD TRIM

    Yes

  • Supported RAID Type

    Synology Hybrid RAID
    Basic
    JBOD
    RAID 0
    RAID 1

  • RAID Migration

    Basic to RAID 1

  • Volume Expansion with Larger HDDs

    Synology Hybrid RAID
    RAID 1

  • Volume Expansion by Adding a HDD

    Synology Hybrid RAID

Software: File Services

Jump to...
  • File Protocol

    SMB/AFP/NFS/FTP/WebDAV

  • Maximum Concurrent

    500 (SMB/AFP/FTP Connections)

  • Maximum Concurrent with RAM expansion

    1,500 (SMB/AFP/FTP Connections)

  • Windows Access Control List

    Yes (ACL) (Integration)

  • NFS Kerberos Authentication

    Yes

Software: Account & Shared Folder

Jump to...
  • Maximum Local User Accounts

    2048

  • Maximum Local Groups

    256

  • Maximum Shared Folder

    256

  • Maximum Shared Folder Sync Tasks

    8

Software: Hybrid Share

Jump to...
  • Maximum Hybrid Share Folders

    10

Software: Hyper Backup

Jump to...
  • Folder and Package Backup

    Yes

  • Entire System Backup

    Yes

Software: High Availability

Jump to...
  • High Availability

    Yes

Software: Log Center

Jump to...
  • Syslog Events per Second

    800

Software: General

Jump to...
  • Networking Protocols

    SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV

  • Supported Browsers

    Google Chrome
    Firefox
    Microsoft Edge
    Safari

  • Supported Language

    English, Dutch, French, Italian, Espanol, Danish, Norwegian, Swedish, Russian, Polish, Hungarian, Brazilian Portuguese, European Portuguese, Turkish, Czech, Thai, Japanese, Korean, Traditional Chinese

Software: Antivirus

Jump to...
  • Antivirus by McAfee (Trial)

    Yes

Software: Central Management

Jump to...
  • Central Management System

    Yes

Software: Synology Chat

Jump to...
  • Maximum Number of Concurrent Users

    100

Software: Document Viewer

Jump to...
  • Document Viewer

    Yes

Software: Download Station

Jump to...
  • Maximum Concurrent Download Tasks

    80

Software: SAN Manager

Jump to...
  • Maximum iSCSI Target Number

    128

  • Maximum LUN

    256

  • LUN Clone/Snapshot, Windows ODX

    Yes

Software: Synology MailPlus/Server

Jump to...
  • Free Email Accounts

    5 (Licenses required for additional accounts)

  • Maximum Number of Concurrent Users

    100

  • Maximum Server Performance

    1,224,000 emails per day, approx. 37GB

Software: Media Server

Jump to...
  • DLNA Compliance

    Yes

Software: Synology Photos

Jump to...
  • Facial Recognition

    Yes

  • Subject Recognition

    Yes

Software: Snapshot Replication

Jump to...
  • Maximum Snapshots per Shared Folder

    1024

  • Maximum of System Snapshots

    65536

Software: Surveillance Station

Jump to...
  • Maximum IP cam (Licenses required)

    25 (including 2 Free License) (see all supported IP cameras)

  • Total FPS (H.264)

    750 FPS @ 720p (1280x720)
    750 FPS @ 1080p (1920x1080)
    350 FPS @ 3M (2048x1536)
    275 FPS @ 5M (2591x1944)
    170 FPS @ 4K (3840x2160)

  • Total FPS (H.265)

    750 FPS @ 720p (1280x720)
    750 FPS @ 1080p (1920x1080)
    600 FPS @ 3M (2048x1536)
    475 FPS @ 5M (2591x1944)
    200 FPS @ 4K (3840x2160)

Software: Synology Drive

Jump to...
  • Number of Concurrent Sync Clients

    350 (the number of connections that can be maintained when the recommended number of hosted files was reached) (Recommended)

  • Recommended Number of Hosted Files

    5,000,000 (applies to files indexed or hosted by Synology Drive. For file access through other standard protocols, refer to the File Services section above)

Software: Synology Office

Jump to...
  • Maximum Users

    1200

Software: Video Station

Jump to...
  • Video Station

    Yes

Software: Virtual Machine Manager

Jump to...
  • Recommended Virtual Machine Instances

    2

  • Recommended Virtual DSM Number

    2 (including 1 Free License)

Software: VPN Server

Jump to...
  • Maximum Connections

    40

  • UPC Codes

    192223257733, 763649136348, 846504005253

About Synology DS224+ Kit

Explore the powerful capabilities of the Synology DiskStation DS224+ 2-Bay NAS Enclosure, bundled with two Seagate IronWolf 12TB SATA III 3.5" 7200 RPM Internal NAS Hard Drives. This robust storage solution is designed to keep your data secure and accessible, offering integrated security features and centralized access to safeguard all your important files.

With the DS224+, you can efficiently manage and share data, back up files, photos, surveillance videos, and more, all while minimizing energy consumption with its low 15-watt power usage during full operation. Experience a significant performance boost with 62% more responses per second for web applications, 52% faster file indexing in Synology Drive, and 28% faster image indexing in Synology Photos compared to previous-generation systems.

Create your own private cloud for seamless data sharing and hybrid work environments. Store, sync, access, and share data from any device, anywhere, using mobile apps, desktop clients, or a browser-based interface. The smart versioning feature allows you to quickly roll back files in case of unwanted deletions or modifications.

Effortlessly organize and back up your photos and videos with intuitive management tools. Automatically sort your visual assets into albums and generate secure share links for easy collaboration with stakeholders and teammates. Enhance productivity with site-to-site file syncing, enabling automatic synchronization of files and folders between Synology devices for seamless access from local devices.

Leverage the power of hybrid cloud technology with Synology Hybrid Share, which offers automatic cloud tiering. This feature keeps the bulk of your data in the cloud while caching frequently accessed files locally on your DS224+ for fast LAN-speed access. The multi-layered backup system allows you to consolidate and automate backup tasks for workstations, smartphones, cloud apps, and more, using the Active Backup Suite. Administer device backups remotely and restore specific files or entire devices with ease.

Protect your data with comprehensive Synology system backups, including scheduled backups to local and remote servers, external drives, or cloud storage destinations like Synology C2 Storage. Utilize efficient point-in-time snapshots of shared folders and LUNs, enabling rapid recovery and data integrity protection with immutable snapshots.

Enhance your business security with Synology Surveillance Station, supporting over 8,300 IP camera models for centralized management, remote monitoring, and playback. Dual recording to the C2 cloud ensures access to surveillance footage even if your recording server is compromised, with end-to-end encryption safeguarding your streams.

Powered by the advanced Btrfs file system, the Synology DiskStation Manager (DSM) operating system protects your data against corruption and allows for the reversal of unintended changes through snapshot technology. Benefit from high sustained performance and reliability with drives engineered specifically for Synology systems.

Access your files from anywhere, prevent ransomware threats, and transfer files securely with solutions tailored for teams, studios, and businesses. The Synology DiskStation DS224+ is your comprehensive solution for efficient data management, protection, and collaboration.

Synology DS224+ Kit Features

  • Centralized Data Storage: Consolidate all your data for complete data ownership and multi-platform access
  • Sharing and Syncing Across Systems: Access, share, and sync data across different systems and devices using intuitive controls
  • Powerful Backup and Restoration: Back up and restore critical devices and data using a host of intuitive backup tools
  • Built-in Data Management Tools: Leverage built-in file and photo management, data protection, and video surveillance solutions

Warranty Information

This product has a limited warranty of 24 months.

Product Documents

User Manual

Key Features

  • Harness the power of this Synology NAS for robust data security and peace of mind.
  • Enjoy fast performance with the Intel Celeron processor, perfect for home or small office.
  • This 2-bay NAS enclosure offers scalability, growing with your storage needs over time.
  • Set up your personal cloud with easy setup, enabling remote access to your files anywhere.
  • Benefit from 24TB of total storage capacity, ideal for media, backups, and important files.
  • IronWolf NAS hard drives ensure data integrity, optimized for always-on 24/7 operation.

What's in the box:

  • Synology DiskStation DS224+ 2-Bay NAS Enclosure
  • Accessory Pack
  • AC Power Adapter
  • AC Power Cord
  • 2x RJ-45 LAN Cables
  • Quick Installation Guide
  • Synology 2 Year Limited Warranty
  • Bundle Includes:
  • 2x Seagate IronWolf 12TB SATA III 3.5" Internal NAS Hard Drive (7200 RPM)
