Synology DiskStation DS2415+ Specifications

CPU
  • CPU Model

    Intel Atom C2538

  • CPU Architecture

    64-bit

  • CPU Frequency

    Quad Core 2.4 GHz

  • Hardware Encryption Engine (AES-NI)

    Yes

  • System Memory

    2GB DDR3

  • Memory Module Pre-installed

    2GB (1 x 2GB)

  • Total Memory Slots

    2

  • Memory Expandable up to

    6GB (2GB + 4 GB)

Storage

Jump to...
  • Drive Bays

    12

  • Maximum Drive Bays with Expansion Unit

    24

  • Compatible Drive Type

    3.5" SATA HDD
    2.5" SATA HDD
    2.5" SATA SSD

  • Maximum Internal Raw Capacity

    144TB (12TB drive x 12) (Capacity may vary by RAID types)

  • Max Raw Capacity with Expansion Units

    288TB (144TB + 12TB drive x 12) (Capacity may vary by RAID types)

  • Maximum Single Volume Size

    108 TB

  • Hot Swappable Drive

    Yes

External Ports

Jump to...
  • RJ-45 1GbE LAN Port

    4 (with Link Aggregation / Failover support)

  • USB 3.0 Port

    4

  • Expansion Port

    1

File System

Jump to...
  • Internal Drives

    Btrfs
    EXT4

  • External Drives

    Btrfs
    EXT4
    EXT3
    FAT
    NTFS
    HFS+
    exFAT

  • System Fan

    120mm x 120mm x 2 pcs

  • Fan Speed Mode

    Full-Speed Mode
    Cool Mode
    Quiet Mode

  • Easy Replacement System Fan

    Yes

  • Power Recovery

    Yes

  • Noise Level

    27.1 dB(A)

  • Scheduled Power On/Off

    Yes

  • Wake on LAN/WAN

    Yes

  • Power Supply Unit / Adapter

    500W

  • AC Input Power Voltage

    100V to 240V AC

  • Power Frequency

    50/60 Hz, Single Phase

  • Power Consumption

    73.44 W (Access)
    37.13 W (HDD Hibernation)

  • British Thermal Unit

    250.59 BTU/hr (Access)
    126.70 BTU/hr (HDD Hibernation)

Environment Temperature

Jump to...
  • Operating Temperature

    5 to 35 deg. C (41 to 95 deg. F)

  • Storage Temperature

    -20 to 60 deg. C (-4 to 140 deg. F)

  • Relative Humidity

    5% to 95% RH

Certification

Jump to...
  • Certification

    Hardware: EAC
    CCC
    RCM
    KC
    FCC
    CE
    BSMI

Environment

Jump to...
  • Environment

    RoHS Compliant

Storage Management

Jump to...
  • Maximum Internal Volume Number

    512

  • Maximum iSCSI Target Number

    32

  • Maximum iSCSI LUN

    256

  • iSCSI LUN Clone/Snapshot, Windows ODX

    Yes

  • SSD Read/Write Cache (White Paper)

    Yes

  • SSD TRIM

    Yes

  • Supported RAID Type

    Synology Hybrid RAID
    Basic
    JBOD
    RAID 0
    RAID 1
    RAID 5
    RAID 6
    RAID 10

  • RAID Migration

    Basic to RAID 1
    Basic to RAID 5
    RAID 1 to RAID 5
    RAID 5 to RAID 6

  • Volume Expansion with Larger HDDs

    Synology Hybrid RAID
    RAID 1
    RAID 5
    RAID 6

  • Volume Expansion by Adding a HDD

    Synology Hybrid RAID
    RAID 5
    RAID 6
    JBOD

  • Global Hot Spare Supported RAID Type

    Synology Hybrid RAID
    RAID 1
    RAID 5
    RAID 6
    RAID 10

File Sharing Capacity

Jump to...
  • Maximum Local User Accounts

    2048

  • Maximum Local Groups

    256

  • Maximum Shared Folder

    512

  • Maximum Shared Folder Sync Tasks

    8

  • Max Concurrent CIFS/AFP/FTP Connections

    512

  • Windows Access Control List Integration

    Yes

  • NFS Kerberos Authentication

    Yes

High Availability Manager

Jump to...
  • High Availability Manager

    Yes

Log Center

Jump to...
  • Syslog Events per Second

    800

Virtualization

Jump to...
  • VMware vSphere 5 with VAAI

    Yes

  • VMware vSphere 6 with VAAI

    Yes

  • Windows Server 2012

    Yes

  • Windows Server 2012 R2

    Yes

  • Citrix Ready

    Yes

  • OpenStack

    Yes

Antivirus by McAfee (Trial)

Jump to...
  • Antivirus by McAfee (Trial)

    Yes

Central Management System

Jump to...
  • Central Management System

    Yes

  • Maximum Users

    1500

Cloud Station Server

Jump to...
  • Max No of Concurrently Connected Devices

    512

  • Maximum Number of Synced Files (btrfs)

    500,000 / single file reaction time 714 ms

  • Maximum Number of Synced Files (ext4)

    500,000 / single file reaction time 477 ms

Document Viewer

Jump to...
  • Document Viewer

    Yes

Download Station

Jump to...
  • Maximum Concurrent Download Tasks

    80

  • Maximum Number of Synced Files

    1,000,000 / single file reaction time 437 ms

  • Max No of Connections for PC Clients

    550

exFAT Access (optional)

Jump to...
  • exFAT Access (optional)

    Yes

MailPlus / MailPlus Server

Jump to...
  • Free Email Accounts

    5 (Licenses required for additional accounts)

  • Recommended MailPlus Client Number

    Up to 90 (Btrfs) / 100 (EXT4)

  • Maximum Server Performance

    825,000 (Btrfs) / 884,000 (EXT4) emails per day, approx. 25.2GB (Btrfs) / 27GB (EXT4)

Media Server

Jump to...
  • DLNA Certification

    Yes

Moments

Jump to...
  • Facial recognition

    Yes

  • Subject recognition

    Yes

  • Maximum Users

    1800

Snapshot Replication

Jump to...
  • Maximum Snapshots per Shared Folder

    1024

  • Maximum Snapshots of all Shared Folder

    65536

Surveillance Station

Jump to...
  • Maximum IP cam (Licenses required)

    40 (including 2 Free License)

  • Total FPS (H.264)

    1200 FPS at 720p (1280x720)
    900 FPS at 1080p (1920x1080)
    320 FPS at 3M (2048x1536)
    270 FPS at 5M (2591x1944)
    120 FPS at 4K (3840x2160)

  • Total FPS (H.265)

    1200 FPS at 720p (1280x720)
    1200 FPS at 1080p (1920x1080)
    560 FPS at 3M (2048x1536)
    300 FPS at 5M (2591x1944)
    200 FPS at 4K (3840x2160)

  • Total FPS (MJPEG)

    540 FPS at 720p (1280x720)
    200 FPS at 1080p (1920x1080)
    150 FPS at 3M (2048x1536)
    90 FPS at 5M (2591x1944)

Video Station

Jump to...
  • Video Transcoding

    Group 1 - Type 1

  • Maximum Transcoding Channel Number

    1 channel, 30 FPS at 1080p(1920x1080), H.264 (AVC)/MPEG-4 Part 2 (XVID, DIVX5)/MPEG-2/VC-1

Virtual Machine Manager

Jump to...
  • Max Virtual DSM No (Licenses required)

    2 (including 1 Free License)

VPN Server

Jump to...
  • Maximum Connections

    20

Networking Protocols

Jump to...
  • Networking Protocols

    CIFS
    AFP
    NFS
    FTP
    WebDAV
    CalDAV
    iSCSI
    Telnet
    SSH
    SNMP
    VPN (PPTP, OpenVPN)

Windows AD Domain Integration

Jump to...
  • Windows AD Domain Integration

    Domain Users login via Samba/AFP/FTP/File Station

HDD Management

Jump to...
  • HDD Management

    HDD Hibernation
    S.M.A.R.T.
    Dynamic Bad Sector Mapping

Security

Jump to...
  • Security

    FTP over SSL/TLS
    IP Auto-Block
    Firewall
    Encrypted Network Backup over Rsync
    HTTPS Connection

Utilities

Jump to...
  • Utilities

    Synology Assistant

Supported Clients

Jump to...
  • Supported Clients

    Windows 7 and 10
    Mac OS X 10.11 onward

Supported Browsers

Jump to...
  • Supported Browsers

    Chrome
    Firefox
    Internet Explorer 10 onwards
    Safari 10 onwards
    Safari (iOS 10 onwards)
    Chrome (Android 6.0 onwards)

General

Jump to...
  • Dimensions (HxWxD)

    270 x 300 x 340mm (10.63 x 11.81 x 13.39")

  • Weight

    9.24kg (20.37 lbs)

0 Accessories for Synology DiskStation DS2415+ 12-Bay NAS Enclosure, Quad-Core 2.4GHz, 2GB RAM, No HDD

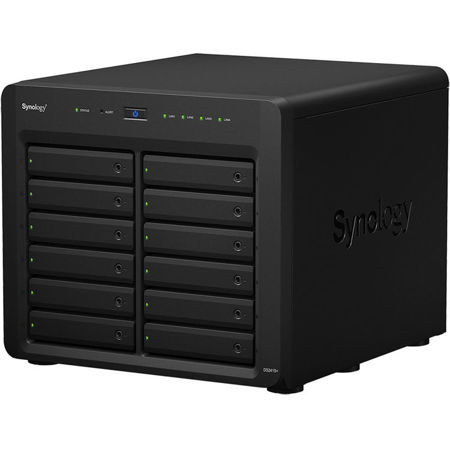

About Synology DiskStation DS2415+

DiskStation DS2415+
High performance desktop NAS optimized for businesses.

Powerful centralized storage solution
Synology DS2415+ is a powerful 12-bay, desktop NAS powered by an Intel quad-core processor. Supporting AES-NI acceleration for fast encryption performance, DS2415+ is built to handle multiple services and high storage capacities.

Real-time collaboration on your private cloud
Office is a collaboration package combining the convenience and usability of public clouds with the data privacy and security guaranteed by private clouds. It allows you to work seamlessly together on documents and spreadsheets in a protected environment.

Flexible storage scalability
As your data storage needs grow, DS2415+ can be connected with a DX1215 expansion unit for additional storage on the fly, allowing up to 24 drives to be installed with minimal effort.

Ultimate file management and sharing
File Station is a web-based, fast and secure management tool built to allow easy, drag-and-drop operation without requiring any complex setup on Mac or PC. Advanced search and filtering tools allow for easy organization and sharing of files with just a link. Supports SMB, FTP, AFP, NFS, WebDAV, compatible with any environment.

Btrfs: Next generation storage efficiency
Btrfs file system introduces the most advanced storage technologies to meet the management needs of modern large scale businesses:

• Flexible Shared Folder/User Quota System provides comprehensive quota control on all user accounts and shared folders
• Snapshot Replication provides schedulable and storage capacity-saving data protection with 1,024 shared folder backups and 65,000 system-wide snapshots
• File or folder level data restoration makes data recovery fast and flexible
• Automatic file self-healing detects and recovers corrupted files without user intervention

Powered by Synology DSM
Surveillance Station
Complete surveillance solution for recording, monitoring and management.

Desktop Backup
Simplified backup solution for your Mac, PC and mobile devices.

Public Cloud Integration
Backup and synchronize data easily between your public cloud accounts and your NAS.

DSM UI
Award-winning operating system with an intuitive user interface and powerful capabilities.

Security
Comprehensive built-in security tools are constantly updated to tackle evolving threats and protect your devices.

All-in-one server
Save additional investment by integrating various network services, web/mail services, management applications into your NAS.

What's in the box:

  • Synology DiskStation DS2415+ 12-Bay NAS Enclosure
  • Accessory Pack
  • AC Power Cord
  • 2x RJ-45 LAN Cable
  • Synology 3 Year Warranty
