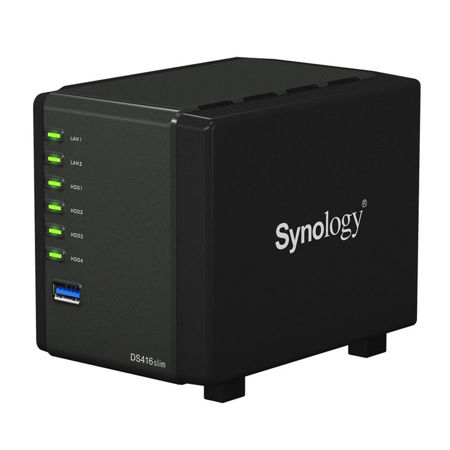

Synology DiskStation DS416slim 4-Bay NAS Enclosure, Dual-Core 1.0GHz, No HDD

SKU: SYDS416SLIM

This item is no longer available.

Overview
Compare
Accessories
Specs
Protection

Reviews about this item

Review Summary

2019-05-14T07:56:59

Rated 5 out of 5

Best NAS for small spaces.

BEST NAS for small spaces. I have mine set up on top my entertainment cabinet hidden behind a small stack of bucks. Software is easy and features are powerful.

Amer K.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Synology DiskStation DS416slim Specifications

CPU
  • CPU Model

    Marvell Armada 385 88F6820

  • CPU Architecture

    32-bit

  • CPU Frequency

    Dual Core 1.0 GHz

  • Hardware Encryption Engine

    Yes

  • System Memory

    512MB DDR3

Storage

Jump to...
  • Drive Bays

    4

  • Compatible Drive Type

    2.5" SATA HDD (Up to 12.5mm drive height)
    2.5" SATA SSD

  • Maximum Internal Raw Capacity

    8TB (2TB drive x 4) (Capacity may vary by RAID types)

  • Maximum Single Volume Size

    16 TB

  • Hot Swappable Drive

    Yes

External Ports

Jump to...
  • RJ-45 1GbE LAN Port

    2 (with Link Aggregation / Failover support)

  • USB 3.0 Port

    2

File System

Jump to...
  • Internal Drives

    EXT4

  • External Drives

    EXT4
    EXT3
    FAT
    NTFS
    HFS+
    exFAT

  • System Fan

    60mm x 60mm

  • Fan Speed Mode

    Cool Mode
    Quiet Mode
    Low-power Mode

  • Easy Replacement System Fan

    Yes

  • Brightness adjustable LED indicators

    Yes (Front)

  • Power Recovery

    Yes

  • Noise Level

    20.3 dB(A)

  • Scheduled Power On/Off

    Yes

  • Wake on LAN/WAN

    Yes

  • Power Supply Unit / Adapter

    30W

  • AC Input Power Voltage

    100V to 240V AC

  • Power Frequency

    50/60 Hz, Single Phase

  • Power Consumption

    17.17 W (Access)
    11.63 W (HDD Hibernation)

  • British Thermal Unit

    58.63 BTU/hr (Access)
    39.71 BTU/hr (HDD Hibernation)

Environment Temperature

Jump to...
  • Operating Temperature

    5 to 40 deg. C (41 to 104 deg. F)

  • Storage Temperature

    -20 to 60 deg. C (-4 to 140 deg. F)

  • Relative Humidity

    5% to 95% RH

Certification

Jump to...
  • Certification

    FCC
    CE
    BSMI
    EAC
    CCC
    RCM
    KC

Environment

Jump to...
  • Environment

    RoHS Compliant

Storage Management

Jump to...
  • Maximum Internal Volume Number

    256

  • Maximum iSCSI Target Number

    10

  • Maximum iSCSI LUN

    10

  • Supported RAID Type

    Synology Hybrid RAID
    Basic
    JBOD
    RAID 0
    RAID 1
    RAID 5
    RAID 6
    RAID 10

  • RAID Migration

    Basic to RAID 1
    Basic to RAID 5
    RAID 1 to RAID 5
    RAID 5 to RAID 6

  • Volume Expansion with Larger HDDs

    Synology Hybrid RAID
    RAID 1
    RAID 5
    RAID 6

  • Volume Expansion by Adding a HDD

    Synology Hybrid RAID
    RAID 5
    JBOD

  • Global Hot Spare Supported RAID Type

    Synology Hybrid RAID
    RAID 1
    RAID 5

File Sharing Capacity

Jump to...
  • Maximum Local User Accounts

    2048

  • Maximum Local Groups

    256

  • Maximum Shared Folder

    256

  • Maximum Shared Folder Sync Tasks

    2

  • Max Concurrent CIFS/AFP/FTP Connections

    128

  • Windows Access Control List Integration

    Yes

  • NFS Kerberos Authentication

    Yes

Log center

Jump to...
  • Syslog Events per Seconds

    100

  • Maximum Users

    10

Cloud Station Server

Jump to...
  • Max No of Concurrently Connected Devices

    128

  • Maximum Number of Synced Files (ext4)

    100,000 / single file reaction time 1038 ms

Download Station

Jump to...
  • Maximum Concurrent Download Tasks

    30

  • Maximum Number of Synced Files

    100,000 / single file reaction time 941 ms

  • Max Concurrent Connections (PC Clients)

    200

exFAT Access (optional)

Jump to...
  • exFAT Access (optional)

    Yes

Media Server

Jump to...
  • DLNA Certification

    Yes

Moments

Jump to...
  • Facial recognition

    Yes

  • Subject recognition

    No

  • Maximum Users

    100

Surveillance Station

Jump to...
  • Maximum IP cam (Licenses required)

    8 (including 2 Free License)

  • Total FPS (H.264)

    300 FPS at 720p (1280x720)
    150 FPS at 1080p (1920x1080)
    100 FPS at 3M (2048x1536)
    40 FPS at 5M (2591x1944)

  • Total FPS (MJPEG)

    150 FPS at 720p (1280x720)
    75 FPS at 1080p (1920x1080)
    50 FPS at 3M (2048x1536)
    25 FPS at 5M (2591x1944)

Video Station

Jump to...
  • Video Transcoding

    Group 2

VPN Server

Jump to...
  • Maximum Connections

    5

  • Networking Protocols

    CIFS
    AFP
    NFS
    FTP
    WebDAV
    CalDAV
    iSCSI
    Telnet
    SSH
    SNMP
    VPN (PPTP, OpenVPN)

  • Windows AD Domain Integration

    Domain Users login via Samba/AFP/FTP/File Station

  • HDD Management

    HDD Hibernation
    S.M.A.R.T.
    Dynamic Bad Sector Mapping

  • Security

    FTP over SSL/TLS
    IP Auto-Block
    Firewall
    Encrypted Network Backup over Rsync
    HTTPS Connection

  • Utilities

    Synology Assistant

  • Supported Browsers

    Chrome
    Firefox
    Internet Explorer 10 onwards
    Safari 10 onwards
    Safari (iOS 10 onwards)
    Chrome (Android 6.0 onwards)

Supported Clients

Jump to...
  • Supported Clients

    Windows 7 and 10
    Mac OS X 10.11 onward

General

Jump to...
  • Dimensions (HxWxD)

    120 x 105 x 142mm (4.72 x 4.13 x 5.59")

  • Weight

    0.66kg (1.46 lbs)

  • UPC Code

    846504002085

0 Accessories for Synology DiskStation DS416slim 4-Bay NAS Enclosure, Dual-Core 1.0GHz, No HDD

About Synology DiskStation DS416slim

FEATURED REVIEWS

Best NAS for small spaces.

By Amer K.

BEST NAS for small spaces. I have mine set up on top my entertainment cabinet hidden behind a small stack of bucks. Software is easy and features are powerful.

DiskStation DS416slim
Miniature in size, powerful in performance.

Mini NAS with comprehensive capabilities
Your own personal private cloud in the palm of your hands. DS416slim might be diminutive in size at less than 2.5 liters, but it packs comprehensive file management capabilities with versatile dual LAN ports and hot swappable trays for maximum service continuity.

Compact size and eco-friendly
DS416slim is specially designed to fit in four 2.5-inch drives for flexible drive management. The small server consumes only 17W during operation, leaving lesser carbon footprint than traditional 4-bay NAS counterparts. Quiet and smaller than your palm, DS416slim easily blends into your environment.

Synology Hybrid RAID (SHR) technology
Storage management is easy with Synology Hybrid RAID (SHR) technology. SHR is an automated RAID management system allowing you to easily create and expand storage volumes and migrate RAID types without requiring details on RAID. SHR provides 1 to 2-disk redundancy to safeguard your data during drive failures.

Cost-effective
SHR maximizes the data capacity of your RAID when different sizes of HDDs are used. Calculate your RAID needs.

Easy Management
For novice users who have no technical background and still want to protect their data using RAID technology, a convenient installation wizard will guide you through all the steps during your first installation.

Scalability
You can add new disks on the fly in Storage Manager with a simple click.

Flexibility
While creating a volume, you can plan ahead and leave empty and unallocated space for future usage.

Stream content to your TV
Turn your Synology NAS into a home media hub and stream your digital contents to computers, mobile devices, Samsung TV, Apple TV, Google Chromecast and DLNA devices.

Easy file access with QuickConnect
Access files on your Synology NAS over the Internet without the hassle of setting up port forwarding rules, DDNS or other complicated network settings. QuickConnect allows you to connect via a secure, customizable address, so that you can instantly access media and work files on any Internet-connected device with no additional charge.

Powered by Synology DSM
Office
Collaborate on spreadsheets and documents on your private cloud.

Desktop Backup
Simplified backup solution for your Mac, PC and mobile devices.

File Server/Management
Powerful built-in file management and sharing services.

DSM UI
Award-winning operating system with an intuitive user interface and powerful capabilities.

Security
Comprehensive built-in security tools are constantly updated to tackle evolving threats and protect your devices.

Multimedia
Complete multimedia solution for management, streaming and playback.

What's in the box:

  • Synology DiskStation DS416slim 4-Bay NAS Enclosure
  • Accessory Pack
  • AC Power Adapter
  • 2x RJ-45 LAN Cable
  • Synology 2 Year Warranty
