Synology DiskStation DS420+ Specifications

Hardware: CPU

Hardware: CPU

Jump to...
  • CPU Model

    Intel Celeron J4025

  • CPU Architecture

    64-bit

  • CPU Frequency

    2-core 2.0 (base) / 2.9 (burst) GHz

  • Hardware Encryption Engine (AES-NI)

    Yes

Hardware: Memory

Jump to...
  • System Memory

    2 GB DDR4 non-ECC

  • Total Memory Slots

    1

  • Memory Expandable up to

    6 GB (2 GB + 4 GB)

Hardware: Storage

Jump to...
  • Drive Bays

    4

  • Compatible Drive Type

    3.5" SATA HDD
    2.5" SATA HDD
    2.5" SATA SSD
    M.2 2280 NVMe SSD

  • Maximum Internal Raw Capacity

    64 TB (16 TB drive x 4) (Capacity may vary by RAID types)

  • Maximum Single Volume Size

    108 TB

  • Hot Swappable Drive

    Yes

Hardware: External Ports

Jump to...
  • RJ-45 1GbE LAN Port

    2 (with Link Aggregation / Failover support)

  • USB 3.0 Port

    2

Hardware: File System

Jump to...
  • Internal Drives

    Btrfs
    EXT4

  • External Drives

    Btrfs
    EXT4
    EXT3
    FAT
    NTFS
    HFS+
    exFAT

Hardware: Temperature

Jump to...
  • Operating Temperature

    32 Degree F to 104 Degree F (0 Degree C to 40 Degree C )

  • Storage Temperature

    -5 Degree F to 140 Degree F (-20 Degree C to 60 Degree C)

  • Relative Humidity

    5% to 95% RH

Hardware: Certification

Jump to...
  • Certification

    EAC
    VCCI
    CCC
    RCM
    KC
    FCC
    CE
    BSMI

Hardware: Environment

Jump to...
  • Environment

    RoHS Compliant

Hardware: Others

Jump to...
  • System Fan

    3.62 x 3.62" (92 x 92 mm) (1 pcs)

  • Fan Speed Mode

    Full-Speed Mode
    Cool Mode
    Quiet Mode

  • Brightness Adjustable

    Yes (Front LED Indicators)

  • Power Recovery

    Yes

  • Noise Level

    19.3 dB(A)

  • Scheduled Power On / Off

    Yes

  • Wake on LAN / WAN

    Yes

  • Power Supply Unit / Adapter

    90 W

  • AC Input Power Voltage

    100 V to 240 V AC

  • Power Frequency

    50/60 Hz, Single Phase

  • Power Consumption

    23.30 W (Access)
    8.45 W (HDD Hibernation)

  • British Thermal Unit

    96.63 BTU/hr (Access)
    72.11 BTU/hr (HDD Hibernation)

  • Dimensions (H x W x D)

    6.53 x 7.83 x 8.77" (166 x 199 x 223mm)

  • Weight

    4.80 lbs (2.18kg)

Software: Storage Management

Jump to...
  • Maximum Internal Volume Number

    64

  • Maximum iSCSI Target Number

    128

  • Maximum iSCSI LUN

    256

  • iSCSI LUN Clone/Snapshot, Windows ODX

    Yes

  • SSD Read / Write Cache

    Yes

  • SSD TRIM

    Yes

  • Supported RAID Type

    Synology Hybrid RAID
    Basic
    JBOD
    RAID 0
    RAID 1
    RAID 5
    RAID 6
    RAID 10

  • RAID Migration

    Basic to RAID 1
    Basic to RAID 5
    RAID 1 to RAID 5
    RAID 5 to RAID 6

  • Volume Expansion with Larger HDDs

    Synology Hybrid RAID
    RAID 1
    RAID 5
    RAID 6
    RAID 10

  • Volume Expansion by Adding a HDD

    Synology Hybrid RAID
    JBOD
    RAID 5

  • Global Hot Spare Supported RAID Type

    Synology Hybrid RAID
    RAID 1
    RAID 5

Software: File Services

Jump to...
  • File Protocol

    CIFS/AFP/NFS/FTP/WebDAV

  • Maximum Concurrent

    500 CIFS/AFP/FTP Connections

  • Maximum Concurrent with RAM expansion

    1,500 CIFS/AFP/FTP Connections

  • Windows Access Control List

    Yes (Integration) (ACL)

  • NFS Kerberos Authentication

    Yes

Software: Account & Shared Folder

Jump to...
  • Maximum Local User Accounts

    2048

  • Maximum Local Groups

    256

  • Maximum Shared Folder

    512

  • Maximum Shared Folder Sync Tasks

    8

Software: High Availability

Jump to...
  • Synology High Availability

    Yes

Software: Log Center

Jump to...
  • Syslog Events per Second

    400

Software: Virtualization

Jump to...
  • VMware vSphere 6 with VAAI

    Yes

  • Windows Server 2016

    Yes

  • Citrix Ready

    Yes

  • OpenStack

    Yes

Software: General

Jump to...
  • Networking Protocols

    SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV

  • Supported Browsers

    Chrome
    Firefox
    Edge
    Internet Explorer 10 onwards
    Safari 10 onwards
    Safari (iOS 10 onwards)
    Chrome (Android 6.0 onwards)

  • Supported Language

    Brazilian Portuguese, Czech, Danish, Dutch, English, French, German, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Thai, Traditional Chinese ,Turkish

Software: Add-on Packages

Jump to...
  • Antivirus by McAfee (Trial)

    Yes

Software: Central Management

Jump to...
  • Central Management System

    Yes

Software: Synology Chat

Jump to...
  • Maximum Users

    1000

Software: Document Viewer

Jump to...
  • Document Viewer

    Yes

Software: Download Station

Jump to...
  • Maximum Concurrent Download Tasks

    80

Software: exFAT Access

Jump to...
  • exFAT Access (Optional)

    Yes

Software: Synology MailPlus/Server

Jump to...
  • Free Email Accounts

    5 (Licenses required for additional accounts)

  • Maximum Number of Concurrent Users

    50

  • Maximum Server Performance

    936,000 emails per day, approx. 28GB

Software: Media Server

Jump to...
  • DLNA Compliance

    Yes

Software: Moments

Jump to...
  • Facial Recognition

    Yes

  • Subject Recognition

    Yes

  • Auto Color & Rotate

    Yes

  • Moments Select

    Yes

Software: Snapshot Replication

Jump to...
  • Maximum Snapshots per Shared Folder

    1024

  • Maximum of System Snapshots

    65536

Software: Surveillance Station

Jump to...
  • Maximum IP cam (Licenses required)

    25 (including 2 Free License)

  • Total FPS (H.264)

    750 FPS @ 720p (1280x720)
    700 FPS @ 1080p (1920x1080)
    350 FPS @ 3M (2048x1536)
    240 FPS @ 5M (2591x1944)
    120 FPS @ 4K (3840x2160)

  • Total FPS (H.265)

    750 FPS @ 720p (1280x720)
    750 FPS @ 1080p (1920x1080)
    500 FPS @ 3M (2048x1536)
    250 FPS @ 5M (2591x1944)
    200 FPS @ 4K (3840x2160)

  • Total FPS (MJPEG)

    450 FPS @ 720p (1280x720)
    250 FPS @ 1080p (1920x1080)
    160 FPS @ 3M (2048x1536)
    130 FPS @ 5M (2591x1944)

Software: Synology Drive

Jump to...
  • Number of Hosted Files

    500,000 (applies to files indexed or hosted by Synology Drive. For file access through other standard protocols, refer to the File Services section above) (Recommended)

  • Number of Concurrent Sync Clients

    350 (the number of connections that can be maintained when the recommended number of hosted files was reached) (Recommended)

Software: Synology Office

Jump to...
  • Maximum Users

    600

Software: Video Station

Jump to...
  • Video Station

    Yes

Software: Virtual Machine Manager

Jump to...
  • Recommended Virtual Machine Instances

    2 (Learn more)

  • Recommended Virtual DSM Number

    2 (including 1 Free License) (Licenses required)

Software: VPN Server

Jump to...
  • Maximum Connections

    30

  • UPC Code

    846504003181

12 Accessories for Synology DiskStation DS420+ 4-Bay NAS Enclosure, 2-Core 2.0GHz, 2GB RAM, No HDD

  • All Accessories (12)
  • Cables & Adapters (7)
  • Switches (1)
  • Drives & Storage (2)
  • SSD Drives (1)
  • Tools (1)

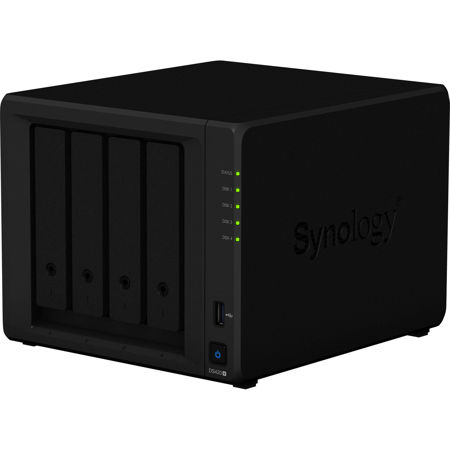

About Synology DiskStation DS420+

FEATURED REVIEWS

Great NAS

By JOSEPH H.

Great product. Would recommend. Easy to set up, quiet, and has a small footprint.

High performance NAS with SSD cache acceleration capability
Synology DS420+ is designed for IT enthusiasts and home users. Equipped with a 2-core processor and built-in M.2 NVMe 2280 SSD slots for cache acceleration, DS420+ is ideal for data sharing, video streaming, and photo indexing.

• CPU: 2-core 2.0 GHz, burst up to 2.9 GHz
• Cache Acceleration: 2x built-in M.2 2280 NVMe SSD slots
• Performance: Average 15% boost to computing-intensive applications
• Network: 2x 1GbE LAN ports

Boost performance with built-in SSD slots
DS420+ provides two built-in M.2 SSD slots so that you can take full advantage of Synology SSD Cache functionality. Add SSD cache for up to 20 times faster I/O response without using front drive bays.

Accelerate demanding applications
A more powerful CPU speeds up computing-intensive applications. The new 2-core processor boosts photo indexing, database response times, and web PHP response efficiency. Easily categorize your photo memories, smoothly manage files across computers and mobile devices, and enjoy blazing fast web applications.

Access and sync your files seamlessly
Synology Drive provides a built-in universal portal to access your data anytime and anywhere, and synchronize all your files across platforms, including Windows, macOS, Linux, Android, and iOS. Learn more

• Sync files on demand: Save the storage space and network bandwidth of your PC.
• Go back in time: Easily retrieve previous versions of your shared files.
• Back up your data: Protect your files as scheduled or in real-time.

Your personal entertainment and multimedia hub
Access multimedia content anytime, anywhere through an intuitive web-based interface.

Audio Station
Audio Station is your personal music center, designed to intelligently sort and organize your audio files, and stream to Google Cast enabled devices. Audio Station supports lossless formats to ensure pristine audio quality.

Moments
Organize your photos intelligently with Moments, a modern, AI-enabled photo management application that lets you effortlessly preserve your precious memories.

Video Station
Video Station lets you easily manage and organize movies, TV shows, and home videos, and stream content to computers, smartphones, and media players.

Seamless integration with your mobile devices
Synology mobile applications are designed to allow quick and secure access to your data wherever you are.

Powered by Synology DSM

Desktop Backup
Simplified backup solution for your Mac, PC, and mobile devices.

DSM UI
Award-winning operating system with an intuitive user interface and powerful capabilities.

Snapshot Replication
Schedulable and instantaneous data protection for shared folders and iSCSI LUNs for disaster prevention.

Synology Drive
A versatile solution for file management and synchronization.

File Server/Management
Powerful built-in file management and sharing services.

Security
Comprehensive built-in security tools are constantly updated to protect your devices against evolving threats.

Synology DiskStation DS420+ Features

  • CPU: 2-core 2.0 GHz, burst up to 2.9 GHz
  • Performance: Average 15% boost to computing-intensive applications
  • Network: 2x 1GbE LAN ports
  • Safe storage: RAID 1 setup protects against sudden drive failure

Key Features

  • CPU: 2-core 2.0 GHz, burst up to 2.9 GHz
  • Performance: Average 15% boost to computing-intensive applications
  • Network: 2x 1GbE LAN ports
  • Safe storage: RAID 1 setup protects against sudden drive failure

What's in the box:

  • DiskStation DS420+ 4-Bay NAS Enclosure
  • Accessory Pack
  • AC Power Adapter
  • AC Power Cord
  • 2x RJ-45 LAN Cable
  • Quick Installation Guide
  • Synology 3 Year Limited Warranty
