Kit Savings

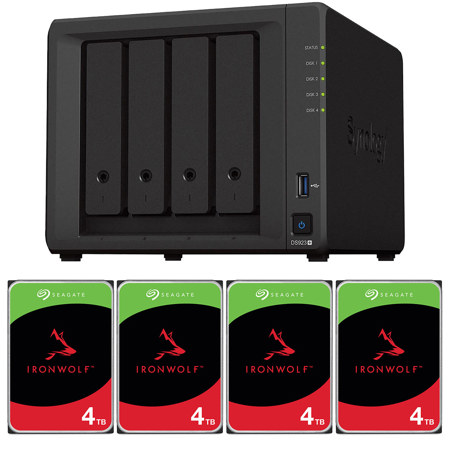

Synology DiskStation DS923+ 4-Bay NAS Enclosure, Bundle with 4x IronWolf 4TB SATA III 3.5" 5400 RPM Internal NAS Hard Drive

SKU: SYDS9234NASA MFR: DS923+ A
Earn VIP Reward Points

PACKAGE INCLUDES:

  • Synology DiskStation DS923+ 4-Bay NAS Enclosure, AMD Ryzen R1600 CPU, Diskless
    Synology DiskStation DS923+ 4-Bay NAS Enclosure, AMD Ryzen R1600 CPU, Diskless
  • +
  • Seagate IronWolf SATA III 3.5" Internal NAS Hard Drive, 5400 RPM 4TB Single
    Seagate IronWolf SATA III 3.5" Internal NAS Hard Drive, 5400 RPM 4TB Single

    Qty: 4

  • +
  • Show more

Key Features

  • Centralize data with this Synology DiskStation NAS, offering robust file storage solutions.
  • Ensure data security with advanced encryption and comprehensive backup options on this NAS.
  • Experience fast performance with IronWolf drives, perfect for demanding applications on your NAS.
  • Enjoy easy setup and remote access, making file sharing simple with your Synology NAS.
  • Scale your storage as needed; this NAS supports expansion units for growing data requirements.
  • Stream 4K video and manage media effortlessly with this high-performance NAS enclosure.
See More Product Details
FREE 2-Day Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$209.99

3 Year

$299.99

4 Year

$359.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

2025-07-23T20:22:41

Rated 4 out of 5

Solid product - so far so good

So far so good - this is my first NAS setup and a little youtubing helped me get it up and running pretty easily. We shall see if it meets my storage needs as a pro photographer.

RYAN L.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Synology DS923+ Kit Specifications

Hardware: CPU

Hardware: CPU

Jump to...
  • CPU Model

    AMD Ryzen R1600

  • CPU Quantity

    1

  • CPU Architecture

    64-bit

  • CPU Frequency

    2-core 2.6 (base) / 3.1 (turbo) GHz

  • Hardware Encryption Engine (AES-NI)

    Yes

Hardware: Memory

Jump to...
  • System Memory

    4GB DDR4 ECC SODIMM

  • Memory Module Pre-installed

    4GB (4GB x 1)

  • Total Memory Slots

    2

  • Maximum Memory Capacity

    32GB (16GB x 2)

Hardware: Storage

Jump to...
  • Drive Bays

    4

  • Maximum Drive Bays with Expansion Unit

    9 (DX517 x 1)

  • M.2 Drive Slots

    2 (NVMe)

  • Compatible Drive Type

    3.5" SATA HDD
    2.5" SATA SSD
    M.2 2280 NVMe SSD

  • Hot Swappable Drive

    Yes

Hardware: External Ports

Jump to...
  • RJ-45 1GbE LAN Port

    2 (with Link Aggregation / Failover support)

  • USB 3.2 Gen 1 Port

    2

  • eSATA Port

    1

Hardware: PCIe

Jump to...
  • PCIe Expansion

    1 x Gen3 x2 network upgrade slot

Hardware: File System

Jump to...
  • Internal Drives

    Btrfs
    EXT4

  • External Drives

    Btrfs
    EXT4
    EXT3
    FAT
    NTFS
    HFS+
    exFAT

Hardware: Others

Jump to...
  • System Fan

    2 pcs 92 x 92mm

  • Fan Speed Mode

    Full-Speed Mode
    Cool Mode
    Quiet Mode

  • Brightness Adjustable

    Yes (Front LED Indicators)

  • Power Recovery

    Yes

  • Noise Level

    22.9 dB(A)

  • Scheduled Power On / Off

    Yes

  • Wake on LAN / WAN

    Yes

  • Power Supply Unit / Adapter

    100 W

  • AC Input Power Voltage

    100V to 240V AC

  • Power Frequency

    50/60 Hz, Single Phase

  • Power Consumption

    35.51 W (Access)
    11.52 W (HDD Hibernation)

  • British Thermal Unit

    121.09 BTU/hr (Access)
    39.28 BTU/hr (HDD Hibernation)

Hardware: Temperature

Jump to...
  • Operating Temperature

    32 Degree F to 104 Degree F (0 Degree C to 40 Degree C)

  • Storage Temperature

    -5 Degree F to 140 Degree F (-20 Degree C to 60 Degree C)

  • Relative Humidity

    5% to 95% RH

Hardware: Certification

Jump to...
  • Certification

    FCC
    CE
    BSMI
    VCCI
    RCM
    UKCA
    EAC
    CCC
    KC

Hardware: Environment

Jump to...
  • Environment

    RoHS Compliant

Hardware: Appearance

Jump to...
  • Dimensions (H x W x D)

    6.53 x 7.83 x 8.77" (166 x 199 x 223mm)

  • Weight

    4.93 lbs (2.24kg)

Software: Storage Management

Jump to...
  • Maximum Single Volume Size

    108TB

  • Maximum Internal Volume Number

    64

  • M.2 SSD Storage Pool Support

    Yes

  • SSD Read / Write Cache (White Paper)

    Yes

  • SSD TRIM

    Yes

  • Supported RAID Type

    Synology Hybrid RAID
    Basic
    JBOD
    RAID 0
    RAID 1
    RAID 5
    RAID 6
    RAID 10

  • RAID Migration

    Basic to RAID 1
    Basic to RAID 5
    RAID 1 to RAID 5
    RAID 5 to RAID 6

  • Volume Expansion with Larger HDDs

    Synology Hybrid RAID
    RAID 1
    RAID 5
    RAID 6
    RAID 10

  • Volume Expansion by Adding a HDD

    Synology Hybrid RAID
    JBOD
    RAID 5
    RAID 6 (with Expansion Unit)

  • Global Hot Spare Supported RAID Type

    Synology Hybrid RAID
    RAID 1
    RAID 5
    RAID 6 (with Expansion Unit)
    RAID 10 (with Expansion Unit)

Software: File Services

Jump to...
  • File Protocol

    SMB/AFP/NFS/FTP/WebDAV

  • Max. Concurrent SMB/AFP/FTP Connections

    1000
    2000 (with RAM expansion)

  • Windows ACL Integration

    Yes

  • NFS Kerberos Authentication

    Yes

Software: Account & Shared Folder

Jump to...
  • Maximum Local User Accounts

    2048

  • Maximum Local Groups

    256

  • Maximum Shared Folder

    512

  • Maximum Shared Folder Sync Tasks

    16

Software: Hybrid Share

Jump to...
  • Hybrid Share Folder Number

    10

Software: Hyper Backup

Jump to...
  • Folder and Package Backup

    Yes

  • Entire System Backup

    Yes

Software: High Availability

Jump to...
  • Synology High Availability

    Yes

Software: Log Center

Jump to...
  • Syslog Events per Second

    800

Software: Virtualization

Jump to...
  • VMware ESXi 6.5 and VAAI

    Yes

  • Windows Server 2022

    Yes

  • Citrix Ready

    Yes

  • OpenStack

    Yes

Software: General

Jump to...
  • Networking Protocols

    SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV

  • Supported Browsers

    Google Chrome
    Firefox
    Microsoft Edge
    Safari

  • Supported Language

    English, Deutsch, French, Italian, Espanol, Danish, Norwegian, Swedish, Nederlands, Russian, Polish, Hungarian, Brazilian Portuguese, European Portuguese, Turkish, Czech, Thai, Japanese, Korean, Traditional Chinese, Simplified Chinese

Software: Add-on Packages

Jump to...
  • Antivirus by McAfee (Trial)

    Yes

  • Central Management System

    Yes

Software: Synology Chat

Jump to...
  • Suggested Concurrent Users

    100

Software: Document Viewer

Jump to...
  • Document Viewer

    Yes

Software: Download Station

Jump to...
  • Maximum Concurrent Download Tasks

    80

Software: SAN Manager

Jump to...
  • Maximum iSCSI Target Number

    128

  • Maximum LUN

    256

  • LUN Clone/Snapshot, Windows ODX

    Yes

Software: MailPlus / MailPlus Server

Jump to...
  • Free Email Accounts

    5 (Additional accounts require purchase of licenses)

  • Suggested Maximum Users

    500

  • Suggested Concurrent Users

    100

  • Maximum Server Performance

    1,224,000 emails per day, approx. 37GB

Software: Media Server

Jump to...
  • DLNA Compliance

    Yes

Software: Synology Photos

Jump to...
  • Facial Recognition

    Yes

  • Object Recognition

    Yes

Software: Snapshot Replication

Jump to...
  • Maximum Snapshots per Shared Folder

    1024

  • Maximum of System Snapshots

    65536

Software: Surveillance Station

Jump to...
  • Default Licenses

    2 (Additional cameras require purchase of licenses)

  • Maximum IP Cameras and Total FPS (H.264)

    720p: 40 channels, 1200 FPS
    1080p: 40 channels, 1050 FPS
    3M: 40 channels, 600 FPS
    5M: 30 channels, 360 FPS
    4K: 20 channels, 200 FPS

  • Maximum IP Cameras and Total FPS (H.265)

    720p: 40 channels, 1200 FPS
    1080p: 40 channels, 1200 FPS
    3M: 40 channels, 1000 FPS
    5M: 40 channels, 600 FPS
    4K: 30 channels, 300 FPS

Software: Synology Drive

Jump to...
  • Recommended Number

    Concurrent Sync Clients: 350 (the number of connections that can be maintained when the recommended number of hosted files was reached)

  • Recommended Number of Hosted Files

    5,000,000 (applies to files indexed or hosted by Synology Drive. For file access through other standard protocols, refer to the File Services section above)

Software: Synology Office

Jump to...
  • Suggested Maximum Users

    3000

  • Suggested Concurrent Users

    1200

Software: Video Station

Jump to...
  • Video Station

    Yes

Software: Virtual Machine Manager

Jump to...
  • Recommended Virtual Machine Instances

    4

  • Recommended Virtual DSM Number

    4 (including 1 Free License) (Licenses required)

Software: VPN Server

Jump to...
  • Maximum Connections

    40

  • UPC Codes

    192223257603, 763649090985, 846504004454

About Synology DS923+ Kit

If you're seeking a robust and versatile storage solution, the Synology DiskStation DS923+ 4-Bay NAS Enclosure bundled with 4x Seagate IronWolf 4TB SATA III 3.5" 5400 RPM Internal NAS Hard Drives is an ideal choice for small businesses and home offices. Powered by the AMD Ryzen R1600 CPU, this NAS enclosure offers a flexible storage platform designed to elevate your data management capabilities.

The DiskStation DS923+ is engineered to handle demanding application workloads and support a greater number of concurrent users compared to previous models. Experience significant performance improvements with up to 24% faster file indexing in Synology Drive, 25% faster photo organization in Synology Photos, and 32% faster random write speeds during multiple file transfers. With read/write speeds of up to 592/562 MB/s, the DS923+ is designed to reduce transfer times and accelerate your workloads. Enhance its performance further by adding up to 10GbE networking and utilizing the two M.2 NVMe slots for cache and storage pool expansion.

Consolidate your scattered data with the DS923+, which offers over 50 TB of storage across its four bays. For those requiring even more space, the system can be expanded with the DX517 to achieve over 120 TB of storage capacity. This makes it an excellent solution for storing, sharing, and protecting your documents, photos, and other files. The DS923+ also supports professional video surveillance, allowing you to safeguard your physical assets with ease.

Transform your data management with Synology's private cloud solution, enabling you to access files from all your devices while benefiting from smart versioning. Simplify file sharing and collaboration by managing, sharing, and syncing your data across multiple locations. The DS923+ also offers professional photo management tools, automatically organizing your content into albums and allowing you to create secure share links for sharing with family, friends, or clients.

For businesses operating across multiple sites, the DS923+ facilitates seamless collaboration with site-to-site file syncing, ensuring that collaborators can sync individual files or folders between Synology devices, regardless of their location. Leverage the power of hybrid cloud technology with Hybrid Share Folders, which efficiently store cold data in the cloud while keeping frequently accessed files cached locally for LAN-speed access.

The DS923+ provides a comprehensive backup solution with multi-layered backup capabilities. Centralize your backup and recovery tasks for PCs, file servers, VMs, and SaaS applications using the Active Backup Suite, and administer device backups remotely through a centralized portal. Protect your Synology system with full system backups, snapshots, and seamless 3-2-1 backup configurations to ensure data integrity and rapid recovery.

Enhance your security with Synology's Surveillance Station, transforming your NAS into a full-featured video management system compatible with over 8,300 IP camera models. Monitor and protect your business with centralized video management, live monitoring, alerts, and backup solutions. Dual recording with C2 Surveillance ensures access to footage even if your recording server is compromised, with end-to-end encryption safeguarding your data.

Powered by Synology's DiskStation Manager (DSM) operating system, the DS923+ offers a suite of native productivity, management, and security solutions. Manage your Synology NAS fleet from a centralized console, shield your system from sophisticated threats, and ensure seamless server transitions with Synology High Availability. Whether you're a content creator or a business professional, the DS923+ delivers speed, simplicity, and security for all your data storage needs.

Synology DS923+ Kit Features

  • High-performance 4-Bay NAS Enclosure powered by AMD Ryzen R1600 CPU
  • Fast file indexing and efficient photo organization with Synology Drive and Synology Photos
  • Offers over 50TB of storage across 4 bays, expandable with DX517
  • Supports private cloud deployment for simplified file access and consolidated data management
  • Multi-layered backup solutions for files, folders, physical devices, VMs, and SaaS applications
  • Transforms into a full-featured video management system with Synology Surveillance Station

Warranty Information

This product has a limited warranty of 36 months.

Product Documents

User Manual

Key Features

  • Centralize data with this Synology DiskStation NAS, offering robust file storage solutions.
  • Ensure data security with advanced encryption and comprehensive backup options on this NAS.
  • Experience fast performance with IronWolf drives, perfect for demanding applications on your NAS.
  • Enjoy easy setup and remote access, making file sharing simple with your Synology NAS.
  • Scale your storage as needed; this NAS supports expansion units for growing data requirements.
  • Stream 4K video and manage media effortlessly with this high-performance NAS enclosure.

What's in the box:

  • Synology DiskStation DS923+ 4-Bay NAS Enclosure
  • Accessory Pack
  • AC Power Adapter
  • AC Power Cord
  • 2x RJ-45 LAN Cable
  • User Manual
  • Synology 3 Year Limited Warranty
  • Bundle Includes:
  • 4x Seagate IronWolf 4TB SATA III 3.5" Internal NAS Hard Drive (5400 RPM)
