Synology Flashstation FS3400 Specifications

Hardware: CPU

Hardware: CPU

Jump to...
  • CPU Model

    Intel Xeon D-1541

  • CPU Architecture

    64-bit

  • CPU Frequency

    8-Core 2.1 (base) / 2.7 (turbo) GHz

  • Hardware Encryption Engine (AES-NI)

    Yes

Hardware: Memory

Jump to...
  • System Memory

    16 GB DDR4 ECC RDIMM

  • Memory Module Pre-installed

    16 GB (16 GB x 1)

  • Total Memory Slots

    4

  • Memory Expandable up to

    128 GB (32 GB x 4)

Hardware: Storage

Jump to...
  • Drive Bays

    24

  • Maximum Drive Bays with Expansion Unit

    48 (RX1217sas) / 72 (RX2417sas)

  • Compatible Drive Type

    2.5" SAS HDD
    2.5" SAS SSD
    2.5" SATA SSD

  • Maximum Internal Raw Capacity

    184.32 TB (7.68 TB drive x 24) (Capacity may vary by RAID types)

  • MaxRaw Capacity with Expansion Units

    552.96 TB (184.32 TB + 7.68 TB drive x 48) (Capacity may vary by RAID types)

  • Maximum Single Volume Size

    200 TB (32 GB RAM required, for RAID 5 or RAID 6 groups only)
    108 TB

  • Hot Swappable Drive

    Yes

Hardware: External Ports

Jump to...
  • RJ-45 1GbE LAN Port

    4 (with Link Aggregation / Failover support)

  • RJ-45 10GbE LAN Port

    2 (with Link Aggregation / Failover support)

  • USB 3.0 Port

    2

  • Expansion Port

    1

Hardware: PCIe

Jump to...
  • PCIe Expansion

    1 x Gen3 x8 slot (x8 link)

  • Add-In-Card Support

    PCIe Network Interface Card

Hardware: File System

Jump to...
  • Internal Drives

    Btrfs
    EXT4

  • External Drives

    Btrfs
    EXT4
    EXT3
    FAT
    NTFS
    HFS+
    exFAT

Hardware: Others

Jump to...
  • System Fan

    80 mm x 80 mm x 4 pcs

  • Fan Speed Mode

    Full-Speed Mode
    Cool Mode
    Quiet Mode

  • Easy Replacement System Fan

    Yes

  • Power Recovery

    Yes

  • Noise Level

    57 dB(A)

  • Scheduled Power On / Off

    Yes

  • Wake on LAN / WAN

    Yes

  • Power Supply Unit / Adapter

    500 W

  • Redundant Power Supply

    Yes

  • AC Input Power Voltage

    100 V to 240 V AC

  • Power Frequency

    50/60 Hz, Single Phase

  • Power Consumption

    313.84 W (Access)
    125.77 W (HDD Hibernation)

  • British Thermal Unit

    1,070.86 BTU/hr (Access)
    429.15 BTU/hr (HDD Hibernation)

Hardware: Temperature

Jump to...
  • Operating Temperature

    32 to 95 Degree F (0 to 35 Degree C)

  • Storage Temperature

    -5 to 140 Degree F (-20 to 60 Degree C)

  • Relative Humidity

    5% to 95% RH

Hardware: Certification

Jump to...
  • Certification

    EAC
    VCCI
    RCM
    KC
    FCC
    CE
    BSMI

Hardware: Environment

Jump to...
  • Environment

    RoHS Compliant

Hardware: Physical

Jump to...
  • Rack Installation Support

    4-post 19" rack

  • Form Factor (RU)

    2U

  • Dimensions

    3.46 x 18.9 x 28.5" (88 x 482 x 724mm)

  • Weight

    32.8 lb (14.9kg)

Software: Storage Management

Jump to...
  • Maximum Internal Volume Number

    256

  • Maximum iSCSI Target Number

    256

  • Maximum iSCSI LUN

    512

  • iSCSI LUN Clone/Snapshot, Windows ODX

    Yes

  • SSD Read / Write Cache

    Yes

  • SSD TRIM

    Yes

  • RAID Group

    Yes

  • Supported RAID Type

    RAID F1
    Basic
    JBOD
    RAID 0
    RAID 1
    RAID 5
    RAID 6
    RAID 10

  • RAID Migration

    Basic to RAID 1
    Basic to RAID 5
    RAID 1 to RAID 5
    RAID 5 to RAID 6

  • Volume Expansion with Larger HDDs

    RAID F1
    RAID 1
    RAID 5
    RAID 6
    RAID 10

  • Volume Expansion by Adding a HDD

    RAID F1
    JBOD
    RAID 5
    RAID 6

  • Global Hot Spare Supported RAID Type

    RAID F1
    RAID 1
    RAID 5
    RAID 6
    RAID 10

Software: File Services

Jump to...
  • File Protocol

    CIFS/AFP/NFS/FTP/WebDAV

  • Max Concurrent CIFS/AFP/FTP Connections

    4000
    10000 (with RAM expansion)

  • Windows ACL Integration

    Yes

  • NFS Kerberos Authentication

    Yes

Software: Account & Shared Folder

Jump to...
  • Maximum Local User Accounts

    16000

  • Maximum Local Groups

    512

  • Maximum Shared Folder

    512

  • Maximum Shared Folder Sync Tasks

    32

Software: High Availability

Jump to...
  • Synology High Availability

    Yes

Software: Log Center

Jump to...
  • Syslog Events per Second

    3000

Software: Virtualization

Jump to...
  • VMware vSphere 6 with VAAI

    Yes

  • Windows Server 2016

    Yes

  • Citrix Ready

    Yes

  • OpenStack

    Yes

Software: General Specifications

Jump to...
  • Networking Protocols

    SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV

  • Supported Browsers

    Chrome
    Firefox
    Edge
    Internet Explorer 10 onwards
    Safari 10 onwards
    Safari (iOS 10 onwards)
    Chrome (Android 6.0 onwards)

  • Supported Language

    English, Geramn, French, Italian, Spanish, Danish, Norwegian, Swedish, Dutch, Russian, Polish, Hungarian, Portugues, Turkish, Czech, Thai, Japanese, Korean, Mandarin, Chinese

Software: Antivirus by McAfee

Jump to...
  • Antivirus by McAfee (Trial)

    Yes

Software: Central Management System

Jump to...
  • Central Management System

    Yes

Software: Synology Chat

Jump to...
  • Maximum Users

    6000

Software: Document Viewer

Jump to...
  • Document Viewer

    Yes

Software: exFAT Access

Jump to...
  • exFAT Access (Optional)

    Yes

Software: MailPlus/MailPlus Server

Jump to...
  • Free Email Accounts

    5 (Licenses required for additional accounts)

  • Maximum Number of Concurrent Users

    1100

  • Maximum Server Performance

    4,471,000 emails per day, approx. 136GB

Software: Snapshot Replication

Jump to...
  • Maximum Snapshots per Shared Folder

    1024

  • Maximum of System Snapshots

    65536

Software: Surveillance Station

Jump to...
  • Maximum IP cam (Licenses required)

    100 (including 2 Free License) (See All Supported IP Cameras)

  • Total FPS (H.264)

    3000 FPS @ 720p (1280x720)
    2800 FPS @ 1080p (1920x1080)
    1200 FPS @ 3M (2048x1536)
    700 FPS @ 5M (2591x1944)
    500 FPS @ 4K (3840x2160)

  • Total FPS (H.265)

    3000 FPS @ 720p (1280x720)
    3000 FPS @ 1080p (1920x1080)
    2400 FPS @ 3M (2048x1536)
    1300 FPS @ 5M (2591x1944)
    800 FPS @ 4K (3840x2160)

  • Total FPS (MJPEG)

    1300 FPS @ 720p (1280x720)
    700 FPS @ 1080p (1920x1080)
    500 FPS @ 3M (2048x1536)
    400 FPS @ 5M (2591x1944)

Software: Synology Drive

Jump to...
  • Recommended Number of Hosted Files

    5,000,000 (applies to files indexed or hosted by Synology Drive. For file access through other standard protocols, refer to the File Services section above)

  • Number of Concurrent Sync Clients

    Recommended: 2,000 (the number of connections that can be maintained when the recommended number of hosted files was reached)

Software: Synology Office

Jump to...
  • Maximum Users

    3400

Software: Virtual Machine Manager

Jump to...
  • Recommended Virtual Machine Instances

    16 (Learn more)

  • Virtual DSM Number (Licenses required)

    Recommended: 16 (including 1 Free License)

Software: VPN Server

Jump to...
  • Maximum Connections

    40

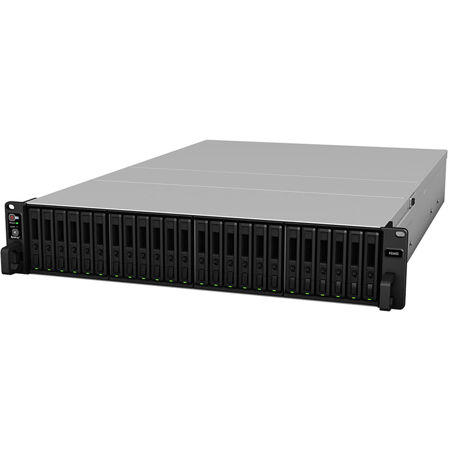

About Synology Flashstation FS3400

FlashStation FS3400
Fueling IT transformation for small and midsize businesses

Lightning speed with lower TCO
Featuring an 8-core CPU and 16GB ECC RDIMM memory, FS3400 provides more than 137,000 4K random write IOPS, meeting the needs for real-time analytics, online transaction processing, and mission-critical database services. With built-in 10GbE Ethernet, PCIe expansion, and the support of various SAS and SATA drives, FS3400 delivers flexible and economical all-flash server deployment on demand.

• Intel Xeon D-1541 8 Core 2.1 GHz
• 16GB DDR4 ECC RDIMM, up to 128GB
• Up to 72 x SAS/SATA drives
• 1 x PCIe 3.0 for 25/40GbE NIC's expansion

RAID F1
Due to the peculiarities of SSD and RAID technology, a common challenge lies in how to prevent all of the drives from failing at the same time because of the evenly distributed workload. RAID F1 alleviates this problem with a specially designed algorithm to unevenly distribute workload to drives, enhancing the resilience of the storage pool and ensuring your data remains safe.

Ultimate Backup Solution
FS3400 integrates various backup applications to safeguard your important data on any device with an intuitive user interface and durable storage technologies.

Active Backup for Business: Centralize backup tasks for VMware, Windows, and file servers. Restore whatever you want fast and reliably when needed.
Hyper Backup: Comprehensively back up your data to a local shared folder, an external device, another Synology NAS, an rsync server, or a public cloud to ensure data safety.
Synology Drive: Safeguard your computer with Synology Drive Client. Effortlessly perform real-time data backups and point-in-time file recovery.
Active Backup for Office 365 / G Suite: Protect corporate data stored on the cloud. On-premise backup solution with a centralized dashboard. Optimize storage efficiency with single instancing and block-level deduplication technology.

Fully certified storage virtualization solutions
Synology iSCSI storage fully supports most virtualization solutions to enhance work efficiency with easy management interface. VMware vSphere 6 and VAAI integration helps offload storage operations and optimizes computation efficiency. Windows Offloaded Data Transfer (ODX) speeds up data transfer and migration rate. OpenStack Cinder support turns your Synology NAS into a block-based storage component.

Powered by Synology DSM

Synology High Availability: Seamless transition between clustered servers in the event of a server failure to minimize the impact on applications.
Active Backup Suite: Integrated, modern, and license-free backup & instant recovery solution for VMware, Windows, Office 365, and G Suite.
Hyper Backup: Store multiple backup versions with block-level incremental data backup and cross-version deduplication.
Synology MailPlus: Secure, reliable, and private mail server solution with an intuitive and modern mail client.
Virtual Machine Manager: Run various operating systems in isolated sandboxes. Seamlessly clone, restore and migrate virtual machines.
Synology Drive: A versatile solution for file management and synchronization.

Synology Flashstation FS3400 Features

  • High-performance all-flash NAS designed for IO intensive, latency-sensitive applications
  • Exclusive Synology RAID F1 technology which effectively boosts system endurance and avoids SSD array data loss
  • Advanced iSCSI storage supporting various virtualization deployments including VMware vSphere, Windows Hyper-V, Citrix XenServer, and OpenStack Cinder
  • Intel Xeon D-1541 8-Core CPU and 16GB DDR4 ECC RDIMM memory (expandable to 128GB)
  • Scalable to 72 drives when connected with 2 Synology Expansion Unit RX2417sas
  • Built-in dual 10GbE and quad 1GbE Ethernet ports with failover and Link Aggregation support
  • One PCIe 3.0 x8 slot that allows for 25/40GbE network interface card expansion

Key Features

  • High-performance all-flash NAS designed for IO intensive, latency-sensitive applications
  • Intel Xeon D-1541 8-Core CPU and 16GB DDR4 ECC RDIMM memory (expandable to 128GB)
  • Scalable to 72 drives when connected with 2 Synology Expansion Unit RX2417sas
  • Built-in dual 10GbE and quad 1GbE Ethernet ports with failover and Link Aggregation support
  • One PCIe 3.0 x8 slot that allows for 25/40GbE network interface card expansion

What's in the box:

  • Flashstation FS3400 24 Bay NAS Enclosure
  • Accessory Pack
  • 2x AC Power Cord
  • Quick Installation Guide
  • Synology 5 Year Limited Warranty
