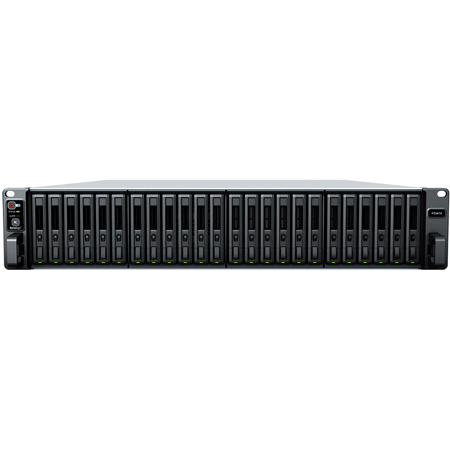

Synology FlashStation FS3410 24-Bay 2U Rackmount NAS Enclosure, Intel Xeon D-1541 CPU, Diskless

SKU: SYFS341024B MFR: FS3410
Earn VIP Reward Points

Key Features

  • Maximize your data storage with 24 drive bays, perfect for demanding applications.
  • Blazing-fast SSD performance ensures quick access and data transfers for your business.
  • Intel Xeon D-1541 CPU delivers robust processing power for seamless multitasking.
  • Safeguard critical data with advanced RAID options, ensuring data redundancy and security.
  • Scale your storage as needed with up to 128GB DDR4 ECC RDIMM system memory.
  • Manage your data remotely with secure remote access features, from anywhere, anytime.
See More Product Details
Temporarily On Backorder?Expected Availability: 10/2025Request assistance or get notified
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$749.99

3 Year

$1,124.99

4 Year

$1,249.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?PHIL B : Researched.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Synology FlashStation FS3410 Specifications

Hardware: CPU

Hardware: CPU

Jump to...
  • CPU Model

    Intel Xeon D-1541

  • CPU Quantity

    1

  • CPU Architecture

    64-bit

  • CPU Frequency

    8-core 2.1 (base) / 2.7 (turbo) GHz

  • Hardware Encryption Engine (AES-NI)

    Yes

Hardware: Memory

Jump to...
  • System Memory

    16GB DDR4 ECC RDIMM

  • Memory Module Pre-installed

    16GB (16GB x 1)

  • Total Memory Slots

    4

  • Maximum Memory Capacity

    128GB (32GB x 4)

Hardware: Storage

Jump to...
  • Drive Bays

    24

  • Compatible Drive Type

    2.5" SATA SSD

  • Hot Swappable Drive

    Yes

Hardware: External Ports

Jump to...
  • RJ-45 1GbE LAN Port

    4 (with Link Aggregation / Failover support)

  • RJ-45 10GbE LAN Port

    2 (with Link Aggregation / Failover support)

  • Out-of-Band Management LAN Port

    1

  • Max. number of LAN ports

    15

  • USB 3.2 Gen 1 Port

    2

Hardware: PCIe

Jump to...
  • PCIe Expansion

    2x Gen3 x8 slots (x8 link)

Hardware: File System

Jump to...
  • Internal Drives

    Btrfs
    EXT4

  • External Drives

    Btrfs
    EXT4
    EXT3
    FAT
    NTFS
    HFS+
    exFAT

Hardware: Others

Jump to...
  • System Fan

    4 pcs 80 x 80mm

  • Fan Speed Mode

    Full-Speed Mode
    Cool Mode
    Quiet Mode

  • Easy Replacement System Fan

    Yes

  • Power Recovery

    Yes

  • Noise Level

    46.1 dB(A)

  • Scheduled Power On / Off

    Yes

  • Wake on LAN / WAN

    Yes

  • Power Supply Unit / Adapter

    550 W

  • Redundant Power Supply

    Yes

  • AC Input Power Voltage

    100V to 240V AC

  • Power Frequency

    50/60 Hz, Single Phase

  • Power Consumption

    113.84 W (Access)

  • British Thermal Unit

    388.70 BTU/hr (Access)

Hardware: Temperature

Jump to...
  • Operating Temperature

    32 Degree F to 95 Degree F (0 Degree C to 35 Degree C)

  • Storage Temperature

    -5 Degree F to 140 Degree F (-20 Degree C to 60 Degree C)

  • Relative Humidity

    5% to 95% RH

Hardware: Certification

Jump to...
  • Certification

    FCC
    CE
    BSMI
    VCCI
    RCM
    UKCA
    EAC
    CCC
    KC
    UL

Hardware: Environment

Jump to...
  • Environment

    RoHS Compliant

Hardware: Appearance

Jump to...
  • Form Factor (RU)

    2U

  • Rack Installation Support

    4-post 19" rack (Synology Rail Kit - RKS-02)

  • Dimensions (H x W x D)

    3.46 x 18.97 x 28.5" (88 x 482 x 724mm)

  • Weight

    33.06 lbs (15kg)

Software: Storage Management

Jump to...
  • Maximum Single Volume Size

    1PB (64GB memory required, for RAID 6 groups only)
    200TB (32GB memory required)
    108TB

  • Maximum Internal Volume Number

    256

  • SSD Read / Write Cache (White Paper)

    Yes

  • SSD TRIM

    Yes

  • RAID Group

    Yes

  • Supported RAID Type

    RAID F1
    Basic
    JBOD
    RAID 0
    RAID 1
    RAID 5
    RAID 6
    RAID 10

  • RAID Migration

    Basic to RAID 1
    Basic to RAID 5
    RAID 1 to RAID 5
    RAID 5 to RAID 6

  • Volume Expansion with Larger HDDs

    RAID F1
    RAID 1
    RAID 5
    RAID 6
    RAID 10

  • Volume Expansion by Adding a HDD

    RAID F1
    JBOD
    RAID 5
    RAID 6

  • Global Hot Spare Supported RAID Type

    RAID F1
    RAID 1
    RAID 5
    RAID 6
    RAID 10

Software: File Services

Jump to...
  • File Protocol

    SMB/AFP/NFS/FTP/WebDAV

  • Max. Concurrent SMB/AFP/FTP Connections

    4000
    10000 (with RAM expansion)

  • Windows ACL Integration

    Yes

  • NFS Kerberos Authentication

    Yes

Software: Account & Shared Folder

Jump to...
  • Maximum Local User Accounts

    16000

  • Maximum Local Groups

    512

  • Maximum Shared Folder

    512

  • Maximum Shared Folder Sync Tasks

    32

Software: Hybrid Share

Jump to...
  • Hybrid Share Folder Number

    30

Software: Hyper Backup

Jump to...
  • Folder and Package Backup

    Yes

  • Entire System Backup

    Yes

Software: High Availability

Jump to...
  • Synology High Availability

    Yes

Software: Log Center

Jump to...
  • Syslog Events per Second

    3000

Software: Virtualization

Jump to...
  • VMware ESXi 6.5 and VAAI

    Yes

  • Windows Server 2022

    Yes

  • Citrix Ready

    Yes

  • OpenStack

    Yes

Software: General

Jump to...
  • Networking Protocols

    SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, Fiber Channel, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV

  • Supported Browsers

    Google Chrome
    Firefox
    Microsoft Edge
    Safari

  • Supported Language

    English, Deutsch, French, Italian, Espanol, Danish, Norwegian, Swedish, Nederlands, Russian, Polish, Hungarian, Brazilian Portuguese, European Portuguese, Turkish, Czech, Thai, Japanese, Korean, Traditional Chinese, Simplified Chinese

Software: Add-on Packages

Jump to...
  • Antivirus by McAfee (Trial)

    Yes

  • Central Management System

    Yes

Software: Synology Chat

Jump to...
  • Suggested Concurrent Users

    500

Software: Document Viewer

Jump to...
  • Document Viewer

    Yes

Software: SAN Manager

Jump to...
  • Maximum iSCSI Target Number

    256

  • Maximum LUN

    512

  • LUN Clone/Snapshot, Windows ODX

    Yes

Software: MailPlus / MailPlus Server

Jump to...
  • Free Email Accounts

    5 (Additional accounts require purchase of licenses)

  • Suggested Maximum Users

    10000

  • Suggested Concurrent Users

    2000

  • Maximum Server Performance

    4,471,000 emails per day, approx. 136GB

Software: Snapshot Replication

Jump to...
  • Maximum Snapshots per Shared Folder

    1024

  • Maximum of System Snapshots

    65536

Software: Surveillance Station

Jump to...
  • Default Licenses

    2 (Additional cameras require purchase of licenses)

  • Maximum IP Cameras and Total FPS (H.264)

    720p: 100 channels, 3000 FPS
    1080p: 100 channels, 2800 FPS
    3M: 100 channels, 1200 FPS
    5M: 70 channels, 700 FPS
    4K: 50 channels, 500 FPS

  • Maximum IP Cameras and Total FPS (H.265)

    720p: 100 channels, 3000 FPS
    1080p: 100 channels, 3000 FPS
    3M: 100 channels, 2400 FPS
    5M: 100 channels, 1300 FPS
    4K: 80 channels, 800 FPS

Software: Synology Drive

Jump to...
  • Recommended Number

    Concurrent Sync Clients: 2,000 (the number of connections that can be maintained when the recommended number of hosted files was reached)

  • Recommended Number of Hosted Files

    50,000,000 (applies to files indexed or hosted by Synology Drive. For file access through other standard protocols, refer to the File Services section above)

Software: Synology Office

Jump to...
  • Suggested Maximum Users

    12500

  • Suggested Concurrent Users

    5000

Software: Virtual Machine Manager

Jump to...
  • Recommended Virtual Machine Instances

    16

  • Recommended Virtual DSM Number

    16 (including 1 Free License) (Licenses required)

Software: VPN Server

Jump to...
  • Maximum Connections

    60

About Synology FlashStation FS3410

An indispensable asset for small to medium-sized businesses (SMBs) seeking a robust and high-performance data management solution, the FlashStation FS3410 24-Bay 2U Rackmount NAS Enclosure is engineered to deliver exceptional flash storage performance. This diskless unit, powered by an Intel Xeon D-1541 CPU, is synonymous with reliability and durability, ensuring your mission-critical data remains accessible even in the face of unforeseen disasters.

The FS3410 is designed to excel in environments demanding high throughput and low latency, making it an ideal choice for businesses that prioritize efficient and speedy data access. Its user-friendly interface, coupled with Synology's reputation for ease of use, allows for seamless integration into existing workflows.

Out-of-band (OOB) management capabilities provide the convenience of troubleshooting and accessing critical logs remotely, even for powered-down devices, through a dedicated interface. The inclusion of a dual power supply with redundant PSU units significantly reduces the risk of power disruptions, safeguarding data and service availability.

For businesses requiring high availability, the FS3410's failover cluster feature is a game-changer. By pairing two units with Synology High Availability, businesses can achieve automatic minute-level failover, minimizing downtime during system updates or in the event of server failure.

The FS3410 boasts powerful networking options, including two 10GbE RJ-45 ports and four Gigabit Ethernet ports for out-of-the-box rapid transfer speeds. Additionally, the unit offers support for 10/25/40GbE network interface cards via two PCIe 3.0 slots, enhancing its networking capabilities. Network failover and load balancing are made possible through Link Aggregation, which bonds multiple network interfaces.

As a versatile data storage solution, the FS3410 fits perfectly into roles that require high availability and leading-edge storage technology, such as file servers, block storage, or light application servers. It delivers extremely fast IOPS performance, making it ideal for supporting and protecting virtual machines (VMs). With full certification for major virtualization platforms and a Kubernetes CSI driver for integrated volume management, the FS3410 stands as a complete SAN VM storage solution.

Efficient SAN management is facilitated by the intuitive SAN Manager, which simplifies LUN management, global monitoring, iSCSI configuration, and disk space optimization. Volume-wide data deduplication maximizes space efficiency by removing identical data across VM and container storage.

The FS3410 also excels in VM backup and protection, offering reliable VM backups at no extra cost with Active Backup for Business and block-level LUN snapshots and backups through Snapshot Replication. Hyper Backup ensures comprehensive data LUN and shared folder backups to local or remote Synology systems.

For high-performance file serving and syncing, the FS3410 leverages its all-flash speeds to provide low-latency access to large files, enhancing collaborative processes with powerful cross-site syncing capabilities. Synology Drive Share Sync and Synology Hybrid Share facilitate efficient data access and syncing across branch offices.

The FS3410 also serves as a business application platform, hosting cost-efficient business solutions through containers, virtual machines, or Synology DiskStation Manager (DSM)'s native applications. It supports effective collaboration with Synology Drive, Office, and MailPlus, and is ready for containerization and virtualization with Docker and Synology Virtual Machine Manager (VMM).

Synology DSM's web-based operating system offers a suite of native productivity, management, and security solutions, including data protection, user management, and file management. Integration with public clouds is streamlined, allowing for easy backup and synchronization between cloud accounts and the NAS.

Backed by Synology's enterprise-grade drives, the FS3410 benefits from high sustained performance, reliability, and advanced features such as data deduplication and lifetime analytics. The SSD Enterprise Series 2.5" SATA drives are designed specifically for Synology systems, ensuring optimal compatibility and performance.

In summary, the FlashStation FS3410 is a spacious, high-performance, and user-friendly NAS enclosure that stands out for its capacity and brand reputation, making it a superior choice for SMBs in need of a reliable and sophisticated data management solution.

Synology FlashStation FS3410 Features

  • Harness all-flash storage to speed up business workflows
  • Storage: Supports 24 x 2.5" SATA SSDs
  • Throughput: Over 356,500/129,400 iSCSI 4K random read/write IOPS
  • Memory: 16GB DDR4 ECC RDIMM, up to 128GB
  • Expandability: Optional 25/40GbE through PCIe 3.0 expansion

Product Documents

User Manual

Key Features

  • Maximize your data storage with 24 drive bays, perfect for demanding applications.
  • Blazing-fast SSD performance ensures quick access and data transfers for your business.
  • Intel Xeon D-1541 CPU delivers robust processing power for seamless multitasking.
  • Safeguard critical data with advanced RAID options, ensuring data redundancy and security.
  • Scale your storage as needed with up to 128GB DDR4 ECC RDIMM system memory.
  • Manage your data remotely with secure remote access features, from anywhere, anytime.

What's in the box:

  • Synology FlashStation FS3410 24-Bay 2U Rackmount NAS Enclosure
  • Accessory Pack
  • 2x AC Power Cord
  • User Manual
  • Synology 5 Year Limited Warranty
