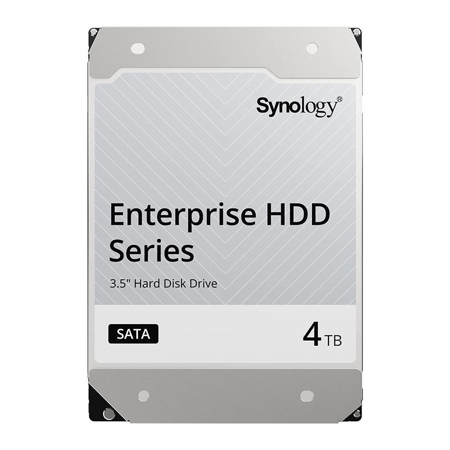

Synology HAT5300 3.5" SATA III Enterprise Hard Drive 4TB
Synology HAT5300: Picture 1 thumbnail
Synology HAT5300: Picture 2 thumbnail
Synology HAT5300: Picture 3 thumbnail
Synology HAT5300: Picture 4 thumbnail
See all Synology items
Top Rated Gear

Synology HAT5300 3.5" SATA III Enterprise Hard Drive 4TB

SKU: SYHAT53004T MFR: HAT5300-4T
(5)Ask a Question
$189.99
Earn VIP Reward Points

Key Features

  • Boost your server's performance with this Synology Enterprise Hard Drive, built for 24/7 operation.
  • Achieve rapid data access with a 7200 RPM rotational speed, perfect for demanding applications.
  • Ensure data integrity with a robust 2,500,000 hours MTBF, minimizing downtime and data loss risks.
  • Optimize your storage array with capacities up to 20TB, ideal for large-scale data storage needs.
  • Experience sustained data transfers up to 281 MB/s, enhancing productivity and workflow efficiency.
  • Backed by Synology's 5-year limited warranty, providing peace of mind and reliable long-term use.
See More Product Details
Ships from Manufacturer?
Calculate Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

1 Year

$19.99

2 Year

$32.99

3 Year

$49.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Shopper : Why Did You Choose This?CHRIS P : Per manufacturer, compatible with Synology DS1621+, a requirement for factory warranty support. Compatible Seagate enterprise hard drives are hard to locate at a reasonable price.ART C : Synology makes the best drives in the business
Shopper : Why Did You Choose This?ART C : Synology servers work and communicate best with Synology drives.JAMES E H : I chose Synology and Adorama because of the quality, reliability, availability, value and service.Carl D : Quality drives and good priceVINCENT A : Designed by Synology to work with Synology NAS devices.MATTHEW H : Matches the Ds220+ that I'm about to order.JUSTIN Y : works best with synology devicesWILLIAM J : Currently less expensive than other brands, reliability and compatibility.WILLIAM J : For use in a Synology nas. Auto firmware updates, improved performance.
Shopper : Why Did You Choose This?DOMINGO M : Optimized for the Synology NAS DS920+ allowing for updates to firmware without the need to remove the drives from the device.

Reviews about this item

Review Summary

2022-07-26T15:05:51

Rated 5 out of 5

Great choice for NAS

Easy to install and works as expected. First choice to go in Synology box as it simplifies management

TOMMY B.

2021-06-01T14:28:08

Rated 5 out of 5

Great drive

Excellent so far. Time will tell on longevity. 3 of these in a synology 1621+ and no issues so far.

Michael A.

2021-04-23T07:16:58

Rated 5 out of 5

Good hard drive

The drive looks really good with the only difference being in the sticker on the front of the drive. I bought two drives to go in my DS220+ and they work great.

Matthew H.

2021-03-26T08:27:45

Rated 5 out of 5

Great Drive

Drive is extremely fast and not as noisy as I expected

PAUL D.

2021-03-23T08:30:01

Rated 5 out of 5

So Far So Good.

Installed in a DX517 expansion unit, and initialized without any issues. So far so good.

Eric W.

Synology HAT5300 Specifications

General

General

Jump to...

  • Available Capacities

    4TB
    8TB
    12TB
    16TB
    20TB

  • Form factor

    3.5"

  • Interface

    SATA

  • Sector size

    512e

  • Drive design

    4TB/8TB: Air
    12TB/16TB/20TB: Helium-sealed

  • Dimensions (H x W x D)

    1.02 x 4 x 5.78" (26.1 x 101.85 x 147mm)

  • Weight

    4TB: 24.44 oz (693g)
    8TB/12TB/16TB/20TB: 25.39 oz (720g)

Performance

Jump to...

  • Rotational speed

    7,200 rpm

  • Interface speed Cache

    4TB/8TB/12TB: 256 MB
    16TB/20TB: 512 MB

  • Maximum sustained data transfer speed

    4TB: 255 MB/s
    8TB: 260 MB/s
    12TB: 254 MB/s
    16TB: 275 MB/s
    20TB: 281 MB/s

Reliability

Jump to...

  • Mean Time Between Failure (MTBF)

    4TB/8TB: 2,000,000 hours
    12TB/16TB/20TB: 2,500,000 hours

  • Workload rating

    550 TB/year data write/read

Power Consumption

Jump to...

  • Supply Voltage

    12 V (+/-10%) / 5 V (+10/-7%)

  • Idle power average

    4TB: 4.07 W
    8TB: 5.61 W
    12TB: 4.25 W
    16TB: 4.00 W
    20TB: 4.38 W

  • Average operating power

    4TB: 7.76 W
    8TB: 9.29 W
    12TB: 7.83 W
    16TB: 7.63 W
    20TB: 8.11 W

Environmental

Jump to...

  • Temperature

    Operating: 41 Degree F to 140 Degree F (5 Degree C to 60 Degree C) (No condensation)
    Non-operating: -40 Degree F to 158 Degree F (-40 Degree C to 70 Degree C) (No condensation)

  • Shock

    Operating:
    4TB/8TB/12TB/16TB: 686 m/sq. s (2 ms duration)
    20TB: 490 m/sq. s (2 ms duration)

    Non-operating: 4TB: 2,940 m/sq. s (2 ms duration)
    8TB/12TB/16TB: 2,450 m/sq. s (2 ms duration)
    16TB: 1,960 m/sq. s (2 ms duration)

  • Vibration

    Operating:
    5 Hz to 300 Hz: 7.35 m/sq. s
    300 Hz to 500 Hz: 2.45 m/sq. s

    Non-operating:
    5 Hz to 500 Hz: 29.4 m/sq. s

  • Altitude

    Operating: -304.8 to 3,048 m
    Non-operating: (-304.8 to 12,192m)

  • Relative humidity

    Operating: 5% to 90% R.H. (No condensation)
    Non-operating: 5% to 95% R.H. (No condensation)

Certification

Jump to...

  • Certification

    CE, RCM, BSMI, KC, EAC, UL, TUV, ICES, UKCA, RoHS, Morocco Mark

Other

Jump to...

  • UPC Code

    846504004638

About Synology HAT5300

FEATURED REVIEWS

Great choice for NAS

By TOMMY B.

Easy to install and works as expected. First choice to go in Synology box as it simplifies management

Great drive

By Michael A.

Excellent so far. Time will tell on longevity. 3 of these in a synology 1621+ and no issues so far.

High-performance, reliable hard drives for Synology systems

Enterprise storage drives for Synology systems
Synology HAT5300 HDD offers class-leading performance thanks to tight integration with DSM and Synology hardware. With over 300,000 hours of in-house validation testing and backed by Synology's 5-year limited warranty, the HAT5300 series brings unmatched reliability to Synology deployments.

Performance
Up to 274 MB/s sustained data transfer.

Optimization
Up to 23% faster sequential read in Synology NAS.

Reliability
Purpose-built for Synology servers running 24/7.

Updates
Automatic firmware updates with DSM.

Consistent performance scaling
Through testing and optimizations, HAT5300 series HDD has been tuned to deliver up to 23% higher sustained sequential read performance3 in demanding multi-user environments.

Built for peak performance

Rigorous validation
Over 300,000 hours of stress testing with Synology devices4 ensure that HAT5300 drives can withstand even the most demanding enterprise environments and deliver highly reliable performance.

Effortless firmware updates
Automatic firmware updates through DSM mean that HAT5300 drives always benefit from the latest enhancements.

Durability for 24/7 environments
HAT5300 series HDD is backed by a 2.5 million hour MTTF5 rating, workload support of 550 TB per year, and persistent write cache technology to minimize data corruption in the event of sudden power loss.

Synology HAT5300 Features

  • Up to 274 MB/s sustained data transfer for fast and reliable performance
  • 23% faster sequential read in Synology NAS for optimized storage operations
  • Built for 24/7 Synology servers, ensuring reliability in demanding environments
  • Automatic firmware updates via DSM for the latest performance enhancements
  • Tuned for consistent performance, with optimized sequential read in multi-user settings
  • Over 300,000 hours of stress testing for proven reliability with Synology devices
  • 2.5 million hour MTTF and 550 TB/year workload support for maximum durability
  • Persistent write cache technology minimizes data loss during unexpected power loss

Warranty Information

This product has a limited warranty of 60 months.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Boost your server's performance with this Synology Enterprise Hard Drive, built for 24/7 operation.
  • Achieve rapid data access with a 7200 RPM rotational speed, perfect for demanding applications.
  • Ensure data integrity with a robust 2,500,000 hours MTBF, minimizing downtime and data loss risks.
  • Optimize your storage array with capacities up to 20TB, ideal for large-scale data storage needs.
  • Experience sustained data transfers up to 281 MB/s, enhancing productivity and workflow efficiency.
  • Backed by Synology's 5-year limited warranty, providing peace of mind and reliable long-term use.

What's in the box:

  • Synology HAT5300 3.5" SATA III Enterprise Hard Drive
  • Synology 5 Year Limited Warranty
