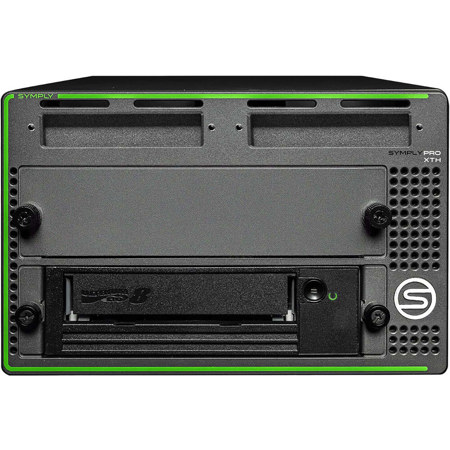

Symply SymplyPRO DIT Thunderbolt 3 XTH Half Height Tape Storage LTO-9

SKU: SYDT3L9H2BAT MFR: SYDIT-DT3L9H2B-AT
Earn VIP Reward Points

Key Features

  • Experience rapid data transfer speeds, up to 750 MB/sec compressed, for efficient workflow management.
  • Ensure reliable data storage with LTO-8 or LTO-9 drive options, offering robust backup solutions.
  • Achieve ample storage capacity, reaching up to 45 TB compressed, perfect for large data archives.
  • Access your data securely with advanced tape storage technology, safeguarding your valuable information.
  • Enjoy easy setup and integration with Thunderbolt 3 connectivity, streamlining your IT infrastructure.
  • Benefit from a scalable storage solution designed for growth, adapting to your evolving data needs.
See More Product Details
Temporarily On Backorder?Expected Availability: 09/2026
Free Shipping

See Options

1
Add to ListGet Sale Alert

Need help? Ask our experts.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Symply SymplyPRO DIT Thunderbolt 3 XTH Half Height Tape Storage Specifications

General

General

Jump to...
  • Form-Factor

    Half-Height

  • No. Drives

    1

  • LTO Gen

    8, 9

  • Host Interface

    2x TB3
    1x SFF-8644

  • Expansion Interface

    1 x SFF-8644

Performance & Capacity

Jump to...
  • Available Drive Type

    LTO-8, LTO-9

  • Performance Native (Compressed)

    300 MB/Sec (750 MB/Sec)

  • Capacity Native (Compressed)

    LTO-8: 12 TB (30 TB)
    LTO-9: 18 TB (45 TB)

Reliability

Jump to...
  • MTBF (Hours)

    250,000 @ 100% Duty Cycle

  • MSBF (Mean Swaps Before Failure)

    100000

  • Load / Unload Cycles

    80000

Environmental

Jump to...
  • Dry-Bulb Temperature

    Recommended:
    LTO-8: 61 to 77 Degree F (16 to 25 Degree C)
    LTO-9: 59 to 77 Degree F (15 to 25 Degree C)

    Allowable: LTO-8: 61 to 95 Degree F (16 to 35 Degree C)
    LTO-9: 59 to 86 Degree F (15 to 30 Degree C)

    Non-Operating: 41 to 95 Degree F (5 to 35 Degree C)

  • Relative Humidity

    Recommended: 20 to 50% (non-condensing)
    Allowable/Non-Operating: 20 to 80% (non-condensing)

  • Maximum Temperature Change

    41 Degree F (5 Degree C) / hour

  • Maximum Humidity Change

    5% / hour

  • Temp Limitation for Humidity Cond.

    LTO-8: Wet Bulb Temperature <= 79 Degree F (26 Degree C)
    LTO-9: Max Dew Point 72 Degree F (22 Degree C)

  • Maximum Altitude

    Recommended/Allowable: 10,000' (3,048m)
    Non-Operating: 40,000' (12,192m)

  • Dust concentration

    Less than 200 microgram / cubic meter

Physical

Jump to...
  • Dimensions (D x W x H)

    12 x 8.5 x 5.5" (30 x 21.1 x 13.6cm)

  • Weight

    12.3 lbs (5.6kg)

  • UPC Codes

    LTO-9: 5060920451714 | LTO-8: 5060920451691

About Symply SymplyPRO DIT Thunderbolt 3 XTH Half Height Tape Storage

Purpose-built for DIT applications, SymplyPRO DIT Thunderbolt LTO is a full-featured backup, archive and transfer system designed specifically for on-set and DIT data protection, with features that enhance every production and post-production pipeline.

SymplyPRO DIT Thunderbolt is based on our advanced SymplyPRO desktop line-rugged metal-alloy enclosure, premium power supply and efficient cooling-then adds multi-access ingest: a front dock for any 2.5-inch SSD or Atomos Master Caddy to enable fast, all-in-one DIT operations (ingest - verify - to-tape). All dual-drive desktops use our SymplyCABLELESS architecture for rapid serviceability and easy upgrades.

Each model comes equipped with two Thunderbolt 3 ports that support daisy-chaining, with one port delivering 60W of power for device charging. For additional flexibility, every unit also includes SAS Host and SAS Expansion ports, allowing you to connect other SAS devices to your Thunderbolt computer, or use the drive with a non-Thunderbolt workstation.

Every SymplyPRO DIT Thunderbolt configuration supports Linear Tape File System (LTFS), enabling familiar drag-and-drop file operations and simple interchange without heavy backup software. It's also compatible with leading backup and archive applications that support LTO- media-focused tools such as Archiware P5, Hedge Canister, YoYotta, and XenData; plus broader IT platforms including Veeam Backup & Replication, Veritas NetBackup, Commvault, IBM Spectrum Protect, Arcserve, Retrospect, and the open-source Bacula, and Bareos.

On Windows and Linux, SymplyPRO DIT Thunderbolt integrates with standard platform tools and LTO software stacks (e.g., IBM tape drivers, IBM Spectrum Archive LTFS, and ITDT diagnostics). On macOS, SymplyATOM provides streamlined tape operations-format, mount/eject LTFS, one-click diagnostics and log capture, and in-app firmware updates for SymplyPRO drives. This ensures straightforward deployment in mixed environment.

SymplyCABLELESS
All Symply dual-drive desktop systems feature SymplyCABLELESS technology, a unique design that makes LTO drives quick and easy to remove, service, or upgrade. Start with a single LTO drive and add a second in seconds-without ever powering down the system. Upgrading to the next LTO generation is just as simple.

In the unlikely event of a drive issue, the affected drive can be removed and replaced without shutting down the entire unit, and only the failed drive needs to be returned for service. Simple, flexible, and designed for maximum uptime-exactly what you'd expect from Symply.

Symply SymplyPRO DIT Thunderbolt 3 XTH Half Height Tape Storage Features

  • Two 2.5" SATA SSD reader bays - supports < 9 mm drives and bridges SATA SSDs to Thunderbolt
  • Thunderbolt 3 host interface with SymplyLOCK cable locking - dual Thunderbolt 3 ports with daisy-chain support (compatible with Thunderbolt 4/5 hosts), including one port providing up to 60W of device charging
  • 12Gb SAS connectivity - SAS Host and SAS Expansion ports (via Thunderbolt bridge) allow connection to non-Thunderbolt workstations and attaching additional SAS devices to a computer via Thunderbolt
  • Desktop configuration - available with LTO-8, or LTO-9 half-height
  • Half-Height Drive capacity & speed - up to 18 TB raw / 45 TB compressed (LTO-9) per cartridge; up to 300 MB/s native throughput
  • LTFS drag-and-drop - mount tapes like a removable drive for simple copy/move and interchange without heavy backup software
  • Compatible with leading software - Archiware P5, Hedge Canister, YoYotta, XenData, plus broader IT platforms and tools
  • Security & compliance built-in - AES-256 hardware encryption and LTO WORM media support for non-erasable, non-rewritable retention
  • Air-gapped by design - enables 3-2-1-1-0 best practice (offline copy) for ransomware resilience
  • Advanced all-metal enclosure - compact footprint with premium fan and integrated PSU for clean installs in offices or comms rooms
  • Physical security - Kensington T-Bar lock slot
  • Compliance & certifications - CE, UKCA, FCC Class A; RoHS
  • Premium Packaging - every model comes with high-quality 2m Thunderbolt cable, data and cleaning cartridges, and SymplyLOCK

Key Features

  • Experience rapid data transfer speeds, up to 750 MB/sec compressed, for efficient workflow management.
  • Ensure reliable data storage with LTO-8 or LTO-9 drive options, offering robust backup solutions.
  • Achieve ample storage capacity, reaching up to 45 TB compressed, perfect for large data archives.
  • Access your data securely with advanced tape storage technology, safeguarding your valuable information.
  • Enjoy easy setup and integration with Thunderbolt 3 connectivity, streamlining your IT infrastructure.
  • Benefit from a scalable storage solution designed for growth, adapting to your evolving data needs.

What's in the box:

  • Symply SymplyPRO DIT Thunderbolt 3 XTH Half Height Tape Storage
  • Media Tape
  • LTO Cleaning Tape
  • 6.5' Active Thunderbolt 3 Cable
  • SymplyATOM Software
  • 2x 2.5" SSD Adapter Sleds
  • Symply 3 Year Limited Warranty
