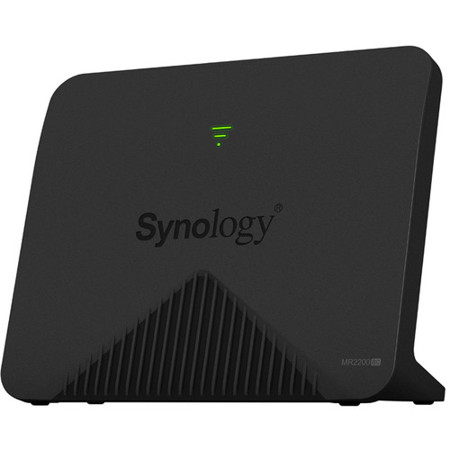

Synology Wireless Tri-Band Mesh Router

SKU: SYMR2200AC

This item is no longer available.

Recommended Alternatives

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?MARK H : The RT2600ac didn't quite give enough coverage in our space. I'm hoping this will extend to some of the less happy corners.JAMES M : to extend my network with additional Synology routers.ROBERT A : Need a satellite to extend to whole house in case the router is not sufficient.JESSIE S : A mesh router system with great parental controls and great softwareJAMES R : I already have 3 - needed one more and you guys had best priceGORDON H : I have a Synology router and one synology wireless mesh router and needed one more to make my whole house well connected.JEFF B : I am using this as an access point to go with my Synology Router RT2600AC.MARK L : Expand wireless capabilities to work throughout the houseCLYDE D : need a companion for routerALEX W : PC Magazine Editor's Choice deviceRoderick S : Great priceABHIJEET N : Synology products are the best!RICHARD B : I have always likes Synology routers and this is just another addition to extend my WiFi coverage.BRIAN W : Synology never lets me down. Great if you want better control of your technology.Dariush K : Good reviews & I already have a Synology router.ROBERT C : Our AirPort Extreme has become unreliable, and I wanted a tri-band router which we could use as a base station to expand into a mesh network if the need arises. This one has received lots of good reviews...fingers crossed!!Olivet C : to create a mesh WiFi network with Synology RT2600ac router for my home use (with a large square footage to cover)

Reviews about this item

Review Summary

2021-03-12T07:50:55

Rated 5 out of 5

Great Mesh router / wifi solution

I have had a Synology router RT 2600Ac for a bit over a year now, and it had made for a huge boost in performance over my previous Linksys tri-band router (which was completely unstable and unreliable on the 5ghz band)..... As we moved to a new bigger house, I need for a wider range for my wifi, and decided to add 1 mesh router on each floor to really cover the whole house. Install and configuration was straightforward, and the performances are topnotch. I do not notice any drops when moving around the house. This is pretty much a "set it and forget it" system with the ability to really customize your accesses and a whole lot of other parameters!

ARNAUD B.

2020-11-30T10:25:02

Rated 5 out of 5

Just works

Simple and effective. Plug it in, a few clicks in Synology Router Manager and your WiFi goes further than before. Working great for several weeks now.

JUDD S.

2020-11-22T07:05:35

Rated 5 out of 5

Great as a mesh wifi extender

Using this a mesh wifi extender with a RT2600ac using a wired backhaul, works seamlessly once you get the configuration dialed in

VINAY T.

2020-08-27T08:58:09

Rated 5 out of 5

Seamless, Customizable, and Powerful

I had a generic Netgear wireless extender before I finally caved and got this. Overall, it’s an excellent product. Setting it up is straightforward, the performance is remarkably good, and it seamlessly switches my devices between it and the main Synology router. While the default settings are fine, the exhaustive options available in the SRM allow you to tweak and modify it to your specific needs. I can’t provide any input on using it as a standalone router, but if you plan on using it in tandem with your main Synology router, I highly recommend it.

JONATHAN F.

2020-08-23T08:49:14

Rated 5 out of 5

Awesome company, awesome product

My router was in awesome condition with absolutely no issues. While it was on back order originally it came much sooner than I expected so I was very thankful for that. I highly recommend this company and plan on doing business with them in the future. The best part, I saved a fortune buying from them, I am not kidding, I saved over $100. Can’t beat that!

STEPHEN H.

2020-07-30T04:55:35

Rated 5 out of 5

Great Router

I bought this router to extend the WiFi coverage in my house and it didn’t disappoint. I already had the RT2600ac and was very glad that this Mesh Router worked seamlessly with it. I would definitely recommend this to anyone and I already have. Two thumbs up for this router.

RICHARD B.

2020-07-18T14:37:46

Rated 5 out of 5

Great Part of Synology Ecosystem

Overall great product! Was a little bit confusing to set up, but once I found the manuals the entire process is seamless! I have a Synology router and NAS and it makes my entire workflow super easy.

Matthew D.

2020-06-05T08:44:01

Rated 5 out of 5

Best router and mesh system

Best router and mesh system

Stephen L.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Synology Mesh Router Specifications

Hardware

Hardware

Jump to...
  • CPU

    Quad core 717 MHz

  • Memory

    256 MB DDR3

  • Antenna Type

    2x2 MIMO high-performance internal antenna (2.4 GHz / 5 GHz)

  • LAN Port

    Gigabit (RJ-45) x 1

  • WAN Port

    Gigabit (RJ-45) x 1

  • External Ports

    USB 3.0 x 1 (5V, 0.9A power output)

  • IEEE 802.11ac

    IEEE 802.11a/b/g/n/ac
    Simultaneous tri-band Wi-Fi
    5GHz-1: 867Mbps
    5GHz-2: 867Mbps
    2.4GHz: 400Mbps

  • IEEE 802.11ac Wave 2

    MU-MIMO

  • Wi-Fi Encryption

    WEP, WPA/WPA2-Personal, WPA/WPA2-Enterprise, WPA2/WPA3-Personal, WPA3-Personal/Enterprise, Wi-Fi Enhanced Open (OWE)

  • Button and Switch

    WPS, Power, Reset, Wi-Fi On/Off

  • Operating Temperature

    5 Degree C to 40 Degree C (40 Degree F to 104 Degree F)

  • Storage Temperature

    -20 Degree C to 60 Degree C (-5 Degree F to 140 Degree F)

  • Relative Humidity

    5% to 95% RH

  • Certification

    FCC
    CE
    BSMI
    VCCI Class B
    RCM
    KC
    iDA
    TELEC
    JATE
    IC

  • Wi-Fi Certification

    CE
    FCC
    NCC
    RCM
    iDA
    TELEC
    KC
    IC

  • AC Input Power Voltage

    100 V to 240 V AC

  • Power Frequency

    50/60 Hz, Single Phase

  • Power Consumption

    12.95 W (Access)
    5.21 W (Idle)

  • Environment

    RoHS Compliant

  • Dimensions

    6 x 7.8 x 2.5" (154 x 199 x 65mm)

  • Weight

    1 lb (0.45kg)

Software: Wireless

Jump to...
  • Wi-Fi MAC Address Filter

    Yes

  • Maximum MAC Filters

    64

  • Seamless Roaming

    802.11k/v/r standard support

  • Beamforming

    Yes

  • DFS

    Yes

  • Schedulable Wi-Fi

    Yes

  • Guest Network

    Guest Portal
    Customized page style
    Connection time limit
    Password Rotation

  • WPS 2.0 (Wi-Fi Protected Setup 2.0)

    Yes

  • 3G / 4G Dongle & Tethering

    Yes

  • Maximum Connected Devices

    90

  • Primary Wi-Fi Point

    Yes

  • Recommended Max Number of Wi-Fi Points

    1 Primary + 6 Wi-Fi points (in all wireless uplink connection environment)
    1 Primary + 12 Wi-Fi points (in all wired uplink connection environment.)

Software: Network

Jump to...
  • Internet Connection

    Dynamic IP, Static IP, PPPoE, PPTP, DS-Lite (AFTR)
    3G/4G LTE dongle
    Android Tethering
    iPhone Tethering

  • Operating Mode

    Wireless Router
    Wireless AP

  • DMZ

    Yes

  • IPv6

    IPv6 DHCP server/client, DS-Lite, 6in4, 6to4, 6rd, Dual-Stack, DHCPv6-PD, IPv6 Relay, FLET's IPv6

  • DHCP

    Server/client mode, client list, MAC address reservation

  • Maximum DHCP Reservations

    500

  • LAN / WLAN IGMP Snooping

    Yes

  • Network Address Translation (NAT)

    Yes

  • PPPoE relay

    Yes

  • Policy route

    Yes

  • Static route

    Yes

  • Maximum IPv4 Static Routes

    100

  • Maximum IPv6 Static Routes

    100

  • Diagnosis Tools

    Ping
    Traceroute

  • NAT Loopback (Hairpinning)

    Yes

Software: Port Forwarding

Jump to...
  • Maximum Port Forwarding Rules

    64 (Setup via manual management or UPnP)

  • Maximum UPnP Rules

    64

Software: Port Triggering

Jump to...
  • Maximum Port Triggering Rules

    32

  • Minimum Port Triggering Timeout

    30s

  • Maximum Port Triggering Timeout

    3600s

Software: VPN

Jump to...
  • VPN

    VPN server (WebVPN, SSL VPN, SSTP, OpenVPN, L2TP/IPSec, PPTP, Site-to-Site)
    VPN client (PPTP, OpenVPN, L2TP/IPSec)
    VPN Pass-through (PPTP, IPSec, L2TP)

Software: Traffic Control

Jump to...
  • Internet Ban, Device Speed & Priority

    Yes

  • Application Layer Quality of Service

    Yes

  • Maximum Device Rules

    64

  • Maximum Application Rules per Device

    32

Software: Traffic Monitor

Jump to...
  • Live View

    Yes

  • Historical Statistics

    Daily, Weekly, Monthly, Annual

  • Website History

    Yes

  • Application Detection

    Yes

Software: Traffic Report

Jump to...
  • Country Auto Update

    Yes

  • Schedulable

    Yes

  • Traffic Analysis Period

    Daily, Weekly, Monthly, Annual

  • Export Formats

    .CSV, .HTML

Software: Safe Access

Jump to...
  • User Profile

    15

  • Network Profile

    2

  • Customized Internet Schedule

    Yes

  • Time Quota

    Yes

  • IPv4 / IPv6 DNS-based Web Filter

    Schedule
    Database
    Request to unblock

  • Customized Allow / Block List

    Maximum blocked URLs: 100
    Maximum allowed URLs: 100

  • Pause Internet

    Yes

  • Reward

    Yes

  • Log

    Yes

  • Report

    Yes

  • Safe Search

    Bing, Google, YouTube

  • Threat Intelligence Database

    support in IPv4 & IPv6

  • Google Safe Browsing

    support in IPv4 & IPv6

  • Database Auto Update

    Threat Intelligence Database, Google Safe Browsing, DNS-based web filter

Software: VPN Plus Server

Jump to...
  • Maximum Client VPN Access License

    10

  • Site-to-Site VPN

    Yes

  • Maximum Site-to-Site VPN Tunnels

    4

  • Remote Desktop (RDP + VNC)

    3

  • Connection List

    Yes

  • Log

    Yes

  • Report

    Yes

Software: Cloud Station Server

Jump to...
  • Maximum Concurrent File Transfers

    64

Software: DNS Server

Jump to...
  • DNS Server

    Helps users find and translate domain names into IP addresses

Software: Download Station

Jump to...
  • Maximum Concurrent Download Tasks

    20

  • Maximum Concurrent BT Download Tasks

    20

Software: Media Server

Jump to...
  • Media Server

    Media indexing
    DLNA Compliance
    PS3/PS4/Xbox 360/Xbox One supported

Software: RADIUS Server

Jump to...
  • RADIUS Server

    Provides centralized authentication, authorization, and accounting for wireless network access

Software: Supported Mobile Apps

Jump to...
  • DS router (Android/iOS)

    First Time Installation
    Network overview
    Wi-Fi management
    Wi-Fi system topology
    Safe Access
    Traffic Control
    Network security (firewall, port forwarding, Internet ban)
    Wake on LAN
    System Update

  • VPN Plus (Android/iOS)

    Yes

  • DS cloud (Android/iOS)

    Yes

  • DS get (Android)

    Yes

  • DS file (Android/iOS)

    Yes

Software: Management

Jump to...
  • Operating System

    Synology Router Manager (SRM)

  • Anywhere Access to SRM

    Synology QuickConnect & Dynamic DNS (DDNS)

  • Security

    Firewall/SPI Firewall, DoS Protection, VPN Pass-through (PPTP, IPSec, L2TP), Auto block, SSL certificate, Security Advisor, two-factor authentication

  • WOL over QuickConnect

    Yes

  • Maximum Connected Devices

    100

  • Notification

    Email, SMS, push service (via DS router)

  • Printer Server

    Maximum printer: 1

  • Free OS Upgrade

    Yes

  • SSH

    Yes

  • SNMP

    Yes

  • Configuration Backup & Restore

    Yes

  • User Account Management

    Yes

Software: USB/SD Card File Service

Jump to...
  • File System

    EXT4, FAT, NTFS, HFS+

  • Access Support

    File explorer (via LAN only)
    Web browsers: Chrome, Firefox, Internet Explorer: 11 onwards, Safari 11 onwards
    Mobile device: DS file

  • Protocol Support

    Windows file service (CIFS), Mac file service (AFP), FTP/FTPS, WebDAV

  • Apple Time Machine

    Yes

  • Shared Folder Privileges

    Yes

  • Storage Hibernation

    Yes

  • UPC Code

    846504003211

About Synology Mesh Router

FEATURED REVIEWS

Great Mesh router / wifi solution

By ARNAUD B.

I have had a Synology router RT 2600Ac for a bit over a year now, and it had made for a huge boost in performance over my previous Linksys tri-band router (which was completely unstable and unreliable on the 5ghz band)..... As we moved to a new bigger house, I need for a wider range for my wifi, and decided to add 1 mesh router on each floor to really cover the whole house. Install and configuration was straightforward, and the performances are topnotch. I do not notice any drops when moving ...

View full Review

Just works

By JUDD S.

Simple and effective. Plug it in, a few clicks in Synology Router Manager and your WiFi goes further than before. Working great for several weeks now.

It's not just another Wi-Fi system.
It's better Wi-Fi and safer Internet ahead.

WPA3
The world's first WPA3-certified Wi-Fi router

Synology Mesh Router MR2200ac
Coming with intelligent mesh Wi-Fi capability and best-in-class parental controls, MR2200ac is designed to keep all devices connected and everyone safe. Experience the award-winning Synology Router Manager (SRM) with an MR2200ac, and add more when you are ready to expand your coverage even further.

Smart Wi-Fi all around
Multiple MR2200ac can work together as a system to bring Wi-Fi to every corner of your home. Wherever you go, stay on a single Wi-Fi network and enjoy seamless connectivity from one place to another.

Tri-band Wi-Fi
Using an extra 5GHz band for high-bandwidth communication between each other, MR2200ac ensures the greatest throughput for all devices.

The intelligence behind your mesh network
The algorithms built into SRM make deployment incredibly easy. The system intelligently self-configures, self-optimizes, and even self-heals, always giving you the fastest possible path to the Internet.

• Pick the ones you want to add to your network
• Self-configuring
• Automatically selects the best topology

Whole-home Wi-Fi, easily managed
State-of-the-art technology doesn't have to be complicated.

• Real-time Monitoring
• Mesh networking at work
• Identify bottlenecks
• Customize guest network options

Create a kid-friendly online world
We want kids to be safe online, even when we're not there. Safe Access helps you lay down rules for each kid without having to look for parental control solutions for every devices. Now you can get a full picture of how they're exploring the world every day, and protect them until they're ready.

Profile
Create a user profile to manage all devices someone owns at one time. You can also have one for all future devices connecting to your local network, one for guest Wi-Fi, one for IoT gadgets, and so on.

Time management
Set time limits and schedules. Encourage your kids to use their time wisely, and reserve some quality time for family.

Internet filtering
Safeguard kids from adult-only content and search results. Set up a whitelist so younger children can only visit those sites. Schedule a web filter to ensure no social media during homework hours.

Understand usage & react
Gain insights into a kid's activities every day. Reward him by giving him a few extra hours online, or pause all his devices if it's time to talk.

Security at the perimeter
It's not just people that you need to protect. It's all the connected things: IP cameras, smart doorbells, alarm systems½ things that can make a smart home vulnerable. MR2200ac installs multiple layers of protection to shield your network against cyberattacks happening every day.

• Latest Defense
• Built-in security databases

Wi-Fi Certified WPA3 & Enhanced OpenTM technology
Certified by the newest Wi-Fi security standards including WPA3-Personal, WPA3-Enterprise and Opportunistic Wireless Encryption (OWE), MR2200ac equips home, business, and open Wi-Fi networks with better defenses against snooping and other attacks.

Always up-to-date
Boasting a long track record of fast and continuous updates, SRM makes sure that your mesh network is ready to counter emerging threats.

Advanced functionality made accessible
For small offices who don't want the hassle of wiring access points everywhere, a mesh Wi-Fi solution fits in perfectly. Unlike others, MR2200ac doesn't leave out the network management features businesses care about.

Granular Quality of Service (QoS): Device- or application-based bandwidth control and traffic reports.
Intuitive and high-speed VPN: Business-grade SSL VPN, WebVPN, and Site-to-Site IPsec VPN.
File sharing & backup: Time Machine backup, remote file sharing, media server, and much more.

Be mobile
Deploy a mesh network from your phone. Stay on top of the traffic usage, user activities, and security events wherever you are, and act on them with just one tap on the screen. With DS router, you're never too far away from home.

Synology Mesh Router Features

  • Dedicated Tri-band 2.13 Gbps (400+867+867 Mbps) bandwidth optimized for performance and reliability
  • Easy setup and remote management from web client or mobile app
  • Comprehensive parental management and easy-to-use inter face with Safe Access
  • Single Wi-Fi name and seamless roaming with 802.11 k/v/r support
  • Create advanced VPNs with WebVPN, Synology SSLVPN, and SSTPVPN capability
  • Guest Wi-Fi with features such as guest por tals, scheduling, and password rotation
  • Powerful add-on packages to enhance security, file sharing, and additional functionality

Key Features

  • Dedicated Tri-band 2.13 Gbps (400+867+867 Mbps) bandwidth optimized for performance and reliability
  • Easy setup and remote management from web client or mobile app
  • Comprehensive parental management and easy-to-use inter face with Safe Access
  • Single Wi-Fi name and seamless roaming with 802.11 k/v/r support
  • Create advanced VPNs with WebVPN, Synology SSLVPN, and SSTPVPN capability
  • Guest Wi-Fi with features such as guest por tals, scheduling, and password rotation

What's in the box:

  • Wireless Tri-Band Mesh Router
  • AC Power Adapter
  • RJ-45 LAN Cable
  • Quick Installation Guide
  • Synology 2 Year Limited Warranty
