Kit Savings

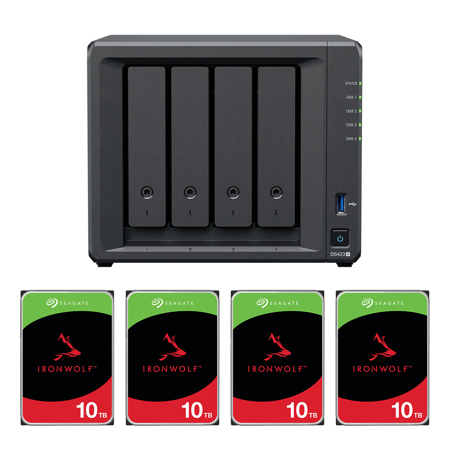

Synology DiskStation DS423+ 4-Bay NAS Enclosure, Bundle with 4x Seagate IronWolf 10TB SATA III 3.5" Internal NAS Hard Drive

SKU: SYNODS42310B MFR: SYNODS42310B
Earn VIP Reward Points

PACKAGE INCLUDES:

  • Synology DiskStation DS423+ 4-Bay NAS Enclosure, Diskless
    Synology DiskStation DS423+ 4-Bay NAS Enclosure, Diskless
  • +
  • Seagate IronWolf SATA III 3.5" Internal NAS Hard Drive 10TB Single
    Seagate IronWolf SATA III 3.5" Internal NAS Hard Drive 10TB Single

    Qty: 4

  • +
  • Show more

Key Features

  • This Synology DiskStation NAS bundle offers 40TB storage for all your important files.
  • Ensure data security with RAID options, protecting your files from drive failure on this NAS.
  • Experience fast performance with the Intel Celeron processor, perfect for home or office use.
  • Set up your personal cloud storage easily with Synology's intuitive DiskStation Manager.
  • Access your files remotely from anywhere using secure, encrypted connections on your NAS.
  • Scale your storage as needed with 4 bays, supporting up to 64TB with future drive upgrades.
See More Product Details
Temporarily On Backorder?Expected Availability: 10/2025Request assistance or get notified
Calculate Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$209.99

3 Year

$299.99

4 Year

$359.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Synology DS423+ & WD Red Plus Specifications

Hardware: CPU

Hardware: CPU

Jump to...
  • CPU Model

    Intel Celeron J4125

  • CPU Quantity

    1

  • CPU Architecture

    64-bit

  • CPU Frequency

    4-core 2.0 (base) / 2.7 (turbo) GHz

  • Hardware Encryption Engine (AES-NI)

    Yes

Hardware: Memory

Jump to...
  • System Memory

    2GB DDR4 non-ECC SODIMM

  • Total Memory Slots

    1

  • Maximum Memory Capacity

    6GB (2GB + 4GB)

Hardware: Storage

Jump to...
  • Drive Bays

    4

  • M.2 Drive Slots

    2 (NVMe)

  • Compatible Drive Type

    3.5" SATA HDD
    2.5" SATA SSD
    M.2 2280 NVMe SSD

  • Hot Swappable Drive

    Yes

Hardware: External Ports

Jump to...
  • RJ-45 1GbE LAN Port

    2 (with Link Aggregation / Failover support)

  • USB 3.2 Gen 1 Port

    2

Hardware: File System

Jump to...
  • Internal Drives

    Btrfs
    EXT4

  • External Drives

    Btrfs
    EXT4
    EXT3
    FAT
    NTFS
    HFS+
    exFAT

Hardware: Others

Jump to...
  • System Fan

    3.62 x 3.62" (92 x 92mm) (Two Fans)

  • Fan Speed Mode

    Full-Speed Mode
    Cool Mode
    Quiet Mode

  • Front LED Indicators

    Yes (Brightness Adjustable)

  • Power Recovery

    Yes

  • Noise Level

    19.8 dB(A)

  • Scheduled Power On / Off

    Yes

  • Wake on LAN / WAN

    Yes

  • Power Supply Unit / Adapter

    90 W

  • AC Input Power Voltage

    100V to 240V AC

  • Power Frequency

    50/60 Hz, Single Phase

  • Power Consumption

    28.3 W (Access)
    8.45 W (HDD Hibernation)

  • British Thermal Unit

    96.5 BTU/hr (Access)
    28.81 BTU/hr (HDD Hibernation)

Hardware: Temperature

Jump to...
  • Operating Temperature

    32 Degree F to 104 Degree F (0 Degree C to 40 Degree C)

  • Storage Temperature

    -5 Degree F to 140 Degree F (-20 Degree C to 60 Degree C)

  • Relative Humidity

    5% to 95% RH

Hardware: Certification

Jump to...
  • Certification

    FCC
    CE
    BSMI
    VCCI
    RCM
    UKCA
    EAC
    CCC
    KC

Hardware: Environment

Jump to...
  • Environment

    RoHS Compliant

Hardware: Physical

Jump to...
  • Dimensions (H x W x D)

    6.53 x 7.83 x 8.77" (166 x 199 x 223mm)

  • Weight

    4.80 lbs (2.18kg)

Software: Storage Management

Jump to...
  • Maximum Single Volume Size

    108 TB

  • Maximum Internal Volume Number

    64

  • M.2 SSD Storage Pool Support

    Yes

  • SSD Read / Write Cache (White Paper)

    Yes

  • SSD TRIM

    Yes

  • Supported RAID Type

    Synology Hybrid RAID
    Basic
    JBOD
    RAID 0
    RAID 1
    RAID 5
    RAID 6
    RAID 10

  • RAID Migration

    Basic to RAID 1
    Basic to RAID 5
    RAID 1 to RAID 5
    RAID 5 to RAID 6

  • Volume Expansion with Larger HDDs

    Synology Hybrid RAID
    RAID 1
    RAID 5
    RAID 6
    RAID 10

  • Volume Expansion by Adding a HDD

    Synology Hybrid RAID
    JBOD
    RAID 5

  • Global Hot Spare Supported RAID Type

    Synology Hybrid RAID
    RAID 1
    RAID 5

Software: File Services

Jump to...
  • File Protocol

    SMB/AFP/NFS/FTP/WebDAV

  • Maximum Concurrent

    500 (SMB/AFP/FTP Connections)
    1,500 (SMB/AFP/FTP Connections) (with RAM expansion)

  • Windows Access Control List Integration

    Yes

  • NFS Kerberos Authentication

    Yes

Software: Account & Shared Folder

Jump to...
  • Maximum Local User Accounts

    2048

  • Maximum Local Groups

    256

  • Maximum Shared Folder

    512

  • Maximum Shared Folder Sync Tasks

    8

Software: Hybrid Share

Jump to...
  • Hybrid Share Folder Number

    10

Software: High Availability

Jump to...
  • Synology High Availability

    Yes

Software: Log Center

Jump to...
  • Syslog Events per Second

    800

Software: Virtualization

Jump to...
  • VMware vSphere with VAAI

    Yes

  • Windows Server 2016

    Yes

  • Windows Server 2019

    Yes

  • Citrix Ready

    Yes

  • OpenStack

    Yes

Software: General

Jump to...
  • Networking Protocols

    SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV

  • Supported Browser

    Google Chrome
    Firefox
    Microsoft Edge
    Safari

  • Supported Language

    English, Deutsch, Francais, Italiano, Espanol, Dansk, Norsk, Svenska, Nederlands, Russian, Polski, Magyar, Portuguese do Brazil, Portuguese Europe, Turkey, Cesky, Thai, Japanese, Korean, Traditional Chinese, Simplified Chinese

Software: Antivirus by McAfee (Trial)

Jump to...
  • Antivirus by McAfee (Trial)

    Yes

Software: Central Management System

Jump to...
  • Central Management System

    Yes

Software: Synology Chat

Jump to...
  • Maximum Number of Concurrent Users

    100

Software: Document Viewer

Jump to...
  • Document Viewer

    Yes

Software: Download Station

Jump to...
  • Maximum Concurrent Download Tasks

    80

Software: SAN Manager

Jump to...
  • Maximum iSCSI Target Number

    128

  • Maximum LUN

    256

  • LUN Clone/Snapshot, Windows ODX

    Yes

Software: Synology MailPlus / Server

Jump to...
  • Free Email Accounts

    5 (Licenses required for additional accounts)

  • Maximum Number of Concurrent Users

    100

  • Maximum Server Performance

    1,224,000 emails per day, approx. 37GB

Software: Media Server

Jump to...
  • DLNA Compliance

    Yes

Software: Synology Photos

Jump to...
  • Facial Recognition

    Yes

Software: Snapshot Replication

Jump to...
  • Maximum Snapshots per Shared Folder

    1024

  • Maximum of System Snapshots

    65536

Software: Surveillance Station

Jump to...
  • Maximum IP cam

    40 (including 2 Free License)

  • Total FPS (H.264)

    1200 FPS @ 720p (1280x720)
    800 FPS @ 1080p (1920x1080)
    350 FPS @ 3M (2048x1536)
    280 FPS @ 5M (2591x1944)
    170 FPS @ 4K (3840x2160)

  • Total FPS (H.265)

    1200 FPS @ 720p (1280x720)
    1200 FPS @ 1080p (1920x1080)
    600 FPS @ 3M (2048x1536)
    480 FPS @ 5M (2591x1944)
    200 FPS @ 4K (3840x2160)

Software: Synology Drive

Jump to...
  • Recommended Number of Sync Clients

    350 (the number of connections that can be maintained when the recommended number of hosted files was reached)

  • Recommended Number of Hosted Files

    5,000,000 (applies to files indexed or hosted by Synology Drive. For file access through other standard protocols, refer to the File Services section above)

Software: Synology Office

Jump to...
  • Maximum Users

    1200

Software: Video Station

Jump to...
  • Video Station

    Yes

Software: Virtual Machine Manager

Jump to...
  • Recommended Virtual Machine Instances

    2

  • Recommended Virtual DSM Number

    2 (including 1 Free License)

Software: VPN Server

Jump to...
  • Maximum Connections

    40

  • UPC Codes

    192223244856, 763649141946, 846504005000

About Synology DS423+ & WD Red Plus

Take control of your data with the DiskStation DS423+ 4-Bay NAS Enclosure, bundled with 4x WD Red Plus 10TB 3.5" SATA III Internal NAS Hard Drives. This compact storage hub offers complete data ownership, making it an ideal solution for managing data in a home office environment.

The DS423+ is a powerful, compact device, housing a 4-bay chassis that can store, organize, and share up to 72 TB of data. It's more than just a storage device; it's a versatile multimedia hub that delivers up to 226/224 MB/s read/write speeds. With 2x M.2 NVMe SSD slots and 2x 1GbE LAN ports, it's designed to handle your most demanding data needs.

The DS423+ is powered by the advanced Synology DiskStation Manager (DSM) operating system, which uses the Btrfs file system for superior data protection. This advanced system safeguards your data against corruption and allows for the reversal of any unintended or malicious changes through snapshot technology.

With the DS423+, you can manage all your documents, photos, and other files, back up applications and devices, and protect your physical assets with professional video surveillance. It also serves as a private cloud for all your devices, enabling you to store, sync, access, and share data from any device, wherever you are.

The DS423+ also offers efficient photo and video management tools, allowing you to back up and organize your content into albums and create secure share links. It also features site-to-site file syncing for seamless collaboration and hybrid cloud technology for efficient storage of cold data.

The DS423+ also offers multi-layered backup solutions, allowing you to back up PCs, smartphones, cloud apps, and more. You can administer device backups remotely through a centralized portal and quickly restore specific files or entire devices to keep your business up and running.

For added security, the DS423+ features Synology Surveillance Station, a comprehensive video management system for live monitoring, investigation, management, and backup. It also supports dual recording to the cloud for added data protection.

The DS423+ is backed by Synology drives for high sustained performance and reliability, with built-in data protection designed for Synology systems. It supports 3.5" HDD HAT5300 Series, 2.5" SSD SAT5200 Series, and M.2 SSD SNV3400 Series drives.

With the DiskStation Manager, you can take advantage of a host of native productivity, management, and security solutions. Manage your fleet of Synology NAS from a centralized console, shield your Synology NAS from sophisticated threats with industry-leading security solutions, and ensure seamless transition between clustered servers in the event of a server failure.

In summary, the DiskStation DS423+ 4-Bay NAS Enclosure is a powerful, versatile, and secure data management solution that offers complete data ownership, advanced data protection, and seamless data access across all your devices.

Synology DS423+ & WD Red Plus Features

  • Centralized Data Storage: Store up to 72 TB of data in one place, maintain 100% data ownership, and enjoy multi-platform access
  • Dependable Performance: Up to 226/224 MB/s sequential read/write throughput supports stable data transfers
  • Built-in Data Management Tools: Leverage built-in file and photo management, data protection, and surveillance solutions
  • Effortless Data Sharing and Syncing: Access, share, and sync your data and media easily across different operating systems and devices

Product Documents

User Manual

Key Features

  • This Synology DiskStation NAS bundle offers 40TB storage for all your important files.
  • Ensure data security with RAID options, protecting your files from drive failure on this NAS.
  • Experience fast performance with the Intel Celeron processor, perfect for home or office use.
  • Set up your personal cloud storage easily with Synology's intuitive DiskStation Manager.
  • Access your files remotely from anywhere using secure, encrypted connections on your NAS.
  • Scale your storage as needed with 4 bays, supporting up to 64TB with future drive upgrades.

What's in the box:

  • Synology DiskStation DS423+ 4-Bay NAS Enclosure
  • 2x RJ45 LAN Cables
  • Accessory Pack
  • AC Power Adapter
  • AC Power Cord
  • Quick Installation Guide
  • Synology 3 Year Limited Warranty
  • Bundle Includes:
  • 4x IronWolf 10TB SATA III 3.5" Internal NAS Hard Drive
