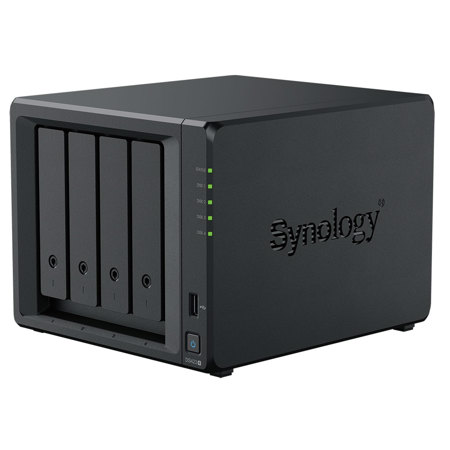

Synology DiskStation DS423+ 4-Bay NAS Enclosure, Bundle with 4x WD Red Plus 8TB 3.5" SATA III Internal NAS Hard Drive

SKU: SYNODS4238B MFR: SYNODS4238B
Earn VIP Reward Points

PACKAGE INCLUDES:

  • Synology DiskStation DS423+ 4-Bay NAS Enclosure, Diskless
    Synology DiskStation DS423+ 4-Bay NAS Enclosure, Diskless
  • +
  • Toshiba N300 Pro SATA III 3.5" Internal NAS Hard Drive 8TB
    Toshiba N300 Pro SATA III 3.5" Internal NAS Hard Drive 8TB

    Qty: 4

  • +
  • Show more

Note: 1 or more items are unavailable for immediate shipping

Key Features

  • Get reliable backup with this Synology NAS, safeguarding your important files and memories.
  • Enjoy fast performance with WD Red Plus drives, perfect for streaming and data-intensive tasks.
  • Secure your data using advanced features on this NAS enclosure, ensuring peace of mind.
  • Set up your personal cloud with easy setup, enabling remote access from anywhere, anytime.
  • This 4-bay NAS offers ample storage capacity, ideal for media libraries and growing businesses.
  • Streamline file sharing and collaboration using this NAS server, boosting team productivity.
See More Product Details

Product Options

Temporarily On Backorder?Expected Availability: 09/2025Request assistance or get notified
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

2 Year

$209.99

3 Year

$299.99

4 Year

$359.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Learn
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

2023-08-12T05:46:27

Rated 5 out of 5

Great little home NAS

Set up was a breeze, and is running smoothly.

MARCUS P.

2023-04-27T08:19:36

Rated 5 out of 5

Great little NAS

Exactly what I was looking for, at least until Synology makes a better unit with an Intel chip!

SEAN A.

2023-04-25T06:27:32

Rated 5 out of 5

Works great - replaced my Qnap with this model and it's working great!

I'm only using this for backups for my primary NAS unit, but it's working out great so far. I use a custom ssh script to to the backups and it was fairly straightforward to set up ssh keys and such so rsync could work passwordless from my primary NAS for it's backups. The speed seems great, the UI is responsive, and the apps and features seem like they'll be useful in the future if I change my primary NAS to a Synology as well. I'm using WD RED drives (5400rpm) and the copy speeds are slightly faster than what I got with my old Qnap, which had a drive bay fail. That's why I replaced it with this one. My setup is in a RAID 5 configuration. With four 8TB drives it took about a day and a half to build it's initial raid setup. The company I work for has always used Synology in their labs and I've helped them set them up. The first one was almost 10 years ago and it's still running strong for them (that instance is using the 8 bay model). Great stuff!

DENNIS M.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Synology DiskStation DS423+ Specifications

Hardware: CPU

Hardware: CPU

Jump to...
  • CPU Model

    Intel Celeron J4125

  • CPU Quantity

    1

  • CPU Architecture

    64-bit

  • CPU Frequency

    4-core 2.0 (base) / 2.7 (turbo) GHz

  • Hardware Encryption Engine (AES-NI)

    Yes

Hardware: Memory

Jump to...
  • System Memory

    2GB DDR4 non-ECC SODIMM

  • Total Memory Slots

    1

  • Maximum Memory Capacity

    6GB (2GB + 4GB)

Hardware: Storage

Jump to...
  • Drive Bays

    4

  • M.2 Drive Slots

    2 (NVMe)

  • Compatible Drive Type

    3.5" SATA HDD
    2.5" SATA SSD
    M.2 2280 NVMe SSD

  • Hot Swappable Drive

    Yes

Hardware: External Ports

Jump to...
  • RJ-45 1GbE LAN Port

    2 (with Link Aggregation / Failover support)

  • USB 3.2 Gen 1 Port

    2

Hardware: File System

Jump to...
  • Internal Drives

    Btrfs
    EXT4

  • External Drives

    Btrfs
    EXT4
    EXT3
    FAT
    NTFS
    HFS+
    exFAT

Hardware: Others

Jump to...
  • System Fan

    3.62 x 3.62" (92 x 92mm) (Two Fans)

  • Fan Speed Mode

    Full-Speed Mode
    Cool Mode
    Quiet Mode

  • Front LED Indicators

    Yes (Brightness Adjustable)

  • Power Recovery

    Yes

  • Noise Level

    19.8 dB(A)

  • Scheduled Power On / Off

    Yes

  • Wake on LAN / WAN

    Yes

  • Power Supply Unit / Adapter

    90 W

  • AC Input Power Voltage

    100V to 240V AC

  • Power Frequency

    50/60 Hz, Single Phase

  • Power Consumption

    28.3 W (Access)
    8.45 W (HDD Hibernation)

  • British Thermal Unit

    96.5 BTU/hr (Access)
    28.81 BTU/hr (HDD Hibernation)

Hardware: Temperature

Jump to...
  • Operating Temperature

    32 Degree F to 104 Degree F (0 Degree C to 40 Degree C)

  • Storage Temperature

    -5 Degree F to 140 Degree F (-20 Degree C to 60 Degree C)

  • Relative Humidity

    5% to 95% RH

Hardware: Certification

Jump to...
  • Certification

    FCC
    CE
    BSMI
    VCCI
    RCM
    UKCA
    EAC
    CCC
    KC

Hardware: Environment

Jump to...
  • Environment

    RoHS Compliant

Hardware: Physical

Jump to...
  • Dimensions (H x W x D)

    6.53 x 7.83 x 8.77" (166 x 199 x 223mm)

  • Weight

    4.80 lbs (2.18kg)

Software: Storage Management

Jump to...
  • Maximum Single Volume Size

    108 TB

  • Maximum Internal Volume Number

    64

  • M.2 SSD Storage Pool Support

    Yes

  • SSD Read / Write Cache (White Paper)

    Yes

  • SSD TRIM

    Yes

  • Supported RAID Type

    Synology Hybrid RAID
    Basic
    JBOD
    RAID 0
    RAID 1
    RAID 5
    RAID 6
    RAID 10

  • RAID Migration

    Basic to RAID 1
    Basic to RAID 5
    RAID 1 to RAID 5
    RAID 5 to RAID 6

  • Volume Expansion with Larger HDDs

    Synology Hybrid RAID
    RAID 1
    RAID 5
    RAID 6
    RAID 10

  • Volume Expansion by Adding a HDD

    Synology Hybrid RAID
    JBOD
    RAID 5

  • Global Hot Spare Supported RAID Type

    Synology Hybrid RAID
    RAID 1
    RAID 5

Software: File Services

Jump to...
  • File Protocol

    SMB/AFP/NFS/FTP/WebDAV

  • Maximum Concurrent

    500 (SMB/AFP/FTP Connections)
    1,500 (SMB/AFP/FTP Connections) (with RAM expansion)

  • Windows Access Control List Integration

    Yes

  • NFS Kerberos Authentication

    Yes

Software: Account & Shared Folder

Jump to...
  • Maximum Local User Accounts

    2048

  • Maximum Local Groups

    256

  • Maximum Shared Folder

    512

  • Maximum Shared Folder Sync Tasks

    8

Software: Hybrid Share

Jump to...
  • Hybrid Share Folder Number

    10

Software: High Availability

Jump to...
  • Synology High Availability

    Yes

Software: Log Center

Jump to...
  • Syslog Events per Second

    800

Software: Virtualization

Jump to...
  • VMware vSphere with VAAI

    Yes

  • Windows Server 2016

    Yes

  • Windows Server 2019

    Yes

  • Citrix Ready

    Yes

  • OpenStack

    Yes

Software: General

Jump to...
  • Networking Protocols

    SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV

  • Supported Browser

    Google Chrome
    Firefox
    Microsoft Edge
    Safari

  • Supported Language

    English, Deutsch, Francais, Italiano, Espanol, Dansk, Norsk, Svenska, Nederlands, Russian, Polski, Magyar, Portuguese do Brazil, Portuguese Europe, Turkey, Cesky, Thai, Japanese, Korean, Traditional Chinese, Simplified Chinese

Software: Antivirus by McAfee (Trial)

Jump to...
  • Antivirus by McAfee (Trial)

    Yes

Software: Central Management System

Jump to...
  • Central Management System

    Yes

Software: Synology Chat

Jump to...
  • Maximum Number of Concurrent Users

    100

Software: Document Viewer

Jump to...
  • Document Viewer

    Yes

Software: Download Station

Jump to...
  • Maximum Concurrent Download Tasks

    80

Software: SAN Manager

Jump to...
  • Maximum iSCSI Target Number

    128

  • Maximum LUN

    256

  • LUN Clone/Snapshot, Windows ODX

    Yes

Software: Synology MailPlus / Server

Jump to...
  • Free Email Accounts

    5 (Licenses required for additional accounts)

  • Maximum Number of Concurrent Users

    100

  • Maximum Server Performance

    1,224,000 emails per day, approx. 37GB

Software: Media Server

Jump to...
  • DLNA Compliance

    Yes

Software: Synology Photos

Jump to...
  • Facial Recognition

    Yes

Software: Snapshot Replication

Jump to...
  • Maximum Snapshots per Shared Folder

    1024

  • Maximum of System Snapshots

    65536

Software: Surveillance Station

Jump to...
  • Maximum IP cam

    40 (including 2 Free License)

  • Total FPS (H.264)

    1200 FPS @ 720p (1280x720)
    800 FPS @ 1080p (1920x1080)
    350 FPS @ 3M (2048x1536)
    280 FPS @ 5M (2591x1944)
    170 FPS @ 4K (3840x2160)

  • Total FPS (H.265)

    1200 FPS @ 720p (1280x720)
    1200 FPS @ 1080p (1920x1080)
    600 FPS @ 3M (2048x1536)
    480 FPS @ 5M (2591x1944)
    200 FPS @ 4K (3840x2160)

Software: Synology Drive

Jump to...
  • Recommended Number of Sync Clients

    350 (the number of connections that can be maintained when the recommended number of hosted files was reached)

  • Recommended Number of Hosted Files

    5,000,000 (applies to files indexed or hosted by Synology Drive. For file access through other standard protocols, refer to the File Services section above)

Software: Synology Office

Jump to...
  • Maximum Users

    1200

Software: Video Station

Jump to...
  • Video Station

    Yes

Software: Virtual Machine Manager

Jump to...
  • Recommended Virtual Machine Instances

    2

  • Recommended Virtual DSM Number

    2 (including 1 Free License)

Software: VPN Server

Jump to...
  • Maximum Connections

    40

  • UPC Codes

    192223244849, 846504005000, 723844001964

Related Articles & Videos

Best NAS Devices You Can Use in 2025

Best NAS Devices You Can Use in 2025

To backup your workload, we have a list to help you out with some of the best NAS devices you can buy in 2025.
Read more

About Synology DiskStation DS423+

FEATURED REVIEWS

Great little home NAS

By MARCUS P.

Set up was a breeze, and is running smoothly.

Great little NAS

By SEAN A.

Exactly what I was looking for, at least until Synology makes a better unit with an Intel chip!

DiskStation DS423+
A compact storage hub with 100% data ownership

Conquer home office data chaos

Capable and compact
Powerful functionality packed into a 4-bay chassis

Consolidate and share
Store, organize, and share up to 72 TB of data.

Integrated data protection
Contains hardware and software safeguards engineered to protect your data - trusted by millions.

A capable all-around performer
The versatile DS423+ can serve as a central storage device as well as a multimedia hub.

• Up to 226/224 MB/s read/write
• 2x M.2 NVMe SSD slots
• 2x 1GbE LAN ports

Btrfs: advanced file system for data protection
The Synology DiskStation Manager (DSM) operating system that powers DS423+ uses the advanced Btrfs file system, which safeguards your data against corruption and allows for the reversal of any unintended or malicious changes through the use of snapshot technology.

Store, share, and protect
Manage all your documents, photos, and other files, back up applications and devices, and protect your physical assets with professional video surveillance.

Private Cloud for Seamless Data Access

A private cloud for all your devices
Store, sync, access, and share data from any device, wherever you are. Work seamlessly between different platforms and devices, and access your files through mobile apps, desktop clients, and a browser-based interface. Quickly and easily roll back files in case of accidental deletion, mistakes, malware, etc., with the versioning feature.

Keep your photos organized
Efficiently back up and organize photos and videos with management tools for amateurs and professionals. Automatically organize your content into albums and create secure share links for family, friends, or clients.

Effortlessly keep multiple Synology NAS in sync
Collaborate with minimal downtime using site-to-site file syncing, which can be configured to automatically synchronize individual files or folders between Synology devices, allowing seamless file access.

Share data with the power of the cloud
Reduce your on-site storage footprint and benefit from data center network speeds with hybrid cloud technology. The optional Hybrid Share service provides efficiently storage of cold data in the cloud, while keeping frequently accessed files cached locally on your DS423+ and accessible at LAN speeds.

Multi-layered backup

Back up PCs, smartphones, cloud apps, and more
Consolidate and automate backup tasks for PCs, file servers, VMs, SaaS applications, and more with Active Backup Suite. Administer device backups remotely through a centralized portal and quickly restore specific files or entire devices to keep your business up and running. Take advantage of built-in remote backup solutions designed to protect your data with seamless 3-2-1 backup configurations.

Perform full Synology system backups
Protect all data, applications, and configurations on your Synology systems with comprehensive scheduled backups to local and remote servers, external drives, or cloud storage destinations including Synology C2 Storage.

Protect folders and LUNs with snapshots
Configure efficient point-in-time snapshots of shared folders and LUNs at intervals as short as 5 minutes. Allow users to easily restore previous versions of files unassisted, quickly recover VMs, and copy snapshots to another server to benefit from rapid storage failover.

Smart surveillance

Synology Surveillance Station
Protecting your business has never been easier, with centralized management, support for over 8,300 IP camera models, and remote monitoring and playback. Synology's video management system provides all the tools you need for live monitoring, investigation, management, and backup.

Dual recording to the cloud
C2 Surveillance allows you to keep access to surveillance footage if your recording server is disabled by recording to your local server as well as C2 cloud. End-to-end encryption protects streams against unauthorized access while low latency recording lets you review the crucial last few seconds before the recording server was lost.

Performance backed by Synology drives
Leverage high sustained performance and reliability with enterprise-grade drives and built-in data protection designed for Synology systems.

SATA
• 3.5" HDD HAT5300 Series
• 2.5" SSD SAT5200 Series

NVMe
• M.2 SSD SNV3400 Series

Get more with DiskStation Manager
Take advantage of a host of native productivity, management, and security solutions available in the web-based Synology DSM operating system.

Central Management System
Conveniently manage your fleet of Synology NAS from a centralized console.

Security
Shield your Synology NAS from the most sophisticated threats with industry-leading security solutions.

Synology High Availability
Seamless transition between clustered servers in the event of a server failure to minimize the impact on applications.

Synology DiskStation DS423+ Features

  • Centralized Data Storage: Store up to 72 TB of data in one place, maintain 100% data ownership, and enjoy multi-platform access
  • Dependable Performance: Up to 226/224 MB/s sequential read/write throughput supports stable data transfers
  • Built-in Data Management Tools: Leverage built-in file and photo management, data protection, and surveillance solutions
  • Effortless Data Sharing and Syncing: Access, share, and sync your data and media easily across different operating systems and devices

Product Documents

User Manual

Key Features

  • Get reliable backup with this Synology NAS, safeguarding your important files and memories.
  • Enjoy fast performance with WD Red Plus drives, perfect for streaming and data-intensive tasks.
  • Secure your data using advanced features on this NAS enclosure, ensuring peace of mind.
  • Set up your personal cloud with easy setup, enabling remote access from anywhere, anytime.
  • This 4-bay NAS offers ample storage capacity, ideal for media libraries and growing businesses.
  • Streamline file sharing and collaboration using this NAS server, boosting team productivity.

What's in the box:

  • Synology DiskStation DS423+ 4-Bay NAS Enclosure
  • 2x RJ45 LAN Cables
  • Accessory Pack
  • AC Power Adapter
  • AC Power Cord
  • Quick Installation Guide
  • Synology 3 Year Limited Warranty
  • Bundle Includes:
  • 4x Toshiba N300 Pro 8TB SATA III 3.5" Internal NAS Hard Drive
