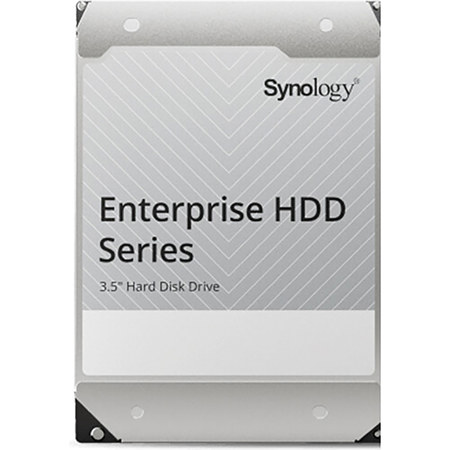

Synology HAT5310 16TB 3.5" SATA III Internal Enterprise Hard Drive

SKU: SYNT5316T MFR: HAT5310-16T
Earn VIP Reward Points

Key Features

  • Experience superior data integrity and performance with this 16TB enterprise hard drive.
  • Enjoy peace of mind with the Synology HAT5310's robust 2.5 million hours MTBF reliability.
  • Optimize your storage solutions with this high-capacity 3.5" SATA III internal hard drive.
  • Achieve rapid data access and transfers thanks to its efficient 7200 rpm rotational speed.
  • Benefit from consistent, high-speed operation for demanding applications with this advanced drive.
  • Trust in Synology's quality assurance and a 5-year warranty for lasting value.
See More Product Details
New Item?

Final Sale - No Returns or Exchanges

Calculate Shipping

See Options

1
Add to ListGet Sale Alert

Need help? Ask our experts.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Synology HAT5310 Specifications

General

General

Jump to...
  • Capacity

    16TB

  • Form Factor

    3.5"

  • Interface

    SATA 6 Gb/s

  • Sector Size

    512e

  • Drive design

    Helium-sealed

  • Country of Origin

    Philippines

Performance

Jump to...
  • Rotational Speed

    7,200 rpm

  • Buffer Size

    512 MB

  • Maximum Sustained Data Transfer Speed

    281 MB/s (Typ.)

Reliability

Jump to...
  • Mean Time Between Failures (MTBF)

    2.5 million hours

  • Workload Rating

    550 TB Transferred per Year

Power Consumption

Jump to...
  • Supply Voltage

    12 V ( +/- 10%) / 5 V (+10/-7%)

  • Idle power average

    4.16 W

  • Average operating power

    8.35 W

Temperature

Jump to...
  • Operating

    41 Degree F to 140 Degree F (5 Degree C to 60 Degree C)

  • Non-operating

    -40 Degree F to 158 Degree F (-40 Degree C to 70 Degree C)

  • Operating

    686 m/sq. s (2 ms duration)

  • Non-operating

    2,450 m/sq. s (2 ms duration)

Vibration

Jump to...
  • Operating

    5 Hz to 300 Hz: 7.35 m/sq. s, 300 Hz to 500 Hz: 2.45 m/sq. s

  • Non-operating

    5 Hz to 500 Hz: 29.4 m/sq. s

Altitude

Jump to...
  • Operating

    -1,000 to 10000' (-304.8 to 3,048m)

  • Non-operating

    -1,000 to 40,000' (-304.8 to 12,192m)

Relative Humidity

Jump to...
  • Operating

    5% to 90% R.H. (No condensation)

  • Non-operating

    5% to 95% R.H. (No condensation)

Physical

Jump to...
  • Dimensions (H x W x D)

    1.03 x 4.01 x 5.7" (26.1 x 101.85 x 147mm)

  • Weight

    25.4 oz (720g)

  • UPC Code

    846504005550

About Synology HAT5310

Enterprise storage drives for Synology systems
Synology HAT5300 series HDDs offer class-leading performance thanks to tight integration with DSM and Synology hardware. With over 500,000 hours of in-house validation testing, the HAT5300 series bring unmatched reliability to Synology deployments.

Consistent performance scaling
Through testing and optimizations, HAT5300 series HDDs has been tuned to deliver up to 35% higher sustained sequential read performance in demanding multi-user environments.

Built for peak performance

Hard drives designed for Synology
See how Synology hard drives deliver reliability, consistent performance, and simplified system management through deep hardware-software integration.

Rigorous validation
Over 500,000 hours of stress testing with Synology devices ensure that HAT5300 series drives can withstand even the most demanding enterprise environments and deliver highly reliable performance.

Durability for 24/7 environments
With an MTBF rating of up to 2.5 million hours, the HAT5300 series HDD supports a workload of 550 TB per year and persistent write cache technology to minimize data corruption in the event of sudden power loss.

One-click firmware upgrades
Automatic firmware update notifications and one-click installation through DSM minimizes maintenance workload and reduces the chance of oversight.

Accelerated RAID recovery
Compared to similar-class drives from other brands, Synology hard drives deliver up to 13% quicker drive repair speeds within RAID arrays.

Synology HAT5310 Features

  • Performance: Up to 309 MB/s sustained data transfer
  • Optimization: Up to 23% faster sequential read in Synology NAS
  • Reliability: Purpose-built for Synology servers running 24/7
  • Updates: One-click drive firmware updates through DSM

Warranty Information

This product has a limited warranty of 60 months.

Key Features

  • Experience superior data integrity and performance with this 16TB enterprise hard drive.
  • Enjoy peace of mind with the Synology HAT5310's robust 2.5 million hours MTBF reliability.
  • Optimize your storage solutions with this high-capacity 3.5" SATA III internal hard drive.
  • Achieve rapid data access and transfers thanks to its efficient 7200 rpm rotational speed.
  • Benefit from consistent, high-speed operation for demanding applications with this advanced drive.
  • Trust in Synology's quality assurance and a 5-year warranty for lasting value.

What's in the box:

  • Synology HAT5310 16TB 3.5" SATA III Internal Enterprise Hard Drive
  • Synology 5 Year Limited Warranty
