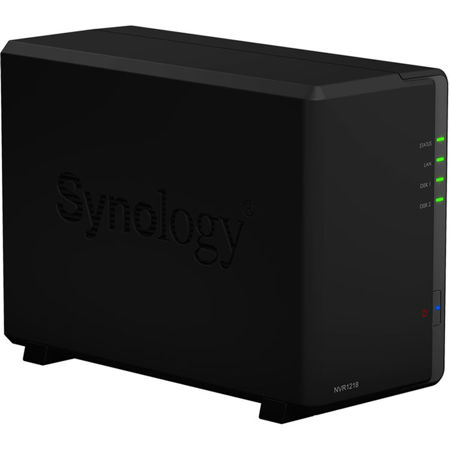

Synology NVR1218 12-Channel 2-Bay 1080p NVR, No HDD

SKU: SYNVR1218

This item is no longer available.

Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Synology NVR1218 Specifications

CPU
  • CPU Model

    Embedded NVR SoC

  • CPU Architecture

    32-bit

  • CPU Frequency

    Dual Core 1.0 GHz

  • System Memory

    1GB DDR3

Storage

Jump to...
  • Drive Bays

    2

  • Maximum Drive Bays with Expansion Unit

    7

  • Compatible Drive Type

    3.5" SATA HDD

  • Maximum Internal Raw Capacity

    20TB (10TB drive x 2)

  • Max Raw Capacity with Expansion Units

    70TB (10TB drive x 7)

  • Maximum Single Volume Size

    16 TB

External Ports

Jump to...
  • USB 2.0 Port

    2

  • USB 3.0 Port

    1

  • eSATA Port

    1

  • COM Port

    1

Video Outputs

Jump to...
  • Video Output

    HDMI x 1

  • Supported Video Resolution

    1080p 60Hz

Audio Input

Jump to...
  • Audio Input

    3.5 mm Stereo Audio Jack x 1

Audio Output

Jump to...
  • Audio Output

    3.5 mm Stereo Audio Jack x 1

IP Camera Support

Jump to...
  • Maximum Channel Number

    12 (including 4 Free License)

  • Total FPS (H.264)

    360 FPS at 720p (1280x720), 12 Channels
    100 FPS at 1080p (1920 1080), 10 Channels
    60 FPS at 3M (2048x1536), 6 Channels
    40 FPS at 5M (2591x1944), 4 Channels
    30 FPS at 4K (3840x2160), 3 Channels

  • Total FPS (MJPEG)

    120 FPS at 720p (1280x720), 12 Channels
    80 FPS at 1080p (1920 1080), 8 Channels
    60 FPS at 3M (2048x1536), 6 Channel
    40 FPS at 5M (2591x1944), 4 Channel

Video Codec

Jump to...
  • Video Codec

    MJPEG
    MPEG-4
    H.264
    H.265 (output via local display is not supported)
    MxPEG (output via local display is not supported)

Audio Codec

Jump to...
  • Audio Codec

    PCM
    ADPCM
    G711
    G726
    AMR
    AAC

  • RJ-45 1GbE LAN Port

    1

  • Wake on LAN/WAN

    Yes

  • System Fan

    80 mm x 80 mm

  • Fan Speed Mode

    Cool Mode
    Quiet Mode

  • Power Recovery

    Yes

  • Noise Level

    19 dB(A)

  • Scheduled Power On/Off

    Yes

  • Power Supply Unit / Adapter

    60W

  • AC Input Power Voltage

    100V to 240V AC

  • Power Frequency

    50/60 Hz, Single Phase

  • Power Consumption

    13.64 W (Access)
    4.32 W (HDD Hibernation)

  • British Thermal Unit

    46.57 BTU/hr (Access)
    14.75 BTU/hr (HDD Hibernation)

Environment Temperature

Jump to...
  • Operating Temperature

    5 to 45 deg. C (41 to 113 deg. F)

  • Adapter Operating Temperature

    0 to 40 deg. C (32 to 104 deg. F)

  • Storage Temperature

    -20 to 60 deg. C (-4 to 140 deg. F)

  • Relative Humidity

    5% to 95% RH

  • Certification

    FCC
    CE
    BSMI
    EAC
    RCM
    KC

File System

Jump to...
  • Internal Drives

    EXT4

  • External Drives

    EXT4
    EXT3
    FAT
    NTFS
    HFS+ (Read Only, with max. volume size 2TB)

Storage Management

Jump to...
  • Maximum Internal Volume Number

    256

  • Supported RAID Type

    Synology Hybrid RAID
    Basic
    JBOD
    RAID 0
    RAID 1
    RAID 5 (with Expansion Unit)
    RAID 6 (with Expansion Unit)

  • RAID Migration

    Basic to RAID 1
    Basic to RAID 5 (with Expansion Unit)
    RAID 1 to RAID 5 (with Expansion Unit)
    RAID 5 to RAID 6 (with Expansion Unit)

  • Volume Expansion with Larger HDDs

    Synology Hybrid RAID
    RAID 1
    RAID 5 (with Expansion Unit)
    RAID 6 (with Expansion Unit)

  • Volume Expansion by Adding a HDD

    Synology Hybrid RAID
    RAID 5 (with Expansion Unit)
    JBOD (with Expansion Unit)

  • Global Hot Spare Supported RAID Type

    Synology Hybrid RAID (with Expansion Unit)
    RAID 1 (with Expansion Unit)
    RAID 5 (with Expansion Unit)

System Management

Jump to...
  • Maximum Local User Accounts

    1024

  • Maximum Local Groups

    256

  • Maximum Shared Folder

    256

  • Windows Access Control List Integration

    Yes

Log Center

Jump to...
  • Syslog Events per Second

    100

VPN Server

Jump to...
  • Maximum Connections

    5

  • Networking Protocols

    CIFS
    AFP
    NFS
    FTP
    WebDAV
    CalDAV
    iSCSI
    Telnet
    SSH
    SNMP
    VPN (PPTP, OpenVPN)

  • Management

    Auto DSM Upgrade
    Push Notification - Mobile Devices
    Email/SMS Notification
    Customized User Quota
    Customized Administrator/User Group
    Syslog Support
    DDNS Support
    IPv6 Support
    VLAN Support
    PPPoE
    Resource Monitor
    Connection Manager
    UPS Management
    Scheduled Power On/Off
    Custom Management UI HTTP/HTTPS Ports

  • Windows AD Domain Integration

    Domain Users login via Samba/AFP/FTP/File Station

  • HDD Management

    HDD Hibernation
    S.M.A.R.T.
    Dynamic Bad Sector Mapping

  • Security

    FTP over SSL/TLS
    IP Auto-Block
    Firewall
    Encrypted Network Backup over Rsync
    HTTPS Connection

  • Utilities

    Synology Assistant

  • Supported Clients

    Windows 7 and 10
    Mac OS X 10.11 onward

  • Supported Browsers

    Internet Explorer 11 (excluding Microsoft Edge)
    Safari 10 onwards

Environment

Jump to...
  • Environment

    RoHS Compliant

General

Jump to...
  • Dimensions (HxWxD)

    165 x 100 x 225.5mm (6.50 x 3.94 x 8.88")

  • Weight

    0.9kg (1.98 lbs)

  • UPC Code

    846504002832

1 Accessories for Synology NVR1218 12-Channel 2-Bay 1080p NVR, No HDD

  • All Accessories (1)
  • Monitors (1)

About Synology NVR1218

NVR1218 Network Video Recorder
Synology Network Video Recorder NVR1218 is an all-in-one, energy efficient private surveillance solution with HDMI output for PC-less management and live monitoring.

All-in-one, stand-alone surveillance solution
Offering an effortless surveillance experience, Synology Network Video Recorder NVR1218 has the ability to display and record up to 12 IP cameras while being extremely energy-efficient.

1080p HDMI output for local display
Watch surveillance feeds and manage cameras/recordings without using a computer. NVR1218 is equipped with a dedicated HDMI output providing 1080p display resolution on a monitor, while supporting 720p at up to 12 channels/30FPS.

Flexible deployment
Setup and deploy NVR1218 in remote or secure locations with no external network access required. The support for Point of Sales (POS) systems allows NVR1218 to be integrated with transaction systems to enable video indexing capability against transaction records.

Expandable recording storage, up to 7 drives
NVR1218 can be connected to Synology DX517 expansion unit to expand from 2 to 7 drives, allowing you to create RAID 5 volumes and find the ideal balance for your storage strategy. Once connected via eSATA with a specially designed locking cable, NVR1218's raw capacity can reach 70TB.

Intuitive Surveillance Station to streamline deployment
Supporting powerful features from Surveillance Station and its mobile app, everything can be done without a PC.

Full support for Surveillance Station features
Surveillance Station provides a centralized, user friendly interface, letting you manage and monitor IP cameras in your shop or office.

On-the-go surveillance with the DS cam mobile app
DS cam is the mobile extension of Surveillance Station, allowing you to access Live View, playback recordings, adjust PTZ and receive push notifications on your mobile device.

What's in the box:

  • Synology NVR1218 12-Channel 2-Bay 1080p NVR
  • Accessory Pack
  • AC Power Adapter
  • AC Power Cord
  • RJ-45 LAN Cable
  • HDD Bracket
  • USB Installation Dongle
  • Quick Installation Guide
  • Synology 3 Year Warranty
