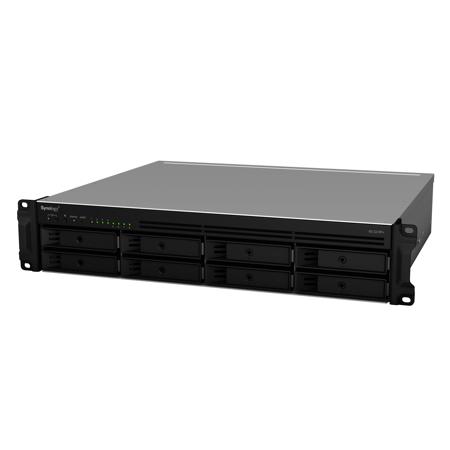

Synology RackStation RS1221RP+ 8-Bay 350W NAS Enclosure, 4-Core 2.2 GHz, 4GB RAM, No HDD

SKU: SYRS1221RPP MFR: RS1221RP+
Earn VIP Reward Points

Key Features

  • Ensure data security with this Synology RackStation NAS, featuring advanced file protection.
  • Experience fast performance with the 4-core CPU, ideal for demanding applications and workflows.
  • Easily manage and share files with remote access capabilities, keeping your data always available.
  • Set up your network storage quickly with the user-friendly interface, no expert needed for setup.
  • Rely on the Synology brand for a robust NAS enclosure, designed for continuous operation.
  • Expand your storage as needed; this NAS supports up to 12 drives for future-proof scalability.
See More Product Details
FREE 2-Day Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$209.99

3 Year

$299.99

4 Year

$359.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?YOUNGHO Y : Cost effective solution for backup

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Synology RackStation RS1221RP+ Specifications

CPU
  • CPU Model

    AMD Ryzen V1500B

  • CPU Architecture

    64-bit

  • CPU Frequency

    4-core 2.2 GHz

  • Hardware Encryption Engine (AES-NI)

    Yes

  • System Memory

    4 GB DDR4 ECC SODIMM

  • Memory Module Pre-installed

    4 GB (4 GB x 1)

  • Total Memory Slots

    2

  • Maximum Memory Capacity

    32 GB (16 GB x 2)

Storage

Jump to...
  • Drive Bays

    8

  • Maximum Drive Bays with Expansion Unit

    12 (RX418 x 1)

  • Compatible Drive Type

    3.5" SATA HDD
    2.5" SATA HDD
    2.5" SATA SSD

  • Maximum Single Volume Size

    108 TB

  • Hot Swappable Drive

    Yes

External Ports

Jump to...
  • RJ-45 1GbE LAN Port

    4 (with Link Aggregation/Failover support)

  • USB 3.0 Port

    2

  • eSATA Port

    1

  • PCIe Expansion

    1x Gen3 x8 slot (x4 link)

File System

Jump to...
  • Internal Drives

    Btrfs
    EXT4

  • External Drives

    Btrfs
    EXT4
    EXT3
    FAT
    NTFS
    HFS+

  • System Fan

    3.15 x 3.15" (80 x 80mm) x2pcs

  • Fan Speed Mode

    Full-Speed Mode
    Cool Mode
    Quiet Mode

  • Power Recovery

    Yes

  • Noise Level

    40 dB(A)

  • Scheduled Power On/Off

    Yes

  • Wake on LAN/WAN

    Yes

  • Power Supply Unit/Adapter

    350 W

  • Redundant Power Supply

    Yes

  • AC Input Power Voltage

    100 V to 240 V AC

  • Power Frequency

    50/60 Hz, Single Phase

  • Power Consumption

    61.94 W (Access) 29.98 W (HDD Hibernation)

  • British Thermal Unit

    211.35 BTU/hr (Access) 102.30 BTU/hr (HDD Hibernation)

Temperature

Jump to...
  • Operating Temperature

    32 Degree F to 95 Degree F (0 Degree C to 35 Degree C)

  • Storage Temperature

    -5 Degree F to 140 Degree F (-20 Degree C to 60 Degree C)

  • Relative Humidity

    5% to 95% RH

Certification

Jump to...
  • Certification

    FCC
    CE
    BSMI
    EAC
    CCC
    KC
    VCCI
    RCM

Environment

Jump to...
  • Environment

    RoHS Compliant

Storage Management

Jump to...
  • Maximum Internal Volume Number

    64

  • SSD Read/Write Cache (White Paper)

    Yes

  • SSD TRIM

    Yes

  • Supported RAID Type

    Synology Hybrid RAID
    Basic
    JBOD
    RAID 0
    RAID 1
    RAID 5
    RAID 6
    RAID 10

  • RAID Migration

    Basic to RAID 1
    Basic to RAID 5
    RAID 1 to RAID 5
    RAID 5 to RAID 6

  • Volume Expansion with Larger HDDs

    Synology Hybrid RAID
    RAID 1
    RAID 5
    RAID 6
    RAID 10

  • Volume Expansion by Adding a HDD

    Synology Hybrid RAID
    JBOD
    RAID 5
    RAID 6

  • Global Hot Spare Supported RAID Type

    Synology Hybrid RAID
    RAID 1
    RAID 5
    RAID 6
    RAID 10

File Services

Jump to...
  • File Protocol

    CIFS/AFP/NFS/FTP/WebDAV

  • Max Concurrent CIFS/AFP/FTP Connections

    1000
    2,000 (with RAM expansion)

  • Windows Access Control List (ACL)

    Yes (Integration)

  • NFS Kerberos Authentication

    Yes

Account & Shared Folder

Jump to...
  • Maximum Local User Accounts

    2048

  • Maximum Local Groups

    256

  • Maximum Shared Folder

    512

  • Maximum Shared Folder Sync Tasks

    16

High Availability

Jump to...
  • Synology High Availability

    Yes

Log Center

Jump to...
  • Syslog Events per Second

    800

Virtualization

Jump to...
  • VMware vSphere 6 with VAAI

    Yes

  • Windows Server 2016

    Yes

  • Windows Server 2019

    Yes

  • Citrix Ready

    Yes

  • OpenStack

    Yes

General DSM Specifications

Jump to...
  • Networking Protocols

    SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV

  • Supported Browsers

    Google Chrome
    Firefox
    Microsoft Edge
    Internet Explorer 10 onwards
    Safari 10 onwards
    Safari (iOS 10 onwards)
    Google Chrome (Android 6.0 onwards)

  • Supported Language

    English, Deutsch, Francais, Italiano, Espanol, Dansk, Norsk, Svenska, Nederlands, Polski, Magyar, Portugues do Brasil, Portugues Europeu, Turkce, Cesky

Add-on Packages

Jump to...
  • Antivirus by McAfee (Trial)

    Yes

  • Central Management System

    Yes

  • Document Viewer

    Yes

  • exFAT Access (Optional)

    Yes

  • Video Station

    Yes

Synology Chat

Jump to...
  • Maximum Users

    1500

Download Station

Jump to...
  • Maximum Concurrent Download Tasks

    80

iSCSI Manager

Jump to...
  • Maximum iSCSI Target Number

    128

  • Maximum iSCSI LUN

    256

  • iSCSI LUN Clone/Snapshot, Windows ODX

    Yes

Synology MailPlus / MailPlus Server

Jump to...
  • Free Email Accounts

    5 (Licenses required for additional accounts)

  • Maximum Number of Concurrent Users

    150

  • Maximum Server Performance

    1,484,000 emails per day, approx. 45GB

Media Server

Jump to...
  • DLNA Compliance

    Yes

Moments

Jump to...
  • Facial Recognition

    Yes

  • Subject Recognition

    Yes

  • Auto Color & Rotate

    Yes

  • Moments Select

    Yes

Snapshot Replication

Jump to...
  • Maximum Snapshots per Shared Folder

    1024

  • Maximum of System Snapshots

    65536

Surveillance Station

Jump to...
  • Maximum IP cam (Licenses required)

    40 (including 2 Free License) (See All Supported IP Cameras)

  • Total FPS (H.264)

    1200 FPS @ 720p (1280x720)
    1050 FPS @ 1080p (1920x1080)
    600 FPS @ 3M (2048x1536)
    440 FPS @ 5M (2591x1944)
    320 FPS @ 4K (3840x2160)

  • Total FPS (H.265)

    1200 FPS @ 720p (1280x720)
    1200 FPS @ 1080p (1920x1080)
    1120 FPS @ 3M (2048x1536)
    600 FPS @ 5M (2591x1944)
    480 FPS @ 4K (3840x2160)

Synology Drive

Jump to...
  • Number of Hosted Files

    Recommended: 1,000,000 (applies to files indexed or hosted by Synology Drive. For file access through other standard protocols, refer to the File Services section above)

  • Number of Concurrent Sync Clients

    Recommended: 550 (the number of connections that can be maintained when the recommended number of hosted files was reached)

Synology Office

Jump to...
  • Maximum Users

    1800

Virtual Machine Manager

Jump to...
  • Recommended Virtual Machine Instances

    8

  • Recommended Virtual DSM Number

    Licenses required: 8 (including 1 Free License)

VPN Server

Jump to...
  • Maximum Connections

    30

General

Jump to...
  • Form Factor (RU)

    2U

  • Dimensions (H x W x D)

    3.46 x 19 x 16" (88 x 482 x 407.5mm)

  • Weight

    25.8 lbs (11.7kg)

  • UPC Code

    846504003693

13 Accessories for Synology RackStation RS1221RP+ 8-Bay 350W NAS Enclosure, 4-Core 2.2 GHz, 4GB RAM, No HDD

  • All Accessories (13)
  • Ram (2)
  • SSD Drives (3)
  • Power Supply & Accessories (1)
  • Rack Accessories (1)
  • Switches (1)
  • Expansion Unit (1)
  • Drives & Storage (2)
  • Cables & Adapters (2)

About Synology RackStation RS1221RP+

Bring enterprise-grade storage capabilities to your business or tech-savvy environment with the RackStation RS1221RP+ 8-Bay 350W NAS Enclosure. This high-performance and durable NAS solution is designed for space-efficient deployments, measuring a compact 38 centimeters in depth, making it ideal for shallow rackmount enclosures and 2-post racks.

The RS1221RP+ is engineered to deliver exceptional throughput, boasting over 100K 4K random read IOPS and a sequential read speed of up to 2,315 MB/s, ensuring it can handle the most data-intensive workloads with ease. Its robust compute power comes from an AMD Ryzen V1500B quad-core 2.2 GHz processor, complemented by 4GB of ECC DDR4 memory, which is expandable up to 32GB for even greater performance.

Designed with reliability at its core, the RS1221RP+ features redundant power supplies to reduce the risk of service interruptions due to power disruptions. This, along with Synology High Availability, provides minute-level failover between two clustered servers, maximizing service availability and minimizing downtime.

The integrity and protection of your data are paramount, which is why the RS1221RP+ utilizes ECC memory and the Btrfs file system to offer higher reliability and advanced snapshot capabilities, safeguarding against data corruption and simplifying data protection.

With the potential for high performance storage, the RS1221RP+ achieves impressive sequential read and write throughput, and its random read/write IOPS ensures ample performance for demanding workloads. The NAS enclosure is also designed to grow with your needs, allowing for easy upgrades for performance, networking, or storage capacity.

Enhance your system's performance with SSD cache options, boosting read/write IOPS significantly over HDD-only arrays with NVMe or SATA SSD Cache. The 10GbE-ready feature allows for improved I/O with faster SFP+ or RJ-45 networking, and storage can be expanded to 12 drive bays with an RX418 expansion unit.

The RS1221RP+ comes with built-in data protection solutions to maximize data availability. Hyper Backup offers a comprehensive backup and recovery solution, supporting a variety of destinations including cloud-based services. Snapshot Replication allows for flexible, point-in-time backups and fast recovery options.

Protect your entire IT infrastructure with Active Backup, securing data across Windows & Linux systems, virtual machines, and SaaS accounts, all while optimizing data efficiency with deduplication and multiversioning.

As a fully certified storage virtualization solution, the RS1221RP+ supports mainstream virtualization environments, enhancing work efficiency with simplified management. Integration with VMware vSphere 6 and VAAI, Windows Offloaded Data Transfer (ODX), and OpenStack Cinder support ensures seamless operation in diverse IT ecosystems.

Powered by Synology DSM, the RS1221RP+ offers a suite of applications for seamless server transitions, virtual machine management, file synchronization, centralized NAS server management, and a complete surveillance solution. The Collaboration Suite with Synology Office, Calendar, and Chat ensures secure communication and efficient content organization.

Optimized to work best with Synology drives, the RS1221RP+ is capable of handling intensive 24/7 workloads, providing consistent high-performance with Synology's SATA 2.5" SSD SAT5200 and NVMe M.2 SSD SNV3400.

In summary, the RackStation RS1221RP+ 8-Bay 350W NAS Enclosure is a reliable, durable, high-performance, spacious, and user-friendly storage solution that stands out for its compact design, redundancy features, and ability to handle heavy workloads, making it an excellent choice for businesses and IT enthusiasts seeking a robust data management system.

Synology RackStation RS1221RP+ Features

  • Compute: AMD Ryzen V1500B quad-core 2.2 GHz
  • Throughput: 2,300 MB/s seq. read 100K 4K random read IOPS
  • Memory: 4 GB ECC DDR4 Up to 32 GB
  • Compact: 30cm depth (38cm for RP model)
  • High performance storage for anything
  • Hyper Backup
  • Snapshot Replication
  • Protect your entire office with Active Backup
  • Fully certified storage virtualization solutions
  • Works best with Synology drives
  • Synology High Availability
  • Virtual Machine Manager
  • Synology Drive
  • Central Management System
  • Surveillance Station
  • Collaboration Suite

Product Documents

User Manual

Key Features

  • Ensure data security with this Synology RackStation NAS, featuring advanced file protection.
  • Experience fast performance with the 4-core CPU, ideal for demanding applications and workflows.
  • Easily manage and share files with remote access capabilities, keeping your data always available.
  • Set up your network storage quickly with the user-friendly interface, no expert needed for setup.
  • Rely on the Synology brand for a robust NAS enclosure, designed for continuous operation.
  • Expand your storage as needed; this NAS supports up to 12 drives for future-proof scalability.

What's in the box:

  • RackStation RS1221RP+ 8-Bay 350W NAS Enclosure
  • Accessory Pack
  • 2x AC Power Cord
  • Quick Installation Guide
  • Synology 3 Year Limited Warranty
