Synology RackStation RS217 Specifications

CPU
  • CPU Model

    Marvell Armada 385 88F6820

  • CPU Architecture

    32-bit

  • CPU Frequency

    Dual Core 1.33 GHz

  • Hardware Encryption Engine

    Yes

  • System Memory

    512MB DDR3

Storage

Jump to...
  • Drive Bays

    2

  • Compatible Drive Type

    3.5" SATA HDD
    2.5" SATA HDD
    2.5" SATA SSD

  • Maximum Internal Raw Capacity

    24TB (12TB drive x 2)

  • Maximum Single Volume Size

    16 TB

  • Hot Swappable Drive

    Yes

External Ports

Jump to...
  • RJ-45 1GbE LAN Port

    2 (with Link Aggregation / Failover support)

  • USB 2.0 Port

    1

  • USB 3.0 Port

    2

  • eSATA Port

    1

File System

Jump to...
  • Internal Drives

    EXT4

  • External Drives

    EXT4
    EXT3
    FAT
    NTFS
    HFS+
    exFAT

  • System Fan

    40 mm x 40 mm x 3 pcs

  • Fan Speed Mode

    Cool Mode
    Quiet Mode

  • Power Recovery

    Yes

  • Noise Level

    25.8 dB(A)

  • Scheduled Power On/Off

    Yes

  • Wake on LAN/WAN

    Yes

  • Power Supply Unit / Adapter

    100W

  • AC Input Power Voltage

    100V to 240V AC

  • Power Frequency

    50/60 Hz, Single Phase

  • Power Consumption

    21.25 W (Access)
    12.9 W (HDD Hibernation)

  • British Thermal Unit

    72.56 BTU/hr (Access)
    44.05 BTU/hr (HDD Hibernation)

Environment Temperature

Jump to...
  • Operating Temperature

    5 to 50 deg. C (41 to 122 deg. F)

  • Storage Temperature

    -20 to 60 deg. C (-4 to 140 deg. F)

  • Relative Humidity

    5% to 95% RH

Certification

Jump to...
  • Certification

    EAC
    RCM
    KC
    FCC
    CE
    BSMI

Environment

Jump to...
  • Environment

    RoHS Compliant

Storage Management

Jump to...
  • Maximum Internal Volume Number

    256

  • Maximum iSCSI Target Number

    10

  • Maximum iSCSI LUN

    10

  • Supported RAID Type

    Synology Hybrid RAID
    Basic
    JBOD
    RAID 0
    RAID 1

  • RAID Migration

    Basic to RAID 1

  • Volume Expansion with Larger HDDs

    Synology Hybrid RAID
    RAID 1

  • Volume Expansion by Adding a HDD

    Synology Hybrid RAID
    JBOD

File Sharing Capacity

Jump to...
  • Maximum Local User Accounts

    2048

  • Maximum Local Groups

    256

  • Maximum Shared Folder

    256

  • Maximum Shared Folder Sync Tasks

    2

  • Max Concurrent CIFS/AFP/FTP Connections

    128

  • Windows Access Control List Integration

    Yes

  • NFS Kerberos Authentication

    Yes

Log Center

Jump to...
  • Syslog Events per Second

    100

  • Maximum Users

    300

Cloud Station Server

Jump to...
  • Max No of Concurrently Connected Devices

    128

  • Maximum Number of Synced Files (ext4)

    100,000 / single file reaction time 1038 ms

Download Station

Jump to...
  • Maximum Concurrent Download Tasks

    30

  • Maximum Number of Synced Files

    100,000 / single file reaction time 941 ms

  • Max No of Connections for PC Clients

    200

exFAT Access (optional)

Jump to...
  • exFAT Access (optional)

    Yes

Media Server

Jump to...
  • DLNA Certification

    Yes

Moments

Jump to...
  • Facial recognition

    Yes

  • Subject recognition

    No

  • Maximum Users

    200

Surveillance Station

Jump to...
  • Maximum IP cam (Licenses required)

    16 (including 2 Free License)

  • Total FPS (H.264)

    480 FPS at 720p (1280x720)
    240 FPS at 1080p (1920 1080)
    150 FPS at 3M (2048x1536)
    60 FPS at 5M (2591x1944)

  • Total FPS (MJPEG)

    240 FPS at 720p (1280x720)
    100 FPS at 1080p (1920 1080)
    60 FPS at 3M (2048x1536)
    30 FPS at 5M (2591x1944)

Video Station

Jump to...
  • Video Transcoding

    Group 2

VPN Server

Jump to...
  • Maximum Connections

    5

  • Networking Protocols

    CIFS
    AFP
    NFS
    FTP
    WebDAV
    CalDAV
    iSCSI
    Telnet
    SSH
    SNMP
    VPN (PPTP, OpenVPN)

  • Windows AD Domain Integration

    Domain Users login via Samba/AFP/FTP/File Station

  • HDD Management

    HDD Hibernation
    S.M.A.R.T.
    Dynamic Bad Sector Mapping

  • Security

    FTP over SSL/TLS
    IP Auto-Block
    Firewall
    Encrypted Network Backup over Rsync
    HTTPS Connection

  • Utilities

    Synology Assistant

  • Supported Clients

    Windows 7 and 10
    Mac OS X 10.11 onward

  • Supported Browsers

    Chrome
    Firefox
    Internet Explorer 10 onwards
    Safari 10 onwards
    Safari (iOS 10 onwards)
    Chrome (Android 6.0 onwards)

General

Jump to...
  • Dimensions (HxWxD)

    44 x 435.6 x 295.5mm (1.73 x 17.15 x 11.63")

  • Weight

    3.46kg (7.63 lbs)

  • UPC Code

    846504002290

9 Accessories for Synology RackStation RS217 2-Bay NAS Enclosure, Marvell Armada 385 88F6820 1.33GHz, No HDD

  • All Accessories (9)
  • Cables & Adapters (7)
  • Switches (1)
  • Tools (1)

About Synology RackStation RS217

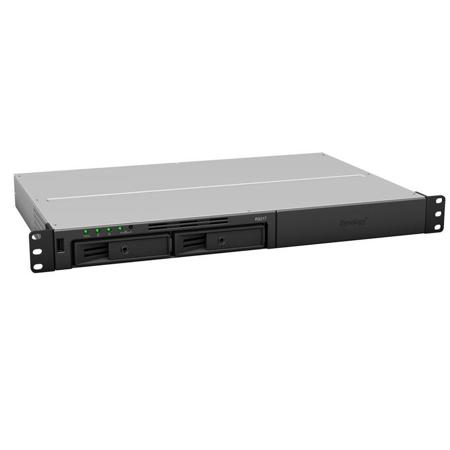

RackStation RS217
Compact and scalable NAS for small offices.

Powerful centralized storage solution
Synology RackStation RS217 is a 2-bay rackmount NAS powered by a dual-core CPU with hardware encryption engine and comes with dual 1GbE LAN ports, providing excellent network performance and rich business features.

Compact chassis, easy deployment
RS217 comes in a compact 1U 2-bay rackmount chassis less than 12 inches deep and can be easily deployed in a 2-post or wall-mount rack, ideal for businesses where space is at a premium.

Ultimate file management and sharing
File Station is a web-based, fast and secure management tool built to allow easy, drag-and-drop operation without requiring any complex setup on Mac or PC. Advanced search and filtering tools allow for easy organization and sharing of files with just a link. Supports SMB, FTP, AFP, NFS, WebDAV, compatible with any environment.

Synchronize files across your devices
Cloud Station Suite provides real-time data synchronization across all your devices and other Synology NAS. "Intelliversioning" keeps the most important file versions to better utilize storage space.

Real-time collaboration on your private cloud
Office is a collaboration package combining the convenience and usability of public clouds with the data privacy and security guaranteed by private clouds. It allows you to work seamlessly together on documents and spreadsheets in a protected environment.

Powered by Synology DSM
Surveillance Station
Complete surveillance solution for recording, monitoring and management.

Desktop Backup

Simplified backup solution for your Mac, PC and mobile devices.

Public Cloud Integration
Backup and synchronize data easily between your public cloud accounts and your NAS.

DSM UI
Award-winning operating system with an intuitive user interface and powerful capabilities.

Security
Comprehensive built-in security tools are constantly updated to tackle evolving threats and protect your devices.

All-in-one server
Save additional investment by integrating various network services, web/mail services, management applications into your NAS.

What's in the box:

  • Synology RackStation RS217 2-Bay NAS Enclosure
  • Accessory Pack
  • AC Power Cord
  • Synology 3 Year Warranty
