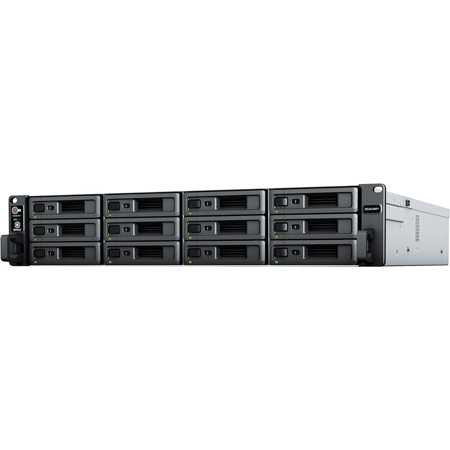

Synology RackStation RS2423RP+ 12-Bay 2U Rackmount NAS Enclosure with Redundant Power Supply, Diskless

SKU: SYRS2423RP MFR: RS2423RP+
Earn VIP Reward Points

Key Features

  • Boost your business with this 12-bay Synology RackStation, designed for optimal data STORAGE.
  • Ensure DATA SECURITY with advanced RAID options, protecting your critical files from drive failure.
  • Experience FAST PERFORMANCE with the AMD Ryzen processor, perfect for demanding applications.
  • Simplify setup with the user-friendly interface, making this Synology NAS an EASY SETUP.
  • Access your files from anywhere with secure REMOTE ACCESS, ideal for collaboration and productivity.
  • Benefit from reliable RAID SUPPORT, ensuring your data is protected and always accessible.
See More Product Details
FREE 2-Day Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

2 Year

$289.99

3 Year

$449.99

4 Year

$549.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Learn
Specs
Protection
Q&A

Questions & Answers

Shopper : Can I use third party HDD for this?

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Synology RackStation RS2423RP+ Specifications

Hardware: CPU

Hardware: CPU

Jump to...
  • CPU Model

    AMD Ryzen V1780B

  • CPU Quantity

    1

  • CPU Architecture

    64-bit

  • CPU Frequency

    4-core 3.35 (base) / 3.6 (turbo) GHz

  • Hardware Encryption Engine (AES-NI)

    Yes

Hardware: Memory

Jump to...
  • System Memory

    8GB DDR4 ECC UDIMM

  • Memory Module Pre-installed

    8GB (8GB x 1)

  • Total Memory Slots

    2

  • Maximum Memory Capacity

    32GB (16GB x 2)

Hardware: Storage

Jump to...
  • Drive Bays

    12

  • Maximum Drive Bays with Expansion Unit

    24 (RX1223RP x 1)

  • Compatible Drive Type

    3.5" SATA HDD
    2.5" SATA SSD

  • Hot Swappable Drive

    Yes

Hardware: External Ports

Jump to...
  • RJ-45 1GbE LAN Port

    2 (with Link Aggregation / Failover support)

  • RJ-45 10GbE LAN Port

    1

  • USB 3.2 Gen 1 Port

    2

  • Expansion Port

    1

Hardware: PCIe

Jump to...
  • PCIe Expansion

    1 x Gen3 x8 slot (x4 link)

Hardware: File System

Jump to...
  • Internal Drives

    Btrfs
    EXT4

  • External Drives

    Btrfs
    EXT4
    EXT3
    FAT
    NTFS
    HFS+
    exFAT

Hardware: Others

Jump to...
  • System Fan

    3 pcs 60 x 60mm

  • Fan Speed Mode

    Full-Speed Mode
    Cool Mode
    Quiet Mode

  • Easy Replacement System Fan

    Yes

  • Power Recovery

    Yes

  • Noise Level

    56.2 dB(A)

  • Scheduled Power On / Off

    Yes

  • Wake on LAN / WAN

    Yes

  • Power Supply Unit / Adapter

    350 W

  • Redundant Power Supply

    Yes

  • AC Input Power Voltage

    100 V to 240 V AC

  • Power Frequency

    50/60 Hz, Single Phase

  • Power Consumption

    114.86 W (Access) 42.33 W (HDD Hibernation)

  • British Thermal Unit

    392.18 BTU/hr (Access) 144.53 BTU/hr (HDD Hibernation)

Hardware: Temperature

Jump to...
  • Operating Temperature

    32 Degree F to 95 Degree F (0 Degree C to 35 Degree C)

  • Storage Temperature

    -5 Degree F to 140 Degree F (-20 Degree C to 60 Degree C)

  • Relative Humidity

    5% to 95% RH

Hardware: Certification

Jump to...
  • Certification

    FCC
    CE
    BSMI
    VCCI
    RCM
    UKCA
    EAC
    CCC
    KC
    UL

Hardware: Environment

Jump to...
  • Environment

    RoHS Compliant

Hardware: Appearance

Jump to...
  • Form Factor (RU)

    2U

  • Rack Installation Support

    4-post 19" rack (Synology Rail Kit - RKS-02)

  • Dimensions (H x W x D)

    3.46 x 18.97 x 22.75" (88 x 482 x 578mm)

  • Weight

    26.23 lbs (11.9kg)

Software: Storage Management

Jump to...
  • Maximum Single Volume Size

    200TB (32GB memory required)
    108TB

  • Maximum Internal Volume Number

    64

  • SSD Read / Write Cache (White Paper)

    Yes

  • SSD TRIM

    Yes

  • Supported RAID Type

    Synology Hybrid RAID
    Basic
    JBOD
    RAID 0
    RAID 1
    RAID 5
    RAID 6
    RAID 10

  • RAID Migration

    Basic to RAID 1
    Basic to RAID 5
    RAID 1 to RAID 5
    RAID 5 to RAID 6

  • Volume Expansion with Larger HDDs

    Synology Hybrid RAID
    RAID 1
    RAID 5
    RAID 6
    RAID 10

  • Volume Expansion by Adding a HDD

    Synology Hybrid RAID
    JBOD
    RAID 5
    RAID 6

  • Global Hot Spare Supported RAID Type

    Synology Hybrid RAID
    RAID 1
    RAID 5
    RAID 6
    RAID 10

Software: File Services

Jump to...
  • File Protocol

    SMB/AFP/NFS/FTP/WebDAV

  • Max. Concurrent SMB/AFP/FTP Connections

    2000
    2000 (with RAM expansion)

  • Windows ACL Integration

    Yes

  • NFS Kerberos Authentication

    Yes

Software: Account & Shared Folder

Jump to...
  • Maximum Local User Accounts

    2048

  • Maximum Local Groups

    256

  • Maximum Shared Folder

    512

  • Maximum Shared Folder Sync Tasks

    32

Software: Hybrid Share

Jump to...
  • Hybrid Share Folder Number

    10

Software: Hyper Backup

Jump to...
  • Folder and Package Backup

    Yes

  • Entire System Backup

    Yes

Software: High Availability

Jump to...
  • Synology High Availability

    Yes

Software: Log Center

Jump to...
  • Syslog Events per Second

    1000

Software: Virtualization

Jump to...
  • VMware ESXi 6.5 and VAAI

    Yes

  • Windows Server 2022

    Yes

  • Citrix Ready

    Yes

  • OpenStack

    Yes

Software: General

Jump to...
  • Networking Protocols

    SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV

  • Supported Browsers

    Google Chrome
    Firefox
    Microsoft Edge
    Safari

  • Supported Language

    English, Deutsch, French, Italian, Espanol, Danish, Norwegian, Swedish, Nederlands, Russian, Polish, Hungarian, Brazilian Portuguese, European Portuguese, Turkish, Czech, Thai, Japanese, Korean, Traditional Chinese, Simplified Chinese

Software: Add-on Packages

Jump to...
  • Antivirus by McAfee (Trial)

    Yes

  • Central Management System

    Yes

Software: Synology Chat

Jump to...
  • Suggested Concurrent Users

    150

Software: Document Viewer

Jump to...
  • Document Viewer

    Yes

Software: Download Station

Jump to...
  • Maximum Concurrent Download Tasks

    80

Software: SAN Manager

Jump to...
  • Maximum iSCSI Target Number

    128

  • Maximum LUN

    256

  • LUN Clone/Snapshot, Windows ODX

    Yes

Software: MailPlus / MailPlus Server

Jump to...
  • Free Email Accounts

    5 (Additional accounts require purchase of licenses)

  • Suggested Maximum Users

    750

  • Suggested Concurrent Users

    150

  • Maximum Server Performance

    1,484,000 emails per day, approx. 45GB

Software: Media Server

Jump to...
  • DLNA Compliance

    Yes

Software: Synology Photos

Jump to...
  • Facial Recognition

    Yes

  • Object Recognition

    Yes

Software: Snapshot Replication

Jump to...
  • Maximum Snapshots per Shared Folder

    1024

  • Maximum of System Snapshots

    65536

Software: Surveillance Station

Jump to...
  • Default Licenses

    2 (Additional cameras require purchase of licenses)

  • Maximum IP Cameras and Total FPS (H.264)

    720p: 75 channels, 2250 FPS
    1080p: 75 channels, 2100 FPS
    3M: 75 channels, 1500 FPS
    5M: 75 channels, 900 FPS
    4K: 55 channels, 550 FPS

  • Maximum IP Cameras and Total FPS (H.265)

    720p: 75 channels, 2250 FPS
    1080p: 75 channels, 2250 FPS
    3M: 75 channels, 2250 FPS
    5M: 75 channels, 1500 FPS
    4K: 75 channels, 900 FPS

Software: Synology Drive

Jump to...
  • Recommended Number

    Concurrent Sync Clients: 600 (the number of connections that can be maintained when the recommended number of hosted files was reached)

  • Recommended Number of Hosted Files

    50,000,000 (applies to files indexed or hosted by Synology Drive. For file access through other standard protocols, refer to the File Services section above)

Software: Synology Office

Jump to...
  • Suggested Maximum Users

    4500

  • Suggested Concurrent Users

    1800

Software: Video Station

Jump to...
  • Video Station

    Yes

Software: Virtual Machine Manager

Jump to...
  • Recommended Virtual Machine Instances

    8

  • Recommended Virtual DSM Number

    8 (including 1 Free License) (Licenses required)

Software: VPN Server

Jump to...
  • Maximum Connections

    40

  • UPC Code

    846504004904

Related Articles & Videos

Best NAS Devices You Can Use in 2025

Best NAS Devices You Can Use in 2025

To backup your workload, we have a list to help you out with some of the best NAS devices you can buy in 2025.
Read more

About Synology RackStation RS2423RP+

Find unparalleled reliability and performance with the RackStation RS2423RP+ 12-Bay 2U Rackmount NAS Enclosure, a diskless, high-capacity storage solution designed to meet the demanding needs of small to medium-sized businesses and branch offices. This robust NAS enclosure is engineered to deliver exceptional speed and responsiveness, boasting impressive random read/write IOPS of over 155K/79K and sequential read/write throughput of up to 3,500/1,700 MB/s, ensuring swift file management and sharing capabilities for growing enterprises.

Crafted for unwavering reliability, the RS2423RP+ features a 10GbE RJ-45 port alongside two Gigabit RJ-45 ports, which can be aggregated for enhanced network failover and load balancing. The unit's compatibility with Synology High Availability allows for the creation of an active-passive server cluster, offering maximum service uptime. Furthermore, the inclusion of redundant and hot-swappable power supply units guarantees continuous operation, safeguarding against power disruptions.

The spacious 2U 12-bay design of the RS2423RP+ provides ample room for expansion to accommodate evolving storage or performance needs. Expand your storage capacity seamlessly with an additional RX1223RP expansion unit, adding 12 more drive bays for a total of 24. Enhance HDD array performance with an NVMe or SATA SSD cache, and explore flexible networking options, including 10/25GbE SFP+/SFP28 or RJ-45, to improve I/O or add redundancy.

Synology's intuitive DiskStation Manager (DSM) operating system transforms the RS2423RP+ into a versatile storage powerhouse. Secure and convenient cross-platform file access, sharing, and synchronization are made possible for both on-site and remote teams. Synology Drive facilitates efficient collaboration with remote data access, on-demand file restoration, and backup through user-friendly desktop and mobile applications. Real-time document collaboration is enabled with Synology Office, supporting a wide range of file formats for seamless integration into your workflow.

The RS2423RP+ excels in multi-site data synchronization with Hybrid Share, which combines cloud storage advantages with local NAS deployment for streamlined file access and reduced bandwidth usage. Local caching ensures LAN-speed access to frequently used files, while manual pinning prevents essential data from being cycled out of the cache.

Data protection is paramount, and the RS2423RP+ delivers comprehensive multi-endpoint data protection strategies. Active Backup for Business provides secure backup for endpoints, Synology servers, and virtual machines, while centralized backups for Microsoft 365 and Google Workspace safeguard against data loss. Hyper Backup offers robust file, LUN, application, and system configuration backups, with Snapshot Replication enabling quick recovery from point-in-time snapshots.

For surveillance needs, the RS2423RP+ is a smart and scalable solution, compatible with over 8,300 IP camera models and offering advanced video analytics. Surveillance Station's wide camera compatibility, multi-platform monitoring, and secure local storage with AES-256 encryption ensure your premises are well-protected.

Optimize your NAS performance with Synology's enterprise-grade drives, specifically designed for sustained performance and reliability. Choose from a range of HDD and SSD options to meet your specific requirements.

Embrace the full potential of the RackStation RS2423RP+ with Synology's DSM, offering native productivity, management, and security solutions. Central Management System simplifies fleet management, while advanced security features protect against sophisticated threats. Synology High Availability ensures seamless server transitions, minimizing application impact.

Elevate your business's data management and protection with the RackStation RS2423RP+ 12-Bay 2U Rackmount NAS Enclosure, a durable, high-performance, and user-friendly solution that stands out in its class.

Synology RackStation RS2423RP+ Features

  • Secure storage for your business
  • Business-ready: Over 3,500/1,700 MB/s seq. read/write, built-in 10GbE, and up to 216TB raw storage before expansion
  • Flexible configuration: Add 12 extra drive bays,1/10/25GbE ports, and SSD cache volumes whenever needed
  • Versatile applications: Back up 300 endpoints, manage 50 IP cameras, or safely sync and share files between devices and sites

Product Documents

User Manual

Key Features

  • Boost your business with this 12-bay Synology RackStation, designed for optimal data STORAGE.
  • Ensure DATA SECURITY with advanced RAID options, protecting your critical files from drive failure.
  • Experience FAST PERFORMANCE with the AMD Ryzen processor, perfect for demanding applications.
  • Simplify setup with the user-friendly interface, making this Synology NAS an EASY SETUP.
  • Access your files from anywhere with secure REMOTE ACCESS, ideal for collaboration and productivity.
  • Benefit from reliable RAID SUPPORT, ensuring your data is protected and always accessible.

What's in the box:

  • Synology RackStation RS2423RP+ 12-Bay 2U Rackmount NAS Enclosure
  • Accessory Pack
  • 2x Redundant AC Power Cord
  • User Manual
  • Synology 3 Year Limited Warranty
