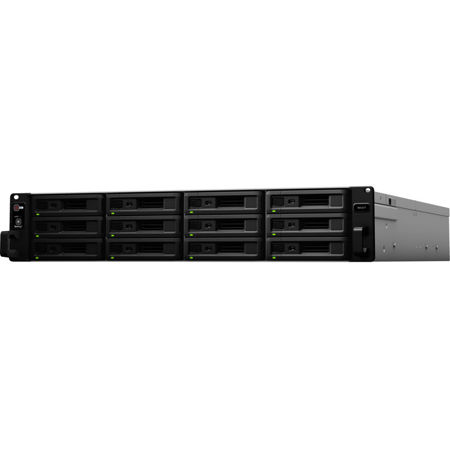

Synology RX1217 12-Bay 2U Rack Mount Storage Expansion Unit with Power Supply, 3.5"/2.5" SATA Drive Bays, DiskStation Manager, Diskless

SKU: SYRX1217 MFR: RX1217
Earn VIP Reward Points

Key Features

  • Expand your server's storage with 12 bays for SATA HDDs/SSDs, up to 144TB capacity.
  • Ensure data security with RAID management through Synology DSM on this expansion unit.
  • Experience fast performance with hot-swappable drives for seamless storage upgrades.
  • Enjoy easy setup; this rack mount storage expansion unit integrates effortlessly.
  • Access your data remotely when paired with compatible Synology RackStation models.
  • Scale your storage as needed with this 12-bay Synology expansion unit, growing with you.
See More Product Details
FREE 2-Day Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$209.99

3 Year

$299.99

4 Year

$359.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?BRANDON C : compatible with other unit

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Synology RX1217 Specifications

Applied Models

Applied Models

Jump to...
  • Applied Models

    RS4017xs+
    RS3617xs+
    RS3614xs+
    RS3413xs+
    RS3618xs
    RS3617xs
    RS3617RPxs
    RS3614(RP)xs
    RS3412(RP)xs
    RS3411(RP)xs
    RS2818RP+
    RS2418(RP)+
    RS2416(RP)+
    RS2414(RP)+
    RS2212(RP)+
    RS2211(RP)+

Storage

Jump to...
  • Drive Bays

    12

  • Compatible Drive Type

    3.5" SATA HDD
    2.5" SATA HDD
    2.5" SATA SSD

  • Maximum Internal Raw Capacity

    144TB (12TB drive x 12) (Capacity may vary by RAID types)

  • Hot Swappable Drive

    Yes

  • RAID Management through Synology DSM

    Yes

External Ports

Jump to...
  • InfiniBand port

    1

  • Power Recovery

    Synchronized with the Synology RackStation

  • Power Supply

    500W

  • AC Input Power Voltage

    100V to 240V AC

  • Power Frequency

    50/60 Hz, Single Phase

  • Power Consumption

    68.60 W (Access)
    27.45 W (HDD Hibernation)

  • British Thermal Unit

    234.23 BTU/hr (Access)
    93.73 BTU/hr (HDD Hibernation)

Temperature

Jump to...
  • Operating Temperature

    5 to 35 deg. C (41 to 95 deg. F)

  • Storage Temperature

    -20 to 60 deg. C (-4 to 140 deg. F)

  • Relative Humidity

    5 to 95% RH

  • System Fan

    80mm x 80mm (3 pcs)

  • Easy Replacement System Fan

    Yes

  • Noise Level

    54.6 dB(A)

Certification

Jump to...
  • Certification

    FCC
    CE
    BSMI
    EAC
    RCM
    KC

Environment

Jump to...
  • Environment

    RoHS Compliant

General

Jump to...
  • Dimensions (HxWxD)

    88 x 430.5 x 664mm (3.46 x 16.95 x 26.14")

  • Weight

    12.7kg (28.00 lbs)

  • UPC Code

    846504002306

10 Accessories for Synology RX1217 12-Bay 2U Rack Mount Storage Expansion Unit with Power Supply, 3.5"/2.5" SATA Drive Bays, DiskStation Manager, Diskless

  • All Accessories (10)
  • Cables & Adapters (7)
  • Switches (1)
  • SSD Drives (1)
  • Tools (1)

About Synology RX1217

Volume expansion & backup
When drive capacity is running low on a Synology RackStation, Synology RX1217 offers an easy way to immediately expand storage by providing 12 additional drive slots. The RAID volume on the Synology RackStation can be expanded directly without having to reformat the existing hard drives, ensuring service continuity during the expansion process. When created as a separate volume, Synology RX1217 also serves as an additional local backup destination for Synology RackStations.

Reliable plug-and-use design
Synology RX1217 securely connects to Synology RackStation servers with a high-bandwidth expansion cable, ensuring maximum data throughput and smooth operation - as if they are part of the internal drives of Synology RackStation. SATA 6Gb/s interface ensures the installed drives provide high quality, outstanding data processing performance.

Green & easy to manage
Hibernation mode can be manually configured to start automatically when the system has been inactive for a period of time. This not only saves energy but also extends the lifespan of hard drives. RX1217 will also smartly power on/off with the attached RackStation, so no user intervention is needed to keep this system running smartly and efficiently.

Product Documents

User Manual

Key Features

  • Expand your server's storage with 12 bays for SATA HDDs/SSDs, up to 144TB capacity.
  • Ensure data security with RAID management through Synology DSM on this expansion unit.
  • Experience fast performance with hot-swappable drives for seamless storage upgrades.
  • Enjoy easy setup; this rack mount storage expansion unit integrates effortlessly.
  • Access your data remotely when paired with compatible Synology RackStation models.
  • Scale your storage as needed with this 12-bay Synology expansion unit, growing with you.

What's in the box:

  • Synology RX1217 12-Bay 2U Rack Mount Storage Expansion Unit with Power Supply
  • Accessory Pack
  • AC Power Cord
  • Infiniband Expansion Cable
  • Quick Installation Guide
  • Synology 5 Year Warranty
