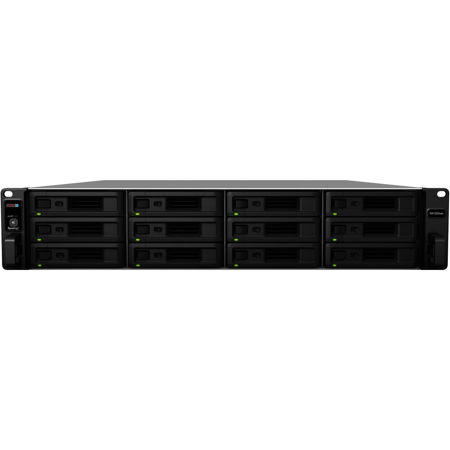

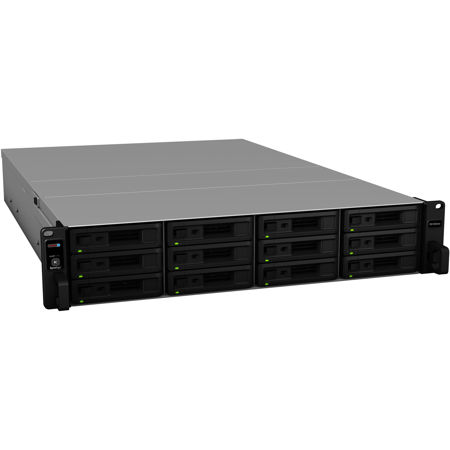

Synology RX1222sas 12-Bay SAS Storage Expansion Enclosure, Diskless

SKU: SYRX1222SAS MFR: RX1222SAS
Earn VIP Reward Points

Key Features

  • Expand your Synology SA series with this RX1222sas 12-bay SAS storage expansion enclosure.
  • Achieve up to 192 TB raw capacity with twelve drive bays, perfect for large-scale data storage.
  • Ensure data security with RAID management through Synology DSM on this reliable expansion unit.
  • Enjoy hot swappable drive bays for easy maintenance and minimal downtime on your storage server.
  • Experience fast performance with SAS HDD/SATA SSD support, optimizing data access for critical tasks.
  • Benefit from a 5-year limited warranty, ensuring long-term reliability and peace of mind for your data.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$399.99

3 Year

$599.99

4 Year

$699.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Synology RX1222sas Specifications

Models
  • Applied Models

    SA series: SA3600, SA3400 (Supports creating volumes across different units)

Storage

Jump to...
  • Drive Bays

    12

  • Compatible Drive Type

    3.5" SAS HDD
    3.5" SATA HDD
    2.5" SATA SSD

  • Maximum Internal Raw Capacity

    192 TB (16 TB Drive x 12) (Capacity may vary by RAID types)

  • Hot Swappable Drive

    Yes

  • RAID Management Through Synology DSM

    Yes

External Ports

Jump to...
  • SAS IN-Port

    1

  • SAS OUT-Port

    1

  • Power Supply Unit / Adapter

    500 W

  • AC Input Power Voltage

    100V to 240V AC

  • Power Frequency

    50/60 Hz, Single Phase

  • Power Consumption

    194.4 W (Access)
    82.56 W (HDD Hibernation)

  • British Thermal Unit

    663.48 BTU/hr (Access)
    281.77 BTU/hr (HDD Hibernation)

  • Redundant Power Supply

    Yes (for RP model)

Temperature

Jump to...
  • Operating Temperature

    32 Degree F to 95 Degree F (0 Degree C to 35 Degree C)

  • Storage Temperature

    -5 Degree F to 140 Degree F (-20 Degree C to 60 Degree C)

  • Relative Humidity

    5% to 95% RH

  • System Fan

    4x (80 x 80mm)

  • Easy Replacement System Fan

    Yes

  • Noise Level

    54.5 dB(A)

Certification

Jump to...
  • Certification

    FCC
    CE
    BSMI
    UKCA
    EAC
    VCCI
    RCM
    KC

Environment

Jump to...
  • Environment

    RoHS Compliant

Physical

Jump to...
  • Rack Installation Support

    4-Post 19" rack (Synology Rail Kit - RKS-02)

  • Dimensions (H x W x D)

    3.46 x 16.95 x 27.24" (88 x 430.5 x 692mm)
    3.46 x 18.98 x 28.50" (88 x 482 x 724mm) (With server ears)

  • Weight

    29.76 lbs (13.5kg)

  • UPC Code

    846504004362

About Synology RX1222sas

While catering to the ever-increasing demands of data storage, the RX1222sas 12-Bay SAS Storage Expansion Enclosure, a diskless solution from the reputable brand Synology, offers a robust and spacious platform for your storage needs. This high-tech, advanced device is designed to seamlessly expand your Synology rackmount SAS storage capacity, accommodating up to 84 additional 3.5"/2.5" SAS/SATA drives across a maximum of seven Synology RX1222sas expansion units.

This reliable storage solution is engineered to grow with your needs, allowing you to add volumes as and when required without any service interruptions. Thanks to the innovative Synology DiskStation Manager (DSM), you can enjoy online volume expansion and comprehensive volume management options, ensuring your data is always accessible and well-organized.

The RX1222sas connects effortlessly through the included expansion cable, enabling you to manage the additional storage within minutes. With the intuitive tools in Synology DSM, including the Storage Manager, you can add a new volume or expand RAID volumes without the need to reformat drives, making it a user-friendly choice for both home and small office networks.

For optimal performance and reliability, the RX1222sas is compatible with Synology's SAS and SATA enterprise drives, including the 3.5" HDD HAT5300, 2.5" SSD SAT5200, and 3.5" HDD HAS5300. These drives have undergone rigorous testing, ensuring maximum integration and optimal performance when paired with your Synology deployment.

Designed with service uptime as a priority, the RX1222sas features hot-swappable drive trays, fans, and power supplies to minimize the impact of maintenance on service availability. Its redundant power supply units ensure your system remains online even in the event of a power source failure, making it a durable and dependable choice for your storage needs.

Synology RX1222sas Features

  • Intuitive Installation: Add up to 12 additional 3.5"/2.5" SAS/SATA drives in a 2U enclosure with minimal setup and disruption
  • Simple Configuration: Start creating new volumes within minutes thanks to Synology DSMfs unified tools
  • Ready for Synology Drives: Achieve unmatched integration and reliability with Synology SATA and SAS drives

Product Documents

User Manual

Key Features

  • Expand your Synology SA series with this RX1222sas 12-bay SAS storage expansion enclosure.
  • Achieve up to 192 TB raw capacity with twelve drive bays, perfect for large-scale data storage.
  • Ensure data security with RAID management through Synology DSM on this reliable expansion unit.
  • Enjoy hot swappable drive bays for easy maintenance and minimal downtime on your storage server.
  • Experience fast performance with SAS HDD/SATA SSD support, optimizing data access for critical tasks.
  • Benefit from a 5-year limited warranty, ensuring long-term reliability and peace of mind for your data.

What's in the box:

  • Synology RX1222sas 12-Bay SAS Storage Expansion Enclosure
  • 2x AC Power Cord
  • 2x Mini-SAS HD Expansion Cable
  • 52x Screws for 3.5" Drives
  • 52x Screws for 2.5" Drives
  • Quick Installation Guide
  • Synology 5 Year Limited Warranty
