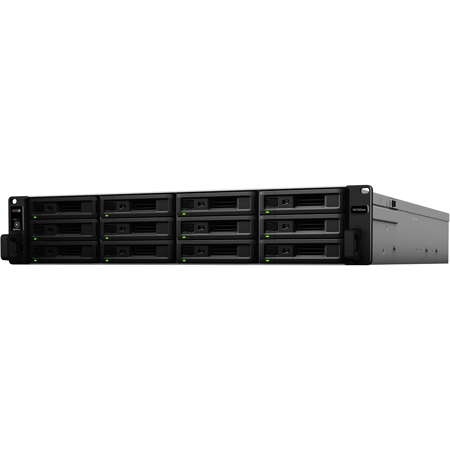

Synology RX1222sas 3.5/2.5" SAS/SATA 12-Bay 2U Rackmount Expansion Unit, Diskless

SKU: SYRX122SAS
Earn VIP Reward Points

Key Features

  • Expand your Synology SA series with this RX1222sas, offering twelve additional drive bays.
  • Achieve seamless data integration using SAS/SATA drives in this reliable expansion unit.
  • Ensure data security with RAID Management through Synology DSM on this 12-bay enclosure.
  • Experience fast performance with hot-swappable drives for minimal downtime during upgrades.
  • Simplify setup with the included accessory pack, ready for your 4-post 19" rack install.
  • Back up critical data using this 2U rackmount expansion, ensuring remote access when needed.
See More Product Details
Temporarily On Backorder?Expected Availability: 10/2025Request assistance or get notified
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$289.99

3 Year

$449.99

4 Year

$549.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Synology RX1222sas Specifications

Compatibility

Compatibility

Jump to...
  • Compatible Models

    Supports creating volumes across different units:
    SA series: SA3610, SA3600, SA3410, SA3400

Storage

Jump to...
  • Drive Bays

    12

  • Compatible Drive Type

    3.5" SAS HDD
    2.5" SAS SSD
    3.5" SATA HDD
    2.5" SATA SSD

  • Hot Swappable Drive

    Yes

  • RAID Management through Synology DSM

    Yes

External Ports

Jump to...
  • SAS IN-port

    1

  • SAS OUT-port

    1

  • Power Supply Unit / Adapter

    500 W

  • AC Input Power Voltage

    100V to 240V AC

  • Power Frequency

    50/60 Hz, Single Phase

  • Power Consumption

    194.4 W (Access)
    82.56 W (HDD Hibernation)

  • British Thermal Unit

    663.48 BTU/hr (Access)
    281.77 BTU/hr (HDD Hibernation)

  • Redundant Power Supply (for RP model)

    Yes

Temperature

Jump to...
  • Operating Temperature

    32 Degree F to 95 Degree F (0 Degree C to 35 Degree C)

  • Storage Temperature

    -5 Degree F to 140 Degree F (-20 Degree C to 60 Degree C)

  • Relative Humidity

    5% to 95% RH

  • System Fan

    4 pcs 80 x 80mm

  • Easy Replacement System Fan

    Yes

  • Noise Level

    54.5 dB(A)

Certification

Jump to...
  • Certification

    FCC
    CE
    BSMI
    UKCA
    EAC
    VCCI
    RCM
    KC

Environment

Jump to...
  • Environment

    RoHS Compliant

Appearance

Jump to...
  • Form Factor (RU)

    2U

  • Rack Installation Support

    4-post 19" rack (Synology Rail Kit - RKS-02)

  • Dimensions (H x W x D)

    3.46 x 16.94 x 27.24" (88 x 430.5 x 692mm)
    With Server Ears: 3.46 x 18.97 x 28.5" (88 x 482 x 724mm)

  • Weight

    29.76 lbs (13.5kg)

About Synology RX1222sas

Are you in need of a reliable and spacious solution for your growing storage needs Look no further than the Synology RX1222sas 3.5/2.5" SAS/SATA 12-Bay 2U Rackmount Expansion Unit. This high-performance, user-friendly device is a plug-and-play capacity expansion specifically designed for Synology servers, providing an efficient way to accommodate massive storage growth.

The RX1222sas is a durable expansion unit that allows you to expand your Synology rackmount SAS storage 12 bays at a time, supporting up to 84 additional 3.5"/2.5" SAS/SATA drives across a maximum of seven Synology RX1222sas expansion units. This means you can add volumes as and when you need them, without interrupting services, thanks to the powerful volume management options and online volume expansion provided by Synology DiskStation Manager (DSM).

Setting up and managing your additional storage is a breeze with the RX1222sas. Simply connect the unit through the included expansion cable and start managing your additional storage in minutes using the intuitive tools in Synology DSM, including the Storage Manager. The online volume expansion feature allows you to add a new volume or expand RAID volumes without the need to reformat drives.

Designed with service uptime in mind, the RX1222sas features hot-swappable drive trays, fans, and power supplies to minimize the impact of maintenance on service availability. The redundant power supply units ensure your system remains online, even if one power source fails.

When paired with your Synology deployment, the RX1222sas achieves higher levels of reliability with Synology's SAS and SATA enterprise drives. These drives have been rigorously tested for hundreds of thousands of hours, ensuring maximum integration and optimal performance.

Whether you're looking to host a website, a file server, or a media server, the Synology RX1222sas 3.5/2.5" SAS/SATA 12-Bay 2U Rackmount Expansion Unit is a versatile and dependable choice for your network-attached storage (NAS) needs.

Synology RX1222sas Features

  • Intuitive Installation: Add up to 12 additional 3.5"/2.5" SAS/SATA drives in a 2U enclosure with minimal setup and disruption
  • Simple Configuration: Start creating new volumes within minutes thanks to Synology DSM's unified tools
  • Ready for Synology Drives: Achieve unmatched integration and reliability with Synology SATA and SAS drives

Product Documents

User Manual

Key Features

  • Expand your Synology SA series with this RX1222sas, offering twelve additional drive bays.
  • Achieve seamless data integration using SAS/SATA drives in this reliable expansion unit.
  • Ensure data security with RAID Management through Synology DSM on this 12-bay enclosure.
  • Experience fast performance with hot-swappable drives for minimal downtime during upgrades.
  • Simplify setup with the included accessory pack, ready for your 4-post 19" rack install.
  • Back up critical data using this 2U rackmount expansion, ensuring remote access when needed.

What's in the box:

  • Synology RX1222sas 3.5/2.5" SAS/SATA 12-Bay 2U Rackmount Expansion Unit
  • Accessory Pack
  • 2x AC Power Cord
  • 2x Mini-SAS HD Expansion Cable
  • User Manual
  • Synology 5 Year Limited Warranty
