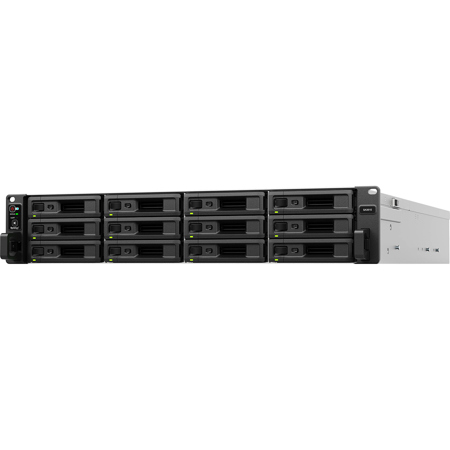

Synology SA3610 12-Bay 2U Rackmount NAS Enclosure, Intel Xeon D-1567 CPU, Diskless

SKU: SYSA361012B MFR: SA3610
Earn VIP Reward Points

Key Features

  • Maximize data security with this Synology NAS enclosure, featuring robust encryption capabilities.
  • Achieve peak performance with the Intel Xeon CPU, ideal for demanding virtualization tasks.
  • Scale your storage effortlessly; this NAS server supports up to 96 drives with expansion units.
  • Ensure business continuity with the redundant power supply, minimizing downtime for your data.
  • Manage your data remotely and securely with easy remote access features on this rackmount NAS.
  • Experience fast data transfers using the 10GbE ports, optimizing your network storage speeds.
See More Product Details
Ships from Manufacturer?
Calculate Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Synology SA3610 Specifications

Hardware: CPU

Hardware: CPU

Jump to...
  • CPU Model

    Intel Xeon D-1567

  • CPU Quantity

    1

  • CPU Architecture

    64-bit

  • CPU Frequency

    12-core 2.1 (base) / 2.7 (turbo) GHz

  • Hardware Encryption Engine (AES-NI)

    Yes

Hardware: Memory

Jump to...
  • System Memory

    16 GB DDR4 ECC RDIMM

  • Memory Module Pre-installed

    16 GB (16 GB x 1)

  • Total Memory Slots

    4

  • Maximum Memory Capacity

    128 GB (32 GB x 4)

Hardware: Storage

Jump to...
  • Drive Bays

    12

  • Maximum Drive Bays with Expansion Unit

    96 (RX1222sas x 7)

  • Compatible Drive Type

    Compatible Drive Type
    2.5" SAS SSD
    3.5" SATA HDD
    2.5" SATA SSD

  • Hot Swappable Drive

    Yes

Hardware: External Ports

Jump to...
  • RJ-45 1GbE LAN Port

    4 (with Link Aggregation / Failover support)

  • RJ-45 10GbE LAN Port

    2 (with Link Aggregation / Failover support)

  • Out-of-Band Management LAN Port

    1

  • Max. number of LAN ports

    15

  • USB 3.2 Gen 1 Port

    2

  • Expansion Port

    1

Hardware: PCIe

Jump to...
  • PCIe Expansion

    2 x Gen3 x8 slots (x8 link)

Hardware: File System

Jump to...
  • Internal Drives

    Btrfs
    EXT4

  • External Drives

    Btrfs
    EXT4
    EXT3
    FAT
    NTFS
    HFS+
    exFAT

Hardware: Others

Jump to...
  • System Fan

    80 mm x 80 mm x 4 pcs

  • Fan Speed Mode

    Full-Speed Mode
    Cool Mode
    Quiet Mode

  • Easy Replacement System Fan

    Yes

  • Power Recovery

    Yes

  • Noise Level

    49.8 dB(A)

  • Scheduled Power On / Off

    Yes

  • Wake on LAN / WAN

    Yes

  • Power Supply Unit / Adapter

    550 W

  • Redundant Power Supply

    Yes

  • AC Input Power Voltage

    100V to 240V AC

  • Power Frequency

    50/60 Hz, Single Phase

  • Power Consumption

    137.54 W (Access)
    58.23 W (HDD Hibernation)

  • British Thermal Unit

    469.30 BTU/hr (Access)
    198.68 BTU/hr (HDD Hibernation)

Hardware: Temperature

Jump to...
  • Operating Temperature

    32 Degree F to 95 Degree F (0 Degree C to 35 Degree C)

  • Storage Temperature

    -5 Degree F to 140 Degree F (-20 Degree C to 60 Degree C)

  • Relative Humidity

    5% to 95% RH

Hardware: Certification

Jump to...
  • Certification

    FCC
    CEBSMI
    VCCI
    RCM
    UKCA
    EAC
    CCC
    KC
    UL

Hardware: Environment

Jump to...
  • Environment

    RoHS Compliant

Hardware: Appearance

Jump to...
  • Form Factor (RU)

    2U

  • Rack Installation Support

    4-post 19" rack (Synology Rail Kit -RKS-02)

  • Dimensions (H x W x D)

    3.46 x 18.97 x 28.50" (88 x 482 x 724mm)

  • Weight

    31.96 lbs (14.5kg)

Software: Storage Management

Jump to...
  • Maximum Single Volume Size

    1 PB (64 GB memory required, for RAID 6 groups only)
    200 TB (32 GB memory required)
    108 TB

  • Maximum Internal Volume Number

    256

  • SSD Read / Write Cache(White Paper)

    Yes

  • SSD TRIM

    Yes

  • RAID Group

    Yes

  • Supported RAID Type

    RAID F1
    BasicJBOD
    RAID 0
    RAID 1
    RAID 5
    RAID 6
    RAID 10

  • RAID Migration

    Basic to RAID 1
    Basic to RAID 5RAID 1 to RAID 5
    RAID 5 to RAID 6

  • Volume Expansion with Larger HDDs

    RAID F1
    RAID 1
    RAID 5
    RAID 6
    RAID 10

  • Volume Expansion by Adding a HDD

    RAID F1
    JBODRAID 5
    RAID 6

  • Global Hot Spare Supported RAID Type

    RAID F1
    RAID 1RAID 5
    RAID 6
    RAID 10

Software: File Services

Jump to...
  • File Protocol

    SMB/AFP/NFS/FTP/WebDAV

  • Max Concurrent SMB/AFP/FTP Connections

    4000
    10000 (with RAM expansion)

  • Windows Access Control List Integration

    Yes

  • NFS Kerberos Authentication

    Yes

Software: Account & Shared Folder

Jump to...
  • Maximum Local User Accounts

    16000

  • Maximum Local Groups

    512

  • Maximum Shared Folder

    512

  • Maximum Shared Folder Sync Tasks

    32

Software: Hybrid Share

Jump to...
  • Hybrid Share Folder Number

    30

Software: Hyper Backup

Jump to...
  • Folder and Package Backup

    Yes

  • Entire System Backup

    Yes

  • Notes

    Full-system backup requires DSM 7.2 or later.

Software: High Availability

Jump to...
  • Synology High Availability

    Yes

Software: Log Center

Jump to...
  • Log Center

    Yes

  • Syslog Events per Second

    3000

Software: Virtualization

Jump to...
  • VMware ESXi 6.5 and VAAI

    Yes

  • Windows Server 2022

    Yes

  • Citrix Ready

    Yes

  • OpenStack

    Yes

Software: General

Jump to...
  • Networking Protocols

    SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, Fibre Channel, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV

  • Supported Browsers

    Google Chrome
    Firefox
    Microsoft Edge
    Safari

  • Supported Language

    English, German, French, Italian, Spanish, Danish, Norwegian, Swedish, Netherlands, Polish, Magyar, Brazilian Portuguese, European Portuguese, Turkish, Icelandic, German

Software: Add-on Packages

Jump to...
  • Antivirus by McAfee (Trial)

    Yes

  • Central Management System

    Yes

Software: Synology Chat

Jump to...
  • Synology Chat

    Yes

  • Suggested Concurrent Users

    600

Software: Document Viewer

Jump to...
  • Document Viewer

    Yes

Software: Download Station

Jump to...
  • Download Station

    Yes

  • Maximum Concurrent Download Tasks

    80

Software: SAN Manager

Jump to...
  • SAN Manager

    Yes

  • Maximum iSCSI Target Number

    256

  • Maximum LUN

    512

  • LUN Clone/Snapshot, Windows ODX

    Yes

Software: MailPlus / MailPlus Server

Jump to...
  • MailPlus / MailPlus Server

    Yes

  • Free Email Accounts

    5(Additional accounts require purchase of licenses)

  • Suggested Maximum Users

    1200

  • Suggested Concurrent Users

    2400

  • Maximum Server Performance

    5,040,000 emails per day, approx. 151 GB

Software: Media Server

Jump to...
  • Media Server

    Yes

  • DLNA Compliance

    Yes

Software: Synology Photos

Jump to...
  • Synology Photos

    Yes

  • Facial Recognition

    Yes

  • Object Recognition

    Yes

Software: Snapshot Replication

Jump to...
  • Snapshot Replication

    Yes

  • Maximum Snapshots per Shared Folder

    1024

  • Maximum of System Snapshots

    65536

Software: Surveillance Station

Jump to...
  • Surveillance Station

    Yes

  • Default Licenses

    2(Additional cameras require purchase of licenses)

  • Maximum IP Cameras and Total FPS (H.264)

    720p: 128 channels, 3840 FPS
    1080p: 100 channels, 2800 FPS
    3M: 100 channels, 1500 FPS
    5M: 90 channels, 900 FPS
    4K: 60 channels, 600 FPS

  • Maximum IP Cameras and Total FPS (H.265)

    720p: 128 channels, 3840 FPS
    1080p: 128 channels, 3840 FPS
    3M: 100 channels, 2700 FPS
    5M: 100 channels, 1500 FPS
    4K: 100 channels, 1120 FPS

Software: Synology Drive

Jump to...
  • Synology Drive

    Yes

  • Recommended Number

    Of Concurrent Sync Clients: 2,000 (the number of connections that can be maintained when the recommended number of hosted files was reached)

  • Recommended Number of Hosted Files

    50,000,000 (applies to files indexed or hosted bySynology Drive. For file access through other standard protocols, refer to the File Services section above)

Software: Synology Office

Jump to...
  • Synology Office

    Yes

  • Suggested Maximum Users

    15000

  • Suggested Concurrent Users

    6000

Software: Video Station

Jump to...
  • Video Station

    Yes

Software: Virtual Machine Manager

Jump to...
  • Virtual Machine Manager

    Yes

  • Recommended Virtual Machine Instances

    24

  • Recommended Virtual DSM Number

    24 (including 1 Free License)(Licenses required)

Software: VPN Server

Jump to...
  • VPN Server

    Yes

  • Maximum Connections

    60

  • UPC Code

    846504005031

About Synology SA3610

Before you invest in a network storage solution, consider the Synology SA3610 12-Bay 2U Rackmount NAS Enclosure, a high-performance and reliable choice for enterprise data centers, multimedia studios, and growing businesses. This diskless NAS enclosure is engineered to meet the demands of petabyte-scale storage needs without compromising on speed and performance.

The SA3610 is designed for on-demand scalability, offering up to a staggering 1.7 petabytes of storage when fully expanded with seven 12-bay RX1222sas expansion units. This spacious capacity makes it an ideal solution for organizations with large data volumes that require a scalable storage system to grow alongside their business.

Networking capabilities of the SA3610 are robust, featuring built-in dual 10GbE RJ-45 ports for high-speed network transmission right out of the box. For those seeking even greater network redundancy and bandwidth, the enclosure includes two PCIe 3.0 expansion slots, allowing for the addition of optional 10/25/40GbE and Fibre Channel adapter cards.

Data protection is paramount with the SA3610. Hardware and software safeguards are in place to ensure data and service availability, even in the face of disasters or malicious attacks. The Synology High Availability (SHA) cluster can be created for minute-level failover, and the dual power supply design reduces the risk of power disruptions. Additionally, redundant system fans minimize single points of hardware failure.

Remote management is made simple with out-of-band (OOB) management, enabling device troubleshooting even when primary networks are down. Data resiliency is bolstered by near-instantaneous snapshot and replication tasks, and the Btrfs file system provides self-healing capabilities for files.

The SA3610 serves as a versatile data storage solution, consolidating business and backup data in a highly scalable server. As a file server, it utilizes its expansive storage capacity and flexible expansion options to host large amounts of data centrally. For private cloud services, it offers secure and convenient file sharing and syncing, empowering employees to access corporate files from various platforms.

Integration with Windows Active Directory/LDAP allows for the enforcement of group policies, while SMB and NFS protocols enable user access to files or folders. Cross-site file sync is made possible with Synology Drive ShareSync, ensuring team members have access to the same data, regardless of location.

The SA3610 also excels as a backup repository, supporting the backup of PCs, servers, Synology systems, SaaS data, and VMs. Active Backup for Business facilitates centralized management of backup tasks, offering both bare-metal and file-level restoration, while built-in data deduplication maximizes storage efficiency.

For business application platforms, the SA3610 boosts team efficiency with Synology productivity solutions, collaborative tools, and the ability to test applications in a self-contained environment using Docker and Synology Virtual Machine Manager (VMM).

Centralized monitoring and management of your Synology fleet is streamlined with the Central Management System (CMS) and Active Insight, providing insights into performance, backup status, and more.

The Synology SA3610 12-Bay 2U Rackmount NAS Enclosure is a durable, user-friendly, and spacious storage solution that delivers reliable performance for businesses looking to scale their data storage infrastructure efficiently and securely.

Synology SA3610 Features

  • Fast and reliable: Over 6,200/3,000 MB/s seq. read/write, built-in 10GbE, with hardware and software redundancy
  • Expand and adjust: Add up to 84 extra drive bays, 40GbE or Fibre Channel, and SSD cache volumes when needed
  • Host core applications: Back up 1,000+ endpoints, manage 128 IP cameras, or provide mailboxes for up to 1,600 users

Product Documents

User Manual

Key Features

  • Maximize data security with this Synology NAS enclosure, featuring robust encryption capabilities.
  • Achieve peak performance with the Intel Xeon CPU, ideal for demanding virtualization tasks.
  • Scale your storage effortlessly; this NAS server supports up to 96 drives with expansion units.
  • Ensure business continuity with the redundant power supply, minimizing downtime for your data.
  • Manage your data remotely and securely with easy remote access features on this rackmount NAS.
  • Experience fast data transfers using the 10GbE ports, optimizing your network storage speeds.

What's in the box:

  • Synology SA3610 12-Bay 2U Rackmount NAS Enclosure
  • Accessory Pack
  • 2x AC Power Cord
  • User Manual
  • Synology 5 Year Limited Warranty
