Synology VisualStation VS360HD Specifications

Video Outputs

Video Outputs

Jump to...

  • Video Output

    1x VGA, 1x HDMI

  • Supported Video Resolution

    1080p 60Hz

Interface

Jump to...

  • Audio Input

    1x 3.5mm Stereo Audio Jack

  • Audio Output

    1x 3.5mm Stereo Audio Jack

  • RJ-45 1GbE LAN Port

    1x RJ-45 1GbE LAN Port

  • USB 2.0 Port

    2x USB 2.0 Port

  • USB 3.0 Port

    1x USB 3.0 Port

Power

Jump to...

  • Power Supply

    36W

  • AC Input Power Voltage

    100V to 240V AC

  • Dynamic DC Input

    7-24V

  • Power Frequency

    50/60 Hz, Single Phase

  • Power Consumption

    4.76W (36ch full-load)
    3.61W (Power on Idle)

Environment

Jump to...

  • Operating Temperature

    -20 to 50 deg. C (-4 to 122 deg. F)

  • Adapter Operating Temperature

    0 to 40 deg. C (32 to 104 deg. F)

  • Storage Temperature

    -20 to 60 deg. C (-4 to 140 deg. F)

  • Relative Humidity

    5 to 95% RH

  • Environment

    RoHS Compliant

Certification

Jump to...

  • Certification

    FCC
    CE
    BSMI
    EN50155
    EN45545
    EAC
    RCM

Software

Jump to...

  • Maximum IP cam

    36

  • Total fps

    H.264:
    360 fps at 720p (1280x720), 36 Channels
    160 fps at 1080p (1920x1080), 16 Channels
    90 fps at 3M (2048x1536), 9 Channels
    60 fps at 5M (2591x1944), 6 Channels
    150 fps at 720p (1280x720), 15 Channels

    MJPEG:
    40 fps at 1080p (1920x1080), 4 Channels
    20 fps at 3M (2048x1536), 2 Channels
    10 fps at 5M (2591x1944), 1 Channel

  • Video Codec

    MJPEG
    MPEG-4
    H.264

  • Audio Codec

    PCM
    ADPCM
    G711
    G726
    AMR
    AAC

  • Live View / Recording Playback

    Yes

  • Snapshot Support

    Yes

  • eMap Support

    Yes

  • PTZ Control / Patrol

    Yes

  • Log Viewer

    Yes

General

Jump to...

  • Dimensions

    32 x 130 x 130mm (1.26 x 5.12 x 5.12")

  • Weight

    0.3kg (0.66 lbs)

Other

Jump to...

  • UPC Code

    846504001972

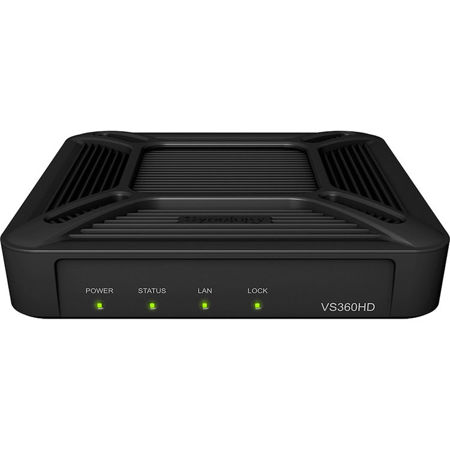

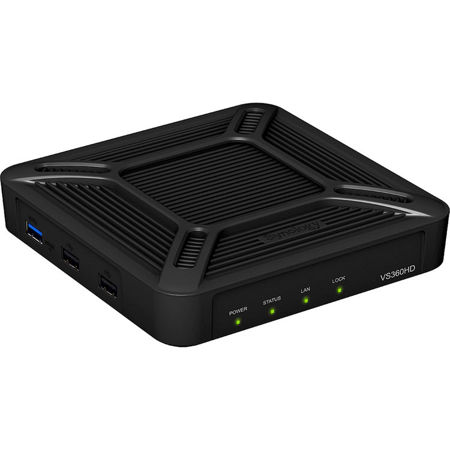

About Synology VisualStation VS360HD

Working with Synology NAS, VS360HD is an ultra-compact companion system offering features from Surveillance Station including live view and management tools.

Designed for PC-less surveillance monitoring solution
VisualStation is the perfect alternative when facing limited space or budget constraints. Just plug in an Ethernet cable, connect to an LCD-monitor or TV, log in to Synology Surveillance Station - and you've set up a monitoring station for yourself.

• Local display HDMI
• Energy efficiency 5W
• Compact design support VESA
• Extreme performance

Robust and certified hardware for harsh environments
Free from mechanical moving parts, VisualStation is more resistant against vibration and hardware failure. Its solid outer case and optimized design allow VisualStation to run within industrial temperature ranges, from -20deg.C to 50deg.C. In addition, VisualStation is EN45545 and EN50155 certified.

• Vibration Resistant
• Thermal Resistant

Ideal for TV wall setup
TV wall is ideal for monitoring a massive amount of camera at a glance and it is easy to set up with VisualStation.

Dual screen display
Supporting dual monitor video outputs to allow users to switch between mirrored and extended desktop modes, VisualStation provides a cost-efficient, easy to setup and scalable TV wall solution.

Minimum device size
The whole system fits in a palm-sized enclosure and can be easily attached to a wall or the back of a screen with a VESA compatible mount.

Convenient live view and playback interface
VS360HD provides a user-friendly interface and powerful features both inherited from Surveillance Station.

Intuitive interface for easy operation
For both beginner and advanced users, you can enjoy versatile features by operating VisualStation directly via an intuitive interface using a USB mouse, keyboard or even a joystick.

Support most Surveillance Station features
Perform PTZ actions in Live View, switch to Timeline to watch recorded events, take snapshots and export them to an external storage device and more.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Synology VisualStation VS360HD Surveillance Station
  • Quick Installation Guide
  • AC Power Adapter
  • RJ-45 LAN Cable
  • VESA Mounting Kit
  • Synology 3 Year Warranty
