A Jockey Motion 4-axis Gimbal
True 4-axis technology - the Holy Grail of cinematic video stabilization - has arrived. This game-changing 4-axis technology stabilizes the vertical axis - a critical deficiency of traditional 3-axis gimbals in addressing bouncy videos.
A Quantum Leap In Gimbal Stabilization
Recent advances in 3-axis gimbals have been effective in tilt - roll and pan stabilization - but fall far short in addressing the natural bouncy gait of a bipedal operator on the go. The Jockey's proprietary 4th axis technology with Adjustable Coil Tension and Dual Hydraulic Suspension put an end to undulating videos. Say goodbye to "would or could have been" footage compromised by bouncy footage that requires tedious hit-and-miss post editing and software stabilization.
Many gimbal setups on the market consist of heavy equipment - leading to long exhausting sessions. With Jockey's True 4-Axis Stabilization and Compact Jockey Support Rig System - operators are free from restraining heel to toe "gimbal" walks with bulky shoulder rigs or heavy robotic arms. They can now easily keep up with walking or running subjects for long durations. For cinematic shots or camera adjustments - insert the gimbal into the Jockey Support Rig and transfer all excess payload to your hips. At any moment - draw the gimbal from the holster for increased mobility and creative freedom. No more "missed opportunities" because you had to turn the gimbal off to rest your arm or adjust your camera.
Jockey 4th Axis Stabilizer
If you already own a DJI Ronin - DJI Ronin-M - AllSteady-6Pro or AllSteady-6Plus 3-axis gimbal - you can choose one of the JOCKEY 4TH-AXIS STABILIZER DELUXE or PRO PACKAGES to upgrade your gimbal to 4-axis. For Ronin and Ronin-M owners make sure you pick PACKAGE-R with the appropriate quick release adapter. For AllSteady-6PRO and AllSteady-6PLUS gimbals make sure you pick PACKAGE-A that includes a quick release adapter compatible with series 500 Manfrotto quick release plates. Mounting the 4th Axis Jockey on a 3-axis gimbal takes merely seconds. Simply replace the original horizontal 3-axis handlebars with the Jockey 4th-Axis Stabilizer easily identified by its signature "V" handlebars.

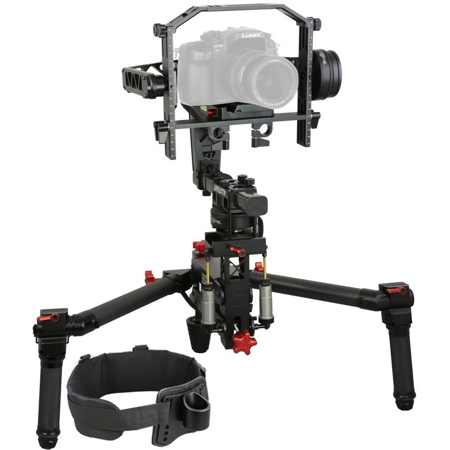

Jockey Motion 4-axis Gimbal
For the ultimate combination of versatility and performance - this turnkey ALL-IN-ONE PACKAGE: JOCKEY MOTION 4-AXIS GIMBAL can be used as both a 3-axis or a 4-axis gimbal. Start by using Motion Gimbal as a 3-Axis Gimbal with powerful encoder technology. As the pace quickens or for more rugged terrain - you can mount the Jockey 4th-axis under or on top of the gimbal to switch to 4-Axis stabilization which includes the 4th-axis to take out bounces.
Recent trend of eye level filming using an inverted-upright gimbal mode usually render the camera to sit in an upside-down position. The Jockey Motion is instead designed to maintain a right-side up camera position in all gimbal modes - saving valuable post-editing time. And in contrast to the Ronin and Ronin-M (which by the way are fully upgradable to 4-axis using the Jockey) - the Jockey Motion gimbal features advanced memory angle lock - anti-drift technology and programmable AlexMos PID settings for customized precision adjustments.
Optimizing Jockey Stabilization & Support Rig
Filming with the Jockey outside the holster offers the best vertical stabilization - especially when you are walking or running. Insert the Jockey in the Support Rig's holster for stationary panning and pivoting shots or to take a break and make camera adjustments. If you choose to walk and film with the Jockey inside the belt holster - Turbo Ace recommend that you employ a heel-to-toe gimbal walk as if you are using a steadicam.
Transition from operating in and out of the holster provides many ways to optimize Jockey functions. By lowering or raising the cone-shaped-collar under the Jockey you can decrease or increase Jockey's range of movement inside the holster. A higher cone-shaped-collar position would allow you to freely lift the Jockey out of the holster from any angle and a lower position would allow it to lock on to the holster. For operators who need extra support and to keep the holster up.
Ergonomic Dual Jointed "v" Handlebars & Build-in Balancing Stand
The evolution of Jockey's signature "V" handlebars is based on function and clean line aesthetics. Framing shots from different heights and distances to your body while maintaining an ergonomic angle is further complicated by implementation of tool less adjustment for convenience while minimizing weight and maintaining proper position for both underslung and inverted-upright modes to accommodating special Ronin and AllSteady joystick mounts.
Ten months and six versions later - a double-opposing-jointed "V" design finally emerged and prevailed. Nevertheless - Jockey engineers did not stop there. Determined to further optimize the design - they added a very short third leg to compliment 2 downward pointing handles - which serve as a Built-in Gimbal Stand and a way to balance your gimbal on the move.
Dual Tension Adjustments & Quadruple Hydraulic Suspension
Innovative and proven Proprietary Jockey Suspension System provides easy Tool less Coil Tension & Leverage Adjustments to balance varying payloads. To prevent oscillating bounces - Jockey's suspension system integrates 4 strategically positioned Custom Hydraulic Shocks to absorb and slowly dissipate energy. For heavier payloads and more rugged terrain - engage all four hydraulics for maximum support. Gear down to two hydraulics for more fluid response and increased sensitivity suited to cinematic production. Addressing your every need - the Jockey can easily and quickly adjust to accommodate a wide variety of productions.

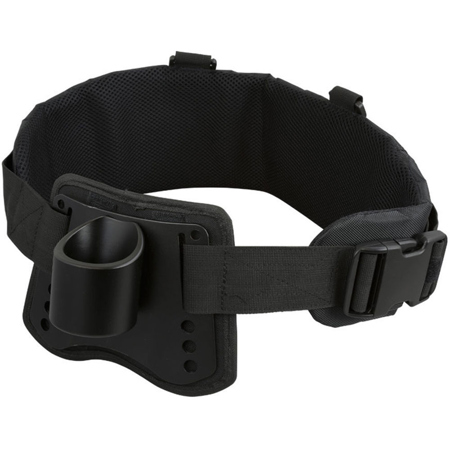

Jockey Support Rig - A Revolutionary Way To Reduce Weight
Eureka! They have found a revolutionary way to support your gimbal. Unobtrusive and inconspicuous - the Jockey Support Rig allows you to remain light and nimble. Whether if you are applying the inverted-upright mode for eye level filming or the underslung mode to lower center of gravity - this small yet astonishing device can easily transfer more than 80% of the weight of your 4-Axis gimbal to your hips. You can now hold the gimbal with barely one hand - freeing the other hand to adjust camera and gimbal on the go. No more bulky shoulder rigs with restraining jackets and obtrusive cables.
You can easily transition between rig-supported mobile True 4-Axis Pan & Pivot Filming in the holster versus unrivaled Free-Range Filming by lifting/drawing the 4-axis gimbal from the holster. It's a refreshing strain-free way to film for long duration! This unique design incorporates a cone-shaped Adjustable Collar that pivots in a Holster Cup secured on a well padded Weight Distribution Belt. Twisting the Collar to different length - the operator can easily increase or decrease the range of movement for desired support. Integrated rubber rings were implemented to buffer friction and to prevent noise. No more arm and back strain even when you film for hours.
Faux Vs True 4th Axis Stabilizers
A typical shoulder/hip rig function is to transfer most of the 3-axis gimbal weight from your hands and arms to your shoulders or hips. Unfortunately for the typical shoulder/hip rig - your hands remain connected directly to the 3-axis gimbal which negates most of the rig's perceived 4th axis stabilization. In contrast - the Jockey Support Rig is used strictly to support the weight of the gimbal leaving all 4 axises to function independently without any operator-induced movements.
Easily Switch Jockey Motion From A 4-axis Gimbal To Operate As A Allsteady Motion 3-axis Gimbal
Catering to a wide variety of filming requirements - the Jockey Motion 4-axis stabilization is consisted of a 3-Axis gimbal and a Jockey 4th-axis stabilizer with quick release mechanism. By dismounting the Jockey 4th-axis stabilizer and diagonal handlebars with built-in joystick - then replacing it with the AllSteady Motion 3-Axis Gimbal horizontal handlebars with built-in joystick - operators can easily transition to the equivalent of an AllSteady Motion 3-Axis Gimbal.
Critical Advantages of an Upright Camera on an Inverted Gimbal
Instead of operating from the hips - gimbals are increasingly inverted to elevate filming to eye-level and for attaching to the top of monopods - tripods and gliders. As oppose to the typical inverted gimbal with upside-down camera and adjustments - AllSteady Motion gimbal is designed to maintain an upright camera position for easy adjustments and more importantly - to bypass the arduous task of flipping images in post.
Compatibility with a Wide Range of Cameras and Lenses
Dubbed the little giant of 3-axis gimbals - the Jockey Motion gives you the freedom of choice - an extraordinary means to exercise and expand your creative expression using a huge range of cameras and lenses. This versatility also opens the door to a whole range of attachments and upgrades to dramatically increase your production value. For example - you can start with the agile Panasonic GH4 for stunning outdoor action videos but quickly switch to the iconic Canon 5D for indoor shoots. And - with a deeper stronger frame - you are also free to use telephoto lenses even with the Red Epic. Example of Compatible Cameras & Lenses
• Sony A7/A7S/A5000/A6000
• Panasonic Lumix GH4
• Canon 5D/6D/7D/60D/70D
• Nikon D800/D810/D3000/D3200/D5200/D5300/D7000/D7100
• Black Magic 4K Production
• Red Scarlet/Epic/Dragon
