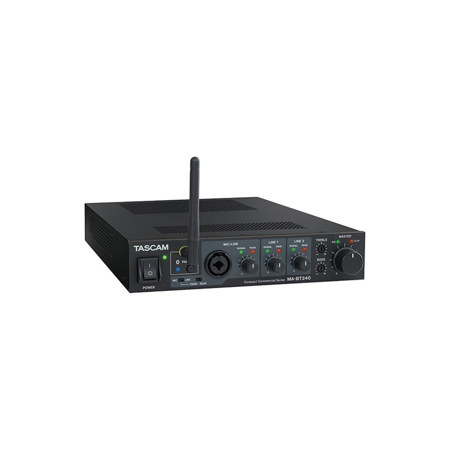

Tascam MA-BT240 240W Mixing Amplifier with Bluetooth Extension

SKU: TAMABT240 MFR: MA-BT240
Earn VIP Reward Points

Key Features

  • Experience superior sound quality with this Tascam mixing amplifier, perfect for any venue.
  • Easily connect via Bluetooth for wireless audio streaming to this versatile power amplifier.
  • This 240W amplifier with mixer is durable and reliable, ensuring years of performance.
  • Optimize your sound with precise EQ control on this Tascam amplifier with built-in mixer.
  • Use multiple input channels for mics and instruments with this adaptable audio amplifier.
  • Enjoy the portability and power of this compact amplifier, ideal for live sound setups.
See More Product Details
Special Order?Estimated to Ship: 08/18/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$89.99

3 Year

$109.99

5 Year

$179.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Tascam MA-BT240 Specifications

Speaker output

Speaker output

Jump to...
  • High impedance

    Rated output: 240W x 1ch (70V / 100V)

    Composite impedance:
    100V: 42 Ohm or higher
    70V: 21 Ohm or higher

    Connector: Euroblock 5.08 mm pitch (2-pin)

  • Low impedance

    SPEAKER SELECT: 4 Ohm
    Load impedance: 4 Ohm or higher
    Rated output: 120W x 2ch (4 Ohm @ 1k Hz, 1 % THD)

    SPEAKER SELECT: 8 Ohm or higher
    Rated output: 120W x 2ch (8© @ 1k Hz, 1 % THD)
    Connector: Euroblock 5.08 mm pitch (4 pin)

Analog audio input

Jump to...
  • Mic/line inputs (MIC/LINE IN)

    Connector
    Front: Combo jack (balanced)
    Rear: Euroblock (balanced) 3.81 mm pitch (4 pin)
    "MIC" Selected:
    Maximum input level: -30dBu
    Minimum input level: -65dBu
    Input impedance: 2k Ohm or more

    "LINE" Selected:
    Maximum input level: +20dBu
    Nominal input level: +4dBu
    Input impedance: 10k Ohm or more

  • Line inputs (LINE IN 1/LINE IN 2)

    Connector: RCA pin jacks (unbalanced)
    Maximum input level: +6.0dBV
    Nominal input level: -10.0dBV
    Input impedance: 10k Ohm or more

Analog audio output

Jump to...
  • Line outputs LINE OUT

    Connector: RCA pin jacks (unbalanced)
    Maximum output level: +6.0dBV
    Nominal output level: -10dBV
    Output impedance: 200 Ohm

Bluetooth

Jump to...
  • Version

    5.1

  • Output class

    Class 2
    About 10m unobstructed transmission distance 2x

  • Supported profile

    A2DP

  • Codecs

    SBC, AAC

External control

Jump to...
  • Connector

    (VOL. REMOTE connector for output volume adjustment)
    3.81mm pitch (3 pin) Euroblock
    (1:Vcc 5V / 2: Control / 3: GND)

Audio performance

Jump to...
  • Frequency response

    20 Hz to 20 kHz +2 dB/-2 dB
    (LINE IN 1 to SPEAKER OUT,1/8 rated output, TREBLE/BASS flat)

  • Distortion

    0.05 % or less
    (LINE IN 1 to SPEAKER OUT, 1kHz, at 1/8 rated output)

  • S/N ratio

    92 dB or more
    (LINE IN 1 to SPEAKER OUT, 1kHz, at rated output)

  • Crosstalk

    70 dB or more
    (LINE IN 1 to SPEAKER OUT, 1kHz, at rated output)

Physical

Jump to...
  • Dimensions (W x D x H)

    Excluding protrusions and Bluetooth antenna: 8.42 x 1.73 x 11.73" (214 x 44 x 298mm)

  • Weight

    5.51 lbs (2.5kg)

  • Power

    AC100 - 120V, 50/60Hz (North America)
    AC220 - 240V, 50/60Hz (Europe)

  • Cooling method

    Natural air cooling

  • operating temperature range

    32 - 104 Degree F (0 - 40 Degree C)

  • Operating humidity range

    5% - 85% (no condensation)

  • Power consumption

    Rated: 58W (1/8W output, 1kHz sine wave, @ 4 Ohm)
    Idle: 18W

  • UPC Code

    4907034135097

About Tascam MA-BT240

Be prepared to elevate your audio experience with the Tascam MA-BT240 240W Mixing Amplifier with Bluetooth Extension, a comprehensive solution designed for smaller commercial applications. This versatile mixing amplifier seamlessly integrates high- and low-impedance amplification, a microphone input, line-level inputs, and built-in Bluetooth for wireless audio streaming. It's the perfect choice for enhancing sound in restaurants, retail stores, institutions, waiting rooms, and other small commercial spaces.

Tascam MA-BT240 Features

  • Installation amplifier with comprehensive I/O for small to mid-sized facilities
  • Efficient Class D amplifier supports low-impedance (120W x 2ch @ 4 Ohm/8 Ohm) and high-impedance (240W x 1ch, 100V/70V) connections
  • Equipped with Bluetooth receiver for wireless music streaming from portable devices
  • 2 Line inputs (RCA connectors)
  • Mic/Line input with switchable Ducking/Paging function to automatically mute background music during announcements
  • Built-in mixing with front-panel knobs for all inputs
  • Compact half-rack design for convenient placement on desktop or shelf
  • Bluetooth antenna can extend allowing you to place it in the optimal position for your specific space
  • 2-band EQ and high pass filter (recommended for high-impedance applications) on output allow you to fine-tune the system response
  • Output can be optimized for any speaker configuration with Mono/Stereo switching (low-impedance mode)
  • Master volume can be adjusted remotely from external controllers (sold separately)
  • Line output allows you to create additional zones by cascading to other power amplifiers
  • Can be rack mounted with optional AK-RM05 rack kit (sold separately)

Warranty Information

This product has a limited warranty of 12 months for parts and 12 months for labor.

Product Documents

User Manual

Key Features

  • Experience superior sound quality with this Tascam mixing amplifier, perfect for any venue.
  • Easily connect via Bluetooth for wireless audio streaming to this versatile power amplifier.
  • This 240W amplifier with mixer is durable and reliable, ensuring years of performance.
  • Optimize your sound with precise EQ control on this Tascam amplifier with built-in mixer.
  • Use multiple input channels for mics and instruments with this adaptable audio amplifier.
  • Enjoy the portability and power of this compact amplifier, ideal for live sound setups.

What's in the box:

  • Tascam MA-BT240 240W Mixing Amplifier with Bluetooth Extension
  • Power Cord
  • Bluetooth Antenna
  • 2-Pin 5.08mm Pitch Euroblock Plug for High Impedance
  • 4-Pin 5.08mm Pitch Euroblock Plug for Low Impedance
  • 4-Pin 3.81mm Pitch Euroblock Plug for Mic Input
  • 3-Pin 3.81mm Pitch Euroblock Plug for External Controller Use
  • Cable Band Set
  • 4x Rubber Feet
  • User Manual
  • Tascam 1 Year Limited Warranty
