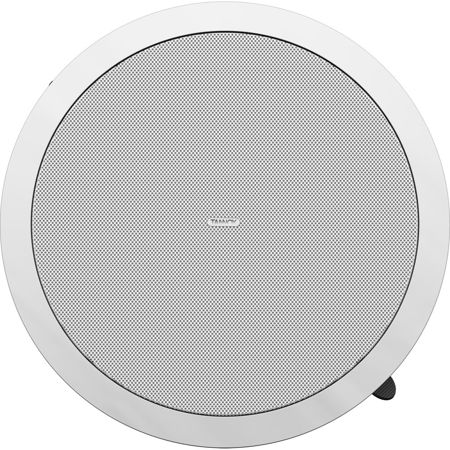

Tannoy CMS 503DC LP 5 Full Range Ceiling Loudspeaker with Dual Concentric Driver for Installation Applications Low Profile 240W Peak Power White (Pair)
SKU: TAN503DCLP
This item is no longer available.
Share:
Overview
Compare
Specs
Protection
About Tannoy CMS 503DC LP
The CMS 503DC LP is a full bandwidth 240-Watt high sensitivity loudspeaker that utilizes our third generation Ceiling Monitor System technology (CMS 3.0). Thanks to an all-new proprietary 5" Dual Concentric point-source driver with Omnimagnet technology on a Torus Ogive Waveguide, the UL certified CMS 503DC LP delivers wide and consistent broadband directivity with enhanced intelligibility -plus highly accurate and linear response.
Optimized for Installation
Specifically designed with a 4 way self-aligning clamp system for fast, simple and cost effective installation, CMS 503DC LP features an ultra-shallow back can for applications where cavity space is limited and a removable locking screw terminal connector with loop-thru functionality. A low-insertion loss 30 W transformer with convenient front panel tap switching, paintable powder coated steel mesh grille with dust protection, two tile support rails and one C-ring are all included. An Arco style grille, which conceals the entire unit for aesthetic purposes and plaster (mud) ring are available separately.
LAB GRUPPEN Ready
The CMS 503DC LP is finished in semi matt white and optimized for use with LAB GRUPPEN LUCIA amplifiers, which accommodate up to 8 CMS Series loudspeakers per channel.
Tannoy CMS 503DC LP Features
- Full range ceiling loudspeaker for installation applications
- 60 Watts continuous, 240 Watts peak power
- Next generation 5" Dual Concentric driver featuring Omnimagnet technology
- Torus Ogive waveguide for improved high frequency response and directivity
- Ultra-shallow depth profile for applications where cavity space is restricted
- UL 1480 certified for general signalling systems
- UL 2043 certified for air-handling spaces
- Multiple transformer taps for 70 V and 100 V line systems or 16 Ohm direct input
- Low insertion loss 30 W line transformer with easily accessible tapping switch
- Optimized for LAB GRUPPEN low impedance LUCIA amplifiers with up to 8 CMS series loudspeakers per channel
- Semi matt white finish fits unobtrusively in any environment
- Powder coated UV resistant perforated steel mesh grille with dust protection
- Removable magnetic grille for custom painting
- Optional ARCO designer grilles available for minimal architectural impact
- Self-aligning 4 way clamp mounting system
- Mounting C-ring and ceiling tile rails included
