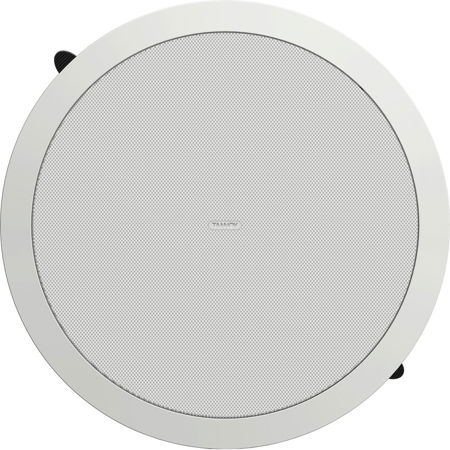

Tannoy CMS 603ICT BM 6 Full Range Ceiling Loudspeaker with ICT Driver for Installation Applications Blind Mount 240W Peak Power White (Pair)
SKU: TAN603ICTBM
This item is no longer available.
Recommended Alternatives
Share:
Overview
Compare
Specs
Protection
Q&A
About Tannoy CMS 603ICT BM
The CMS 603ICT BM is a wide bandwidth 240-Watt high sensitivity loudspeaker that utilizes our third generation Ceiling Monitor System technology (CMS 3.0). Thanks to an all-new proprietary 6" ICT (Inductive Coupling Technology) point source driver with extended frequency range, the UL certified CMS 603ICT BM delivers consistent broadband directivity with enhanced intelligibility. ICT drivers provide exceptional long-term reliability -and are ideal for constant-usage applications.
Optimized for Installation
Specifically designed with a self-aligning 4 way clamp system for fast, simple and cost effective installation, CMS 603ICT BM features an acoustically enhanced zinc plated steel back can with removable locking screw terminal connector and loop-thru functionality. A low-insertion loss 60 W transformer with convenient front panel tap switching, paintable powder coated steel mesh grille with dust protection, two tile support rails and one C-ring are all included. An Arco style grille, which conceals the entire unit for aesthetic purposes and plaster (mud) ring are available separately.
LAB GRUPPEN Ready
CMS 603ICT BM is finished in semi matt white and optimized for use with LAB GRUPPEN LUCIA amplifiers, which accommodate up to 8 CMS Series loudspeakers per channel.
Tannoy CMS 603ICT BM Features
- Full range ceiling loudspeaker for installation applications
- 60 Watts continuous, 240 Watts peak power
- 6" ICT (Inductive Coupling Technology) point source driver for extended frequency range
- Blind Mount version supplied with acoustically enhanced zinc plated steel back can
- Integrated single unit construction for ease of installation
- High durability design for constant heavy usage in demanding applications
- UL 1480 certified for general signalling systems
- UL 2043 certified for air-handling spaces
- Multiple transformer taps for 70 V and 100 V line systems or 16 Ohm direct input
- Low insertion loss 60 W line transformer with easily accessible tapping switch
- Optimized for LAB GRUPPEN low impedance LUCIA amplifiers with up to 8 CMS series loudspeakers per channel
- Semi matt white finish fits unobtrusively in any environment
- Powder coated UV resistant perforated steel mesh grille with dust protection
- Removable magnetic grille for custom painting
- Optional ARCO designer grilles available for minimal architectural impact
- Self-aligning 4 way clamp mounting system
- Mounting C-ring and ceiling tile rails included
