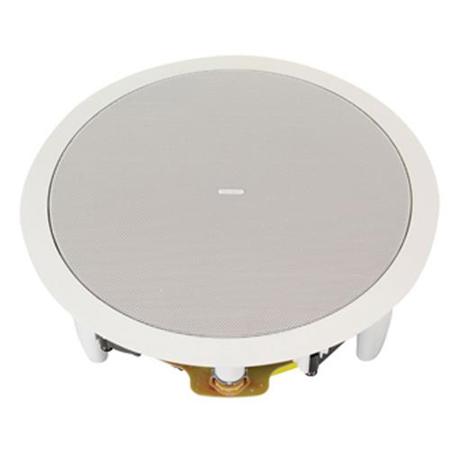

Tannoy CMS 801DC PI 8" Full Range Ceiling Loudspeaker with Dual Concentric Driver for Installation Applications, Pre-Install, 360W Peak Power, White, Single

The Tannoy CMS 801DC is a full bandwidth; high power and high sensitivity ceiling monitor system. The 200mm (8.00") Tannoy Dual Concentric is a point source drive unit design comprising a multi fiber paper pulp mid bass cone and a 25mm (1.00") ferrofluid cooled, titanium dome HF unit with neodymium magnet system. The driver and passive frequency dividing network are mounted in a vented, injection molded, paintable front baffle manufactured from UV/weather resistant UL94V-0 ABS material.

The mid-bass and tweeter sections of the Tannoy Dual Concentric constant directivity driver are coincidentally aligned to a true point source; ensuring a wide and controlled dispersion for optimum coverage; this while avoiding the massive loss of energy, in the vertical plane at the crossover frequency, inherent in two-way discreet designs. This high power and high sensitivity design, with extended frequency response and very low distortion, is equipped with dynamic high frequency protection.

This compact unit is specifically designed for applications requiring the combination of premium sonic quality for music and speech reinforcement and exceptional reliability and intelligibility. The CMS 801DC PI is supplied without a transformer. If the product is to be used without a back can a 60W line transformer (7600 1658) is available as an optional accessory for easy connection to the baffle mounted control switch circuit. Installing the transformer in this manner (flying) requires installation in accordance with local building regulations.
