Tannoy DVS 4 Specifications

Performance

Performance

Jump to...
  • Frequency response (-3 dB)

    75 Hz - 20 kHz

  • Frequency response (-10 dB)

    60 Hz - 30 kHz

  • System sensitivity (1 W at 1 m)

    84 dB

  • Dispersion (-6 dB)

    110 degrees conical

  • Transducers

    Coaxial

  • Low frequency

    100 mm (4.00") mineral
    Loaded cone material

  • High frequency

    20mm (0.79")

  • Crossover

    3.9 kHz - 2nd order LF, 2nd order HF

  • Directivity (Q)

    6.5 averaged 1 kHz to 10 kHz

  • Directivity (DI)

    5.3 averaged 1 kHz to 10 kHz

  • Rated maximum SPL

    100 dB (average)
    106 dB (peak)

Non Transformer Version

Jump to...
  • Maximum wire gauge for connector

    2.5 mm CSA (AWG12)

  • Safety Agency Ratings

    UL-1480, CE

Power Handling

Jump to...
  • Average

    40 W

  • Programme

    80 W

  • Peak

    160 W

  • Recommended amplifier power

    80 W at 6 Ohms

  • Nominal impedance

    6 Ohms

Construction

Jump to...
  • Enclosure

    ABS

  • Grille

    Aluminum, painted

  • Connectors

    Euroblock type removable locking connector with screw terminals with "loop through" facility

General

Jump to...
  • Dimensions (HxWxD)

    10.91 x 6.71 x 6.52" (27.71 x 17.04 x 16.56cm)

  • Weight

    5 lbs (2.27kg)

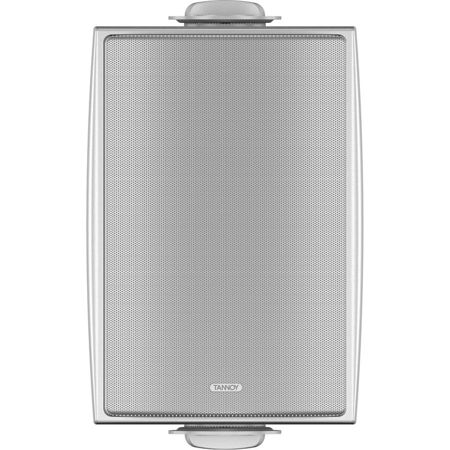

About Tannoy DVS 4

Designed to excel in a wide variety of sound reinforcement applications, the full range DVS 4-WH is an ultra-compact 160-Watt surface mount loudspeaker that provides both exceptional value and inspiring acoustic performance. The DVS 4-WH is ideally suited for stereo or mono background/foreground music applications in theme parks, hotels, restaurants and bars, retail stores, as well as corporate AV, residential developments and houses of worship.

Superb Point-Source Performance
DVS 4-WH's point-source design comprises a 100mm (4.00") mid bass driver with a coaxially mounted 19mm (0.75") high frequency section mounted in a stylish injection moulded ABS enclosure. Certified for water and dust ingress protection to IP64 standard, the DVS 4-WH is an exceptional choice for challenging environments such as indoor swimming pools, saunas or work areas with unusually high levels of dust or moisture and outdoor applications where weather conditions are moderate.

Attractive and Easy to Install
The highly durable and scuff resistant ABS enclosure features a white painted finish and comes with an aesthetically pleasing aluminum grille. Installation is quick and easy, thanks to the included color-matched steel mounting bracket and finger-adjustable hardware on the enclosure top and bottom. Phoenix connectors for input and link output are provided for convenience.

Tannoy DVS 4 Features

  • Full range surface-mount loudspeaker for indoor and outdoor installation applications
  • 40 Watts continuous, 160 Watts peak power
  • 4" mineral loaded polypropylene driver with nitrile rubber surround for enhanced durability and long-term reliability
  • 0.75" ferrofluid cooled soft dome neodymium high frequency driver
  • 110 deg. constant directivity dispersion for optimum coverage
  • UL 1480 certified for general signalling systems
  • UV and weather resistant UL 94 V-0 ABS enclosure
  • 6 Ohm direct input for low impedance applications
  • All components weather resistant to IP64 for outdoor use
  • Stylish durable enclosure in a semi matt white paint finish fits unobtrusively in any environment
  • Painted perforated aluminum mesh grille with dust protection
  • Yoke bracket included for ease of installation
  • Phoenix connectors input and link output
  • 10-Year Warranty Program
  • Designed and engineered in the U.K.

What's in the box:

  • Tannoy DVS 4 4 " Coaxial Surface-Mount Loudspeaker
  • Yoke Bracket
  • Tannoy 10 Year Warranty
