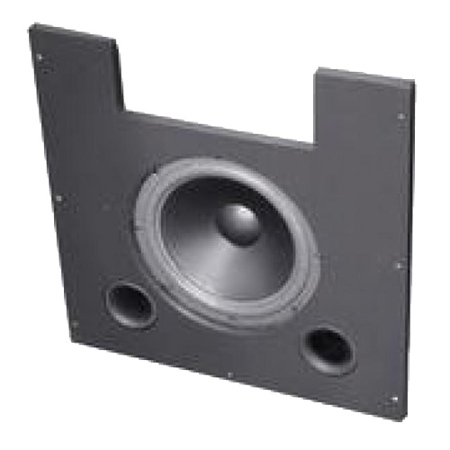

Tannoy 110 Sheet Rock 10" Subwoofer with Pre-Installation Ring

The Tannoy 110 SR Sheet Rock subwoofer - like its companions, the 110 TB (Tile Bridge) and the 110 CS (Corner Sub) - is a compact, 10" down-firing, vented cabinet capable of 31Hz at -3dB. The 110 SR flush mounts into sheet rock ceilings, walls or overhangs - any position offering adequate clearance and suitable structural support. The unit comes complete with a low profile square grille. The 110 SR cabinet is fitted with seismic tether points and comes with a sturdy pre-installation ring (110 SR-Ring) for safe and secure installation of the unit. (The pre-installation ring is available separately for new construction where the sheet rock installers arrive before the contractor.) Fire rating for the 110 SR is NFPA Grade A.

The 110 SR incorporates an 8" x 10" input module located on the side of the cabinet. The input module controls are easily accessed by removing the grille. The 110 SR remains serviceable and fully removable from the ground after installation. The 110 SR can be ordered with a passive input module (110 SR-P) connected via barrier strip or with a passive internal crossover (110 SR-PX). Both passive modules can be powered by a THP 60 Watt / 70 Volt line transformer for distributed systems (110 SR-P70V and 110 SR-PX 70V).

Alternatively, the 110 SR can be powered by a 110 Watt active amplifier (110 SR-A) or with a Tannoy PowerLinx PLA 305 - 300 Watt multi-channel amplifier (110 SR-MC), with 110 Watts dedicated to the subwoofer. Both the active and multi-channel options are UL and CSA approved.
