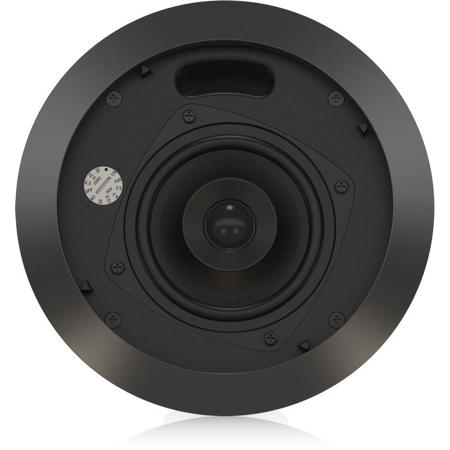

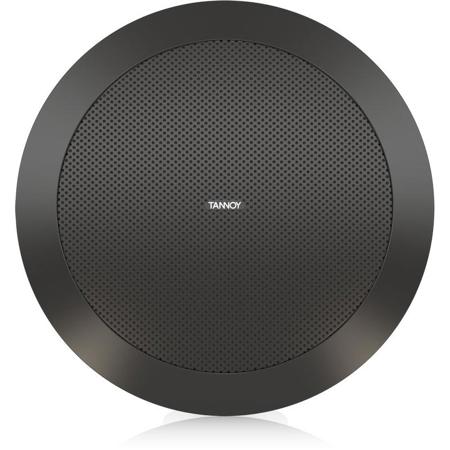

Tannoy CVS 401 4" Coaxial In-Ceiling Loudspeaker for Installation Applications, EN 54-24 Certified, 120W Peak Power, Black, Pair

SKU: TANCVS401BK MFR: CVS401BK
$109.00
Earn VIP Reward Points

Key Features

  • Experience superior audio with Tannoy CVS 401 in-ceiling speakers, perfect for commercial spaces.
  • Enjoy crystal-clear sound quality with these coaxial speakers, ideal for background music systems.
  • These 4" speakers offer a wide 120-degree coverage angle, ensuring even sound distribution.
  • With 120W peak power, these speakers deliver robust audio for presentations and announcements.
  • The EN 54-24 certification ensures reliability and safety for critical communication systems.
  • Easy to install with included C-ring and tile-bridge, these speakers blend seamlessly into ceilings.
See More Product Details
Special Order?Estimated to Ship: 08/15/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$15.99

2 Year

$23.99

3 Year

$35.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Tannoy CVS Specifications

General

General

Jump to...
  • Color

    Black

Performance

Jump to...
  • Frequency response (+3dB, -3 dB)

    102 Hz-20 kHz

  • Frequency response (-10 dB)

    70 Hz-20 kHz

  • Sensitivity at 1m/1W

    84 dB

  • Nominal Coverage Angle

    120 Degree

  • Directivity factor (Q)

    5.4 (averaged 1 kHz to 6 kHz)

  • Directivity index (DI)

    7.3 (averaged 1 kHz to 6 kHz)

  • Power handling (LoZ)

    Average: 30W
    Programme: 60 W
    Peak: 120 W
    Recommended amplifier power: 60 W @ 8 Ohm
    Nominal Impedance (Switch to LoZ): 8 Ohm
    Rated maximum SPL (1 m, Switch to LoZ): 102 dB
    Average: 99 dB
    Peak SPL: 105 dB

  • Transformer taps

    70 V: 25 W/ 12.5 W/ 6.3 W/ 3.2 W
    100 V: 25 W/ 12.5 W/ 6.3 W

  • Transducers

    Low frequency: 4" (100mm) PP cone
    High frequency: 0.79" (20mm) coaxially mounted EnclosureBlind mount (BM)

Physical

Jump to...
  • Back can

    Anodized steel

  • Baffle

    Reflex loaded UL 94V-0 rated ABS

  • Grille

    Aluminum, powder coated

  • Safety Features

    Rear enclosure safety ring for load-bearing bond

  • Clamping Design

    Security toggle clamp

  • Connectors

    Euroblock-style connector with screw terminals (with input cover and cable gland supplied)

  • Dimensions

    Bezel diameter (grille max diameter): 8" (200mm)
    Rear face of baffle to rear of back can: 5.91" (150mm)
    Rear face of baffle to top of safety loop: 6.42" (163mm)
    Rear face of baffle to rear of flex conduit: 6.89" (175mm)
    Hole cutout diameter: 6.77" (172mm)

  • Weight

    6.09 lb (2.77kg) +/-10%

  • UPC Code

    653341340238

About Tannoy CVS

Bring exceptional audio quality and reliability to your space with the CVS 401 4" Coaxial In-Ceiling Loudspeaker, expertly engineered for both background and foreground music sound systems. This versatile loudspeaker is perfect for a wide range of applications, including restaurants, hotels, houses of worship, and various business environments. With its impressive power handling, wide frequency response, and low distortion, the CVS 401 delivers audio performance typically associated with higher-end products.

Safety is paramount with the CVS 401, as it is EN 54-24 certified for fire detection and alarm systems, making it an ideal choice where safety cannot be compromised. Additionally, it holds UL 1480 certification for fire-protected signaling systems and UL 2043 certification for air-handling spaces, ensuring compliance with stringent safety standards.

The CVS 401 features a robust design, incorporating a 100 mm (4.00") polypropylene full-range driver and a 0.75" ferrofluid-cooled soft dome high-frequency driver. These components are housed in a UV and weather-resistant UL 94-V0 and 94-5VB ABS front, complemented by a plated steel fire can enclosure. The loudspeaker is further protected by a powder-coated aluminum mesh grille, which also adds an aesthetic touch. The mineral-loaded polypropylene cone material and butyl rubber surround contribute to the speaker's durability and long-term reliability, making it a sound investment for any installation.

Installation is made simple with the CVS 401's comprehensive package. It includes an integral zinc-plated steel back can with a recessed termination box, designed to meet the majority of installation requirements. The semi-matt white finish allows the speaker to blend seamlessly into any environment. The removable locking connector with screw terminals ensures secure wire termination and offers a "loop through" facility. For fire-rated cabling, a steel cover and strain relief clamping mechanism are provided. Quick and easy installation is facilitated by security toggle clamps, two tile support rails, and one C-ring, all included in the package. An optional plaster (mud) ring is available for additional installation needs.

Enhancing its versatility, the CVS 401 is equipped with a custom-designed low insertion loss 25 W line transformer and an easily accessible tapping switch, ensuring pristine audio performance across various settings. Choose the CVS 401 4" Coaxial In-Ceiling Loudspeaker for a blend of superior sound quality, reliability, and safety in your audio installations.

Tannoy CVS Features

  • Coaxial full range ceiling loudspeaker for installation applications
  • 30 Watts continuous, 120 Watts peak power
  • 4" polypropylene driver with butyl rubber surround for enhanced durability and long-term reliability
  • 0.75" ferrofluid cooled soft dome high frequency driver
  • Wide constant directivity dispersion for optimum coverage
  • EN54-24:2008 certified Type A
  • UL 1480 certified for fire-protected signalling systems
  • UL 2043 certified for air-handling spaces
  • UV and weather resistant UL 94-V0 and 94-5VB ABS front with plated steel fire can enclosure
  • Powder coated aluminium mesh grille with dust protection
  • Multiple transformer taps for 70 V and 100 V line systems or 8 Ohm direct input
  • Low insertion loss 25 W line transformer with easily accessible tapping switch
  • Semi matt white finish fits unobtrusively in any environment
  • Mounting C-ring and ceiling tile rails included
  • Steel cover and strain relief clamping mechanism for fire rated cable
  • Designed and engineered in the U.K

Key Features

  • Experience superior audio with Tannoy CVS 401 in-ceiling speakers, perfect for commercial spaces.
  • Enjoy crystal-clear sound quality with these coaxial speakers, ideal for background music systems.
  • These 4" speakers offer a wide 120-degree coverage angle, ensuring even sound distribution.
  • With 120W peak power, these speakers deliver robust audio for presentations and announcements.
  • The EN 54-24 certification ensures reliability and safety for critical communication systems.
  • Easy to install with included C-ring and tile-bridge, these speakers blend seamlessly into ceilings.

What's in the box:

  • 2x CVS 401 4 " Coaxial In-Ceiling Loudspeaker (Black)
  • Metal Grille
  • Cable Gland
  • Flex Conduit
  • C-Ring
  • Tile-Bridge Kit
  • Paint Mask
  • Cutout Template
  • Tannoy 10 Year Warranty with Registration
