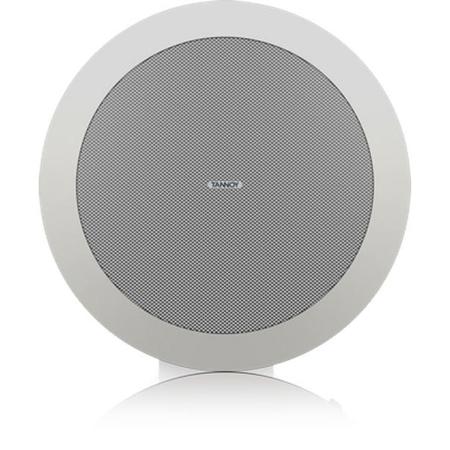

Tannoy CVS 4 MICRO 4 Coaxial In-Ceiling Loudspeaker with Shallow Back Can for Installation Applications 160W Peak Power White (Pair)

SKU: TANCVS4MICRO

This item is no longer available.

Recommended Alternatives

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Tannoy CVS 4 MICRO Specifications

Applications

Applications

Jump to...
  • Applications

    Multi-zone foreground music & paging systems
    Boardrooms & offices
    Business music systems
    Airports
    Reception / waiting rooms
    Houses of worship
    Retail outlets / shopping malls
    Lounges / bars
    Cruise ships
    Courtrooms
    Convention centers
    Hotels

  • Frequency Response (-3dB)

    110Hz - 19kHz

  • Frequency Range (-10dB)

    90Hz - 22kHz

  • System Sensitivity (1W at 1m)

    87dB (1W = 2.45V for 6 Ohms)

  • Nominal Coverage Angle

    90 degrees conical

  • Coverage Angle (1kHz to 6kHz)

    102 degrees

  • Directivity Factor (Q)

    5.6 averaged 1kHz to 6kHz

  • Directivity Index (DI)

    7.1 averaged 1kHz to 6kHz

  • Rated Maximum SPL

    Average: 103dB
    Peak: 109dB

  • Power Handling

    Average: 40W
    Programme: 80W
    Peak: 160W

  • Rec Amplifier Power

    80W at 6 Ohms

  • Nominal Impedance

    6 Ohms

  • Transformer Taps-via front rotary switch

    70V: 15W / 7.5W / 3.75W / 1.9W / OFF & low impedance operation
    100V: 15W / 7.5W / 3.75W / OFF & low impedance operation

Distortion

Jump to...
  • Distortion at 1% Full Power

    At 250Hz:
    2nd Harmonic: 0.231%
    3rd Harmonic: 0.112%

    At 1kHz:
    2nd Harmonic: 0.229%
    3rd Harmonic: 0.253%

    At 10kHz:
    2nd Harmonic: 0.163%
    3rd Harmonic: 0.025%

  • Distortion at 10% Full Power

    At 250Hz:
    2nd Harmonic: 0.99%
    3rd Harmonic: 0.169%

    At 1kHz:
    2nd Harmonic: 0.816%
    3rd Harmonic: 0.323%

    At 10kHz:
    2nd Harmonic: 0.444%
    3rd Harmonic: 0.027%

Crossover Point

Jump to...
  • Crossover Point

    2.7kHz

Transducers

Jump to...
  • Low Frequency

    4" (10.16cm) Mineral Loaded

  • High Frequency

    19mm (0.75")

Physical

Jump to...
  • Back can

    Painted Steel

  • Baffle

    Reflex loaded UL 94V-0 rated ABS

  • Grille

    Steel, with weather resistant coating

  • Safety Features

    Safety ring located at rear of enclosure for load bearing safety bond

  • Clamping Design

    Security toggle Clamp

  • Cable Entry Options

    Cable clamp & squeeze connector for conduit up to 22mm

  • Connectors

    Removable locking connector with screw terminals with "loop through" facility

  • Safety Agency Rating

    UL-1480, UL-2043, CE

  • Hole Cutout Diameter

    180mm (7.09")

  • Dimensions

    Bezel diameter: 8.39" (21.31cm)
    Front of ceiling to rear of back can: 3.87" (9.83cm)
    Front of ceiling to cable entry center: 1.83" (4.65cm)

  • Weight

    2kg (4.41 lbs)

About Tannoy CVS 4 MICRO

The CVS 4 MICRO is a compact 160-Watt shallow back can ceiling loudspeaker engineered to provide superb audio performance in both background and foreground music sound systems. Ideally suited for a wide variety of applications, from restaurants and hotels to houses of worship and businesses of all types, the CVS 4 MICRO offers the power handling, wide frequency response and low distortion more typically found in a studio reference monitor than a ceiling loudspeaker. The resulting sound is warm, with a nuanced and pristine clarity that envelopes the listener -without intruding.

Exceptional Sound and Reliability
The design comprises a 100 mm (4.00") mid bass driver with a coaxially mounted 19 mm (0.75") high frequency section mounted in a vented, injection molded, paintable front baffle manufactured from UV/weather resistant UL94V-0 ABS material. The mineral loaded polypropylene cone material and nitrile rubber surround enhance durability and long-term reliability. Thanks to the shallow back can depth of less than 4" (98.3 mm), CVS 4 MICRO is perfect for applications where above-ceiling space is limited, but exceptional sonic quality and reliability are a requirement.

Comprehensive Installation Package
Supplied with an integral zinc-plated steel shallow back can, with recessed termination box, the CVS 4 MICRO satisfies the vast majority of installation application requirements. The removable locking connector has screw terminals for secure wire termination and "loop through" facility. Strain relief is provided by a clamping mechanism for use with plenum rated cable or conduit. Security toggle clamps make for quick and easy installation, while two tile support rails and one C-ring are also included in the package. A plaster (mud) ring is available as an optional accessory.

Tannoy CVS 4 MICRO Features

  • Coaxial full range low profile ceiling loudspeaker for installation applications
  • 40 Watts continuous, 160 Watts peak power
  • Shallow back can for limited cavity space
  • 4" mineral loaded polypropylene driver with nitrile rubber surround for enhanced durability and long-term reliability
  • 0.75" ferrofluid cooled soft dome neodymium high frequency driver
  • Wide constant directivity dispersion for optimum coverage
  • UL 1480 certified for fire-protected signalling systems
  • UL 2043 certified for air-handling spaces
  • UV and weather resistant UL 94 V-0 ABS front with plated steel fire can enclosure
  • Multiple transformer taps for 70 V and 100 V line systems or 6 Ohm direct input
  • Low insertion loss 15 W line transformer with easily accessible tapping switch
  • Semi matt white finish fits unobtrusively in any environment
  • Powder coated perforated steel mesh grille with dust protection
  • Mounting C-ring and ceiling tile rails included
  • Phoenix connector with steel cover and strain relief clamping mechanism for fire rated cable

What's in the box:

  • Tannoy CVS 4 MICRO 4 " Coaxial In-Ceiling Loudspeaker with Shallow Back Can
  • Grille
  • C Ring
  • 2x Tile Support Rails
  • Paint Mask
  • Cutout Template
  • Removable Locking Connector with Screw Terminals
  • Tannoy 10 Year Warranty with Registration
