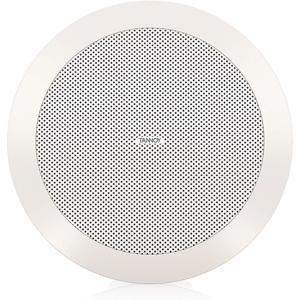

Tannoy CVS 801 8" Coaxial In-Ceiling Loudspeaker for Installation Applications, EN 54-24 Certified, 360W Peak Power, White, Pair

SKU: TANCVS801 MFR: CVS801
$179.00
$185.00
Save: $6 (3%)
Earn VIP Reward Points

Key Features

  • Experience superior audio with Tannoy CVS 801 in-ceiling speakers, perfect for any setting.
  • Enjoy wide sound dispersion with a 100-degree coverage angle for immersive audio quality.
  • The 8" coaxial speaker delivers exceptional clarity and powerful bass for rich soundscapes.
  • Install easily with included C-ring and tile-bridge, ideal for commercial audio setups.
  • Durable build with steel back can ensures long-lasting performance and reliability.
  • Certified EN 54-24, these speakers meet stringent safety standards for peace of mind.
See More Product Details
Special Order?Estimated to Ship: 08/21/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$15.99

2 Year

$23.99

3 Year

$35.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Tannoy CVS Specifications

General

General

Jump to...
  • Color

    White

Performance

Jump to...
  • Frequency response (+3dB, -3 dB)

    88 Hz-20 kHz

  • Frequency response (-10 dB)

    65 Hz-20 kHz

  • Sensitivity at 1m/1W

    91 dB

  • Nominal coverage angle

    100 Degree

  • Directivity factor (Q)

    10.2 (averaged 1 kHz to 6 kHz)

  • Directivity index (DI)

    10.1 (averaged 1 kHz to 6 kHz)

  • Power handling (LoZ)

    Average: 90 W
    Programme: 180 W
    Peak: 360 W
    Recommended amplifier power: 180 W @ 8 Ohm
    Nominal Impedance (Switch to LoZ): 8 Ohm
    Rated maximum SPL (1 m, Switch to LoZ): 113 dB
    Average: 110 dB
    Peak: SPL 116 dB

  • Transformer taps

    70 V: 60 W/ 30 W/ 15 W/ 7.5 W
    100 V: 60 W/ 30 W/ 15 W

  • Transducers

    Low frequency: 8" (200mm) PP cone
    High frequency: 1" (25mm) coaxially mounted

Physical

Jump to...
  • Enclosure

    Blind mount (BM)

  • Back can

    Anodized steel

  • Baffle

    Reflex loaded UL 94V-0 rated ABS

  • Grille

    Aluminum, powder coated

  • Safety Features

    Rear enclosure safety ring for load-bearing bond

  • Clamping Design

    Security toggle clamp

  • Connectors

    Euroblock-style connector with screw terminals (with input cover and cable gland supplied)

  • Dimensions

    Bezel diameter (grille max diameter): 12" (305mm)
    Rear face of baffle to rear of back can: 8.35" (212mm)
    Rear face of baffle to top of safety loop: 8.86" (225mm)
    Rear face of baffle to rear of flex conduit: 9.33" (237mm)
    Hole cutout diameter: 10.75" (273mm)

  • Weight

    11.77 lb (5.35kg) +/-10%

  • UPC Code

    653341340634

About Tannoy CVS

Are you in search of a high-performance in-ceiling loudspeaker that combines exceptional audio quality with robust safety certifications? Look no further than the CVS 801 8" Coaxial In-Ceiling Loudspeaker, designed to deliver outstanding sound performance for both background and foreground music systems. This versatile loudspeaker is perfect for a wide range of environments, including restaurants, hotels, houses of worship, and various business settings.

The CVS 801 stands out with its impressive power handling capabilities, wide frequency response, and low distortion levels, features typically associated with more expensive audio equipment. Its EN 54-24 certification ensures compliance with fire detection and alarm systems, making it an ideal choice for installations where safety is paramount. Additionally, it holds UL 1480 certification for fire-protected signaling systems and UL 2043 certification for air-handling spaces, further enhancing its reliability in critical applications.

At the heart of the CVS 801 is a meticulously engineered design featuring a 200 mm (8.00") polypropylene full-range driver paired with a 1.0" ferrofluid-cooled soft dome high-frequency driver. These components are housed in a UV and weather-resistant UL 94-V0 and 94-5VB ABS front, complemented by a plated steel fire can enclosure. The loudspeaker is protected by a stylish powder-coated aluminum mesh grille, ensuring dust resistance and aesthetic appeal. The mineral-loaded polypropylene cone and butyl rubber surround contribute to the speaker's durability and long-term reliability, making it a sound investment for any installation.

The CVS 801 comes with a comprehensive installation package, including an integral zinc-plated steel back can with a recessed termination box, designed to meet the majority of installation needs. Its semi-matt white finish allows it to blend seamlessly into any environment. The removable locking connector features screw terminals for secure wire termination and a "loop through" facility, while a steel cover and strain relief clamping mechanism accommodate fire-rated cabling. Installation is made easy with security toggle clamps, two tile support rails, and one C-ring included in the package. For added convenience, a plaster (mud) ring is available as an optional accessory.

Enhancing its versatility, the CVS 801 is equipped with a custom-designed low insertion loss 60 W line transformer and an easily accessible tapping switch, ensuring pristine audio performance across various applications. Choose the CVS 801 for a reliable, high-quality audio solution that prioritizes both sound excellence and safety.

Tannoy CVS Features

  • Coaxial full range ceiling loudspeaker for installation applications
  • 90 Watts continuous, 360 Watts peak power
  • 8" polypropylene driver with butyl rubber surround for enhanced durability and long-term reliability
  • 1" ferrofluid cooled soft dome high frequency driver
  • Wide constant directivity dispersion for optimum coverage
  • EN54-24:2008 certified Type A
  • UL 1480 certified for fire-protected signalling systems
  • UL 2043 certified for air-handling spaces
  • UV and weather resistant UL 94-V0 and 94-5VB ABS front with plated steel fire can enclosure
  • Powder coated aluminium mesh grille with dust protection
  • Multiple transformer taps for 70 V and 100 V line systems or 8 Ohm direct input
  • Low insertion loss 60 W line transformer with easily accessible tapping switch
  • Semi matt white finish fits unobtrusively in any environment
  • Mounting C-ring and ceiling tile rails included
  • Steel cover and strain relief clamping mechanism for fire rated cable
  • Designed and engineered in the U.K.

Key Features

  • Experience superior audio with Tannoy CVS 801 in-ceiling speakers, perfect for any setting.
  • Enjoy wide sound dispersion with a 100-degree coverage angle for immersive audio quality.
  • The 8" coaxial speaker delivers exceptional clarity and powerful bass for rich soundscapes.
  • Install easily with included C-ring and tile-bridge, ideal for commercial audio setups.
  • Durable build with steel back can ensures long-lasting performance and reliability.
  • Certified EN 54-24, these speakers meet stringent safety standards for peace of mind.

What's in the box:

  • 2x CVS 801 8 " Coaxial In-Ceiling Loudspeaker (White)
  • Metal Grille
  • Cable Gland
  • Flex Conduit
  • C-Ring
  • Tile-Bridge Kit
  • Paint Mask
  • Cutout Template
  • Tannoy 10 Year Warranty with Registration
