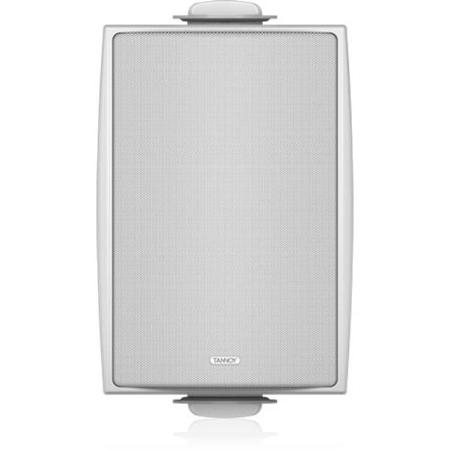

Tannoy DVS 8T 8 280W Coaxial Surface-Mount Loudspeaker with Transformer for Install Applications White (Pair)

SKU: TANDVS8TWH

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Tannoy DVS 8T Specifications

Application

Application

Jump to...
  • Application

    Indoor and outdoor commercial, professional and residential installations
    High level stereo or monaural background or foreground music and speech paging systems
    Theme parks
    Theme bars
    Reception / waiting rooms
    Airports, convention centers and hotels
    Business music systems
    Boardrooms and offices
    Retail outlets and shopping malls
    Restaurants and cafes
    Corporate audio visual
    Residential developments

Performance

Jump to...
  • Frequency Response (-3dB)

    75Hz - 20kHz

  • Frequency Range (-10dB)

    60Hz - 30kHz

  • System Sensitivity (1W at 1m)

    90dB

  • Dispersion (-6dB)

    80 degrees conical

  • Directivity Factor (Q)

    12.3 averaged 1kHz to 10kHz

  • Directivity Index (DI)

    10.0 averaged 1kHz to 10kHz

  • Power Handling

    Average: 70 W
    Programme: 140 W
    Peak: 280 W

  • Recommended Amplifier Power

    140W at 6 Ohms

  • Nominal Impedance

    6 Ohms

  • Rated Maximum SPL (1 m, Lo Z)

    108dB (average)
    114dB (peak)

  • Crossover

    3.4kHz - 2nd order LF, 1st order HF

Distortion

Jump to...
  • Distortion at 10% Full Power (6.48V)

    At 250 Hz:
    2nd Harmonics: 0.891%
    3rd Harmonics: 0.217%

    At 1 kHz:
    2nd Harmonics: 0.235%
    3rd Harmonics: 0.643%

    At 10 kHz:
    2nd Harmonics: 0.666%
    3rd Harmonics: 0.093%

  • Distortion at 1% Full Power (2.05V)

    At 250 Hz:
    2nd Harmonics: 0.236%
    3rd Harmonics: 0.192%

    At 1 kHz:
    2nd Harmonics: 0.051%
    3rd Harmonics: 0.409%

    At 10 kHz:
    2nd Harmonics: 0.217%
    3rd Harmonics: 0.081%

Transducers

Jump to...
  • Low Frequency

    Coaxial 200mm (8.0") mineral loaded cone material

  • High Frequency

    19mm (0.75")

Physical

Jump to...
  • Enclosure

    ABS

  • Grille

    Steel, plated and painted

  • Connectors

    Euroblock type removable locking connector with screw terminals with "loop through" facility

  • Transformer setting

    Rotary switch

Transformer

Jump to...
  • Transformer Taps (front rotary switch)

    70 V: 60 W (83 Ohms) / 30 W (165 Ohms) / 15 W (330 Ohms) / 7.5 W (660 Ohms) / OFF & low impedance operation
    100 V: 60 W (165 Ohms) / 30 W (330 Ohms) / 15 W (660 Ohms) / OFF & low impedance operation

  • Maximum wire gauge for connector

    2.5 mm2 CSA (AWG12)

  • Safety Agency Ratings

    UL-1480, CE

General

Jump to...
  • Dimensions (HxWxD)

    451.8 x 290.0 x 296.0mm (17.79 x 11.42 x 11.65")

  • Weight

    13.88 lbs (6.30kg)

About Tannoy DVS 8T

Designed to excel in a wide variety of sound reinforcement applications, the full range DVS 8T-WH is an ultra-compact 280-Watt surface mount loudspeaker that provides both exceptional value and inspiring acoustic performance. The DVS 8T-WH is ideally suited for stereo or mono background/foreground music applications in theme parks, hotels, restaurants and bars, retail stores, as well as corporate AV, residential developments and houses of worship.

Superb Point-Source Performance
DVS 8T-WH's point-source design comprises a 200 mm (8.00") mid bass driver with a coaxially mounted 19 mm (0.75") high frequency section mounted in a stylish injection moulded ABS enclosure. Certified for water and dust ingress protection to IP64 standard, the DVS 8T-WH is an exceptional choice for challenging environments such as indoor swimming pools, saunas or work areas with unusually high levels of dust or moisture and outdoor applications where weather conditions are moderate.

Attractive and Easy to Install
The highly durable and scuff resistant ABS enclosure features a white painted finish and comes with an aesthetically pleasing aluminum grille. Installation is quick and easy, thanks to the included color-matched steel mounting bracket and finger-adjustable hardware on the enclosure top and bottom. The DVS 8T-WH is equipped with an internally mounted low insertion loss line transformer for 70 V or 100 V distributed sound applications. Wattage taps are configurable over a range of settings via a rotary tapping switch located on the back panel. Phoenix connectors for input and link output are provided for convenience.

Tannoy DVS 8T Features

  • Full range surface-mount loudspeaker for indoor and outdoor installation applications
  • 70 Watts continuous, 280 Watts peak power
  • 8" mineral loaded polypropylene driver with nitrile rubber surround for enhanced durability and long-term reliability
  • 0.75" Ferro fluid cooled soft dome neodymium high frequency driver
  • 80 deg. constant directivity dispersion for optimum coverage
  • UL 1480 certified for general signaling systems
  • UV and weather resistant UL 94 V-0 ABS enclosure
  • Multiple transformer taps for 70 V and 100 V line systems
  • Low insertion loss 60 W line transformer with easily accessible tapping switch
  • All components weather resistant to IP64 for outdoor use
  • Stylish durable enclosure in a semi matt white paint finish fits unobtrusively in any environment
  • Painted perforated aluminum mesh grille with dust protection
  • Yoke bracket included for ease of installation
  • Phoenix connectors input and link output

What's in the box:

  • Tannoy DVS 8T 8 " 280W Coaxial Surface-Mount Loudspeaker with Transformer
  • Yoke Bracket
  • Dinkle Seal
  • Rubber Cable Connection Gland
  • Removable Locking Connector with Screw Terminals
  • Tannoy 10 Year Warranty with Registration
